52559-2890 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 52559-2890

52559-2890: DescriptionCard Edge Connector, 28 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size788KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

52559-2890 Overview

Card Edge Connector, 28 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

52559-2890 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	ZIF, STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	ZIF N
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	28
UL Flammability Code	94V-0

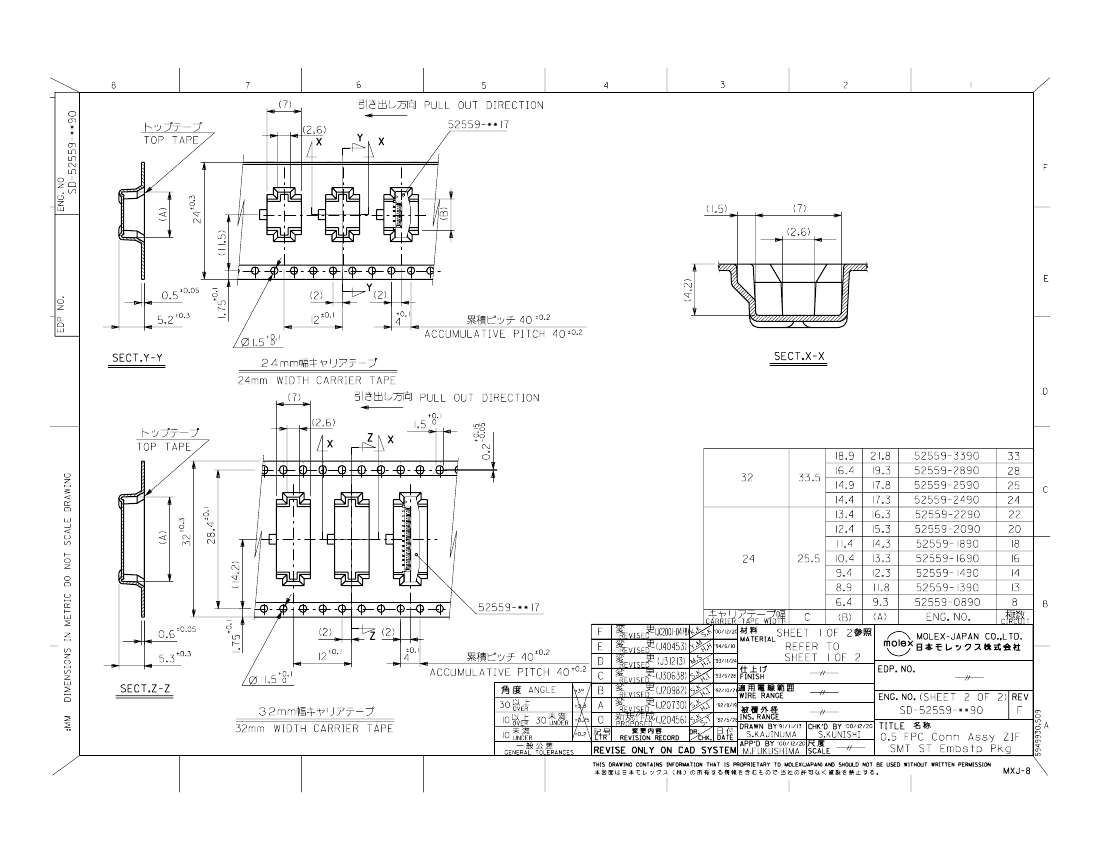

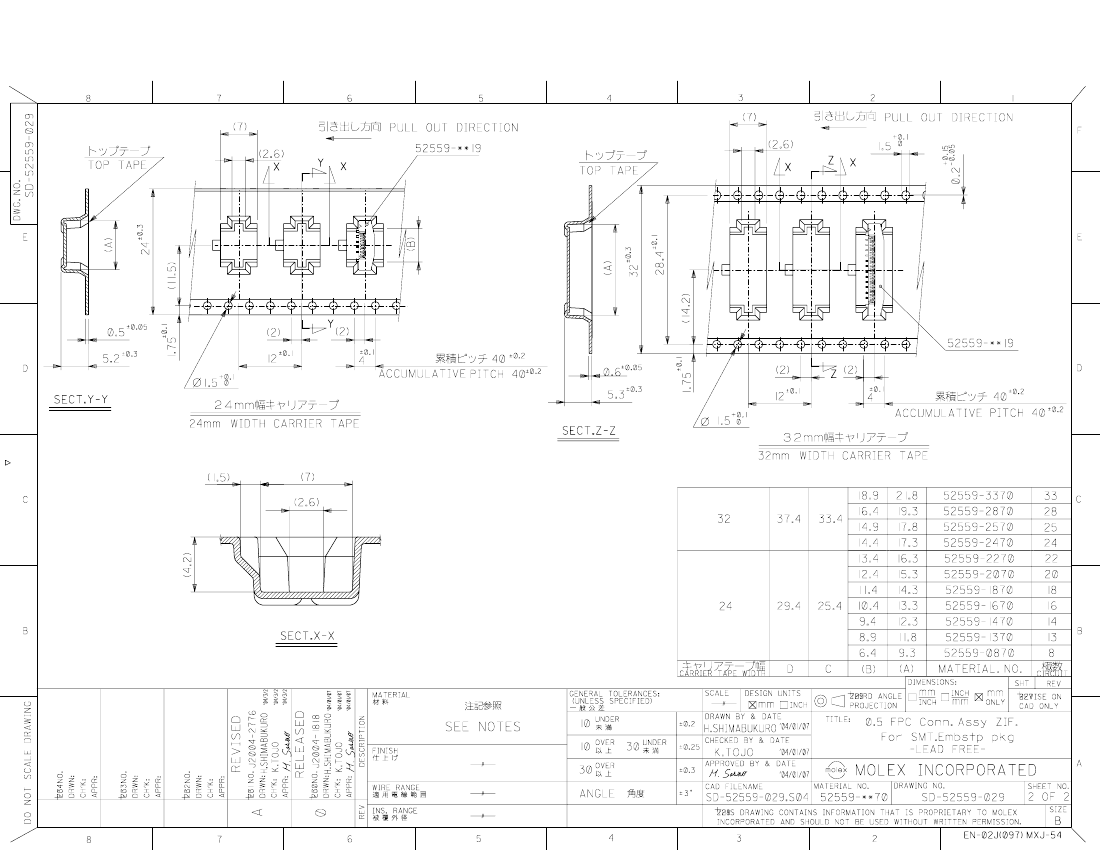

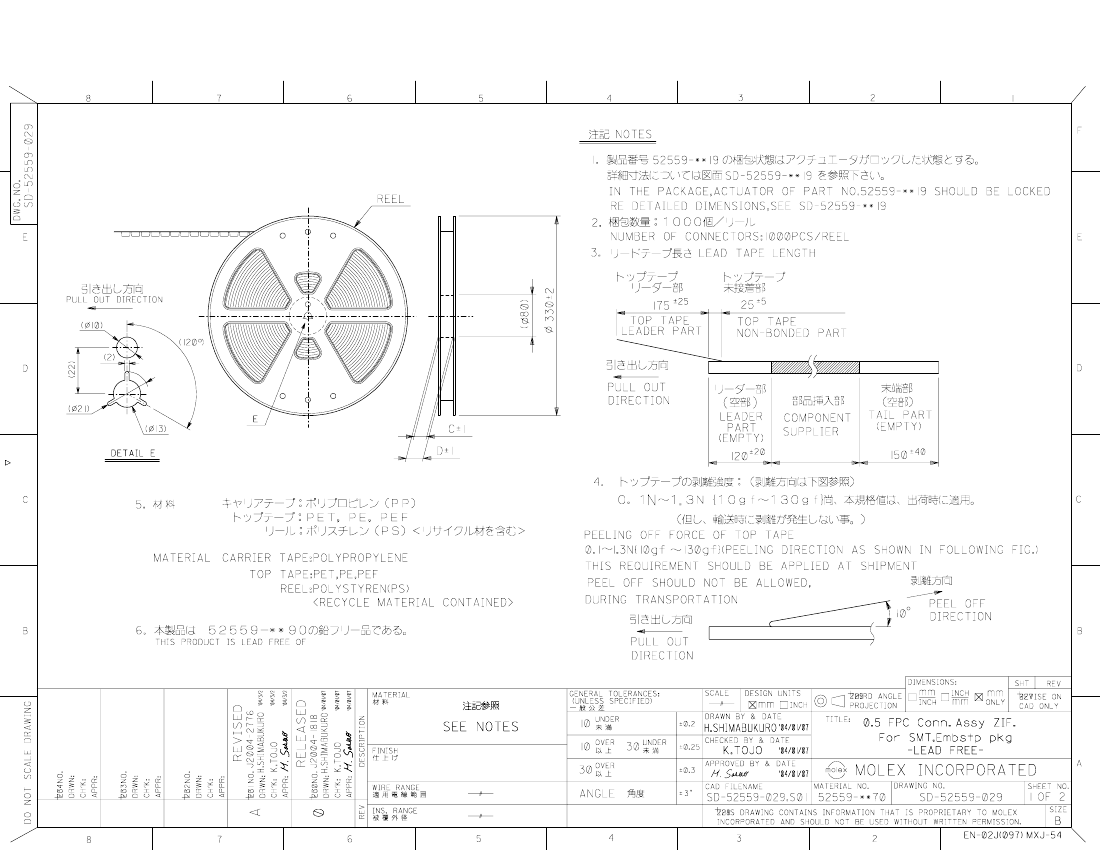

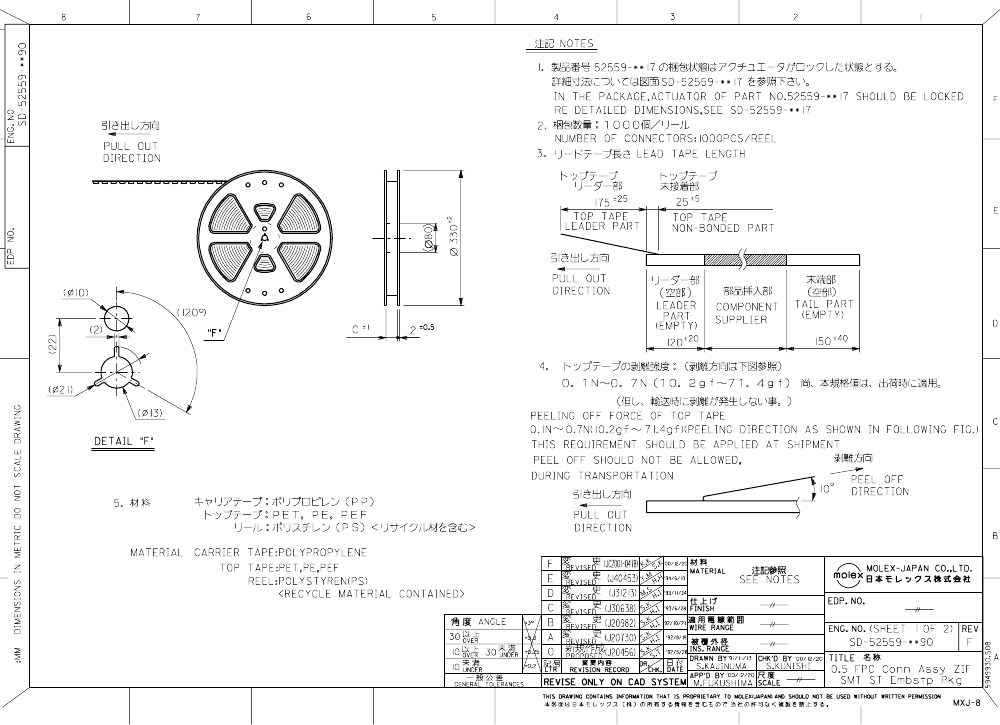

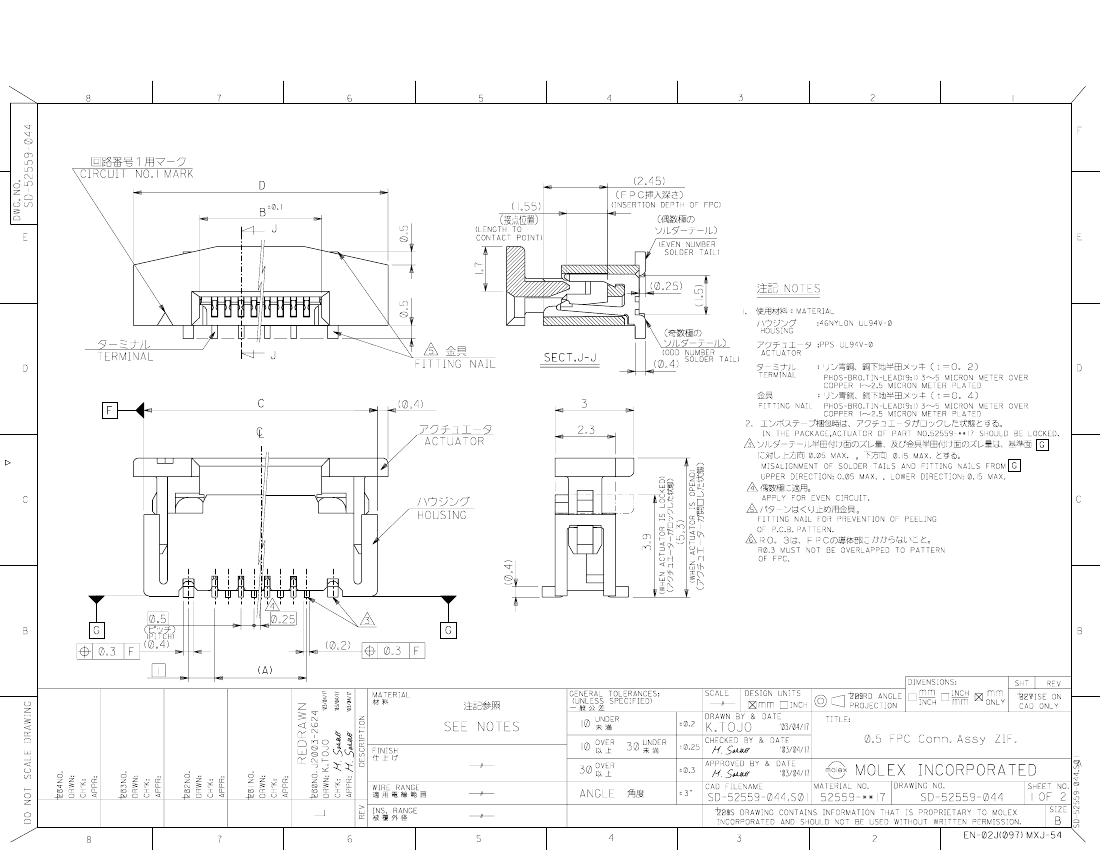

Preview

Download Datasheet

View All

52559-2890 Related Products

	52559-2890	0525591370	0525590870	0525591870	0525592070	0525592570	0525591670	52559-2490	52559-2470	52559-3390
Description	Card Edge Connector, 28 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 13 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, LEAD FREE	Card Edge Connector, 33 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	unknown	compliant	compliant
Other features	ZIF, STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	STAGGERED CONFIGURATION	ZIF, STAGGERED CONFIGURATION	ROHS, ELV COMPL & EMBOSSED PKG	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	0.5 mm	0.5 mm	1 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	28	13	8	18	20	25	16	24	24	33
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
maximum insertion force	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	-
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to	incompatible	conform to	incompatible
package instruction	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	-	LEAD FREE	-
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Board mount options	-	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	-	FITTING NAIL	-
body width	-	0.091 inch	0.091 inch	0.091 inch	0.091 inch	0.091 inch	0.091 inch	-	0.091 inch	-
subject depth	-	0.154 inch	0.154 inch	0.154 inch	0.154 inch	0.154 inch	0.154 inch	-	0.154 inch	-
Contact to complete cooperation	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Contact resistance	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-	20 mΩ	-
Contact style	-	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	SINGLE PRONG	-	SINGLE PRONG	-
Dielectric withstand voltage	-	350VAC V	350VAC V	350VAC V	350VAC V	350VAC V	350VAC V	-	250VAC V	-
Durability	-	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	20 Cycles	-	20 Cycles	-
Insulation resistance	-	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	-	50000000 Ω	-
insulator material	-	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	-	NYLON	-
Plug contact pitch	-	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	0.02 inch	-	0.02 inch	-
Installation option 1	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	LOCKING	-
PCB row number	-	2	2	2	2	2	2	-	2	-
Maximum operating temperature	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-	85 °C	-
Minimum operating temperature	-	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-	-20 °C	-
PCB contact pattern	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	-	STAGGERED	-
PCB contact row spacing	-	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	2.794 mm	-	2.794 mm	-
Rated current (signal)	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	-	0.5 A	-
Guideline	-	UL	UL	UL	UL	UL	UL	-	UL	-
reliability	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Evacuation force-minimum value	-	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	ZIF N	-	ZIF N	-
