53364-1219 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53364-1219

53364-1219: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE; CategoryThe connector The connector; File Size109KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

53364-1219 Overview

Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE

53364-1219 Parametric

Parameter Name	Attribute value
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.161 inch
subject depth	0.203 inch
body length	0.26 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
DIN compliance	NO
Dielectric withstand voltage	700VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	53364
Plug contact pitch	0.031 inch
Match contact row spacing	0.092 inch
Plug information	52465
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	40u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0

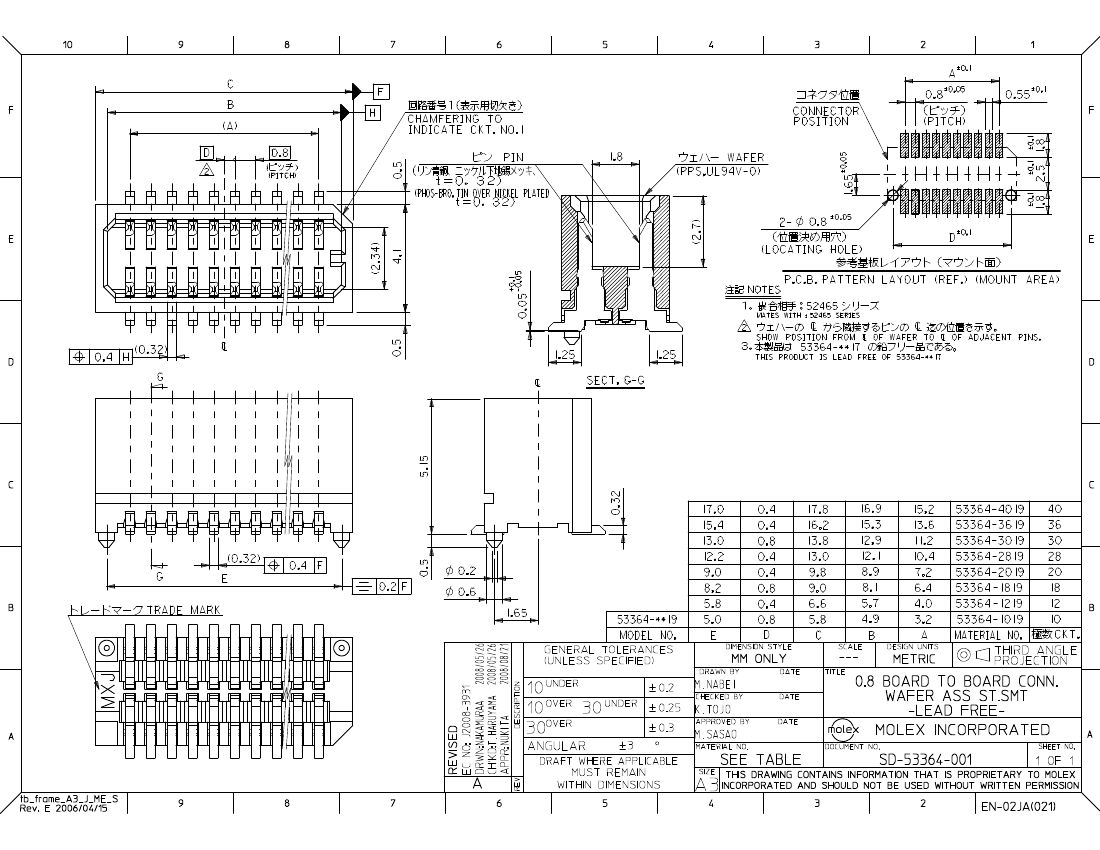

Preview

Download Datasheet

View All

53364-1219 Related Products

	53364-1219	53364-4019	53364-1019	53364-1819	53364-2819	53364-3019	53364-3619	53364-2019
Description	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 40 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 30 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE	Board Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.031 inch Pitch, Surface Mount Terminal, Locking, LEAD FREE
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
package instruction	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Board mount options	PEG	PEG	PEG	PEG	PEG	PEG	PEG	PEG
body width	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch
subject depth	0.203 inch	0.203 inch	0.203 inch	0.203 inch	0.203 inch	0.203 inch	0.203 inch	0.203 inch
body length	0.26 inch	0.701 inch	0.228 inch	0.354 inch	0.512 inch	0.543 inch	0.638 inch	0.386 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V	700VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	53364	53364	53364	53364	53364	53364	53364	53364
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Match contact row spacing	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch
Plug information	52465	52465	52465	52465	52465	52465	52465	52465
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm
Plating thickness	40u inch	40u inch	40u inch	40u inch	40u inch	40u inch	40u inch	40u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	40	10	18	28	30	36	20
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
