54557-1200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 54557-1200

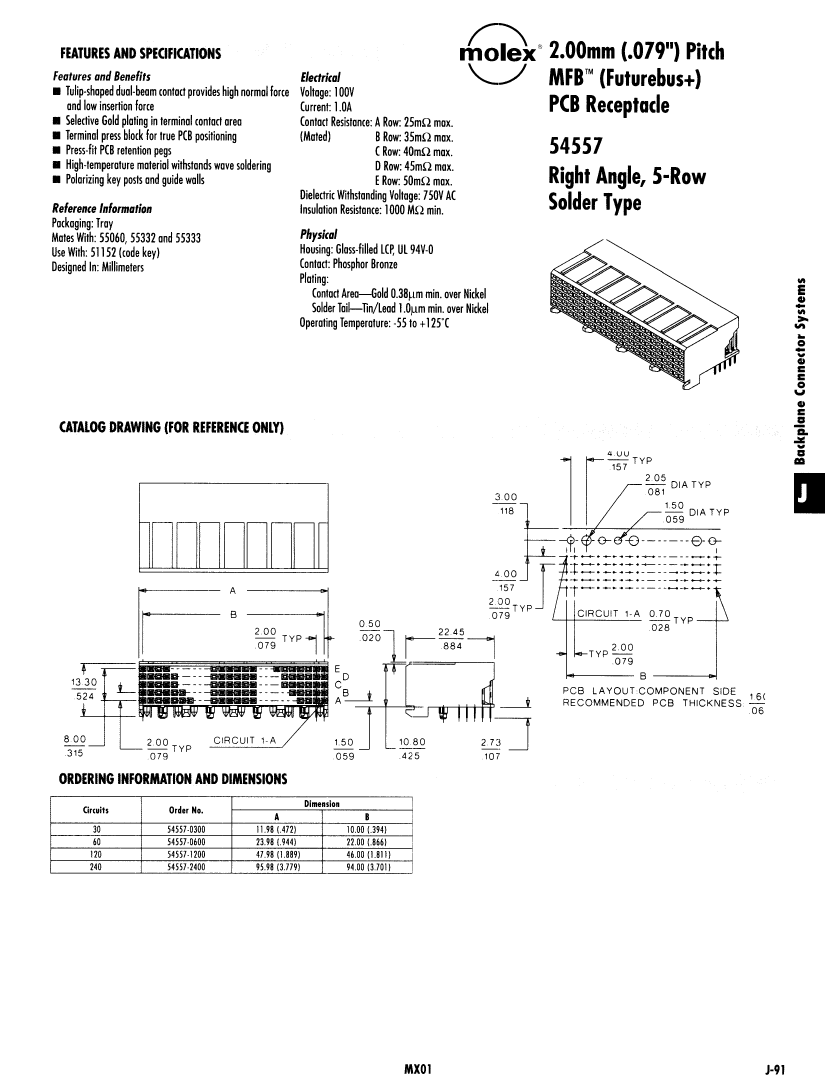

54557-1200: DescriptionBoard Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54557-1200 Overview

Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle

54557-1200 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MFB, POLARIZED
Board mount options	POLARIZATION POST
body width	0.543 inch
subject depth	0.884 inch
body length	1.889 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	DUAL PRONG
DIN compliance	NO
Dielectric withstand voltage	750VDC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Manufacturer's serial number	54557
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.107 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	120
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

54557-1200 Related Products

	54557-1200	54557-0300	54557-2400	54557-0600
Description	Board Connector, 120 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle	Board Connector, 30 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle	Board Connector, 240 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle	Board Connector, 60 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Solder Terminal, White Insulator, Receptacle
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	MFB, POLARIZED	MFB, POLARIZED	MFB, POLARIZED	MFB, POLARIZED
Board mount options	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST	POLARIZATION POST
body width	0.543 inch	0.543 inch	0.543 inch	0.543 inch
subject depth	0.884 inch	0.884 inch	0.884 inch	0.884 inch
body length	1.889 inch	0.472 inch	3.779 inch	0.944 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	50 mΩ	50 mΩ	50 mΩ	50 mΩ
Contact style	DUAL PRONG	DUAL PRONG	DUAL PRONG	DUAL PRONG
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	750VDC V	750VDC V	750VDC V	750VDC V
Durability	250 Cycles	250 Cycles	250 Cycles	250 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.973 N	.973 N	.973 N	.973 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	WHITE	WHITE	WHITE	WHITE
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	54557	54557	54557	54557
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	5	5	5	5
Number of rows loaded	5	5	5	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Plating thickness	15u inch	15u inch	15u inch	15u inch
polarization key	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY	POLARIZED KEY
Rated current (signal)	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.107 inch	0.107 inch	0.107 inch	0.107 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	120	30	240	60
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.139 N	.139 N	.139 N	.139 N
