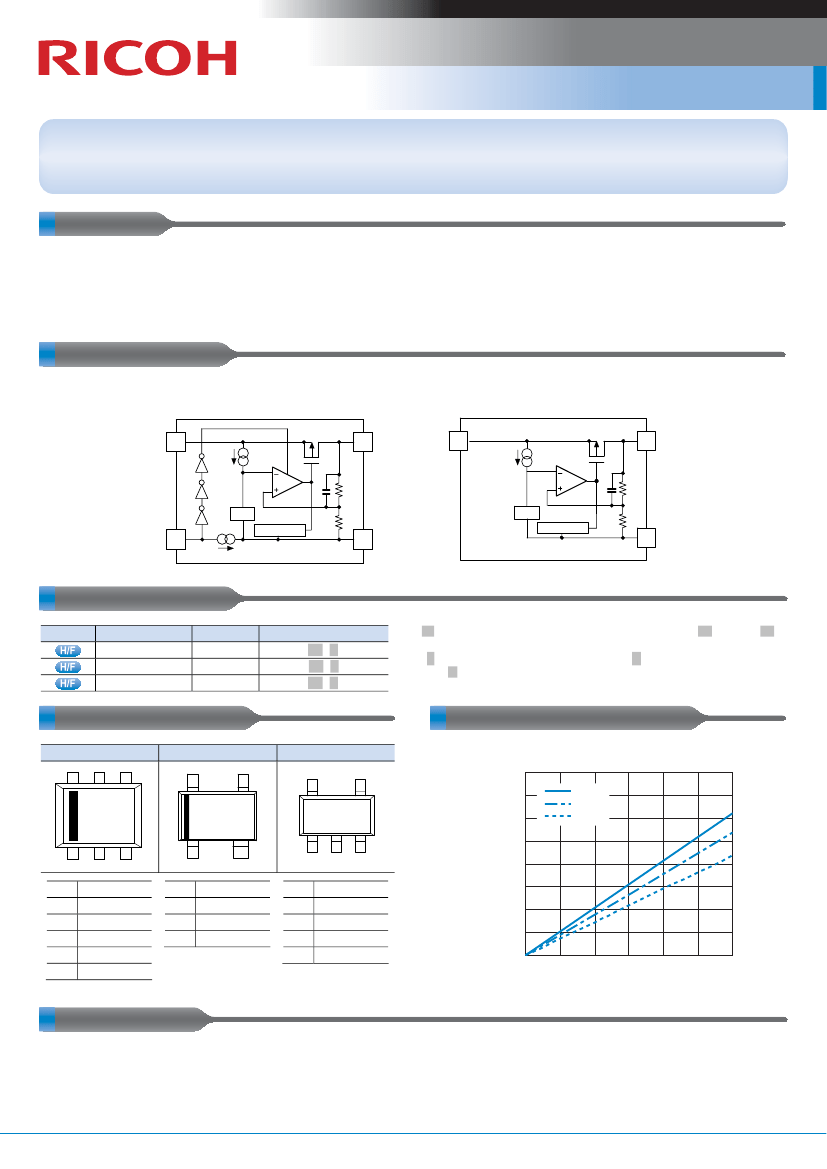

R1180x Series
Low Supply Current 150mA LDO
The R1180x Series are CMOS-based LDO regulators featuring 150mA output. R1180x’s typical low supply current of 1μA makes it
ideal for use in power supplies systems with the sleep mode on. The version that reduced supply current to the lowest possible level
by eliminating the CE pin is also available. Ceramic capacitors can be used.
∗)
R1180N Series are suitable for automotive applications too. Please refer to our "Car Electronics Products Catalog" or contact us.
FEATURES
•
Supply Current (I
SS
) ························ Typ. 1μA (V
IN
=V
SET
+1.0V)
•
Standby Current (I
standby
) ················· Typ. 0.1μA (Same as above, CE="L", Except for C Version)
•
Dropout Voltage (V
DIF
) ···················· Typ. 0.25V (I
OUT
=150mA, V
SET
=2.8V)
•
Input Voltage Range (V
IN
) ··············· 1.7V to 6.0V
•
Output Voltage Range (V
OUT
)·········· 1.2V to 3.6V (Internally fixed)
•
Output Voltage Accuracy ················± 2%
•
Temp. coeff. of Output Voltage ·······Typ.
±
100ppm/°C
•
Line Regulation·······························Typ. 0.05%/V
•
Fold-back Protection Circuit············Current limit Typ. 40mA
•
Packages ········································SON1612-6, SC-82AB,
•
SOT-23-5
Ceramic capacitors can be used. ···0.1μF or more
BLOCK DIAGRAMS
R1180xxx1B
(CE pin "H" active)
R1180xxx1C
(Without CE pin)
V
DD
V
OUT
V
DD
V
OUT
Vref
Vref
CE
Current Limit
Current Limit
GND
GND
SELECTION GUIDES
Halogen Free
Package
SON1612-6
SC-82AB
SOT-23-5
Q'ty per Reel
Part No.
4,000 pcs R1180D.xx.1.
∗
-TR-FE
3,000 pcs R1180Q.xx.1.
∗
-TR-FE
3,000 pcs R1180N.xx.1.
∗
-TR-FE
.xx.
: Specify the output voltage within the range of 1.2V (.12.) to 3.6V (.36.)
in 0.1V steps.
.∗
: Select the polarity of the CE pin from (.B.) "H" active or
(.C.) without CE pin.
PACKAGES (Top View)
SON1612-6
6
5
4
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
SC-82AB
4
3
R1180x281x
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
0
Dropout Voltage vs. Output Current
85°C
25°C
-40°C
1
2
3
1
2
3
1
2
1
2
3
4
5
6
V
DD
GND
V
OUT
NC
GND
CE or NC
1
2
3
4
CE or NC
GND
V
OUT
V
DD
1
2
3
4
5
V
DD
GND
CE or NC
NC
V
OUT
Dropout Voltage V
DIF
(V)
25
50
75
100 125
Output Current I
OUT
(mA)
150
APPLICATIONS
•
Power source for hand-held communication equipment, cameras, and VCRs
•
Power source for home appliances
•
Power source for battery-powered equipment
•
Power source for automotive application
