ASTC-03-4T

Description
Data Line Filter, 2 Function(s), 2A, ROHS COMPLIANT PACKAGE-4
CategoryAnalog mixed-signal IC    filter
File Size146KB，1 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

ASTC-03-4T Overview

Data Line Filter, 2 Function(s), 2A, ROHS COMPLIANT PACKAGE-4

ASTC-03-4T Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAbracon
Reach Compliance Codecompliant
ECCN codeEAR99
Is SamacsysN
Other featuresBOX
Maximum DC resistance0.04 Ω
filter typeDATA LINE FILTER
high4.7 mm
inductance8.1 µH
length11.43 mm
Installation typeSURFACE MOUNT
Number of functions2
method of packingTAPE AND REEL
physical sizeL11.43XB8.89XH4.7 (mm)/L0.45XB0.35XH0.185 (inch)
Rated current2 A
width8.89 mm
Base Number Matches1

Preview

Download Datasheet

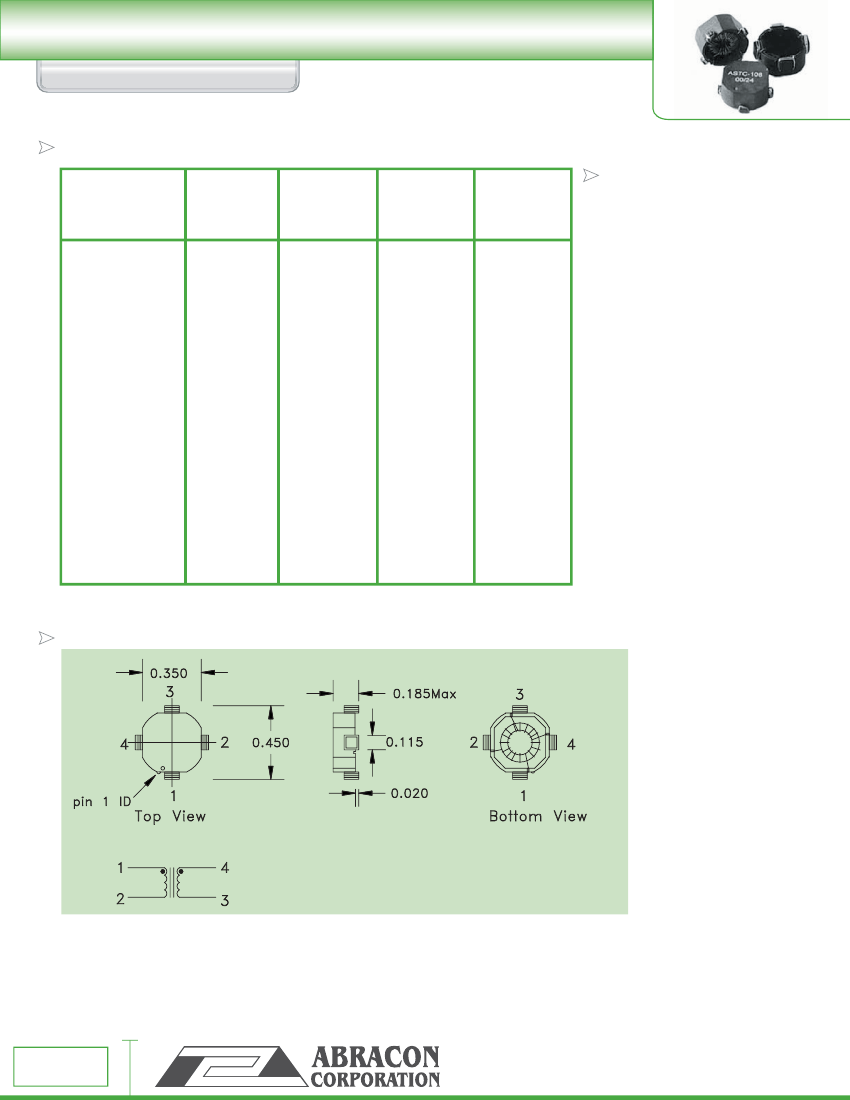

SMT TOROID INDUCTOR
ASTC-03 SERIES
| | | | | | | | | | | | | | |
STANDARD SPECIFICATIONS:
Part
Number
ASTC-03-R47
ASTC-03-R68
ASTC-03-1
ASTC-03-2
ASTC-03-3
ASTC-03-4
ASTC-03-5
ASTC-03-6
ASTC-03-7
ASTC-03-8
ASTC-03-9
ASTC-03-10
ASTC-03-11
ASTC-03-12
ASTC-03-13
ASTC-03-14
ASTC-03-15
L (µH)
± 20%
0.40
0.63
0.90
2.03
4.90
8.10
10.00
14.40
19.60
25.60
32.40
50.63
67.60
99.23
148.23
202.50
302.50
Full load
Inductance
(µH) Min
0.26
0.41
0.56
1.00
2.66
4.08
4.85
8.47
11.54
16.35
19.84
29.34
39.73
58.72
85.16
107.60
191.38
DCR Max
Parallel
(m
Ω
)
5
6
7
11
31
40
44
80
146
167
293
366
517
785
966
1142
1432
DC Bias
Parallel
(A)
5.50
4.50
4.20
4.10
2.30
2.00
1.90
1.10
1.00
0.74
0.72
0.64
0.54
0.44
0.38
0.37
0.22
TECHNICAL INFORMATION:
• T for Tape & Reel
RoHS compliance effective 0526,
label on reel and box
PHYSICAL CHARACTERISTICS:
Dimension: inch
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
rev1.1-9/06
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
