ASTC-12-560-1.65-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> ASTC-12-560-1.65-T

ASTC-12-560-1.65-T: DescriptionGeneral Purpose Inductor, 56uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size203KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ASTC-12-560-1.65-T Overview

General Purpose Inductor, 56uH, 20%, 1 Element, SMD, ROHS COMPLIANT

ASTC-12-560-1.65-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.141 Ω
Nominal inductance(L)	56 µH
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASTC-12
Number of functions	1
Number of terminals	4
Maximum rated current	1.65 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal location	ON CIRCLE
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

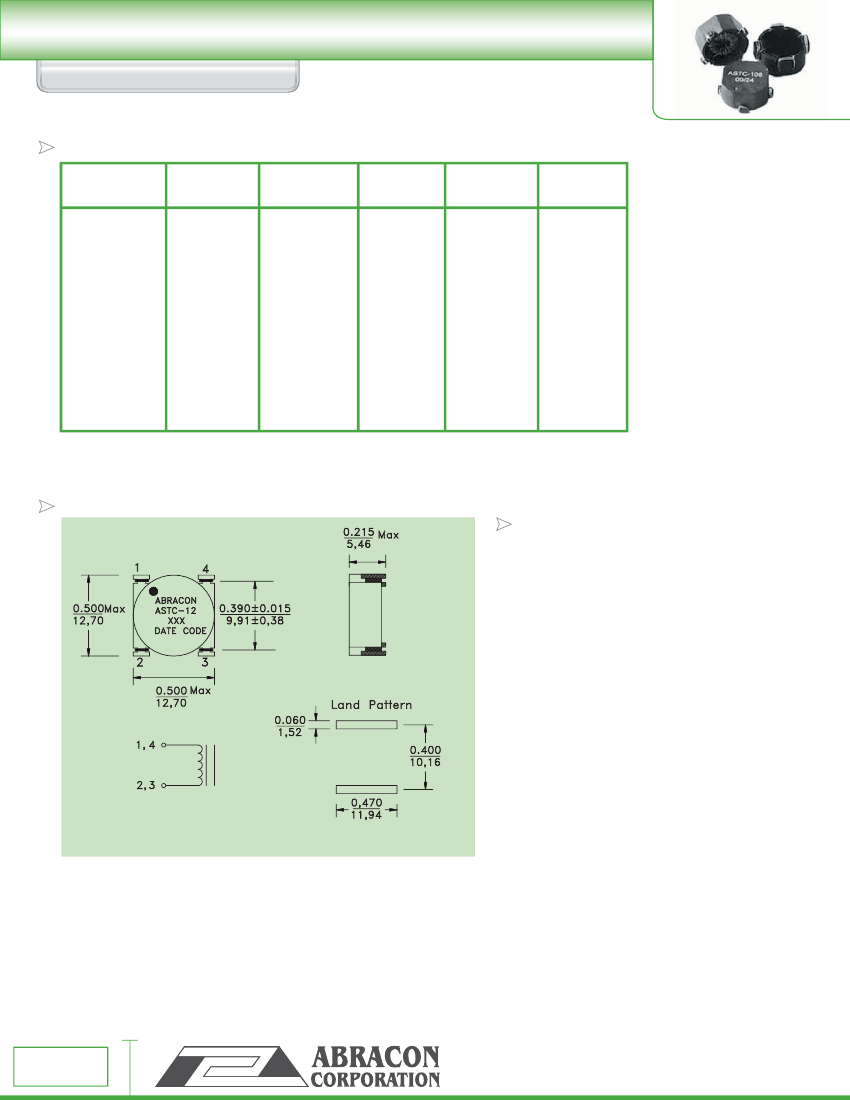

SMT TOROID CHOKE

ASTC-12 SERIES

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

P/N

ASTC-12-

10R4-3.8

14R6-3.13

250-2.43

560-1.65

830-1.35

101-1.23

151-0.99

221-0.81

331-0.65

471-0.53

µH±20%

10.4

14.6

100

152

220

331

472

DCR

Ω

Max

141

213

288

445

668

1026

1530

DC Bias

3.8

3.13

2.43

1.65

1.35

1.23

0.99

0.81

0.65

0.53

L w/ Bias

µH±20%

9.4

13.3

137

200

305

439

ET Min

V-µsec

15.2

18.8

24.3

37.0

44.3

49.2

59.4

71.3

85.8

99.6

PHYSICAL CHARACTERISTICS:

TECHNICAL INFORMATION:

• Testing frequency: 100KHz, 0.1VRMS

• Add -T for Tape and Reel

RoHS compliance effective 0527,

label on reel and box

Dimension: inch

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-9/06

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

ASTC-12-560-1.65-T Related Products

	ASTC-12-560-1.65-T	ASTC-12-221-0.81-T	ASTC-12-471-0.53-T	ASTC-12-250-2.43-T	ASTC-12-331-0.65-T	ASTC-12-830-1.35-T	ASTC-12-14R6-3.13-T	ASTC-12-151-0.99-T	ASTC-12-10R4-3.8-T	ASTC-12-101-1.23-T
Description	General Purpose Inductor, 56uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 220uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 472uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 25uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 331uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 83uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 14.6uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 152uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 10.4uH, 20%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 100uH, 20%, 1 Element, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
DC Resistance	0.141 Ω	0.668 Ω	1.53 Ω	0.074 Ω	1.026 Ω	0.213 Ω	0.045 Ω	0.445 Ω	0.031 Ω	0.288 Ω
Nominal inductance(L)	56 µH	220 µH	472 µH	25 µH	331 µH	83 µH	14.6 µH	152 µH	10.4 µH	100 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12	ASTC-12
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum rated current	1.65 A	0.81 A	0.53 A	2.43 A	0.65 A	1.35 A	3.13 A	0.99 A	3.8 A	1.23 A
Shape/Size Description	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE	ON CIRCLE
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	Abracon	-	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon
Base Number Matches	1	1	1	1	1	1	-	-	-	-
