Datasheet> All Categories > Discrete semiconductor> diode> MMD-0153

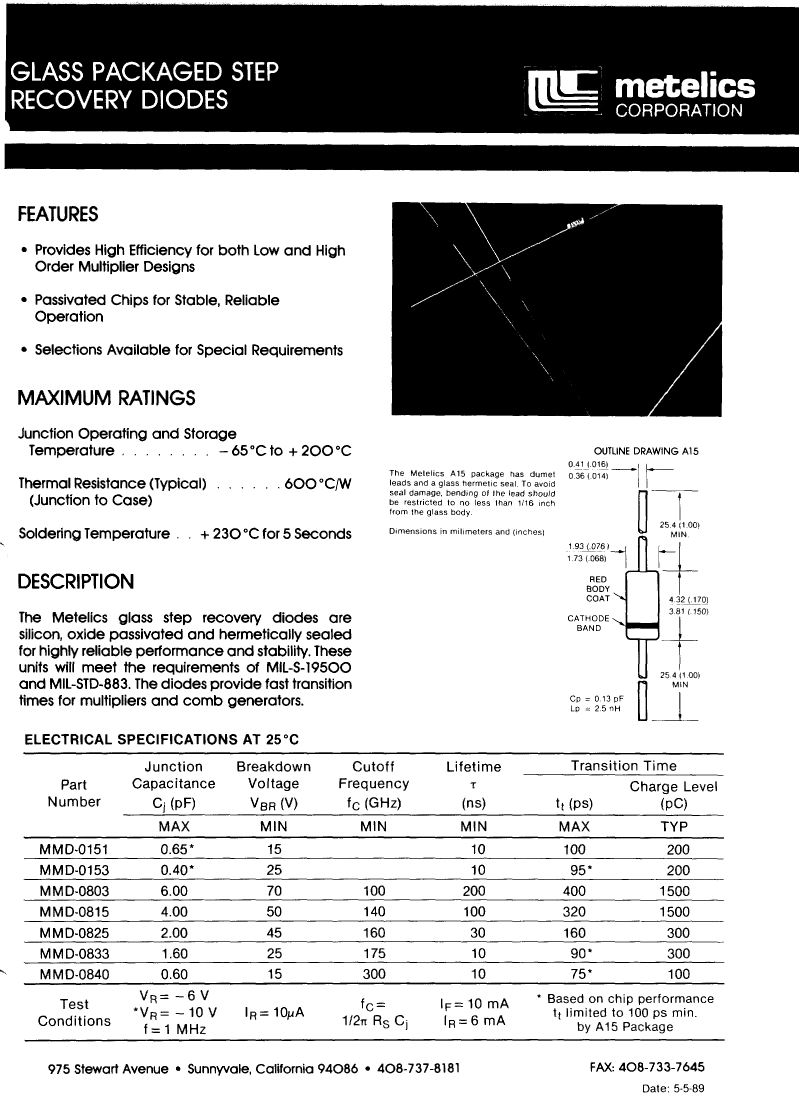

Preview

MMD-0153: DescriptionSILICON, STEP RECOVERY DIODE; CategoryDiscrete semiconductor diode; File Size59KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric Compare View All

MMD-0153 Overview

SILICON, STEP RECOVERY DIODE

MMD-0153 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Cobham Semiconductor Solutions
Reach Compliance Code	unknown
Is Samacsys	N
application	COMB GENERATOR; FREQUENCY MULTIPLIER
Minimum breakdown voltage	25 V
Shell connection	ISOLATED
Configuration	SINGLE
Maximum diode capacitance	0.4 pF
Diode component materials	SILICON
Diode type	STEP RECOVERY DIODE
JESD-30 code	O-LALF-W2
JESD-609 code	e4
Humidity sensitivity level	NOT SPECIFIED
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Minimum operating temperature	-65 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Terminal surface	GOLD
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

MMD-0153 Related Products

	MMD-0153	MMD-0151	MMD-0803	MMD-0815	MMD-0825	MMD-0840	MMD-0833
Description	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE	SILICON, STEP RECOVERY DIODE
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER	COMB GENERATOR; FREQUENCY MULTIPLIER
Minimum breakdown voltage	25 V	15 V	70 V	50 V	45 V	15 V	25 V
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum diode capacitance	0.4 pF	0.65 pF	6 pF	4 pF	2 pF	0.6 pF	1.6 pF
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	STEP RECOVERY DIODE	STEP RECOVERY DIODE	STEP RECOVERY DIODE	STEP RECOVERY DIODE	STEP RECOVERY DIODE	STEP RECOVERY DIODE	STEP RECOVERY DIODE
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
Humidity sensitivity level	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO
Terminal surface	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	-	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions	Cobham Semiconductor Solutions
Base Number Matches	1	1	1	1	-	-	-
package instruction	-	-	O-LALF-W2	-	O-LALF-W2	O-LALF-W2	O-LALF-W2
minimum cutoff frequency	-	-	100 MHz	140 MHz	160 MHz	300 MHz	175 MHz
