311XBXP240VAC: DescriptionPOWER/SIGNAL RELAY, DPDT, MOMENTARY, 4900mW (COIL), 5A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT; CategoryMechanical and electronic products relay; File Size146KB，3 Pages; ManufacturerStruthers-Dunn

Download Datasheet Parametric View All

311XBXP240VAC Overview

POWER/SIGNAL RELAY, DPDT, MOMENTARY, 4900mW (COIL), 5A (CONTACT), 28VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT

311XBXP240VAC Parametric

Parameter Name	Attribute value
Maker	Struthers-Dunn
Reach Compliance Code	unknown
Is Samacsys	N
Other features	COIL OPERATE VOLTAGE(AC): 204 V, COIL RELEASE VOLTAGE(AC): 24 V
body width	36.7 mm
body height	66.7 mm
Body length or diameter	66.8 mm
Coil current (AC) maximum value	0.02 A
Coil power	4900 mW
Coil resistance	1815 Ω
Maximum coil voltage (AC)	240 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	5A@240VAC
Maximum contact current (AC)	5 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	311
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	35 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-20 °C
physical size	66.8mm X 36.7mm X 66.7mm
Guideline	UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	35 ms
surface mount	NO
Terminal surface	NOT SPECIFIED
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Struthers-Dunn

407 East Smith Street - Suite B

Timmonsville, South Carolina

29161

Telephone: (843)346-4427 Fax: (843)662-8862

Email: info@struthers-dunn.com Website: www.struthers-dunn.com

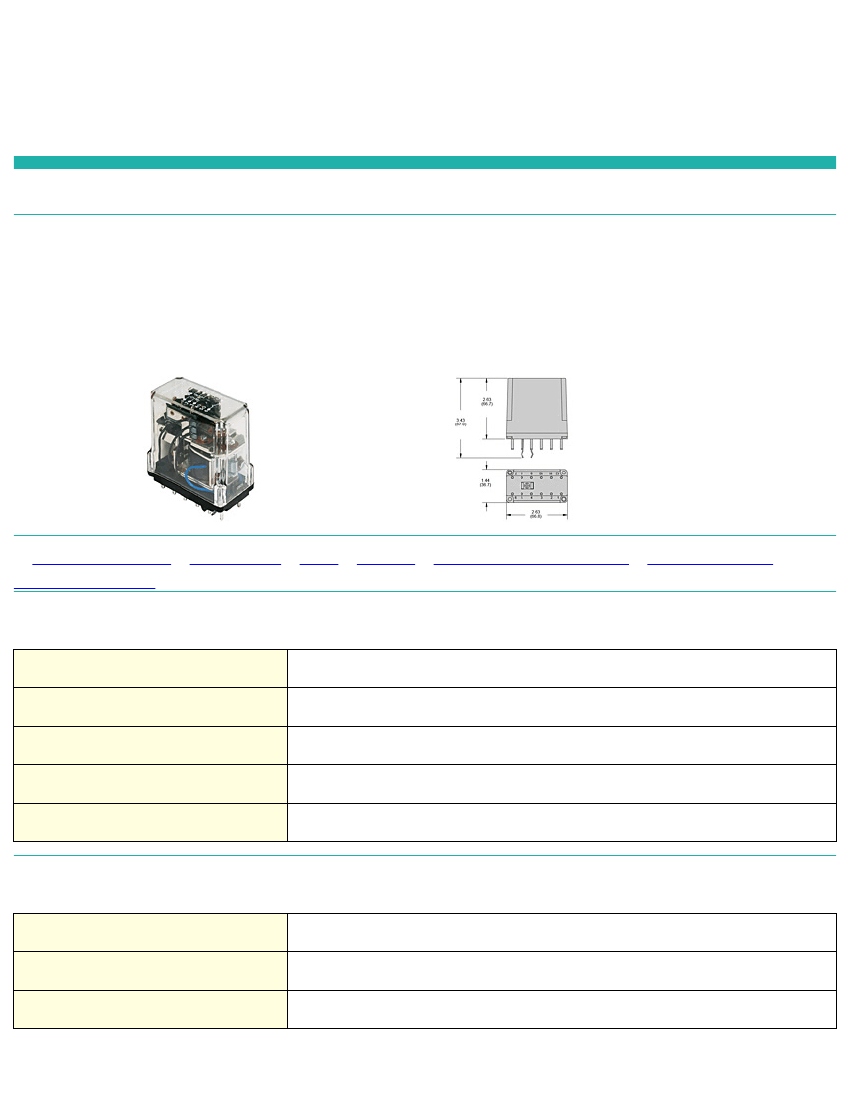

Item # 311XBXP-240VAC, 311 Series - Industrial Sequencing Relays

311 Series - Industrial Sequencing Relays

The 311 Series relays are sequencing (stepper) relays built on the industrial 219 style frame. Hold down clip is integral to the relay base. Double pole contacts transfer

on energizing of coil or de-energizing. Dual cam movement allows contacts to operate together or separately. Works equally well with application of continous voltage

to coil or energy saving impulse. No continuous voltage required for memory. Numerous custom switching arrangements are possible over 8 steps per revolution of the

cams.

For Additional Configuration please contact the manufacturer.

·

SPECIFICATIONS

·

CONTACTS

·

COIL

·

TIMING

·

DIELECTRIC STRENGTH

·

TEMPERATURE

·

MISCELLANEOUS

SPECIFICATIONS

Series

311

Contact Arrangement

XBX (DPDT) - (2 form C)

Standard Features

Plug-in with polycarbonate cover

Contact Transfer

Coil is energized

Coil Voltage

240 VAC

CONTACTS

Contact Configuration

DPDT

Contact Material

Silver Alloy

Contact Rating

5A

9/16/2010 | Page 1 of 3
