678004175 datasheet, PDF - EEWORLD Datasheet

678004175: DescriptionBoard Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Blue Insulator; CategoryThe connector The connector; File Size262KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

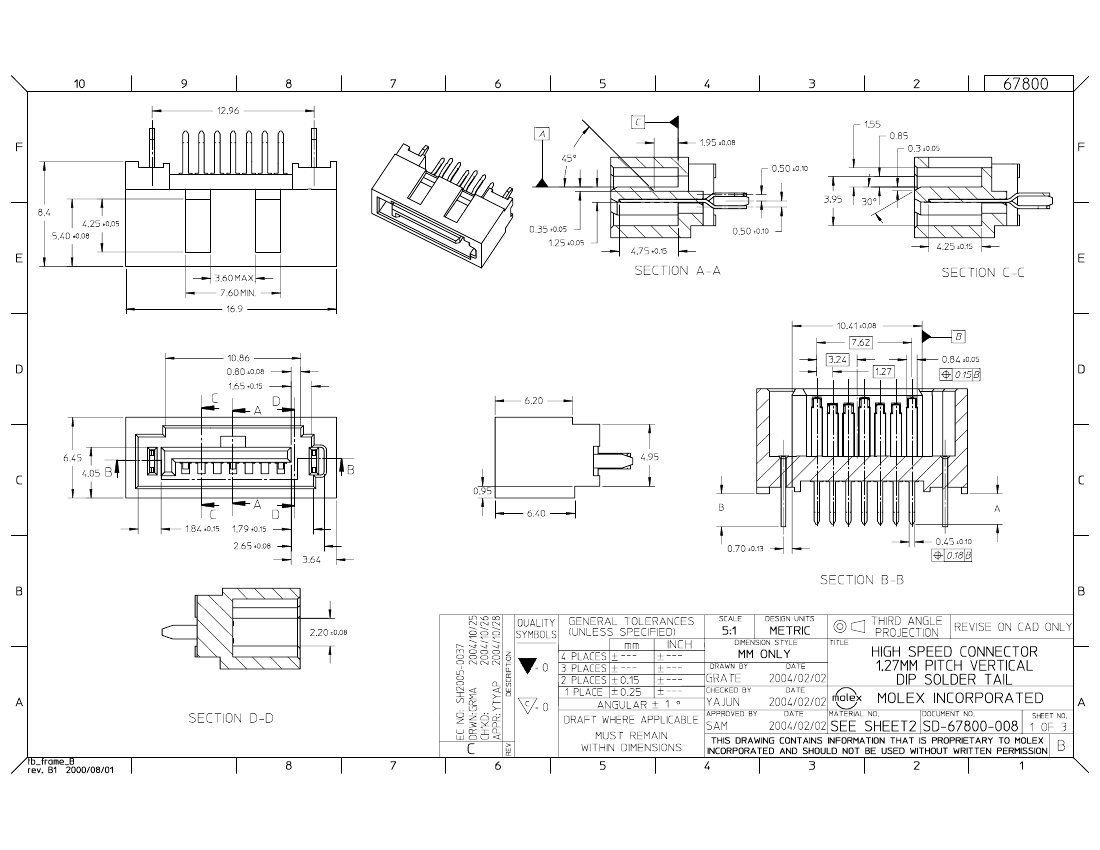

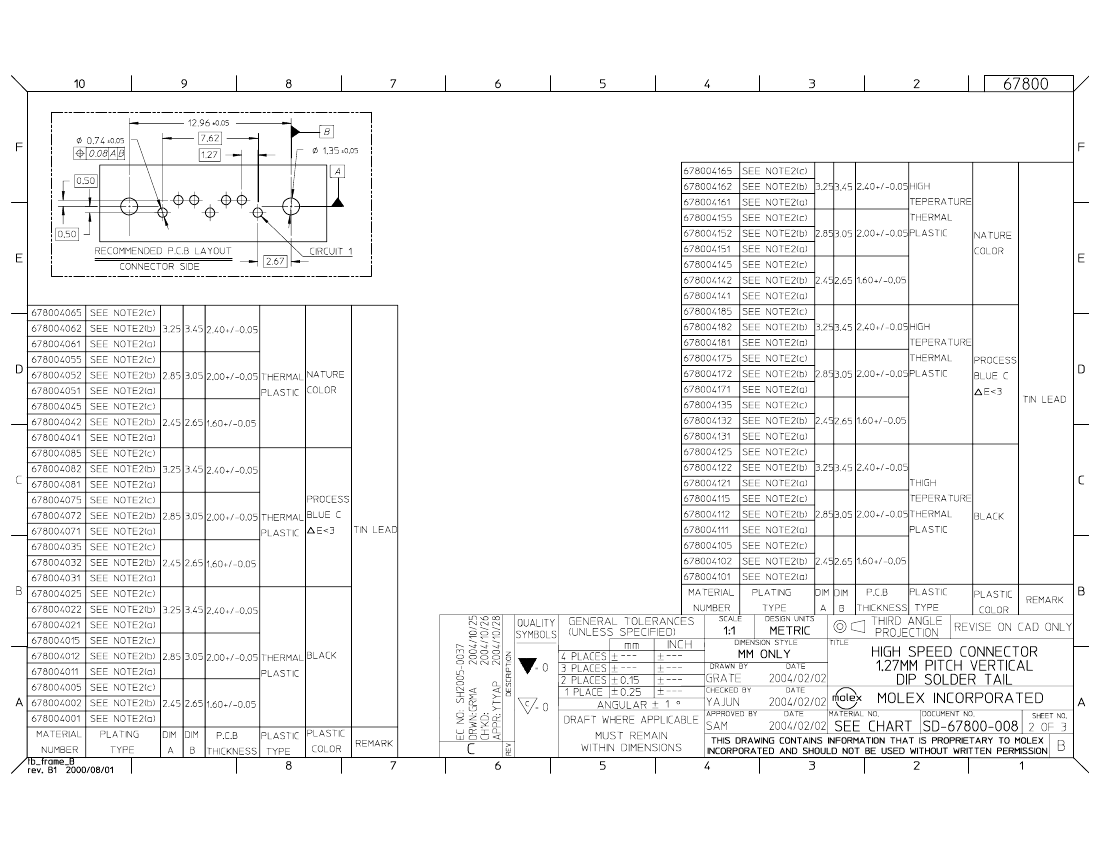

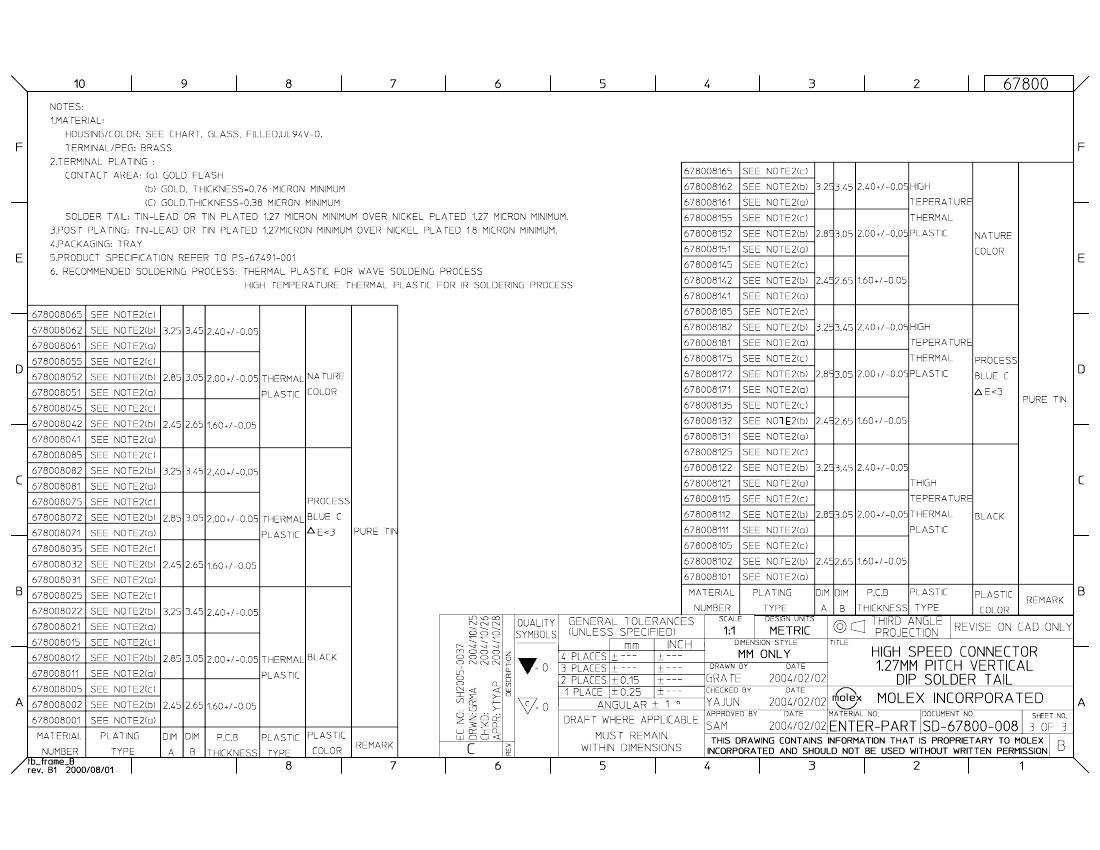

678004175 Overview

Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Locking, Blue Insulator

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.254 inch
subject depth	0.331 inch
body length	0.665 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	TIN LEAD (50)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	30 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	44.48 N
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	67800
Plug contact pitch	0.05 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.039 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	7
UL Flammability Code	94V-0
Evacuation force-minimum value	9.7856 N
