MU-003-PP-04-50: DescriptionRF Mini UHF Connector, Female, Cable Mount, Crimp Terminal; CategoryThe connector The connector; File Size371KB，4 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

MU-003-PP-04-50 Overview

RF Mini UHF Connector, Female, Cable Mount, Crimp Terminal

MU-003-PP-04-50 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Is Samacsys	N
Other features	VSWR MAX AT 2.2 GHZ
Characteristic impedance	50 Ω
Connector type	RF MINI UHF CONNECTOR
Contact point gender	FEMALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Manufacturer's serial number	MU
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	0.2 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP
voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

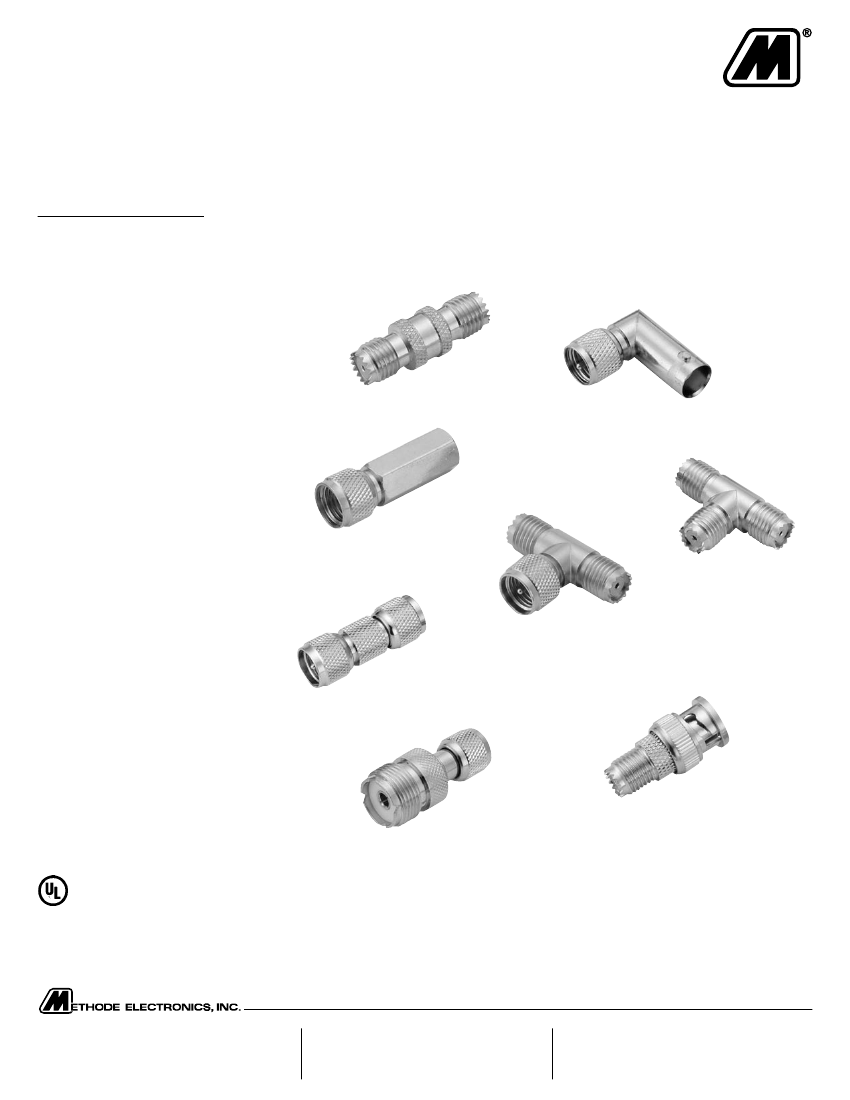

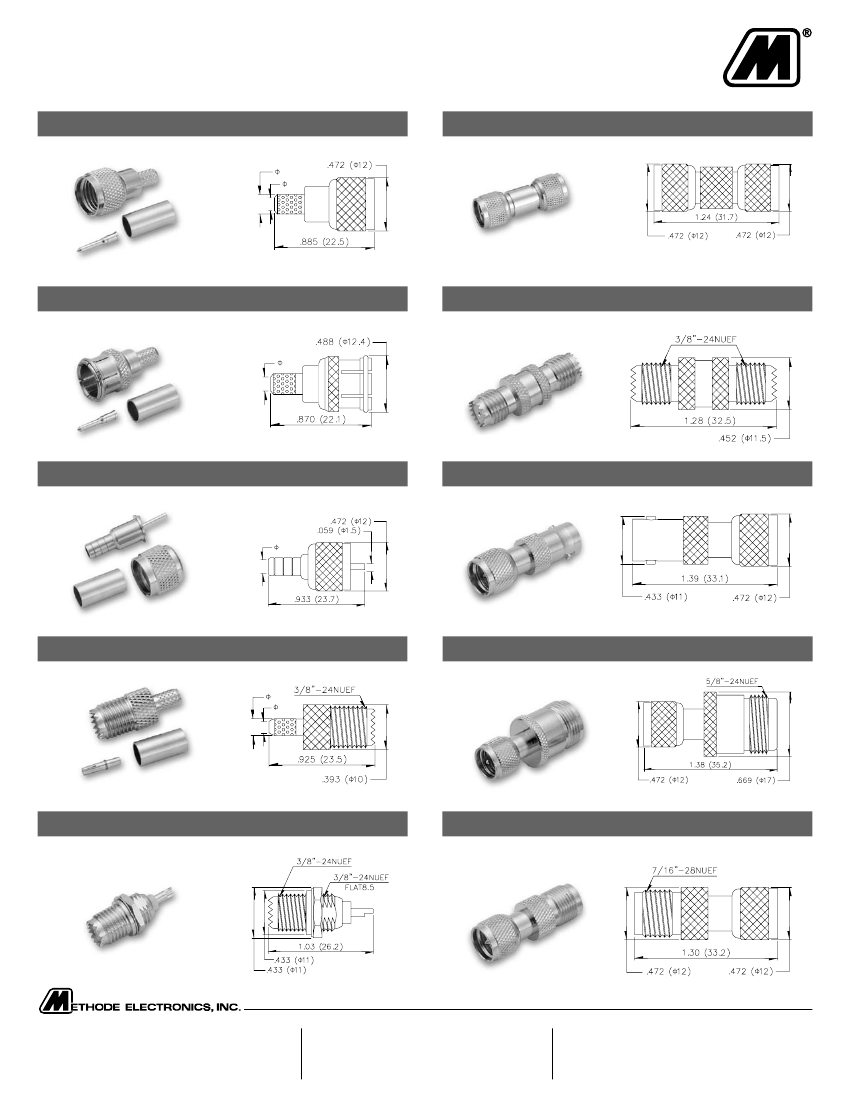

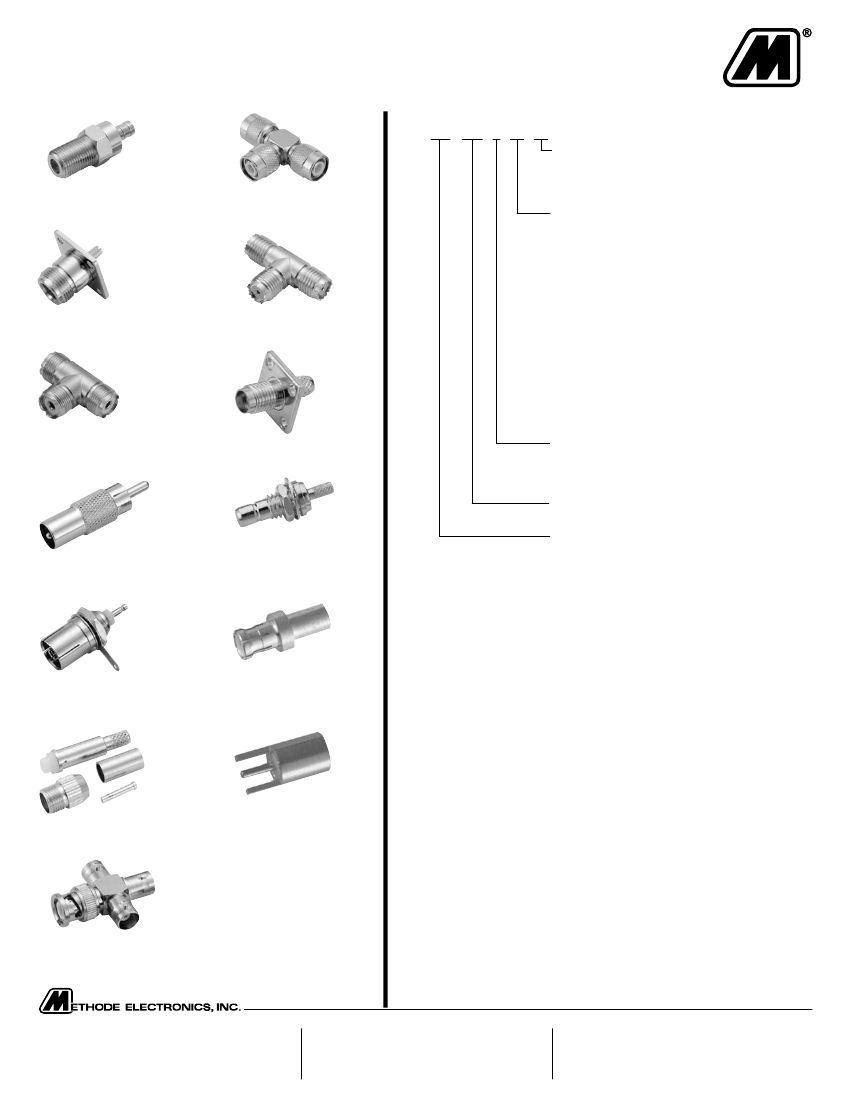

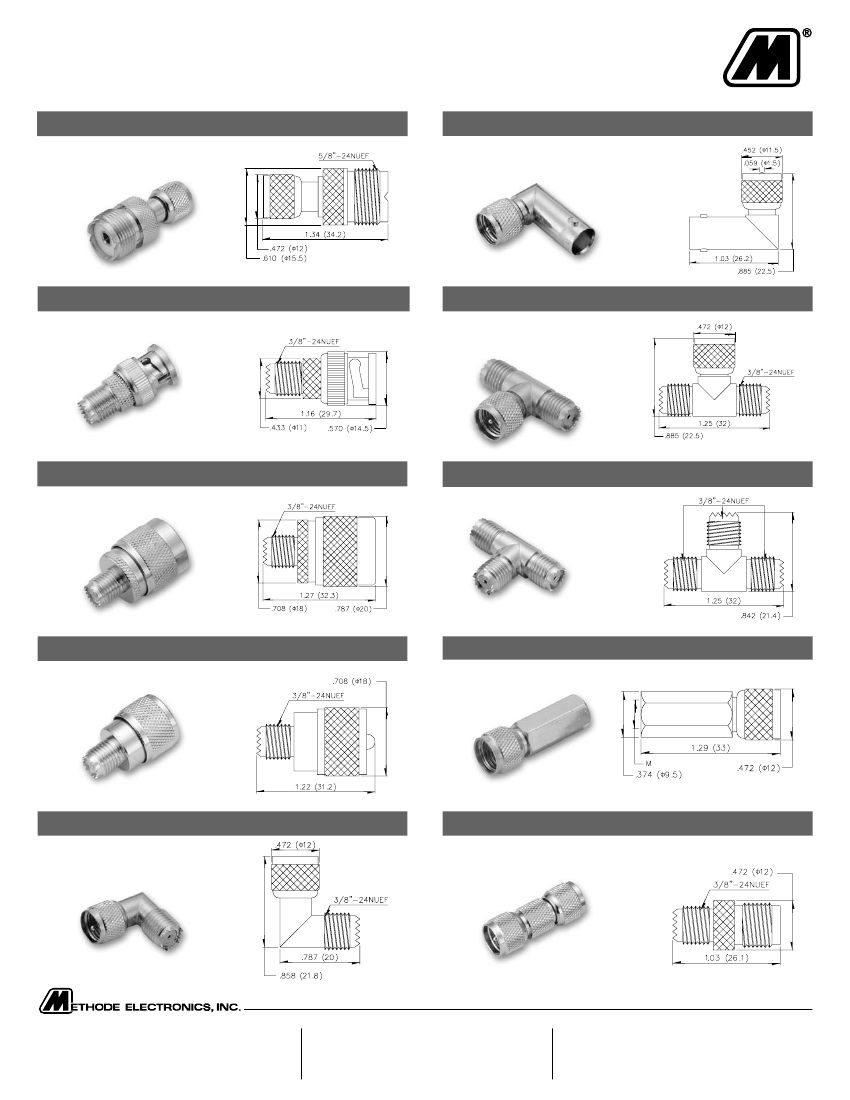

Mini-UHF Series

The MINI-UHF Series are compact, lightweight coaxial connectors used in applications where miniaturization and cost economy

are critical factors. Typical applications are cellular phone and low cost LAN.

Electrical Speciﬁcations:

Frequency Range:

0-2.0 GHz

Voltage Rating:

AC 335V RMS

Withstanding Voltage:

AC 1000V one minute

Insulation Resistance:

5000 MΩ min at 500VDC

Impedance:

nominal

VSWR:

1.25 max. 0 - 2.2 GHz

E191630

*Consult Factory

Methode offers additional products and options, not illustrated in the catalog. Please contact the factory if you require additional assistance

to resolve your design needs.

North and South America:

Methode Electronics, Inc. Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

847-392-3500 • Toll Free: 800-323-6864 • Fax: 847-392-9404

Email: info@methode.com • Web: www.methode.com/connector/index.html

Europe:

Methode Electronics Ireland, Ltd.

Unit H, Crossagalla Business Park, Ballysimon Rd. • Limerick, Ireland

+353 (0) 61 401222 • Fax: +353 (0) 61 401942

Email: info@methode.ie • Web: ireland.methode.com/main.html

Far East:

Methode Electronics Far East, Pte. Ltd.

1 Tuas Lane, Jurong Town • Singapore 638610

65-68615444 • Fax: 65-68614777

Email: sales@methode.com.sg • Web: www.methode.com/mefe/index.html
