DLF-10-500-2-P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> DLF-10-500-2-P

DLF-10-500-2-P: DescriptionSplitter, 10MHz Min, 500MHz Max, 0.8dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size241KB，1 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric Compare View All

DLF-10-500-2-P Overview

Splitter, 10MHz Min, 500MHz Max, 0.8dB Insertion Loss-Max,

DLF-10-500-2-P Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Is Samacsys	N
Other features	ISOLATION-MIN (DB):20
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
Maximum insertion loss	0.8 dB
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
RF/Microwave Device Types	SPLITTER
Maximum voltage standing wave ratio	1.5
Base Number Matches	1

Preview

Download Datasheet

View All

Power Dividers Low Frequency

RLC Electronics' DLF Series Power Dividers/Combiners covers

a wide frequency range of 10 to 500 MHz, using unique

lumped element designs to achieve the wide bandwidth.

They are housed in a convenient low profile (0.4 inch) SMA or

Pin package.

Specifications

DLF-10-500

-1-2

Model

Number

–

Isol.

(dB) (Min)

VSWR

(Max.)

I. L.

(dB) (Max)

Amplitude

Balance

Phase

Degrees

Configuration R

1.00

1.25

1.44

1.88

2.32

3.20

4.08

Configuration P

.50

.75

.90

1.25

.55

.70

.85

1.15

1.45

DLF–10-500 – 2

DLF–10-500 – 3

DLF–10-500 – 4

DLF–10-500 – 6

DLF–10-500 – 8

2 way

3 way

4 way

6 way

8 way

1.50

0.8

1.0

1.5

1.75

2.0

±.3

±.4

±.5

±.6

±4

±8

±10

Power:

1 watts avg.

Impedance:

50 Ohms

Connector:

SMA or Pin

Environment:

MIL-E-5400, Class 1A

To designate power divider desired use:

(1) -2 for 2-way, -3 for 3way, etc.

(2) R for SMA female or P for pins.

Example: DLF-10-500-4-R is a4-way power divider with SMA connectors

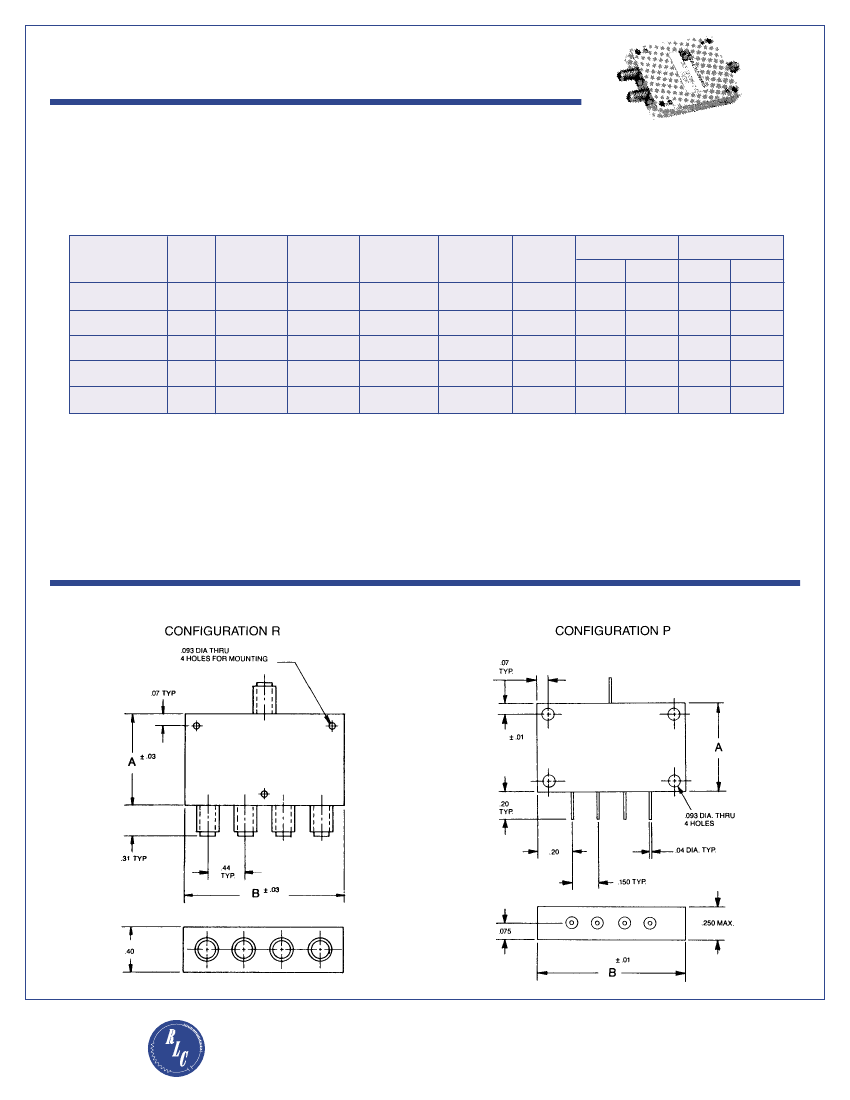

Outline Drawing

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com

DLF-10-500-2-P Related Products

	DLF-10-500-2-P	DLF-10-500-4-R	DLF-10-500-2-R	DLF-10-500-3-P	DLF-10-500-4-P	DLF-10-500-8-P	DLF-10-500-8-R
Description	Splitter, 10MHz Min, 500MHz Max, 0.8dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 1.5dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 0.8dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 1dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 1.5dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 2dB Insertion Loss-Max,	Splitter, 10MHz Min, 500MHz Max, 2dB Insertion Loss-Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	ISOLATION-MIN (DB):20	SMA-F, ISOLATION-MIN (DB):20	SMA-F, ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):18	ISOLATION-MIN (DB):20	ISOLATION-MIN (DB):17	SMA-F, ISOLATION-MIN (DB):17
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COAXIAL	COAXIAL	COMPONENT	COMPONENT	COMPONENT	COAXIAL
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
Maximum insertion loss	0.8 dB	1.5 dB	0.8 dB	1 dB	1.5 dB	2 dB	2 dB
Maximum operating frequency	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.5	1.5	1.5	1.5	1.5	1.5	1.5
Maker	RLC Electronics Inc	RLC Electronics Inc	RLC Electronics Inc	-	-	RLC Electronics Inc	RLC Electronics Inc
Base Number Matches	1	1	1	1	1	-	-
