BCM5396
®
16-GE PORT SWITCH WITH INTEGRATED SerDes
FEATURES
•
Eighth-generation switch on a chip
•
Integrates
•
One GMII/RGMII/RvMII interface
•
Seventeen MACs (802.x compliant) with support for 9-KB
jumbo frames
•
Sixteen SGMII/SerDes interfaces and 256-KB packet buffer
memory
•
Non-blocking 17-Gigabit Ethernet fully integrated switch fabric
•
SPI Interface for easy setup and managed operation
•
Classifies packets using four 802.1p QoS or DiffServ priority
queues
•
VLAN 4k 802.1Q or port-based support
SUMMARY OF BENEFITS
•
Enables a new generation of lower-cost switches with Gigabit
•
•
•
•
•
•
•
Ethernet connectivity and much smaller form factors.
Uses field-proven industry-standard Gigabit Ethernet SerDes
which lowers overall system interoperability and reliability
risks.
Provides the most cost-effective Gigabit Ethernet connectivity
to the desktop and control plane for all remote, branch, and
Enterprise needs.
802.1Q tag VLAN, trunking, and 802.1p priority enables the
switch to be designed into a wide variety of applications from
unmanaged to websmart to managed switch.
Jumbo frame support allows the device to be connected to
corporate server farms and networks while maintaining
maximum TCP/IP performance.
CPUs are not required to initialize and run in cost-sensitive
unmanaged applications, providing true plug-and-play
connectivity.
Suitable for fully managed applications due to support for
Spanning Tree and 802.1x MAC security
SGMII interfaces ensure superior EMI performance and
lowest possible number of required board layers while
enabling connections to industry-standard physical layer
devices (e.g., BCM5464R)
Lowest possible system cost through minimized number of
external components.
Higher system reliability and noise reduction due to
elimination of component with lowest MTBF (the fan).
•
Supports up to 4k unicast MAC addresses
•
Supports MAC-based port aggregation (trunking)
•
Flow control
•
Full-duplex (802.3x) and half-duplex options support
•
Supports automatic address learning and aging
•
Support for Spanning Tree and Rapid Spanning Tree
•
•
•
•
Low power 0.13 µm 1.2 V CMOS core: <2.5W Pd.
Supports 802.1x MAC Security
Port-based rate control feature with 64kbps granularity
256-pin FBGA package (small form factor 17 mm x 17 mm)
•
•

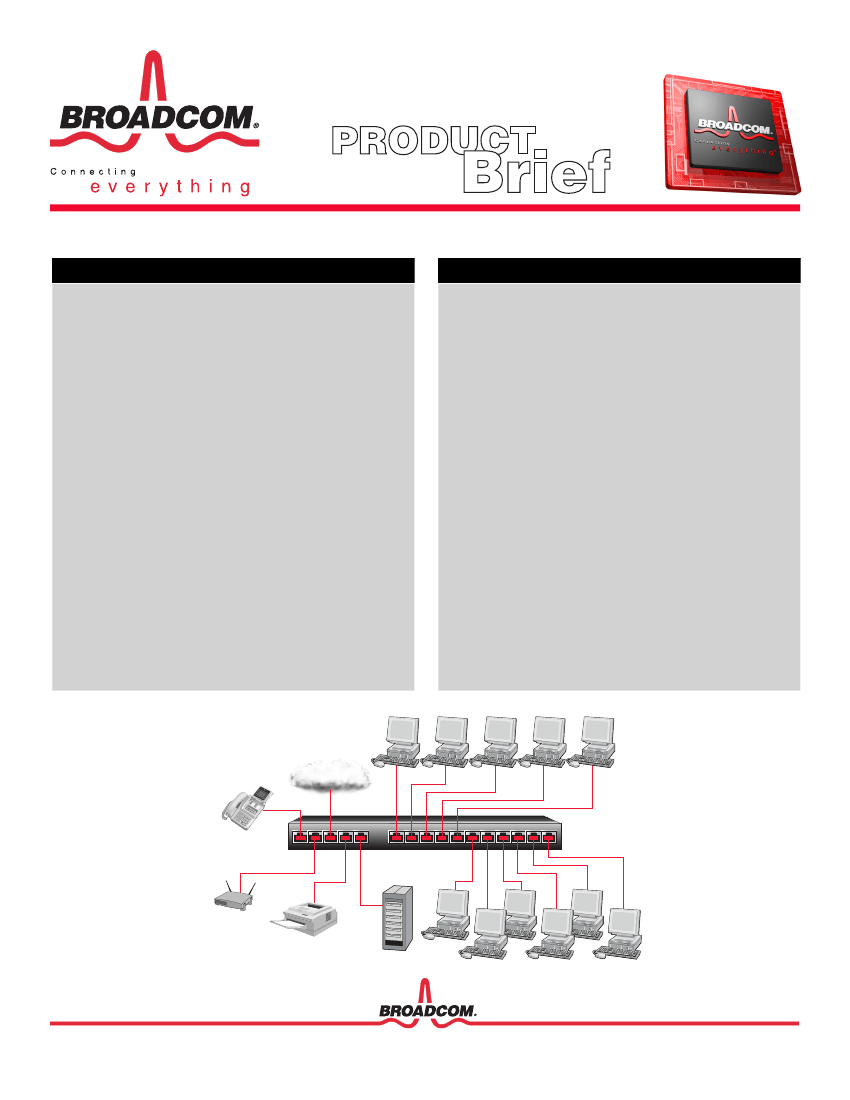

16-Gigabit Ethernet Ports for SOHO and Subnetwork Applications
Uplink Copper
or Fiber
IP Phones
Server
Cable/DSL/Wireless
Router
Printer
OVERVIEW
Serdes Interface
Port 0
Serdes Interface
Port 1
Serdes Interface
Port 2
Serdes Interface
Port 3
Serdes Interface
Port 4
Serdes Interface
Port 5
Serdes Interface
Port 6
Serdes Interface
Port 7
Serdes Interface
Port 8
Serdes Interface
Port 9
Serdes Interface
Port 10
Serdes Interface
Port 11
Serdes Interface
Port 12
Serdes Interface
Port 13
Serdes Interface
Port 14
Serdes Interface
Port 15
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Deserializer
Serializer
Gigabit MAC
Gigabit MAC
Gigabit MAC
Gigabit MAC
Gigabit MAC
Gigabit MAC
BCM5396
Quality of Service
(QoS)
MDIO / MDC
Interface
VLAN
Register
Space
Jumbo Frames
Configuration
Pins
SPI Interface or
EEPROM Interface
Gigabit MAC
Gigabit MAC
Gigabit MAC
Port Trunking
Gigabit MAC
Gigabit MAC
Rate Control
Gigabit MAC
Gigabit MAC
Gigabit MAC
Gigabit MAC
Gigabit MAC
Port Mirroring
Memory
Address
Management
GMII, MII, or
RGMII Interface
Gigabit MAC
Switch Controller
BCM5396 Block Diagram
The Broadcom BCM5396 device is a highly integrated solution ideally
suited for standalone Gigabit Ethernet switches and Gigabit Ethernet
control plane and backplane applications. It combines all the functions of
a high-speed switch system, including packet buffer, SerDes, media
access controllers, address management, and a nonblocking switch
fabric into a single 0.13 µm CMOS device.
The BCM5396 complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x
specifications, including the MAC control, pause frame, and auto-
negotiation subsections, providing compatibility with all industry-
standard Ethernet, Fast Ethernet, and Gigabit Ethernet devices.
The integrated sixteen SerDes cores enable direct connections across
backplanes with the lowest possible amount of traces. The device also
integrates seventeen IEEE compliant 10/100/1000 MACs. Sixteen of
these are internally connected to the SerDes cores offering alternatively
true serial interfaces for backplane connections or fiber optic
transceivers or SGMII interfaces for connection to industry-standard
Gigabit Ethernet copper transceivers such as the Broadcom BCM5464R.
The seventeenth MAC features multiple MII interface modes (RvMII,
RGMII, GMII) for connection to a variety of CPUs.The media access
controllers on the BCM5396 also support jumbo frames which are
typically used for high-performance connections to servers because they
offer a smaller percentage of overhead on the link for more efficiency.
SPI or EEPROM interfaces provide easy programming of the on-chip
802.1p QoS and/or DiffServ. This allows switch traffic to be given
different classes of priority or service. For example, voice traffic for IP
phone applications, video traffic for multimedia applications, or data
traffic for e-mail applications. Up to 4k virtual LANs (VLANs) can be
set up via the SPI port for separation of different users or groups on the
network. For multi-Gigabit per second connections, multiple ports of the
BCM5389 can be grouped together to form logical links. These links
feature automatic load balancing.
The BCM5396 can also be used in fully managed applications where
support for Spanning Tree and 802.1x MAC security are a requirement.
In such applications, the CPU will be connected using the SPI interface
for register control and the ninth MII interface for protocol frames.
Finally, the BCM5396 supports per-port rate control for applications like
MTU/MDU switches where individual ports need to be restricted in
speed to comply with the agreed and paid for service levels.
