CT0603LS-332J: DescriptionGeneral Purpose Inductor, 3.3uH, 5%, 1 Element, Ferrite-Core, SMD, 0705, CHIP; CategoryPassive components inductor; File Size200KB，1 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CT0603LS-332J Overview

General Purpose Inductor, 3.3uH, 5%, 1 Element, Ferrite-Core, SMD, 0705, CHIP

CT0603LS-332J Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	CT [ Central Technologies ]
package instruction	0705
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
uppercase and lowercase codes	0705
structure	Wirewound Chip
core material	FERRITE
DC Resistance	1.5 Ω
Nominal inductance(L)	3.3 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CT0603LS
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.02 mm
Package length	1.8 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	17
Maximum rated current	0.44 A
self resonant frequency	84 MHz
series	CT0603LS
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	7.9 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

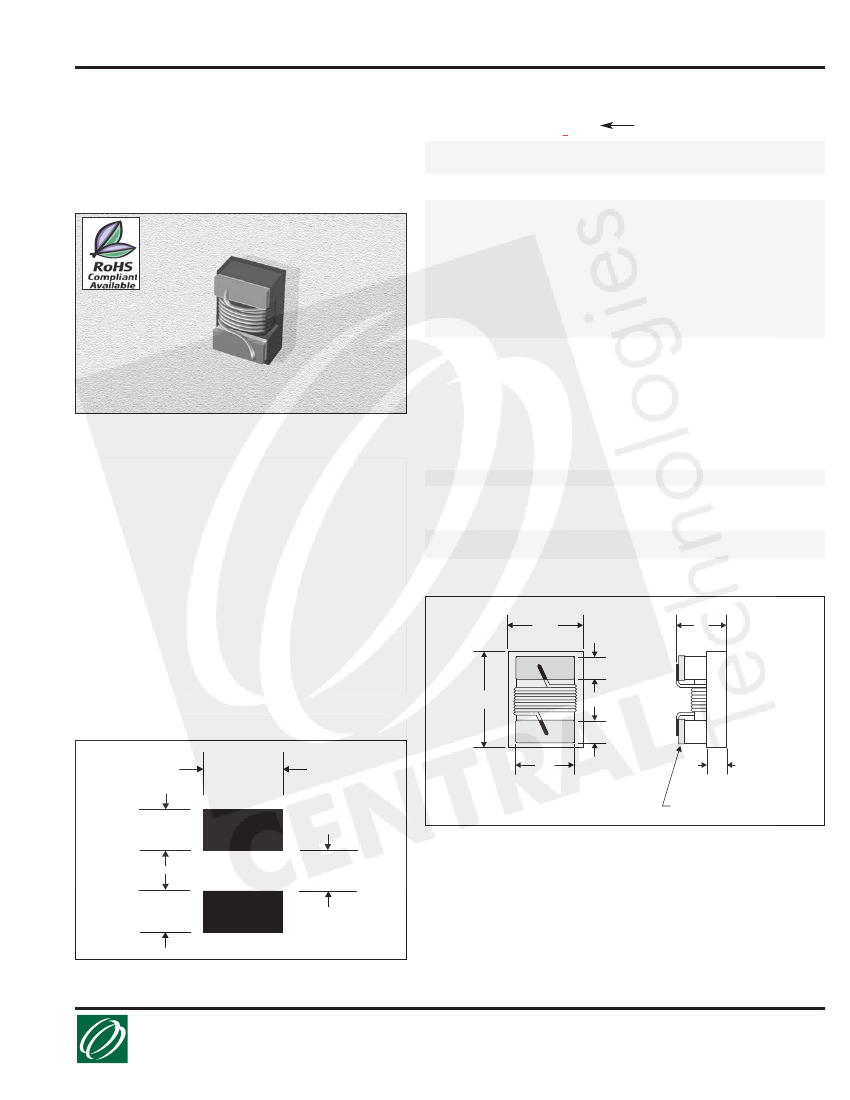

SMD Wire-wound Chip Inductors

ctparts.com

CT0603LS Series

From 47 nH to 10000 nH

Part

Number

CT0603LS_-47N_

CT0603LS_-72N_

CT0603LS_-101_

CT0603LS_-121_

CT0603LS_-151_

CT0603LS_-181_

CT0603LS_-221_

CT0603LS_-241_

CT0603LS_-271_

CT0603LS_-331_

CT0603LS_-391_

CT0603LS_-471_

CT0603LS_-561_

CT0603LS_-681_

CT0603LS_-781_

CT0603LS_-821_

CT0603LS_-102_

CT0603LS_-122_

CT0603LS_-152_

CT0603LS_-182_

CT0603LS_-222_

CT0603LS_-272_

CT0603LS_-332_

CT0603LS_-392_

CT0603LS_-472_

CT0603LS_-562_

CT0603LS_-682_

CT0603LS_-782_

CT0603LS_-822_

CT0603LS_-103_

Not shown at actual size.

SPECIFICATIONS

Please specify tolerance code when ordering.

CT0603LS-471_

J = ±5%, K = ±10%

CT0603LSF

Please specify “F” for RoHS Compliant

Inductance

(nH)

47

72

100

120

150

180

220

240

270

330

390

470

560

680

780

820

1000

1200

1500

1800

2200

2700

3300

3900

4700

5600

6800

7800

8200

10000

L Test

Freq.

(MHz)

7.9

Q

Fact.

Min.

17

18

17

18

19

17

19

Q Test

Freq.

(MHz)

7.9

SRF

Min.

(MHz)

1700

1650

1400

1350

1150

1050

850

810

720

600

540

480

310

270

230

150

105

84

80

69

65

55

47

42

40

DCR

Max.

Ω

(Ω)

0.075

0.12

0.13

0.15

0.16

0.19

0.30

0.46

0.51

0.62

0.44

0.52

0.83

0.69

0.81

0.87

1.06

1.10

1.20

1.50

1.60

2.10

2.60

3.10

3.50

3.60

4.80

IDC

Max.

(mA)

1500

1450

1400

1350

1300

1050

1200

1050

850

750

600

550

540

520

500

480

440

430

420

400

300

CHARACTERISTICS

Description:

SMD ferrite core wire-wound chip inductor

Applications:

LC resonant circuits such as oscillator and signal

generators, impedance matching, circuit isolation, RF filters, disk

drives and computer peripherals, audio and video equipment, TV,

radio and telecommunication equipment

Operating Temperature:

-40°C to +85°C

Inductance Tolerance:

±5%, ±10%

Testing:

Inductance and Q are tested on an HP4286A at

specified frequency

Packaging:

Tape & Reel, 4000 parts per reel

Miscellaneous:

RoHS Compliant available.

Marking:

Parts are marked with inductance code

Additional Information:

Additional electrical & physical

information available upon request

Samples available. See website for ordering information.

PHYSICAL DIMENSIONS

Size

mm

inches

Max.

1.8

0.071

A

Max.

1.25

0.049

B

Max.

1.02

0.040

C

Ref.

0.38

0.015

D

E

0.86

0.034

F

0.33

0.013

G

0.76

0.030

B

F

A

E

F

G

Terminal

C

PAD LAYOUT

mm

(inch)

1.02

(0.040)

0.64

(0.025)

0.64

(0.025)

0.64

(0.025)

D

Terminal wraparound

08.08.07

Technologies

Manufacturer of Passive and Discrete Semiconductor Components

800-684-5322

Inside US

949-453-1811

Outside US

CT Magnetics reserves the right to make improvements or change specifications without notice
