QTE-060-01-L-D-EM2-TY datasheet, PDF

Datasheet> All Categories > The connector> The connector> QTE-060-01-L-D-EM2-TY

QTE-060-01-L-D-EM2-TY: DescriptionBoard Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size477KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

QTE-060-01-L-D-EM2-TY Overview

Board Stacking Connector, 120 Contact(s), 2 Row(s), Male, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

QTE-060-01-L-D-EM2-TY Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Is Samacsys	N
body width	0.235 inch
subject depth	0.16 inch
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	QTE
Plug contact pitch	0.032 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	10u inch
Guideline	CSA
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	120
Base Number Matches	1

Preview

Download Datasheet

View All

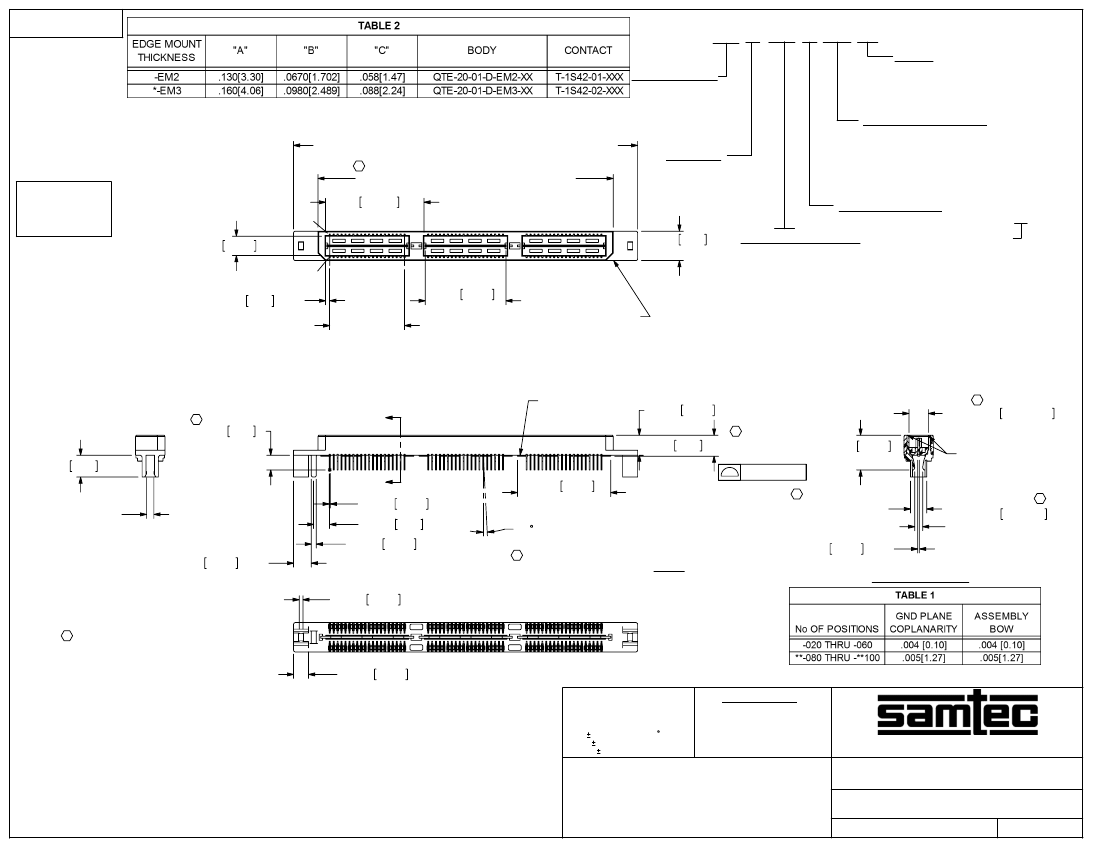

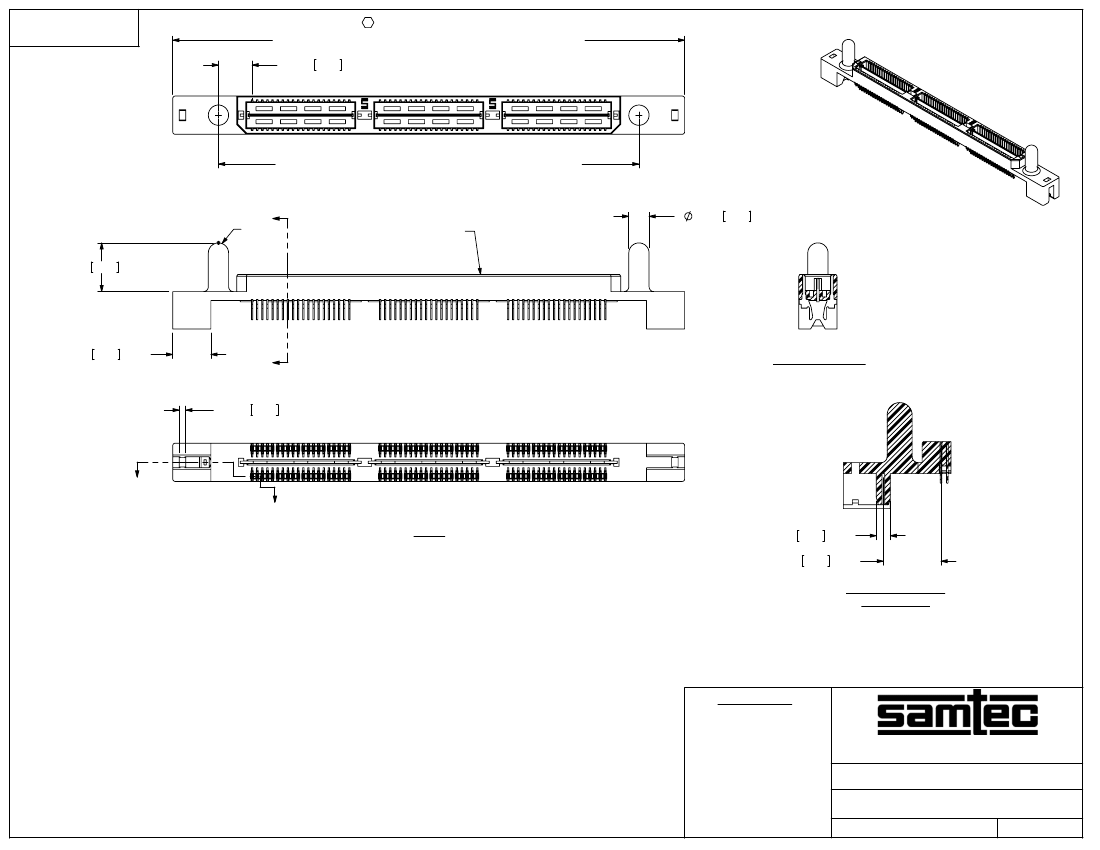

REVISION AG

QTE-XXX-01-XXX-D-EMX-XX

No OF POSITIONS

-020, -040, -060,

**-080, **-100

(PER ROW)

**SEE NOTE 16

(No OF POSITIONS/20 x .7875 [20.003]) + .3900 [9.906] REF

* = SEE NOTE 13

OPTION

-GP: GUIDE POST

(USE QTE-20-01-D-EMX-XX-GP,

SEE FIG 2, SHEET 2)

-TY: TRAY PACKAGING

EDGE MOUNT THICKNESS

-EM2: .064[1.63] +/-.004 PCB

(USE QTE-20-01-D-EM2-XX & T-1S42-01-X)

-EM3:

(USE QTE-20-01-D-EM3-XX & T-1S42-02-X)

(SEE NOTE 13)

ROW SPECIFICATION

-D: DOUBLE (USE QTE-20-XX-D-EMX-XX)

No OF POSITIONS/20 x .7875 [20.003] REF

DO NOT

SCALE FROM

THIS PRINT

.1550 3.937 REF

LEAD STYLE

-01: .1680[4.267]

.7875 20.003 REF

.0333 0.84 REF

19 EQ SPACES

@ .0315 [.800]

.645 16.38

REF

PLATING SPECIFICATION

No OF BANKS

.2350 5.97

REF -F: 3µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAILS

(USE T-1S42-XX-F & T-1G1-01-F) (SEE NOTE 11)

-L: 10µ" SELECTIVE GOLD IN CONTACT AREA, MATTE TIN ON TAILS

(USE T-1S42-XX-L & T-1G1-01-L)

-H: 30µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL

(USE T-1S42-XX-H & T-1G1-01-G)

QTE-20-01-D-EMX-XX

-C: 50µ" GOLD IN CONTACT AREA, 3µ" GOLD ON TAIL

(USE T-1S42-XX-C & T-1G1-01-L)

-STL: 30µ" SELECTIVE GOLD IN CONTACT AREA, TIN/LEAD (90%/10 +/-5%) TAIL

(USE T-1S42-XX-STL & T-1G1-01-STL)

-FTL: 3µ" SELECTIVE GOLD IN CONTACT AREA, TIN/LEAD (90%/10 +/-5%) TAIL

(USE T-1S42-XX-FTL & T-1G1-01-FTL)

T-1G1-01-XXX

"A"

.118 3.00

.1600 4.064 REF

.155±.003 3.94±0.08

.2782 7.067

REF

T-1S42-XX-X

.168 4.27 (SEE NOTE 10)

.1750 4.45 REF

"A"

.0080 0.203 REF

.1275 3.24 REF

.0400 1.016 REF

.1420 3.607 REF

.0300 0.762 REF

.7450 18.92

REF

2 MAX SWAY

(EITHER DIRECTION)

SEE TABLE 1

"C" REF

"A" REF

.0150 0.381 REF

"B"±.0030 "B"±0.08

(INSIDE TO

INSIDE OF PIN)

QTE-060-01-XXX-D-EM2 SHOWN

FIG 1

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. NOTE DELETED.

3. MAXIMUM BURR ALLOWANCE: .0015 [0.03]

4. MINIMUM TERMINAL RETENTION: 6 OZ.

.1200 3.048 REF

5. MINIMUM GROUND PLANE RETENTION: 1 LB.

6. PARTS TO BE MOLD-TO-POSITION.

7. NOTE DELETED.

8. NOTE DELETED.

9. NOTE DELETED.

10. MAXIMUM VARIANCE: .002 [0.05].

11. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.

12. SEE http://www.samtec.com/processing/edgemt_tectalk/index.htm FOR INFORMATION ON

PROCESSING EDGE MOUNT PARTS TO BOARDS.

13. -EM3 IS NOT A STANDARD OFFERING; AVAILABLE AS AN ASP ONLY. PLEASE CONTACT SAMTEC

INTERCONNECT PROCESSING GROUP WITH ORDER INQUIRIES

14. NOTE DELETED.

15. PARTS WITHOUT -TY OPTION SHALL BE PACKAGED IN TRAYS.

16. AVAILABLE FOR EXISTING CUSTOMERS ONLY.

** = SEE NOTE 16

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

MATERIAL:

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

DECIMALS

ANGLES

DO NOT SCALE DRAWING

SHEET SCALE: 1:0.8

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail info@SAMTEC.com

code 55322

DESCRIPTION:

INSULATOR: LCP COLOR: BLACK

TERMINAL & GROUND PLANE: PHOS BRONZE

.8mm EDGEMOUNT HS TERMINAL ASSEMBLY

DWG. NO.

QTE-XXX-01-XXX-D-EMX-XX

9/2/1999

SHEET

F:\DWG\MISC\MKTG\QTE-XXX-01-XXX-D-EMX-XX-MKT.SLDDRW

BY:

DEAN P
