QFSS-026-01-H-D-A-PC4 datasheet, PDF

QFSS-026-01-H-D-A-PC4: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size2MB，4 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

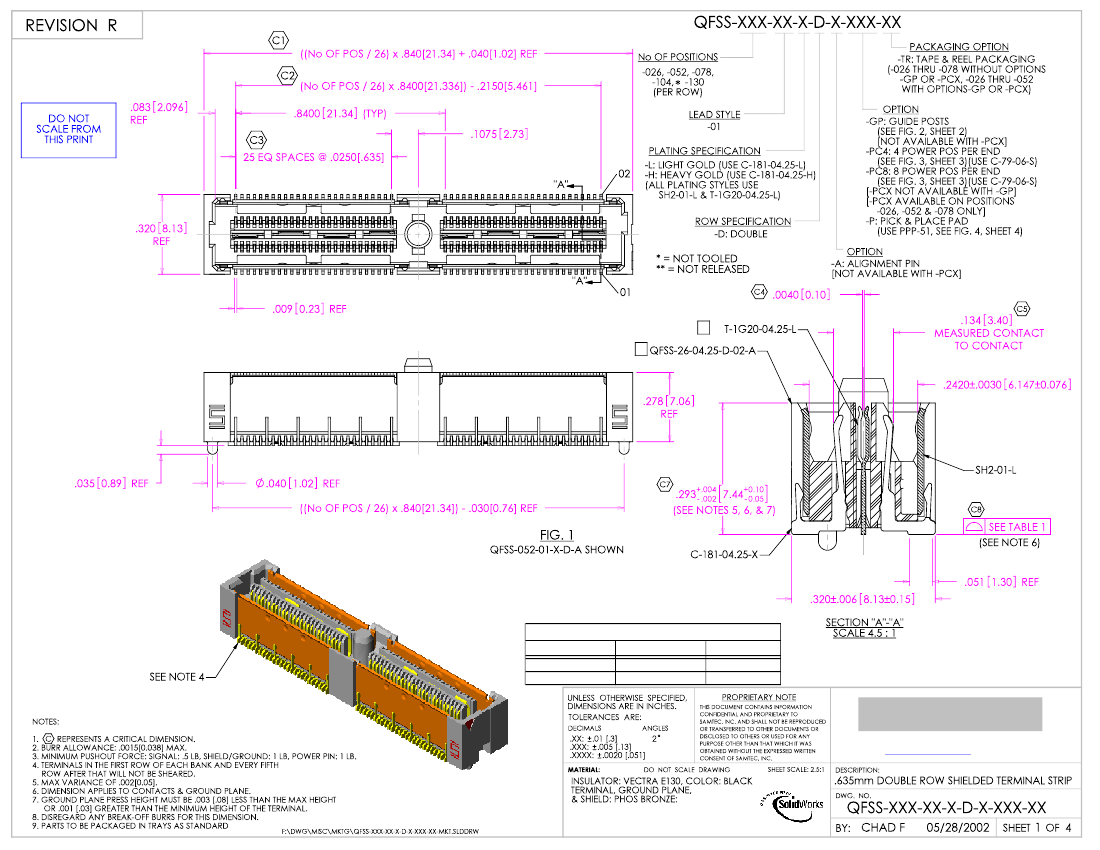

QFSS-026-01-H-D-A-PC4 Overview

Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal,

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	52
Base Number Matches	1

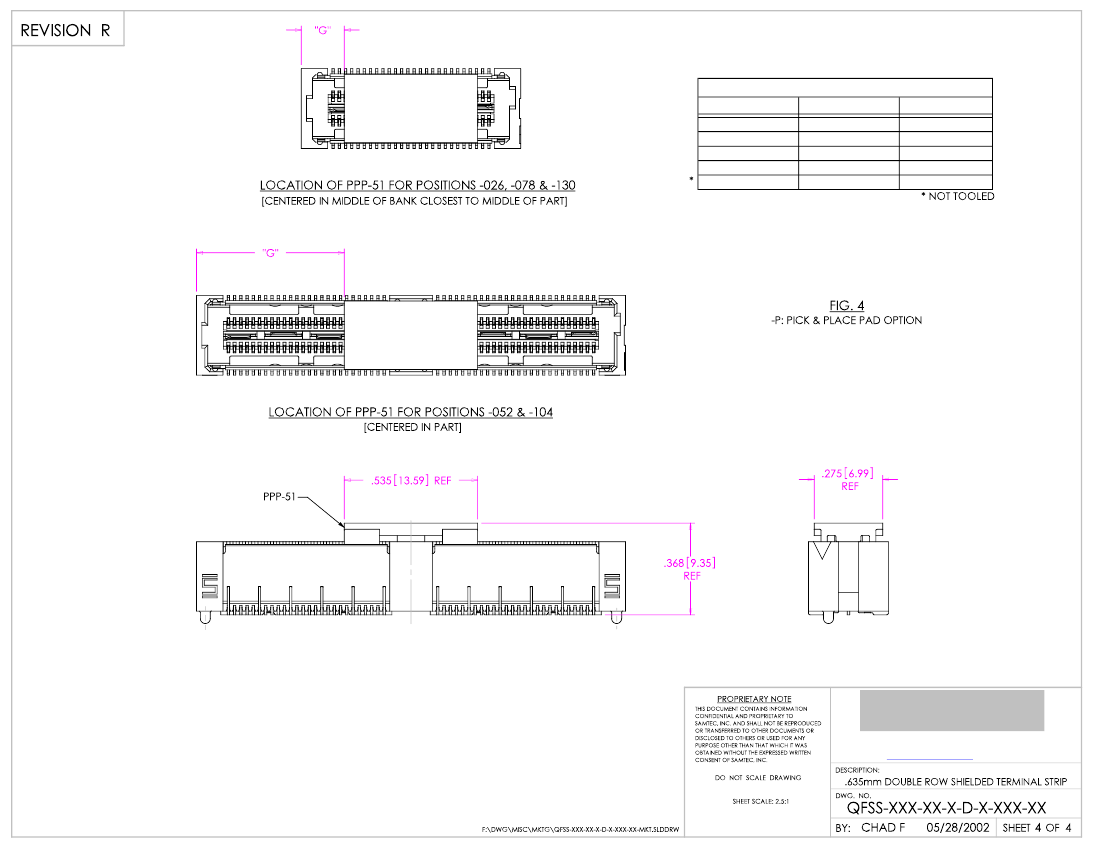

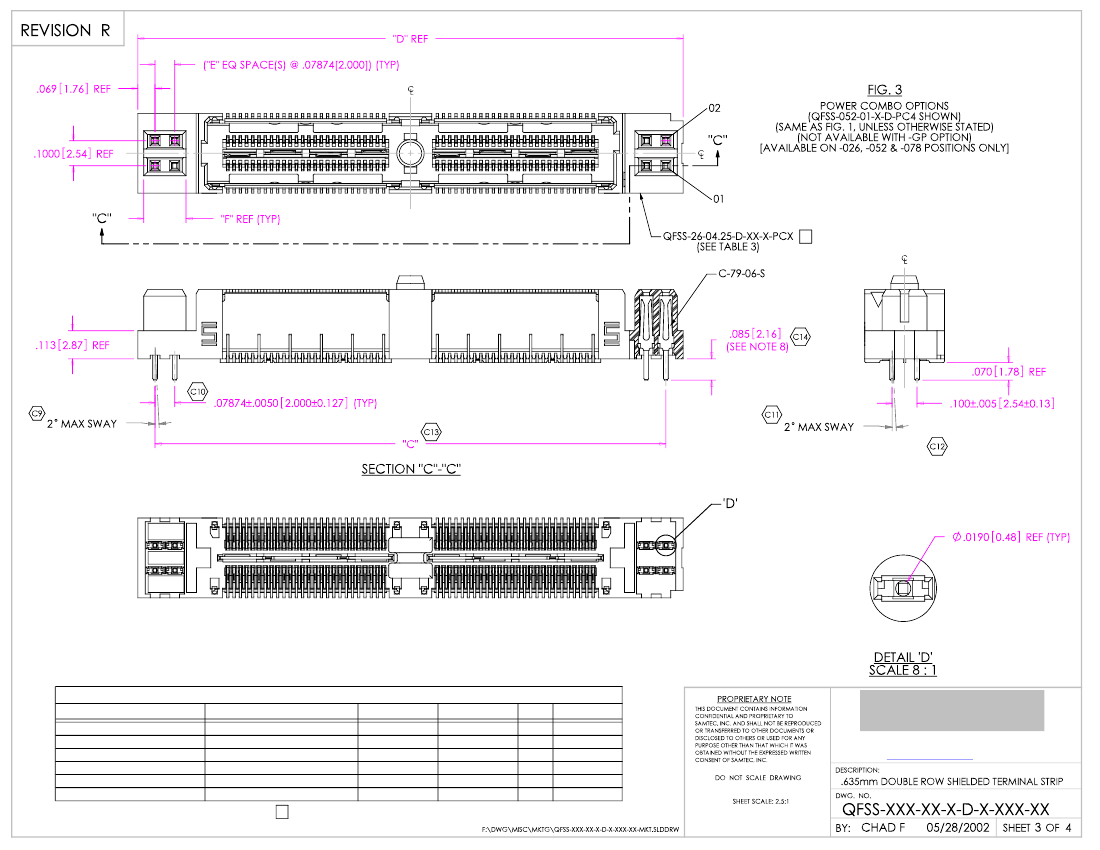

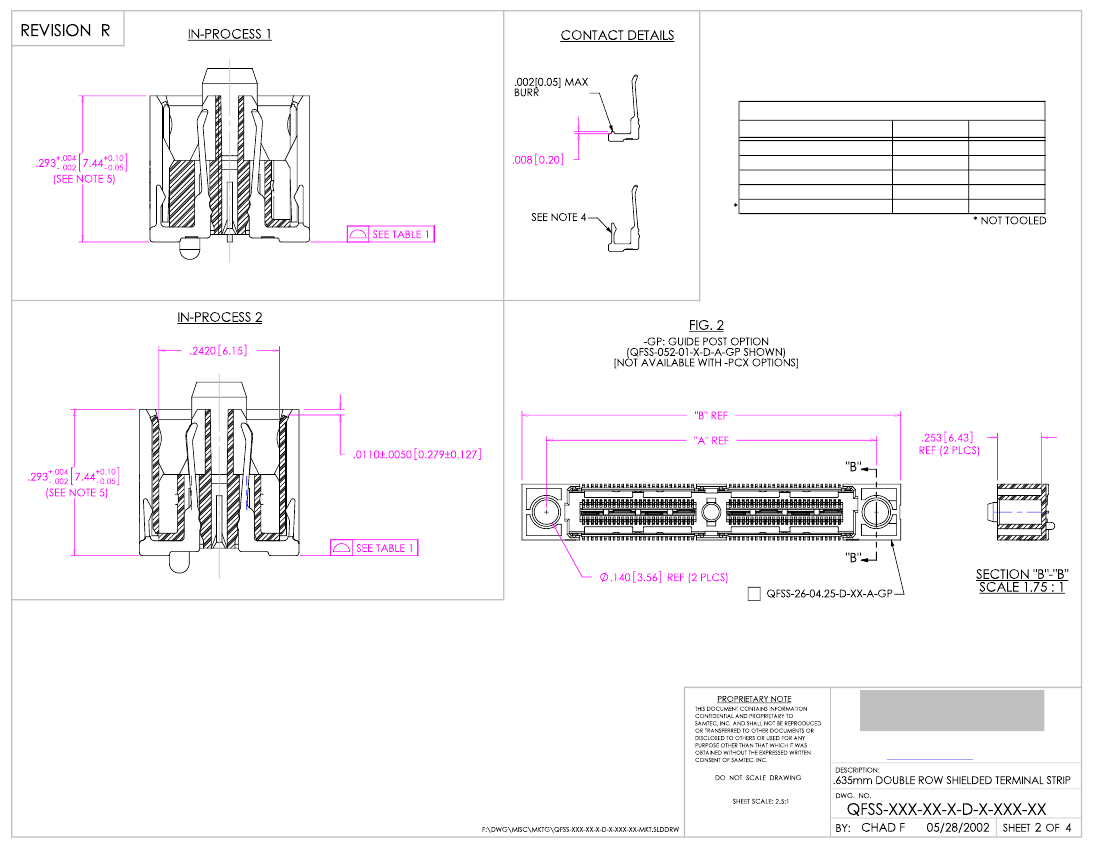

TABLE 1

No OF POSITIONS

-026 THRU -078

-104 AND -130

No OF BANKS

1 THRU 3

4 AND 5

COPLANARITY

.004[.10]

.006[.15]

S A M TE C

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
