MAX3243EWIT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> MAX3243EWIT

MAX3243EWIT: DescriptionLINE TRANSCEIVER, PDSO28, 0.300 INCH, SOIC-28; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size577KB，14 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX3243EWIT Overview

LINE TRANSCEIVER, PDSO28, 0.300 INCH, SOIC-28

MAX3243EWIT Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	28
Reach Compliance Code	compliant
Is Samacsys	N
Differential output	NO
Number of drives	3
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER
Interface standards	EIA-232; V.24; V.28; EIA-562
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	17.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Number of receiver bits	5
Maximum seat height	2.65 mm
Maximum slew rate	1 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.5 mm
Base Number Matches	1

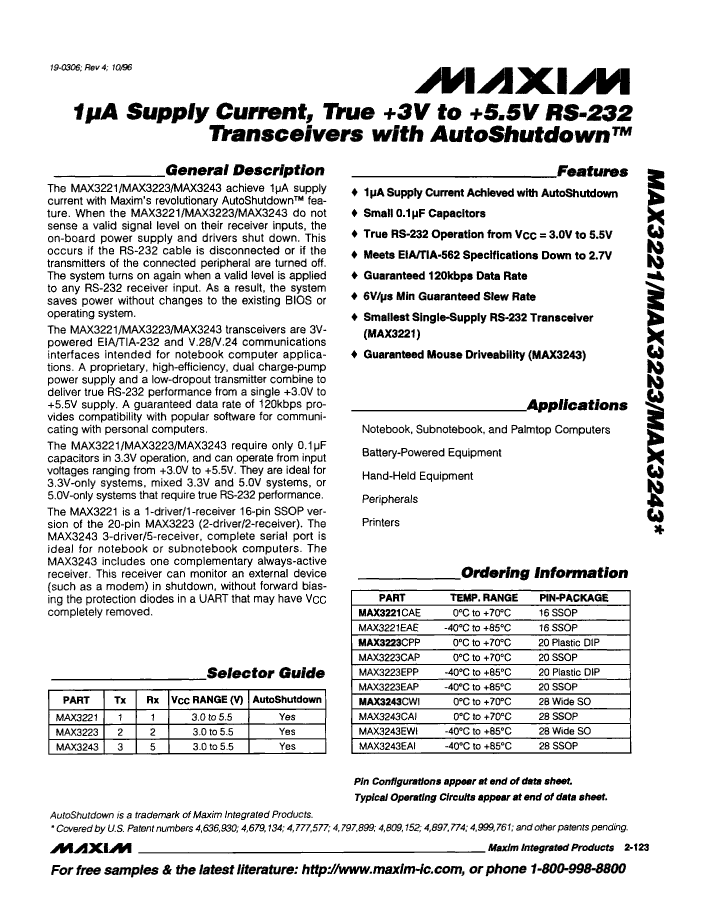

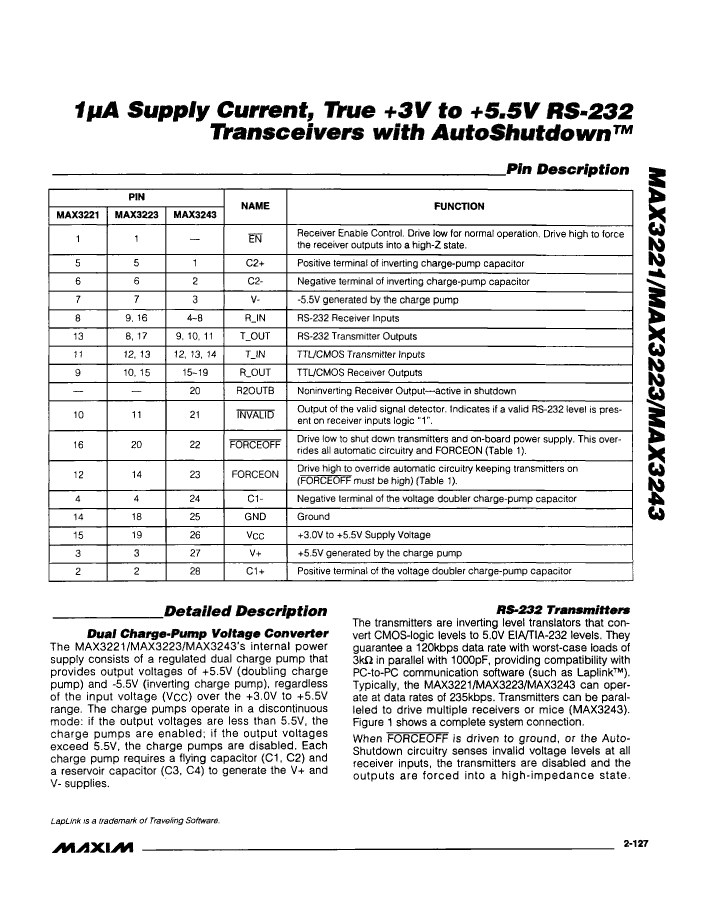

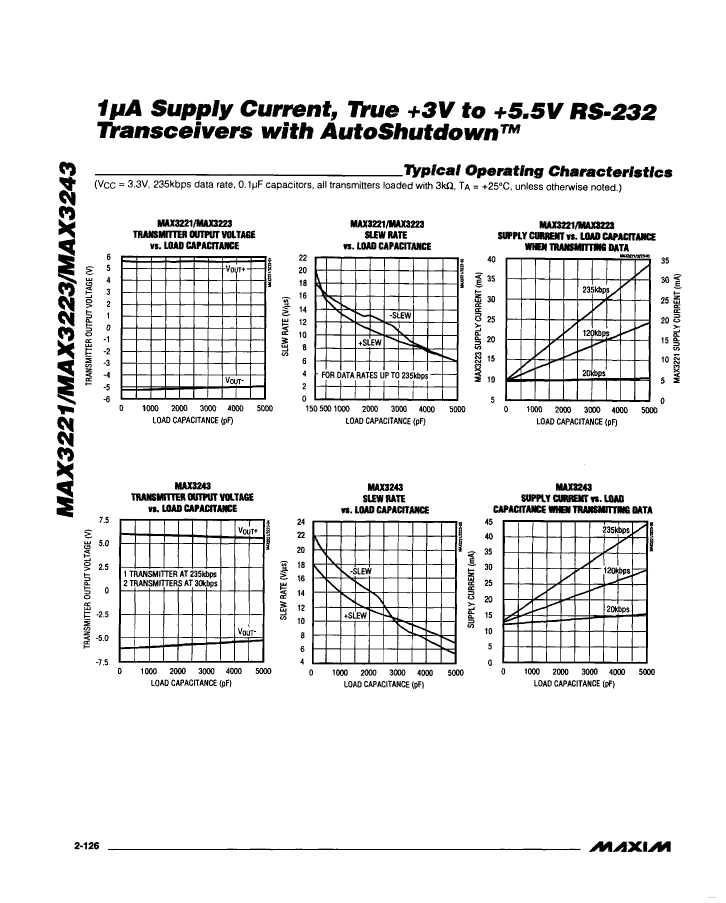

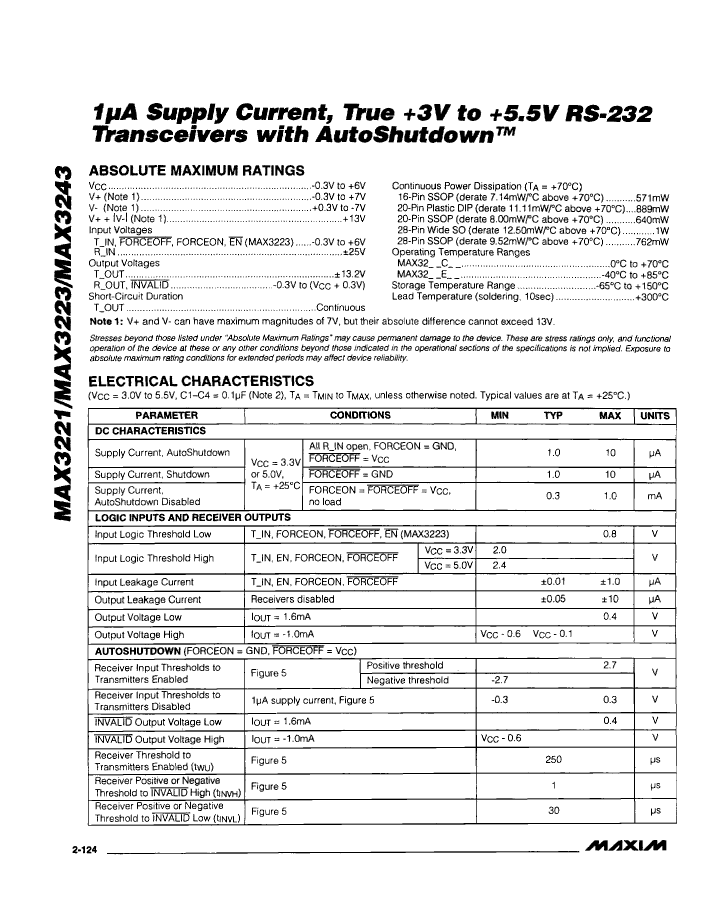

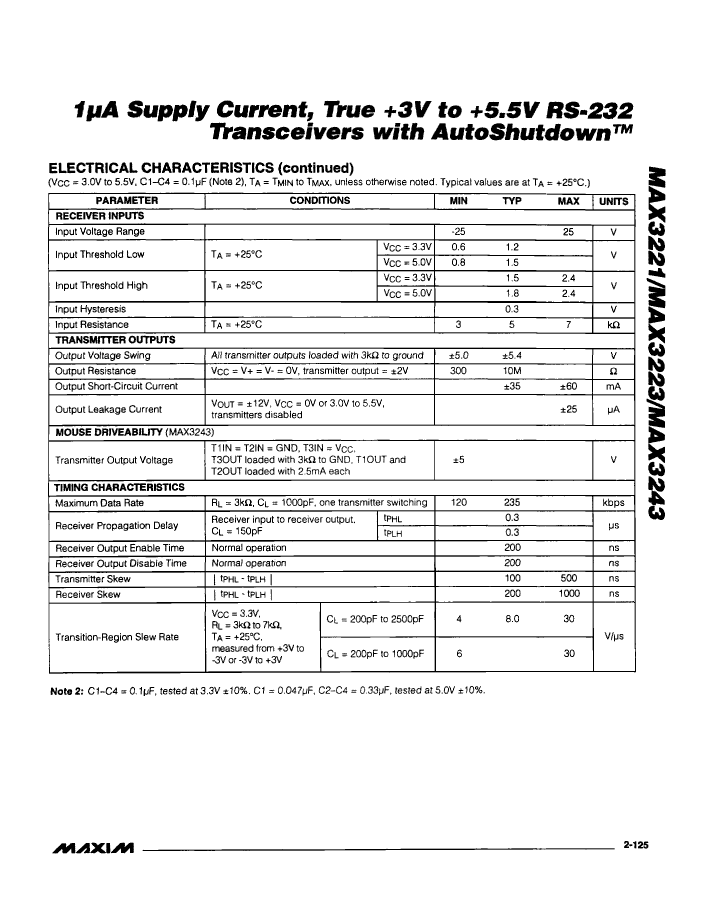

Preview

Download Datasheet

View All

MAX3243EWIT Related Products

	MAX3243EWIT	MAX3243CAIT	MAX3243EAIT	MAX3243CWIT	MAX3223EAPT
Description	LINE TRANSCEIVER, PDSO28, 0.300 INCH, SOIC-28	LINE TRANSCEIVER, PDSO28, 0.200 INCH, 0.65 MM PITCH, SSOP-28	LINE TRANSCEIVER, PDSO28, 0.200 INCH, 0.65 MM PITCH, SSOP-28	LINE TRANSCEIVER, PDSO28, 0.300 INCH, SOIC-28	LINE TRANSCEIVER, PDSO20, 0.200 INCH, 0.65 MM PITCH, SSOP-20
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	SOIC	SSOP	SSOP	SOIC	SSOP
package instruction	SOP,	SSOP,	0.200 INCH, 0.65 MM PITCH, SSOP-28	SOP,	SSOP,
Contacts	28	28	28	28	20
Reach Compliance Code	compliant	unknown	unknown	compliant	unknown
Differential output	NO	NO	NO	NO	NO
Number of drives	3	3	3	3	2
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER	LINE TRANSCEIVER
Interface standards	EIA-232; V.24; V.28; EIA-562	EIA-232; V.24; V.28; EIA-562	EIA-232; V.24; V.28; EIA-562	EIA-232; V.24; V.28; EIA-562	EIA-232; V.24; V.28; EIA-562
JESD-30 code	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G28	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0
length	17.9 mm	10.2 mm	10.2 mm	17.9 mm	7.2 mm
Number of functions	1	1	1	1	1
Number of terminals	28	28	28	28	20
Maximum operating temperature	85 °C	70 °C	85 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SSOP	SSOP	SOP	SSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE	SMALL OUTLINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Number of receiver bits	5	5	5	5	2
Maximum seat height	2.65 mm	1.99 mm	1.99 mm	2.65 mm	1.99 mm
Maximum slew rate	1 mA	1 mA	1 mA	1 mA	1 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm	1.27 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	5.29 mm	5.29 mm	7.5 mm	5.29 mm
Base Number Matches	1	1	1	-	-
