On-Board Type (DC)
EMI Suppression Filters
(EMIFILr) for Automotive
Murata
Manufacturing Co., Ltd.
Cat.No.C50E
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C50E.pdf 05.1.28
CONTENTS
1
EMIFILr and "EMIFIL" in this catalog are
the trademarks of Murata Manufacturing Co., Ltd.
Products Guide/Effective Frequency Range
1
Chip Ferrite Beads
Part Numbering
Chip Ferrite Beads BLM18 Series
Specifications and Test Methods
2
2
3
4
14
3
2
Chip EMIFILr
Part Numbering
Chip EMIFILr Capacitor Type NFM21H Series
Specifications and Test Methods
16
17
18
20
21
Chip EMIFILr LC Combined Type for Large Current NFE61H Series
Specifications and Test Methods
3
Chip Common Mode Choke Coils
Part Numbering
Chip Common Mode Choke Coil DLW31S Series
Specifications and Test Methods
23
24
25
28
29
33
34
36
41
!Caution/Notice
Soldering and Mounting
Package
Design Kits
Outlines of Major Noise Regulation Standards
Noise Suppression Principles by DC EMIFILr
Recycled Paper
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C50E.pdf 05.1.28
Products Guide/Effective Frequency Range
Product Guide
Type
Inductor
Type
Standard
For High
Speed Signals
For High
Current
Capacitor
Type
Standard
Type
T Filter for
High Current
Chip Common Mode
Choke Coils
Series
BLM18A
BLM18B
BLM18P
NFM21H
NFE61H
DLW31S
Dimensions
(mm)
1.6
0.8
1.6
0.8
1.6
0.8
2.0
1.25
6.8
1.6
3.2
1.6
Effective Frequency Range
10kHz 100kHz 1MHz 10MHz100MHz 1GHz 10GHz
EIA Code
0603
0603
0603
0805
2706
1206
2
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C50E.pdf 05.1.28
On-Board Type (DC) EMI Suppression Filters (EMIFILr) for Automotive
Chip Ferrite Beads
Part Numbering
1
Chip Ferrite Beads for Automotive
(Part Number)
qProduct
ID
Product ID
BL
wType
Code
M
eDimensions
(LgW)
Code
18
Dimensions (LgW)
1.6g0.8mm
EIA
0603
iNumber
of Circuits
Code
1
rCharacteristics/Applications
Code
*1
AG
BA
BB
BD
PG
for Power Supplies
for High-speed Signal Lines
BLM18
Characteristics/Applications
for General Use
Series
oPackaging
Code
B
J
D
C
Packaging
Bulk
Paper Taping (ø330mm Reel)
Paper Taping (ø180mm Reel)
Bulk Case
BLM18
Series
Number of Circuits
1 Circuit
Type
Monolithic Type
uCategory
Code
H
Category
For Automotive
Chip Ferrite Beads
BL
q
M
w
18
e
AG
r
102
t
S
H
1 D
yPerformance
Expressed by a letter.
Ex.)
Code
S/T
Performance
Sn Plating
y u i o
*1 Frequency characteristics vary with each code.
tImpedance
Expressed by three figures. The unit is in ohm (Ω). The first and
second figures are significant digits, and the third figure
expresses the number of zeros which follow the two figures.
3
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore,thereareno space for detailed specifications. Therefore, please approve our productsheet for product specifications before ordering. product specifications before ordering.
This catalog has only typical specifications because you is requested to approve our product specifications or to transact the approval specifications or transact the approval sheet for
C50E.pdf 05.1.28
1
On-Board Type (DC) EMI Suppression Filters (EMIFILr) for Automotive

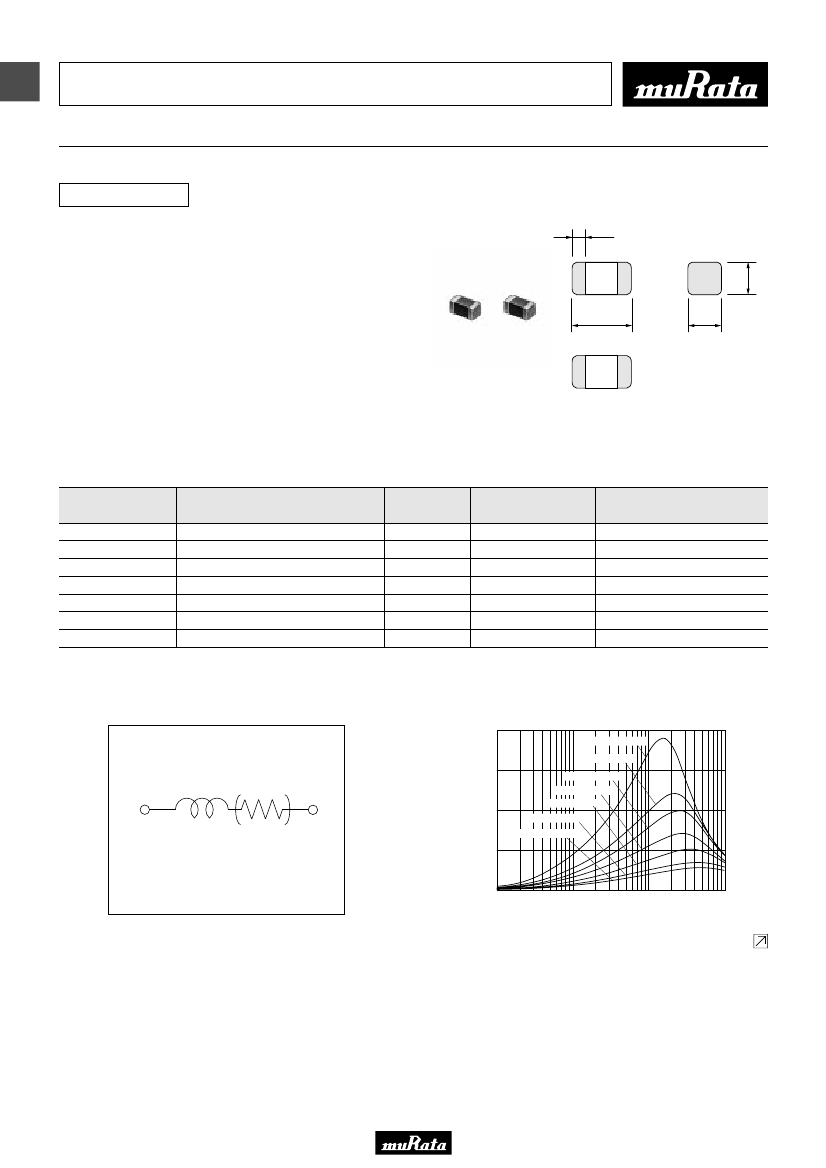

Chip Ferrite Beads BLM18 Series
BLM18A Series
s
Features
The chip ferrite beads BLM series is designed to
function nearly as a resistor at noise frequencies,
which greatly reduces the possibility of resonance and
leaves signal wave forms undistorted.
The BLM series is effective in circuits without stable
ground lines because the BLM series does not need a
