MA74FAG133.000 datasheet, PDF - EEWORLD Datasheet

MA74FAG133.000: DescriptionOscillator, 30MHz Min, 133MHz Max, 133MHz Nom; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MA74FAG133.000 Overview

Oscillator, 30MHz Min, 133MHz Max, 133MHz Nom

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	MtronPTI
package instruction	GWDIP4/14,.6
Reach Compliance Code	unknown
Is Samacsys	N
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	133 MHz
Minimum operating frequency	30 MHz
Nominal operating frequency	133 MHz
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	METAL
Encapsulate equivalent code	GWDIP4/14,.6
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	95 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

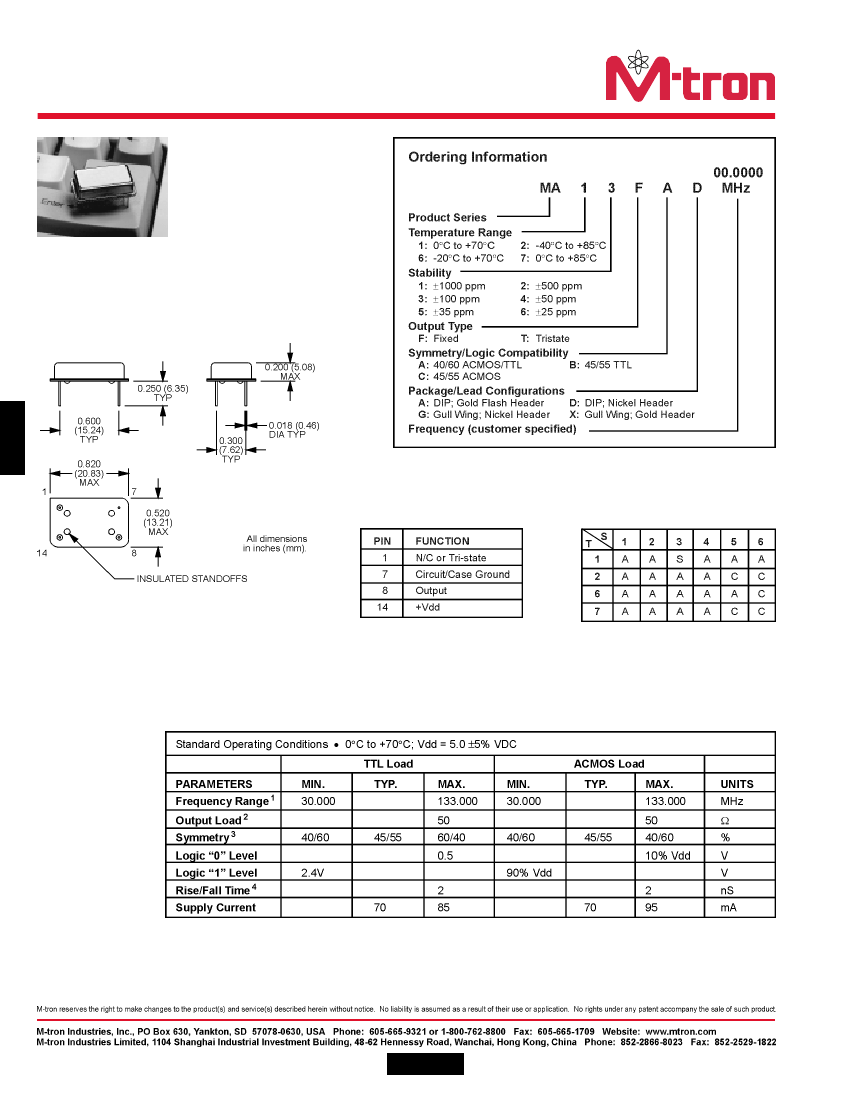

MA Series Advanced CMOS/TTL

Compatible Oscillators

ACMOS and TTL Compatible High

Frequency Oscillators

Pin Connections

Available Stabilities

vs. Temperature

See page 135 for gull wing configuration.

Tri-state Control Logic

Pin 1 high or floating: clock signal output

Pin 1 low: output disables to high impedance

A = Available

S = Standard

C = Consult Factory

Electrical Specifications

Higher frequencies available by special order. Contact factory.

See load circuit diagram #6 on page 137.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with ACMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with ACMOS load.

See page 136 for suggested soldering conditions.
