Document 278-1

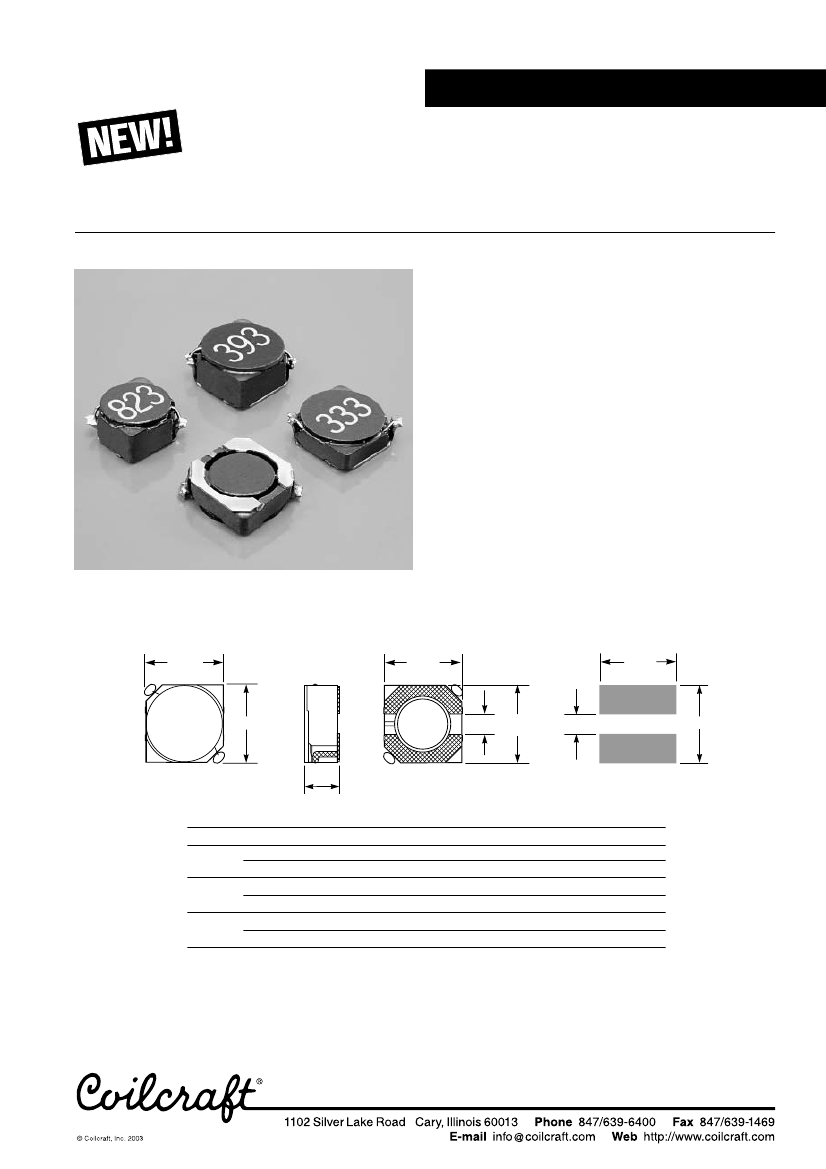

SMT Power Inductors - MSS Series

The MSS series is ideal for applications requiring high

power and high efficiency such as notebook computers,

PC cards, cellular phone handsets, and handheld prod-

ucts. These magnetically shielded, low-profile power

inductors are designed for high-density mounting and are

available on tape and reel for auto-insertion. Their indus-

try-standard shape and flat-top design ensures reliable

pick and place handling.

They are available in three families with inductance

ratings from 2.2 to 390 µH. These inductors can handle

current as high as 1.9 Amps and offer DC resistance as

low as 0.023 Ohms.

Free evaluation samples are available by contacting

Coilcraft or ordering them on-line at

www.coilcraft.com.

A max

D typ

G min

XXX

Series

B max

E typ

F typ

H max

I min

C max

Recommended

Land Pattern

C max

0.122

3,1

0.087

2,2

0.126

3,2

D typ

0.181

4,6

0.220

5,6

0.220

5,6

E typ

0.063

1,6

0.079

2,0

0.079

2,0

F typ

0.181

4,6

0.220

5,6

0.220

5,6

G min

0.197

5,0

0.237

6,0

0.237

6,0

H max

0.063

1,6

0.079

2,0

0.079

2,0

I min

0.197

5,0

0.237

6,0

0.237

6,0

A max

0.200

5,1

0.240

6,1

0.240

6,1

B max

0.200

5,1

0.240

6,1

0.240

6,1

MSS5131

MSS6122

MSS6132

MSS5131:

Parts/reel: 7″ 400; 13″ 1500 Tape width: 16 mm

MSS6122:

Parts/reel: 7″ 500; 13″ 1500 Tape width: 16 mm

MSS6132:

Parts/reel: 7″ 500; 13″ 1500 Tape width: 16 mm

For packaging data see Tape and Reel Specifications section.

Specifications subject to change without notice.

Document 278-1

Revised 10/16/02

Document 278-2

MSS5131 Series

Part number

MSS5131-222MX_

MSS5131-332MX_

MSS5131-472MX_

MSS5131-562MX_

MSS5131-682MX_

MSS5131-822MX_

MSS5131-103MX_

MSS5131-123MX_

MSS5131-153MX_

MSS5131-183MX_

MSS5131-223MX_

MSS5131-273MX_

MSS5131-333MX_

MSS5131-393MX_

MSS5131-473MX_

MSS5131-563MX_

MSS5131-683MX_

MSS5131-823MX_

MSS5131-104MX_

MSS5131-124MX_

MSS5131-154MX_

MSS5131-184MX_

MSS5131-224MX_

MSS5131-274MX_

MSS5131-334MX_

MSS5131-394MX_

DCR SRF

L ±20% max typ

sat

(µH)

( ) (MHz) (A)

2.2

3.3

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

0.023

0.032

0.045

0.055

0.060

0.075

0.083

0.100

0.115

0.150

0.160

0.190

0.216

0.290

0.320

0.365

0.480

0.520

0.700

0.800

1.100

1.200

1.400

1.800

2.100

2.200

65.0

60.0

48.0

44.0

42.0

40.0

38.0

35.0

32.0

26.0

22.0

19.0

18.0

17.0

16.0

15.0

12.5

12.0

11.5

11.0

10.0

9.0

8.0

7.5

6.8

5.4

1.90

1.53

1.26

1.16

1.05

0.96

0.87

0.80

0.71

0.65

0.58

0.53

0.48

0.44

0.40

0.36

0.33

0.30

0.27

0.25

0.22

0.20

0.18

0.17

0.15

0.14

Irms

20°C 40°C

rise rise

(A)

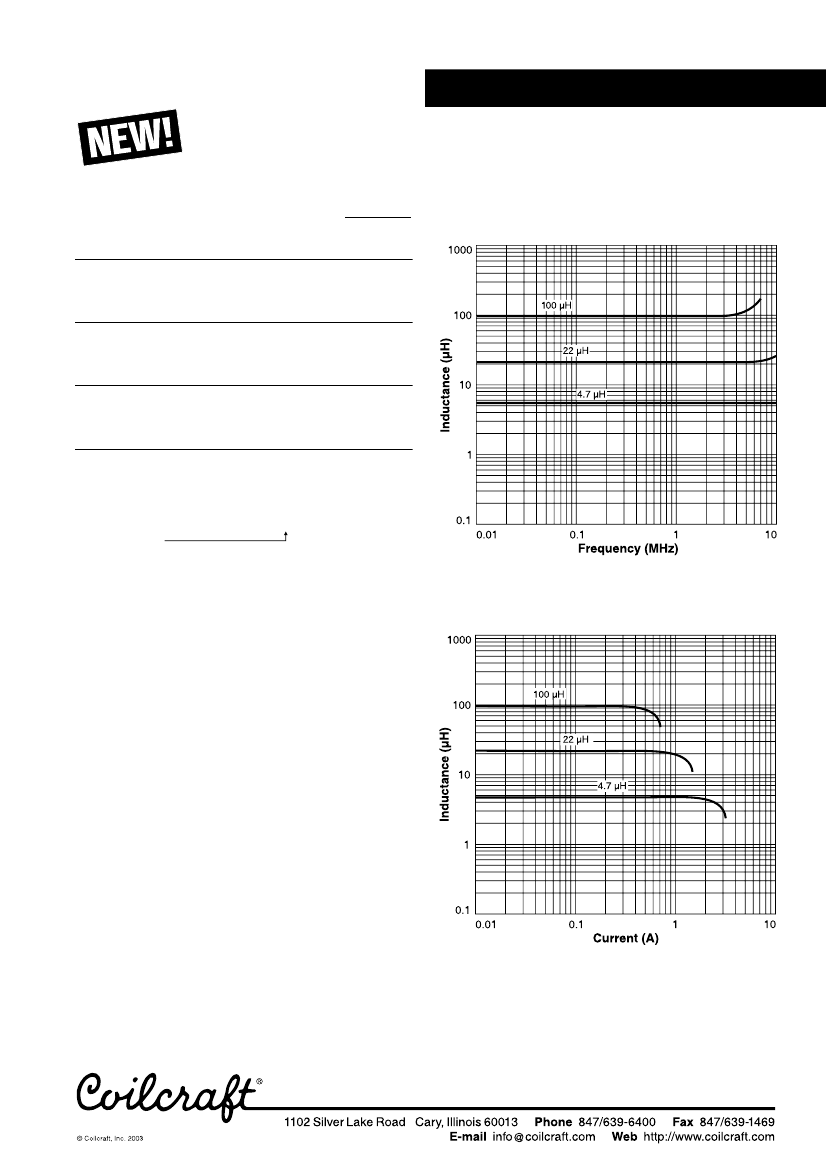

Typical L vs Frequency

2.00

1.60

1.40

1.30

1.20

1.10

1.00

0.97

0.94

0.89

0.87

0.85

0.80

0.74

0.71

0.70

0.66

0.62

0.55

0.51

0.47

0.43

0.39

0.35

0.32

0.30

3.30

2.90

2.50

2.30

2.16

2.00

1.90

1.60

1.50

1.40

1.30

1.20

1.10

1.00

0.95

0.90

0.85

0.80

0.69

0.62

0.58

0.54

0.50

0.45

0.42

0.38

1. When ordering, please specify packaging code:

MSS5131-394MX_

Packaging code:

7″ machine-ready reel

EIA-481 embossed plastic tape (400 per full reel).

Less than full reel

In tape, but not machine-ready. To have a

leader and trailer added ($25 charge), use code letter C instead.

13″ machine-ready reel

EIA-481 embossed plastic tape. Factory

order only, not stocked (1500 per reel per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. SRF measured using Agilent/HP 4191A or equilvalent.

4. DC current at which the inductance drops 10% (typ) from its value without

current.

5. Average current for temperature rise above 25°C ambient.

6. Operating temperature range

−40°C

to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Typical L vs Current

Specifications subject to change without notice.

Document 278-2

Revised 11/01/02

Document 278-3

MSS6122 Series

Part number

MSS6122-472MX_

MSS6122-562MX_

MSS6122-682MX_

MSS6122-822MX_

MSS6122-103MX_

MSS6122-123MX_

MSS6122-153MX_

MSS6122-183MX_

MSS6122-223MX_

MSS6122-273MX_

MSS6122-333MX_

MSS6122-393MX_

MSS6122-473MX_

MSS6122-563MX_

MSS6122-683MX_

MSS6122-823MX_

MSS6122-104MX_

DCR SRF

L ±20% max typ

sat

(µH)

( ) (MHz) (A)

4.7

5.6

6.8

8.2

100

0.065

0.083

0.100

0.120

0.150

0.176

0.210

0.280

0.310

0.350

0.460

0.540

0.680

0.740

1.000

1.200

1.370

65.0

60.0

48.0

44.0

42.0

40.0

38.0

35.0

32.0

26.0

22.0

19.0

18.0

17.0

16.0

15.0

12.5

1.85

1.60

1.45

1.25

1.20

1.10

0.97

0.85

0.80

0.75

0.65

0.57

0.54

0.50

0.43

0.41

0.36

Irms

20°C 40°C

rise rise

(A)

1.60

1.50

1.40

1.30

1.20

1.13

1.06

0.99

0.92

0.85

0.77

0.70

0.63

0.56

0.49

0.42

0.35

2.30

2.10

2.00

1.80

1.70

1.60

1.50

1.40

1.30

1.20

1.10

1.00

0.90

0.80

0.70

0.60

0.50

Typical L vs Frequency

1. When ordering, please specify packaging code:

MSS6122-104MX_

Packaging code:

7″ machine-ready reel

EIA-481 embossed plastic tape (500 per full reel).

Less than full reel

In tape, but not machine-ready. To have a

leader and trailer added ($25 charge), use code letter C instead.

13″ machine-ready reel

EIA-481 embossed plastic tape. Factory

order only, not stocked (1500 per reel per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. SRF measured using Agilent/HP 4191A or equilvalent.

4. DC current at which the inductance drops 10% (typ) from its value without

current.

5. Average current for temperature rise above 25°C ambient.

6. Operating temperature range

−40°C

to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Typical L vs Current

Specifications subject to change without notice.

Document 278-3

Revised 11/01/02

Document 278-4

MSS6132 Series

Part number

MSS6132-472MX_

MSS6132-562MX_

MSS6132-682MX_

MSS6132-822MX_

MSS6132-103MX_

MSS6132-123MX_

MSS6132-153MX_

MSS6132-183MX_

MSS6132-223MX_

MSS6132-273MX_

MSS6132-333MX_

MSS6132-393MX_

MSS6132-473MX_

MSS6132-563MX_

MSS6132-683MX_

MSS6132-823MX_

MSS6132-104MX_

DCR SRF

L ±20% max typ

Isat

(µH)

( ) (MHz) (A)

4.7

5.6

6.8

8.2

100

0.056

0.060

0.065

0.070

0.085

0.110

0.135

0.160

0.190

0.235

0.310

0.345

0.380

0.430

0.580

0.640

0.820

65.0

60.0

47.0

45.0

39.0

33.0

27.0

24.0

21.0

19.0

18.0

17.0

16.0

14.0

12.0

10.0

9.0

1.80

1.60

1.50

1.35

1.30

1.10

1.00

0.90

0.83

0.75

0.68

0.62

0.56

0.52

0.47

0.43

0.39

Irms

20°C 40°C

rise rise

(A)

Typical L vs Frequency

2.30

2.20

2.10

2.00

1.90

1.75

1.65

1.55

1.45

1.30

1.20

1.10

0.95

0.85

0.73

0.60

0.50

3.10

2.95

2.80

2.65

2.50

2.35

2.20

2.05

1.90

1.75

1.60

1.45

1.30

1.15

1.00

0.85

0.69

1. When ordering, please specify packaging code:

MSS6132-823MX_

Packaging code:

7″ machine-ready reel

EIA-481 embossed plastic tape (500 per full reel).

Less than full reel

In tape, but not machine-ready. To have a

leader and trailer added ($25 charge), use code letter C instead.

13″ machine-ready reel

EIA-481 embossed plastic tape. Factory

order only, not stocked (1500 per reel per full reel).

2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.

3. SRF measured using Agilent/HP 4191A or equilvalent.

4. DC current at which the inductance drops 10% (typ) from its value without

current.

5. Average current for temperature rise above 25°C ambient.

6. Operating temperature range

−40°C

to +85°C.

7. Electrical specifications at 25°C.

See Qualification Standards section for environmental and test data.

Typical L vs Current

Specifications subject to change without notice.

Document 278-4

Revised 11/01/02

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
