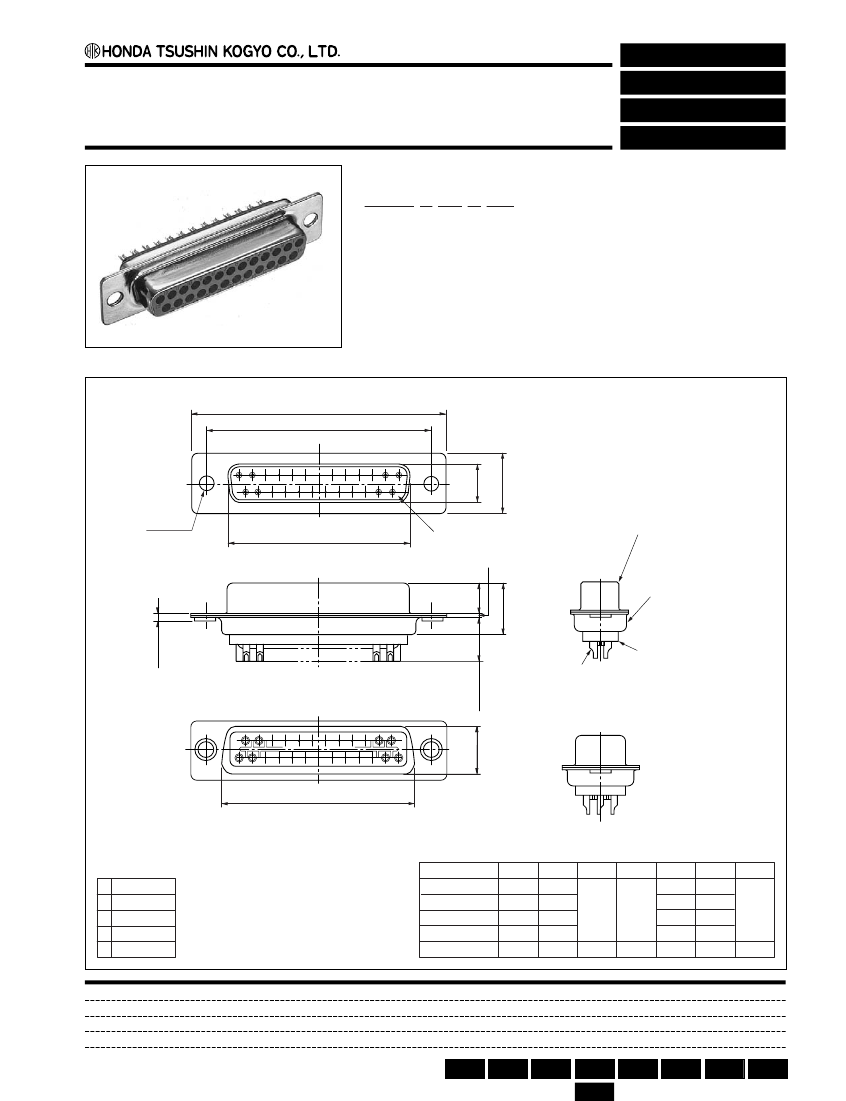

Rectangular connectors
Solder type female connector for cables
GME-D( )F( )
Ω
Configuration of product Part No.
For cables
Solder
GM series of low cost products
GME- D ( ) F ( )
¡
™ £
¢
∞
¡ Series name
™ Shell plating
D
: Shell A and B, nickel plate (for EMI filtered)
£ No. of contacts: 9, 15, 25, 37 or 50
¢ Form of contact:
F: Solder type, maleWire wrapping type, female
∞ Contact plating:
Blank : Min 0.3 µm Gold plate
E
: Min 0.1 µm Gold plate
Q
: Min 0.76 µm Gold plate
A
B
12
13
25
11
10
9
8
7
6
5
4
3
2
1
D
14
24
23
22
21
20
19
18
17
16
15
2-ø3.05
E
C
∞
1
¡
1.4 REF.
10.8
HONDA
GME-C25F
028
6.1
™
£
10 or less
¢
F
G
1
2
3
4
5
6
7
8
9
10
11
12
Ω
Components
¡ Shell A
™ Shell B
£ Insulator B
¢ Contacts
∞ Insulator A
Because some combinations of “Configurations
of Product Part No.”, are under consideration for
development, please contact us for availability
details.
Mating connectors:
GM series of male connectors
For use with housing:
Refer to the housing section
14
15
16
17
18
19
20
21
22
23
24
25
50 contacts
Ω
Dimensions
Part No.
GME-D9F
GME-D15F
GME-D25F
GME-D37F
GME-D50F
A
30.8
39.1
53.0
69.3
66.9
B
24.99
33.32
47.04
63.50
61.11
15.4
10.63
C
D
E
16.26
24.59
38.3
54.76
52.35
F
19.3
27.5
41.3
57.7
55.3
13.9
G
12.6
7.82
10.7
Others
Wire
wrapping Crimping Soldering
IDC
Press-in
SMT
DIP
