5962R9663601TEC: Description4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; Categorylogic logic; File Size34KB，3 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

5962R9663601TEC Overview

4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

5962R9663601TEC Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	SIDE BRAZED, CERAMIC, DIP-16
Contacts	16
Reach Compliance Code	unknown
Is Samacsys	N
series	4000/14000/40000
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Logic integrated circuit type	INVERTER
MaximumI(ol)	0.0033 A
Number of functions	6
Number of entries	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/15 V
Prop。Delay @ Nom-Sup	162 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

CD4049UBT

Data Sheet

July 1999

File Number

4622.1

CMOS Hex Buffer/Converter

Intersil’s Satellite Applications Flow

(SAF) devices are fully

tested and guaranteed to 100kRAD total dose. These QML

Class T devices are processed to a standard ﬂow intended

to meet the cost and shorter lead-time needs of large

volume satellite manufacturers, while maintaining a high

level of reliability.

The CD4049UBT is an Inverting Hex Buffer and features

logic level conversion using only one supply (voltage (V

The input signal high level (V

) can exceed the V

supply

voltage when this device is used for logic level conversions.

This device is intended for use as CMOS to DTL/TTL

converters and can drive directly two DTL/TTL loads. (V

5V, V

≤

0.4V, and I

≥

3.3mA.

The CD4049UBT is the designated replacement for the

CD4009UB. Because the CD4049UBT requires only one

power supply, it is preferred over the CD4009UB and

CD4010B and should be used in place of the CD4009UB in

all inverter, current driver, or logic level conversion

applications. In these applications the CD4049UBT is pin

compatible with the CD4009UB, and can be substituted for

this device in existing as well as in new designs. Terminal

No. 16 is not connected internally on the CD4049UBT,

therefore, connection to this terminal is of no consequence

to circuit operation. For applications not requiring high sink

current or voltage conversion, the CD4069UB Hex Inverter is

recommended.

Features

• QML Class T, Per MIL-PRF-38535

• Radiation Performance

- Gamma Dose (γ) 1 x 10

RAD(Si)

- SEP Effective LET >75 MEV-gm/cm

• Inverting Type

• High Sink Current for Driving 2 TTL Loads

• High-to-Low Level Logic Conversion

• 100% Tested for Quiescent Current at 20V

• 5V, 10V and 15V Parametric Ratings

Pinouts

CD4049BT (SBDIP), CDIP2-T16

TOP VIEW

G=A

H=B

I=C

16 NC

15 L = F

14 F

13 NC

12 K = E

11 E

10 J = D

9 D

Speciﬁcations

Speciﬁcations for Rad Hard QML devices are controlled by

the Defense Supply Center in Columbus (DSCC). The SMD

numbers listed below must be used when ordering.

Detailed Electrical Speciﬁcations for the CD4049UBT are

contained in SMD 5962-96636.

A “hot-link” is provided from

our website for downloading.

www.intersil.com/spacedefense/newsafclasst.asp

Intersil’s Quality Management Plan (QM Plan), listing all

Class T screening operations, is also available on our web-

site.

www.intersil.com/quality/manuals.asp

G=A

H=B

I=C

CD4049BT (FLATPACK), CDFP4-F16

TOP VIEW

L=F

K=E

J=D

Ordering Information

ORDERING

NUMBER

5962R9663601TEC

5962R9663601TXC

PART

NUMBER

CD4049UBDTR

CD4049UBKTR

TEMP.

RANGE

(

-55 to 125

NOTE:

Minimum order quantity for -T is 150 units through

distribution, or 450 units direct.

CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.

www.intersil.com or 407-727-9207

Intersil Corporation 1999

Satellite Applications Flow™ (SAF) is a trademark of Intersil Corporation.

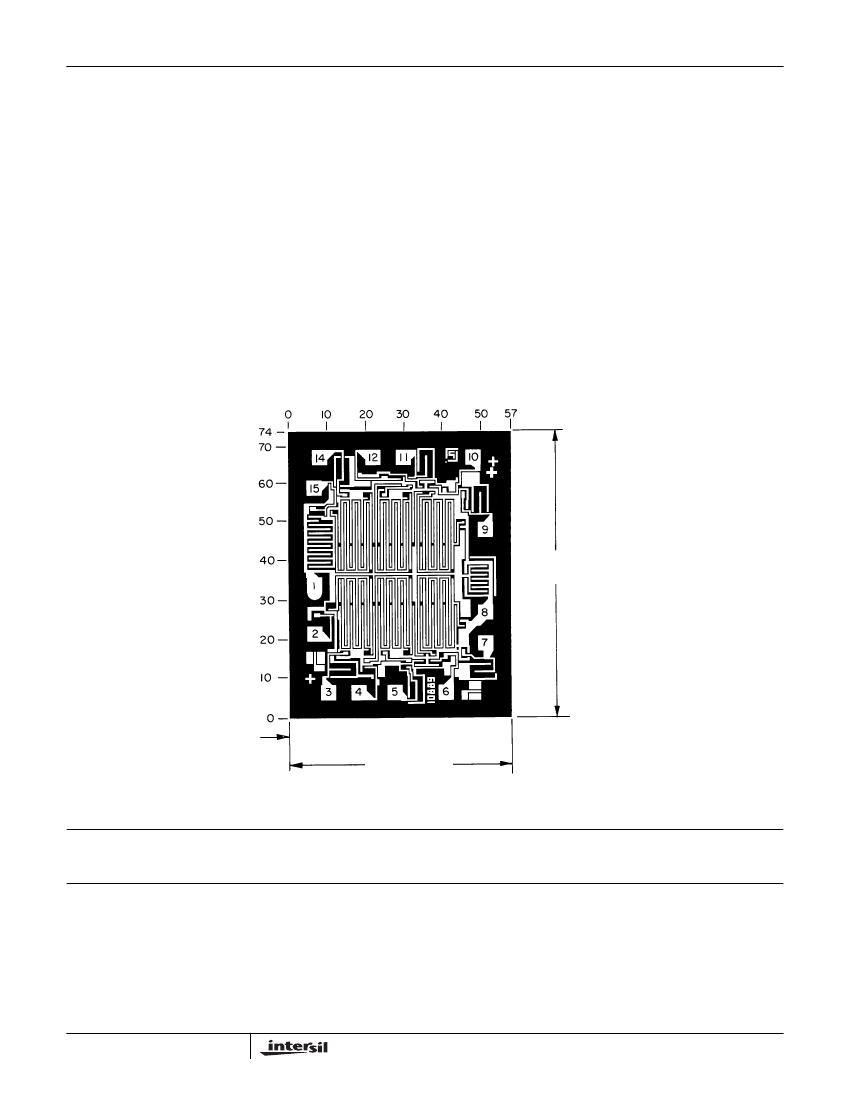

5962R9663601TEC Related Products

	5962R9663601TEC	5962R9663601TXC	CD4049UBKTR
Description	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDFP16, CERAMIC, DFP-16	4000/14000/40000 SERIES, HEX 1-INPUT INVERT GATE, CDFP16, CERAMIC, DFP-16
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DFP	DFP
package instruction	SIDE BRAZED, CERAMIC, DIP-16	DFP, FL16,.3	DFP, FL16,.3
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	not_compliant
series	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-CDIP-T16	R-CDFP-F16	R-CDFP-F16
JESD-609 code	e4	e4	e0
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	INVERTER	INVERTER	INVERTER
MaximumI(ol)	0.0033 A	0.0033 A	0.0033 A
Number of functions	6	6	6
Number of entries	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DFP
Encapsulate equivalent code	DIP16,.3	FL16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK
power supply	5/15 V	5/15 V	5/15 V
Prop。Delay @ Nom-Sup	162 ns	162 ns	162 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm	2.92 mm	2.92 mm
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	GOLD	GOLD	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT
Terminal pitch	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V	100k Rad(Si) V
width	7.62 mm	6.73 mm	6.73 mm
Base Number Matches	1	1	-
