DP85C960-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> DP85C960-25

DP85C960-25: DescriptionControl/Command Signal Generator, 25MHz, CHMOS, CDIP28, 0.300 INCH, CERDIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size517KB，18 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

DP85C960-25 Overview

Control/Command Signal Generator, 25MHz, CHMOS, CDIP28, 0.300 INCH, CERDIP-28

DP85C960-25 Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Is Samacsys	N
Bus compatibility	80960A/KB
maximum clock frequency	25 MHz
JESD-30 code	R-GDIP-T28
length	37.15 mm
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CHMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Base Number Matches	1

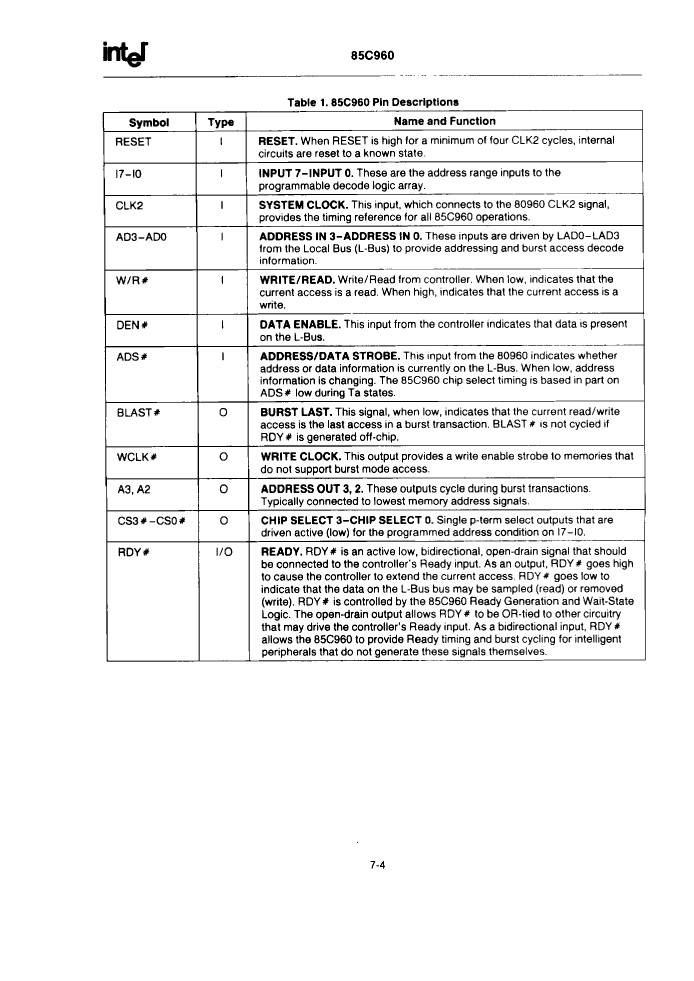

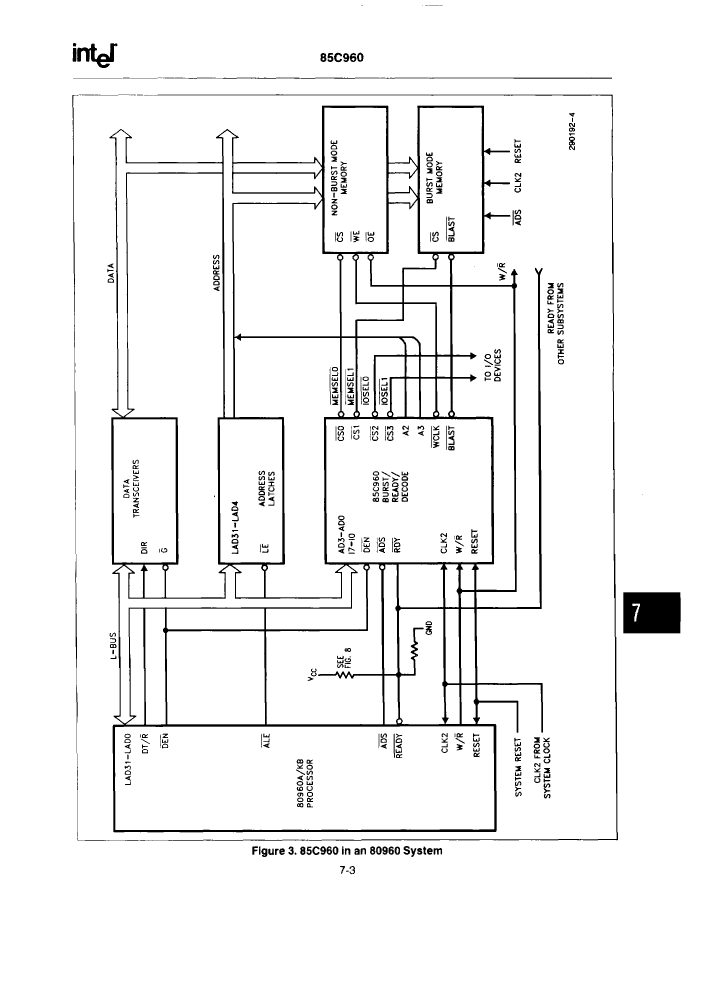

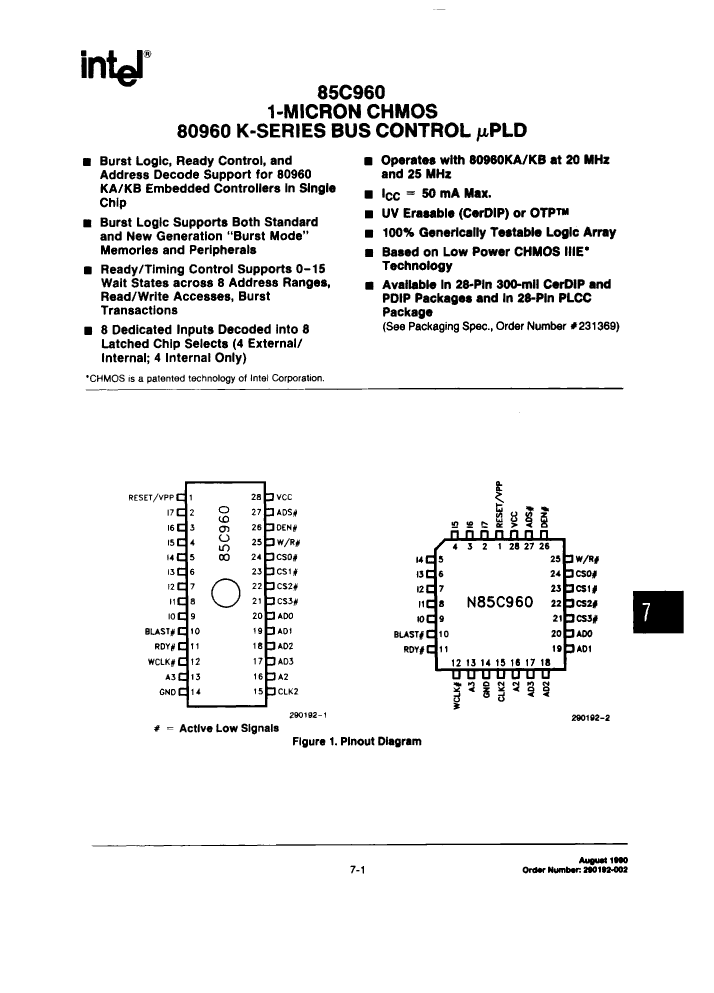

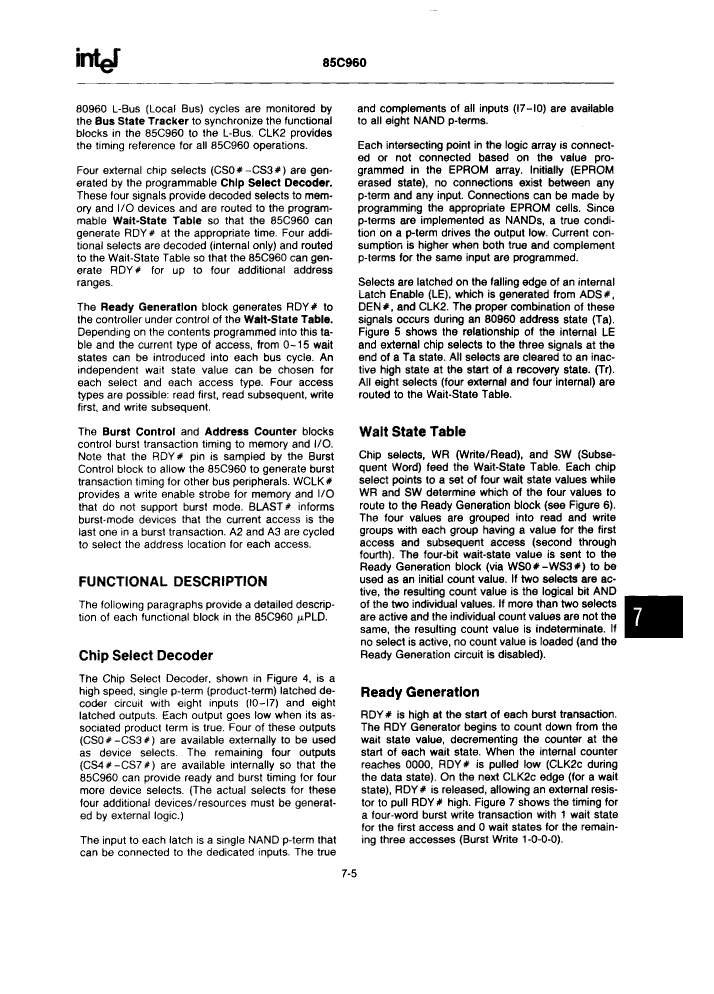

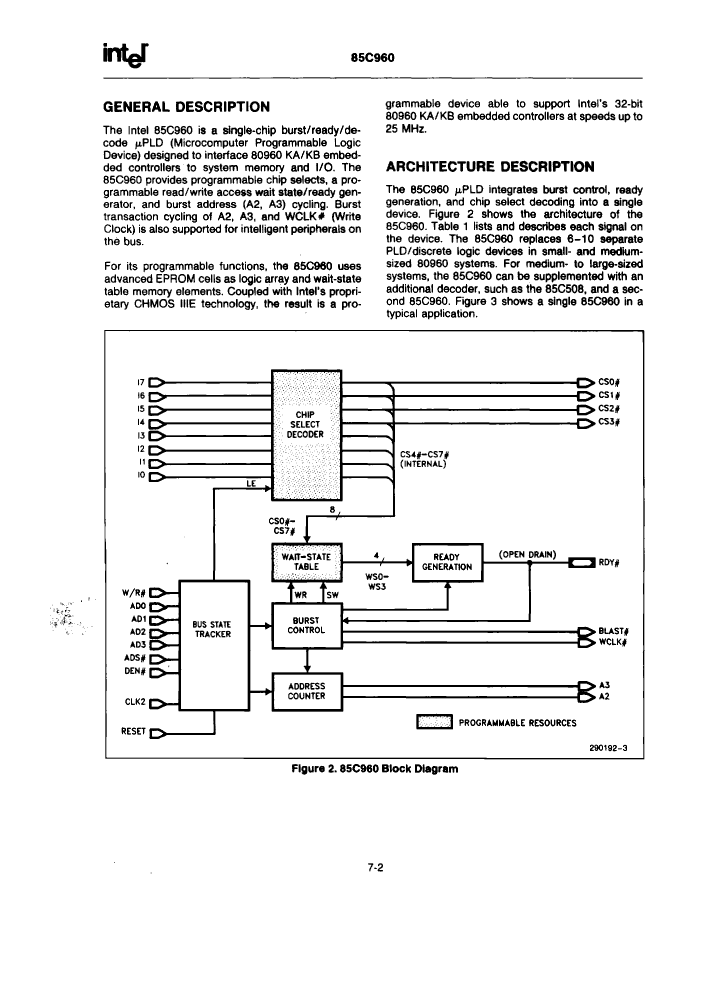

Preview

Download Datasheet

View All

DP85C960-25 Related Products

	DP85C960-25	DP85C960-20	N85C960-20	N85C960-25	P85C960-25	P85C960-20
Description	Control/Command Signal Generator, 25MHz, CHMOS, CDIP28, 0.300 INCH, CERDIP-28	Control/Command Signal Generator, 20MHz, CHMOS, CDIP28, 0.300 INCH, CERDIP-28	Control/Command Signal Generator, 20MHz, CHMOS, PQCC28, PLASTIC, LCC-28	Control/Command Signal Generator, 25MHz, CHMOS, PQCC28, PLASTIC, LCC-28	Control/Command Signal Generator, 25MHz, CHMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28	Control/Command Signal Generator, 20MHz, CHMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28
Parts packaging code	DIP	DIP	QLCC	QLCC	DIP	DIP
package instruction	DIP,	DIP,	QCCJ,	QCCJ,	DIP,	DIP,
Contacts	28	28	28	28	28	28
Reach Compliance Code	unknown	unknown	compliant	compliant	compliant	compliant
Is Samacsys	N	N	N	N	N	N
Bus compatibility	80960A/KB	80960A/KB	80960A/KB	80960A/KB	80960A/KB	80960A/KB
maximum clock frequency	25 MHz	20 MHz	20 MHz	25 MHz	25 MHz	20 MHz
JESD-30 code	R-GDIP-T28	R-GDIP-T28	S-PQCC-J28	S-PQCC-J28	R-PDIP-T28	R-PDIP-T28
Number of terminals	28	28	28	28	28	28
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES	NO	NO
technology	CHMOS	CHMOS	CHMOS	CHMOS	CHMOS	CHMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	QUAD	DUAL	DUAL
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
Base Number Matches	1	1	1	1	1	1
Maker	Intel	Intel	Intel	Intel	Intel	-
length	37.15 mm	37.15 mm	11.5062 mm	11.5062 mm	-	-
Maximum seat height	5.72 mm	5.72 mm	4.57 mm	4.57 mm	-	-
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm	-	-
width	7.62 mm	7.62 mm	11.5062 mm	11.5062 mm	-	-
Is it Rohs certified?	-	-	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	-	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maximum time at peak reflow temperature	-	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
