Datasheet> All Categories > Power/power management> The power supply circuit> LT1245MJ8/883C

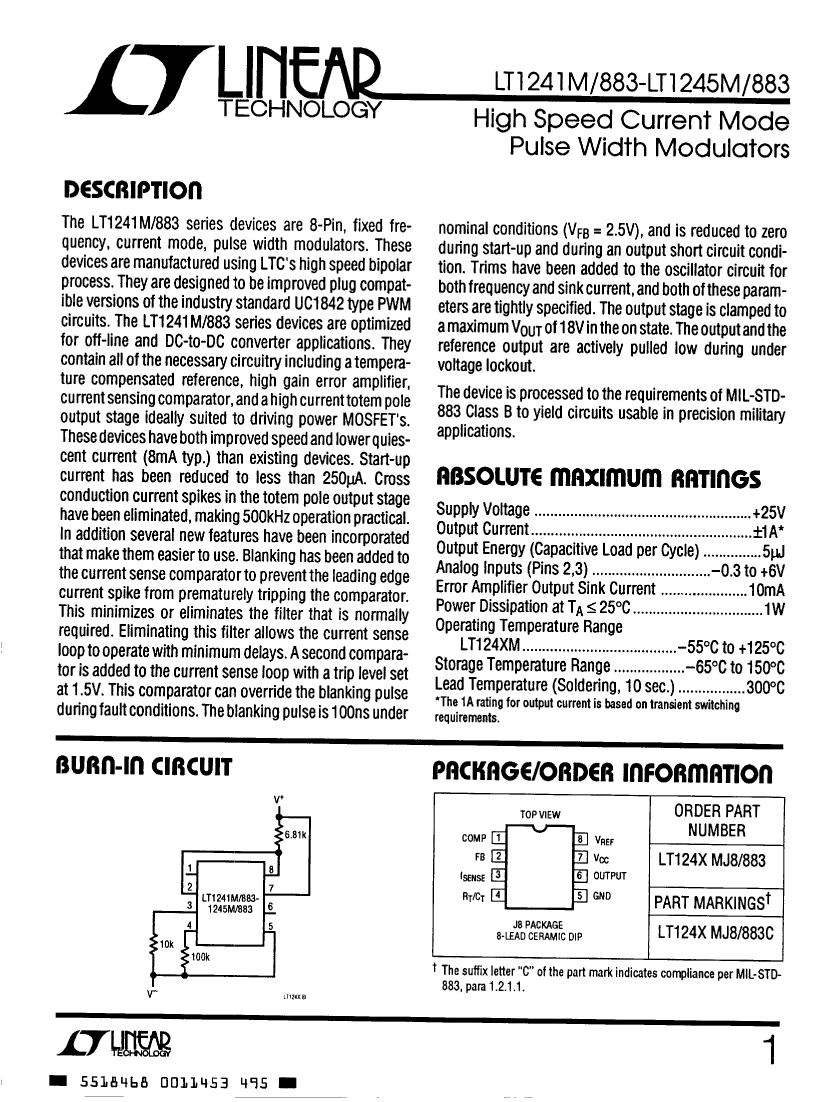

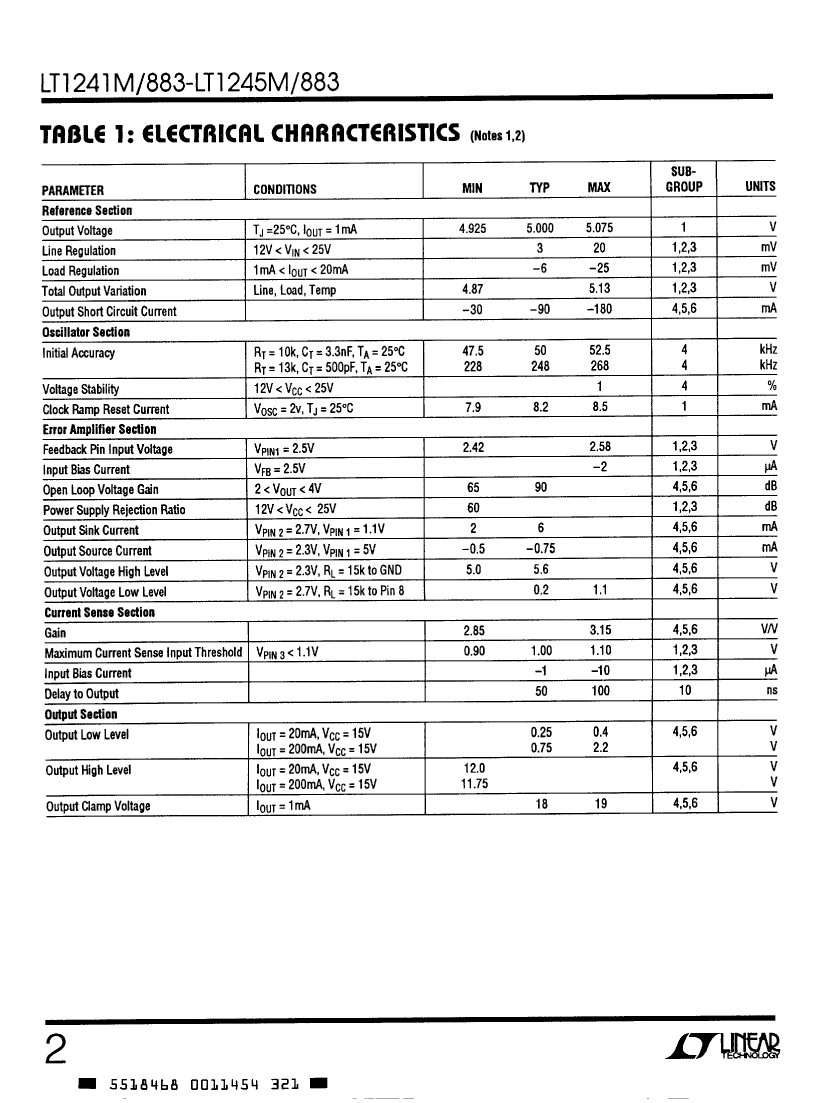

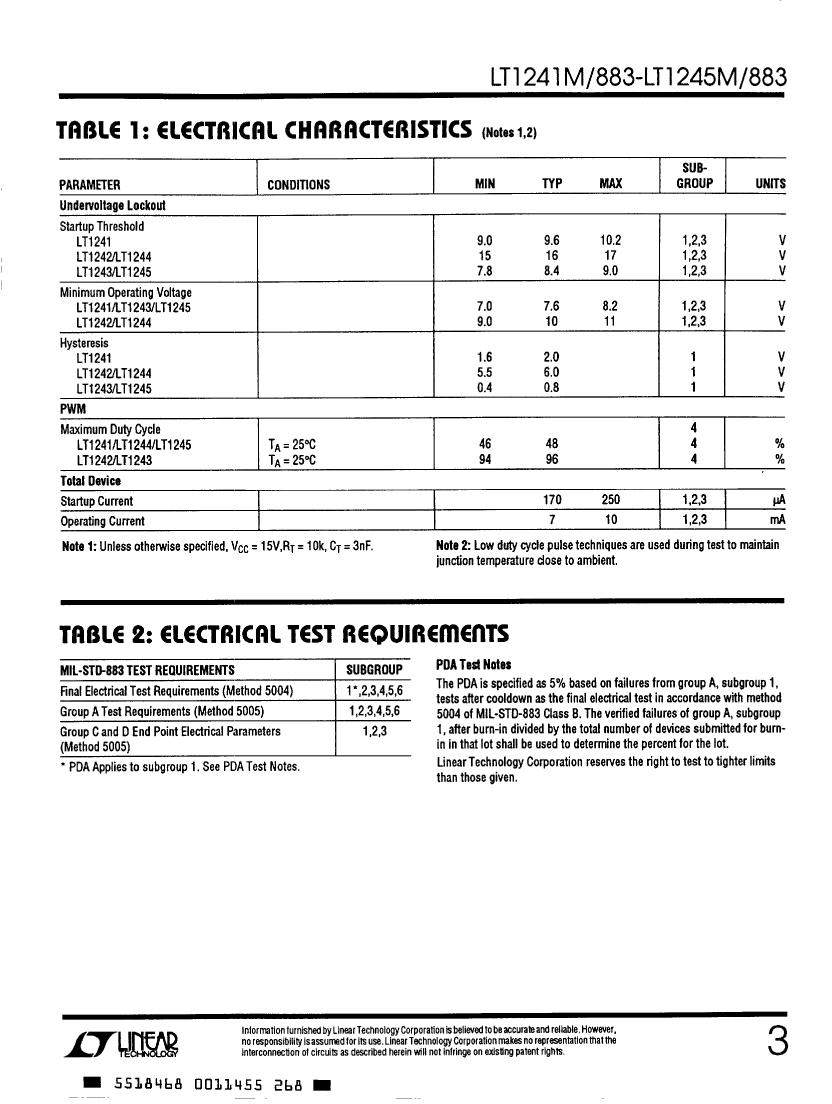

Preview

LT1245MJ8/883C: DescriptionIC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size281KB，3 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1245MJ8/883C Overview

IC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller

LT1245MJ8/883C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	DIP, DIP8,.3
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
control mode	CURRENT-MODE
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Maximum output current	0.2 A
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
Maximum switching frequency	500 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

LT1245MJ8/883C Related Products

	LT1245MJ8/883C	LT1241MJ8/883	LT1241MJ8/883C	LT1242MJ8/883	LT1242MJ8/883C	LT1243MJ8/883C
Description	IC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller	LT1241MJ8/883	IC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller	LT1242MJ8/883	IC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller	IC IC,SMPS CONTROLLER,CURRENT-MODE,BIPOLAR,DIP,8PIN,CERAMIC, Switching Regulator or Controller
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	unknown	compliant	unknown	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
JESD-30 code	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8	R-XDIP-T8
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of terminals	8	8	8	8	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A	0.2 A
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
Maximum switching frequency	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it lead-free?	Contains lead	-	Contains lead	-	Contains lead	Contains lead
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	-	-	Linear ( ADI )
package instruction	DIP, DIP8,.3	-	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	-
