50VQ04FTR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 50VQ04FTR

50VQ04FTR: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA,; CategoryDiscrete semiconductor diode; File Size67KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

50VQ04FTR Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA,

50VQ04FTR Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V
JEDEC-95 code	TO-252AA
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	45 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	3000 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

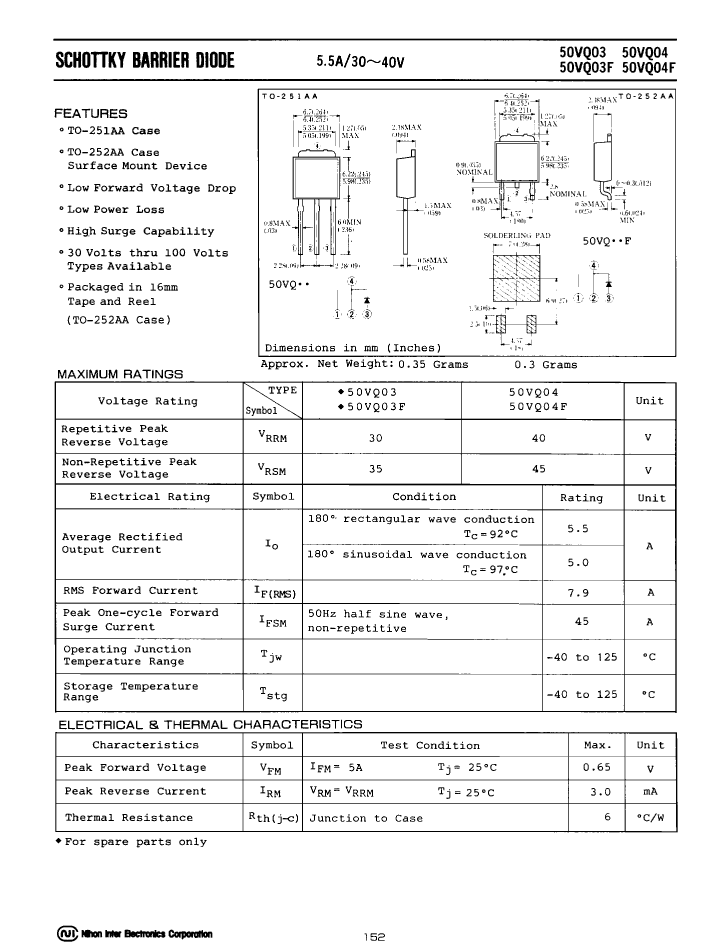

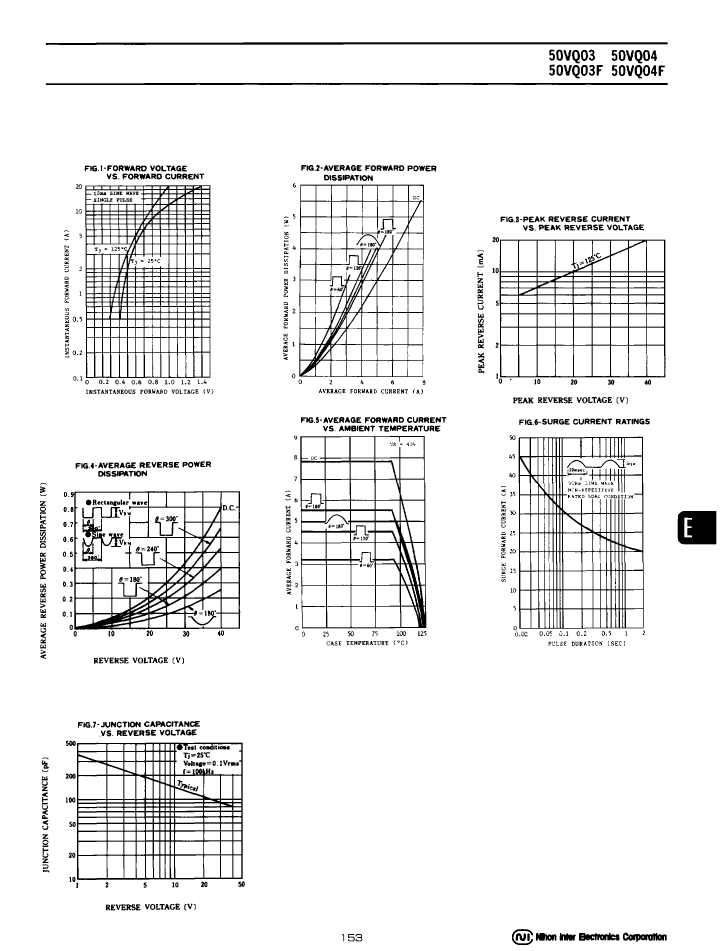

Preview

Download Datasheet

View All

50VQ04FTR Related Products

	50VQ04FTR	50VQ03FTR	50VQ03FTRRH	50VQ03FTRLH	50VQ04FTRLH	50VQ04FTRRH
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon, TO-252AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon, TO-252AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon, TO-252AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 40V V(RRM), Silicon, TO-252AA,
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V	0.65 V	0.65 V	0.65 V	0.65 V	0.65 V
JEDEC-95 code	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA	TO-252AA
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	45 A	45 A	45 A	45 A	45 A	45 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	5 A	5 A	5 A	5 A	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	30 V	30 V	30 V	40 V	40 V
Maximum reverse current	3000 µA	3000 µA	3000 µA	3000 µA	3000 µA	3000 µA
surface mount	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1
