AZ847P2-9: DescriptionPower/Signal Relay, 2 Form C, DPDT, Latched, 16.8VDC (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output; CategoryMechanical and electronic products relay; File Size86KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/

Download Datasheet Parametric Compare View All

AZ847P2-9 Overview

Power/Signal Relay, 2 Form C, DPDT, Latched, 16.8VDC (Coil), 2A (Contact), 220VDC (Contact), DC Input, Random, AC/DC Output

AZ847P2-9 Parametric

Parameter Name	Attribute value
Maker	AZETTLER
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	9 mm
body height	5.5 mm
Body length or diameter	14 mm
Coil operating voltage (DC)	6.8 V
Coil resistance	405 Ω
Maximum coil voltage (DC)	16.8 V
Nominal coil voltage	9 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	62.5VA@250VAC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated power R load	60W@220VDC
Contact (DC) maximum rated R load	2A@220VDC
Contact resistance	50 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	1250 Vrms
Dielectric strength between breaking contacts	1000 Vrms
Electrical life	500000 Cycle(s)
End contact material	Silver Palladium
End contact plating	GOLD
Input switching control type	Random
Insulation resistance	1000000000 Ω
Number of terminals	10
operating hours	2 ms
PCB hole count	10
physical size	14mm x 9mm x 5.5mm
Guideline	CSA; UL
Relay action	LATCHED
Relay style	2 FORM C
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	1 ms
seal	EPOXY
Terminal length	0.0035 inch
Termination type	SOLDER
weight	1.2 g
Base Number Matches	1

Preview

Download Datasheet

View All

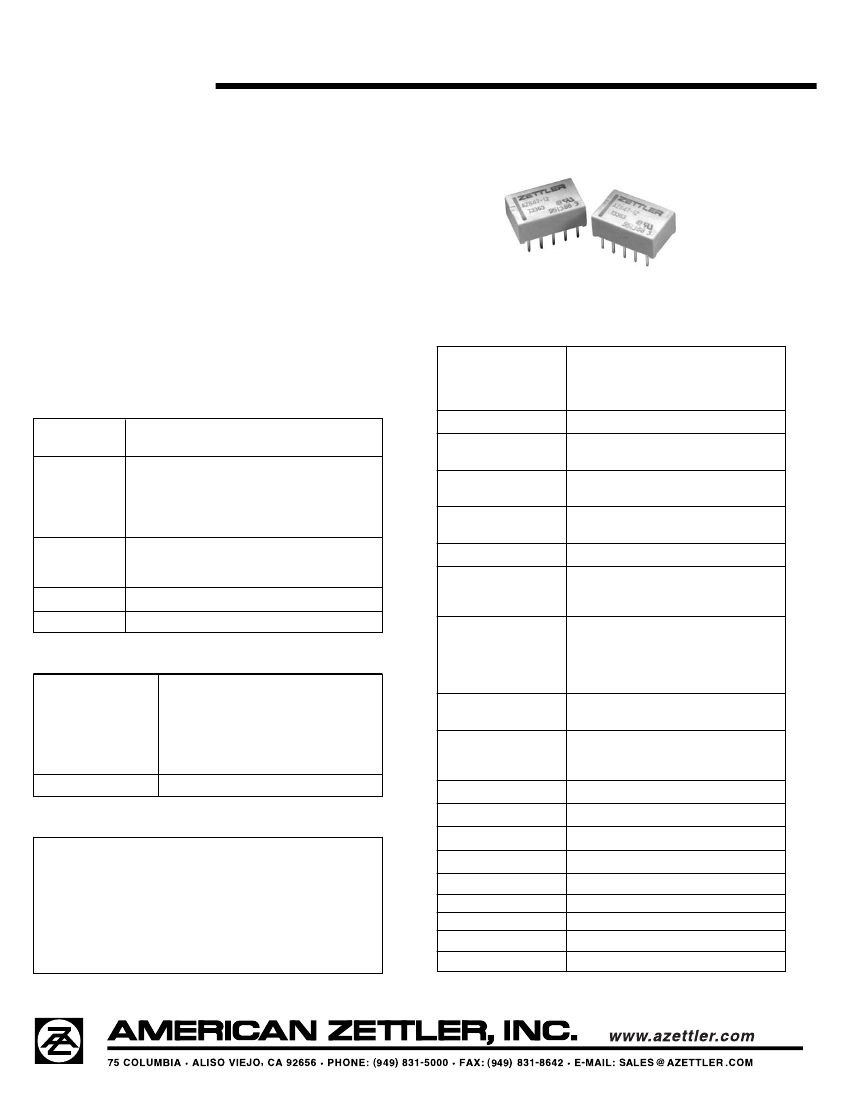

AZ847

MICROMINIATURE

POLARIZED RELAY

FEATURES

•

Microminiature size: Height: .217 inches (5.5 mm);

Length: .551 inches (14 mm); Width: .354 inches (9 mm)

•

High sensitivity, 79 mW pickup

•

Monostable and bistable (latching) two coil versions

available

•

Meets FCC Part 68.302 1500 V lightning surge

•

DIP terminal layout, fits 10 pin IC socket

•

Epoxy sealed for automatic wave soldering and cleaning

•

UL file E43203, CSA 73363

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Set Time

(bistable versions)

Reset Time

(bistable versions)

Dropout

Capacitance

Minimum operations

1 x 10

5 x 10

at 1 A 30 VDC, Res.

2 x 10

at 0.5 A 125 VAC, Res.

2 ms at nominal coil voltage

1 ms at nominal coil voltage

(with no coil suppression)

2 ms at nominal coil voltage (typical)

Greater than 10% of nominal coil voltage

Contact to contact: 0.5 pF

Contact set to contact set: 1.5 pF

Contact to coil: 1.0 pF

1000 Vrms between contact sets

1000 Vrms across contacts

1,250 Vrms contact to coil

Meets FCC part 68.302 1500 V lightning

surge

1000 megohms min. at 25°C, 500 VDC,

50% RH

At nominal coil voltage

-40°C (-40°F) to 85°C (185°F)

-40°C (-40°F) to 105°C (221°F)

.130" DA at 10–55 Hz

50 g

LCP

Tinned copper alloy, P.C.

260°C (500°F)

5 seconds

80°C (176°F)

30 seconds

1.2 grams

CONTACTS

Arrangement

Ratings

DPDT (2 Form C)

Bifurcated crossbar contacts

Resistive load:

Max.

Rated Load

UL/CSA

Material

Resistance

switched power: 60 W or 62.5 VA

switched current: 2 A

switched voltage: 220 VDC or 250 VAC

carry current:

0.5 A at 125 VAC res.

2.0 A at 30 VDC res.

0.3 A at 110 VDC res.

Silver palladium; gold clad

< 50 milliohms initially

Dielectric Strength

(at sea level)

COIL (Polarized)

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

Single side stable:

70–150 mW

Bistable (latching) two coil: 100–150 mW

700 mW at 20°C (68°F) ambient

530 mW at 40°C (104°F) ambient

18°C (32°F) at nominal coil voltage

Max. 105°C (221°F)

Insulation Resistance

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

All values at 20°C (68°F).

Relay has fixed coil polarity.

Relay may pull in with less than “Must Operate” value.

Relay adjustment may be affected if undue pressure is exerted

on relay case.

5. For complete isolation between the relay’s magnetic fields, it is

recommended that a .197" (5.0 mm) space be provided between

adjacent relays.

6. Specifications subject to change without notice.

Terminals

Max. Solder Temp.

Max. Solder Time

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

5/24/04W
