2N6761 datasheet, PDF - EEWORLD Datasheet

2N6761: DescriptionN-Channel Power MOSFETs, 4.5A, 450V/500V; CategoryDiscrete semiconductor The transistor; File Size139KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

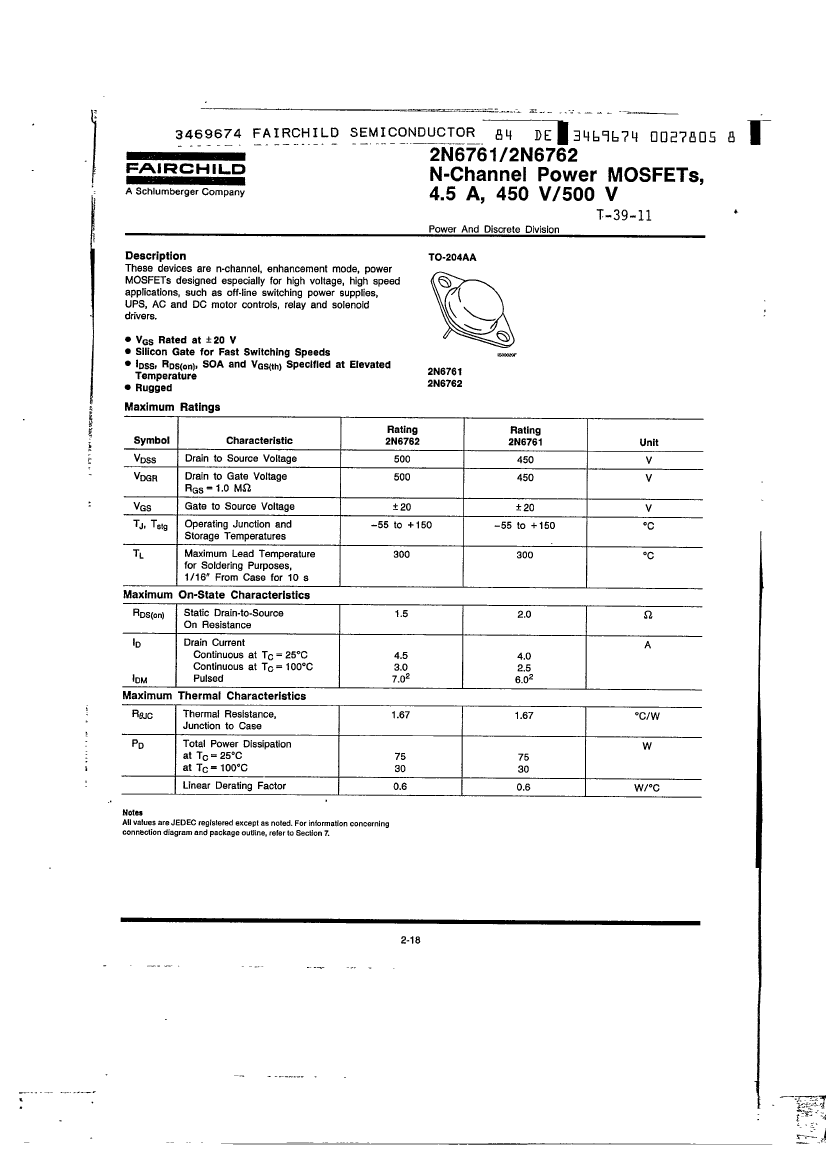

2N6761 Overview

N-Channel Power MOSFETs, 4.5A, 450V/500V

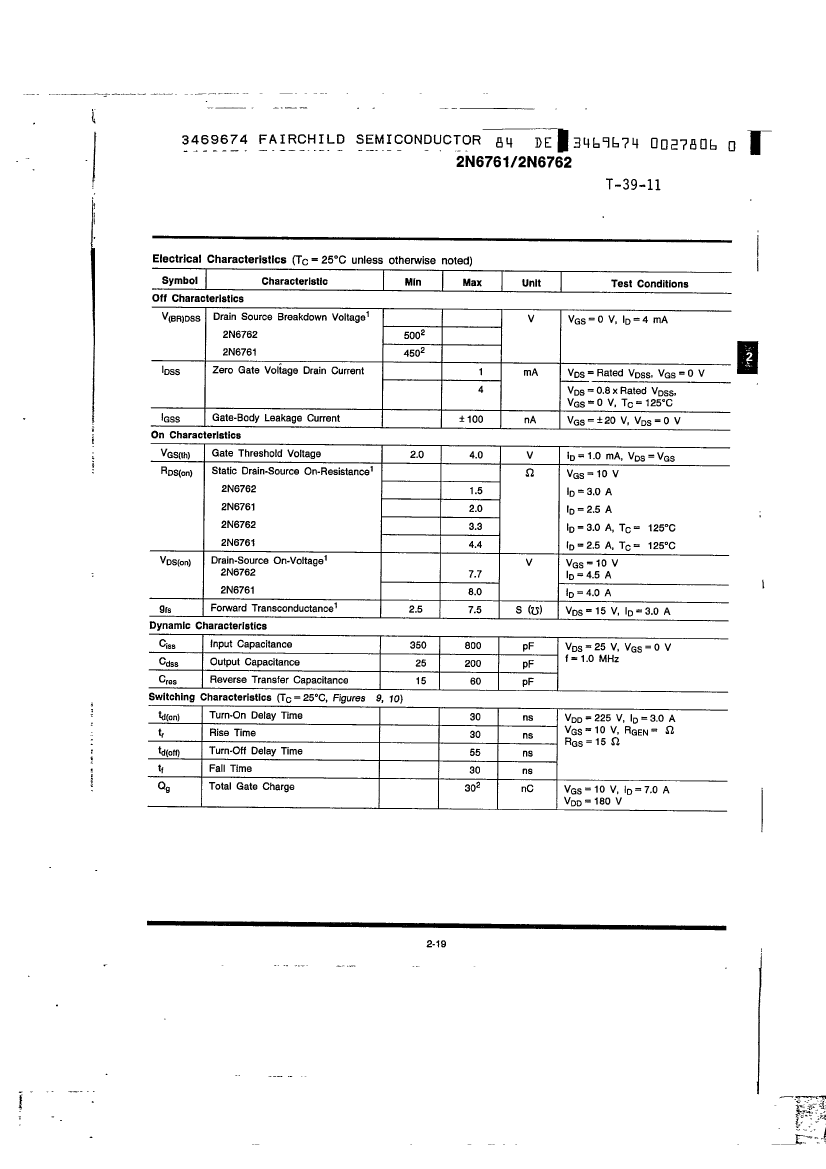

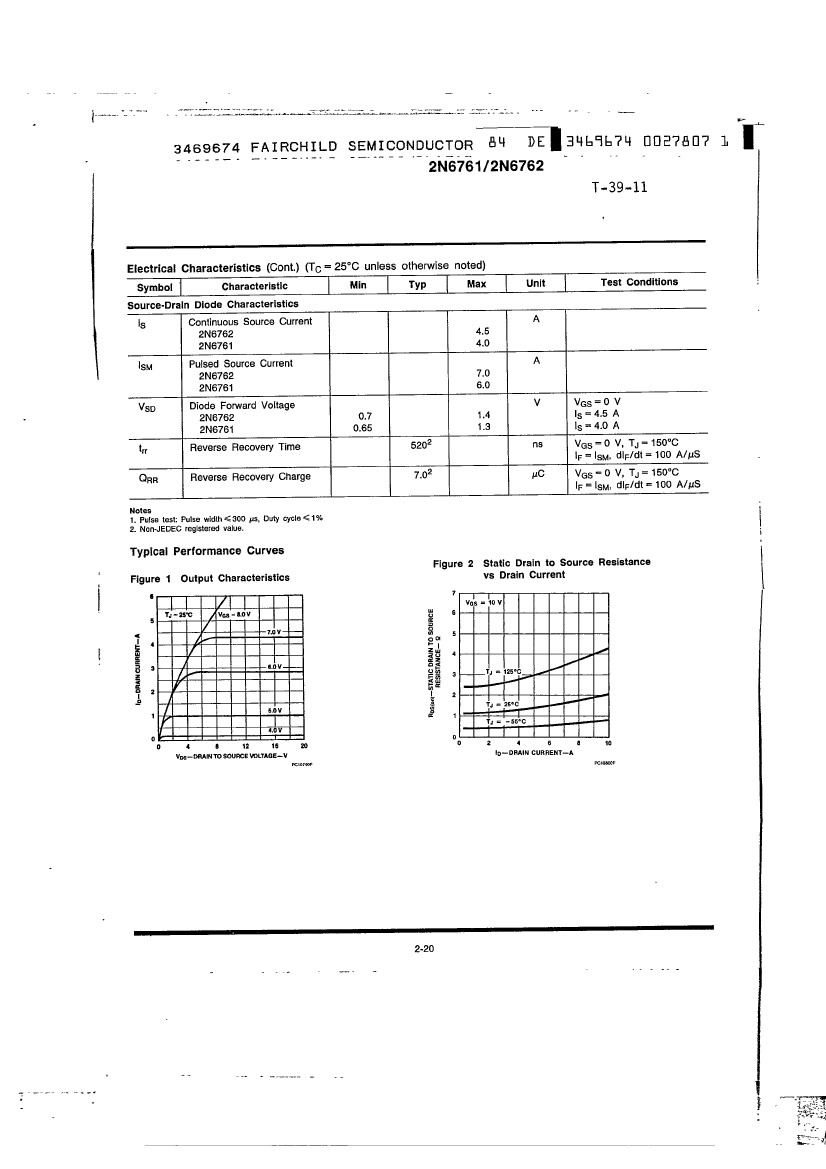

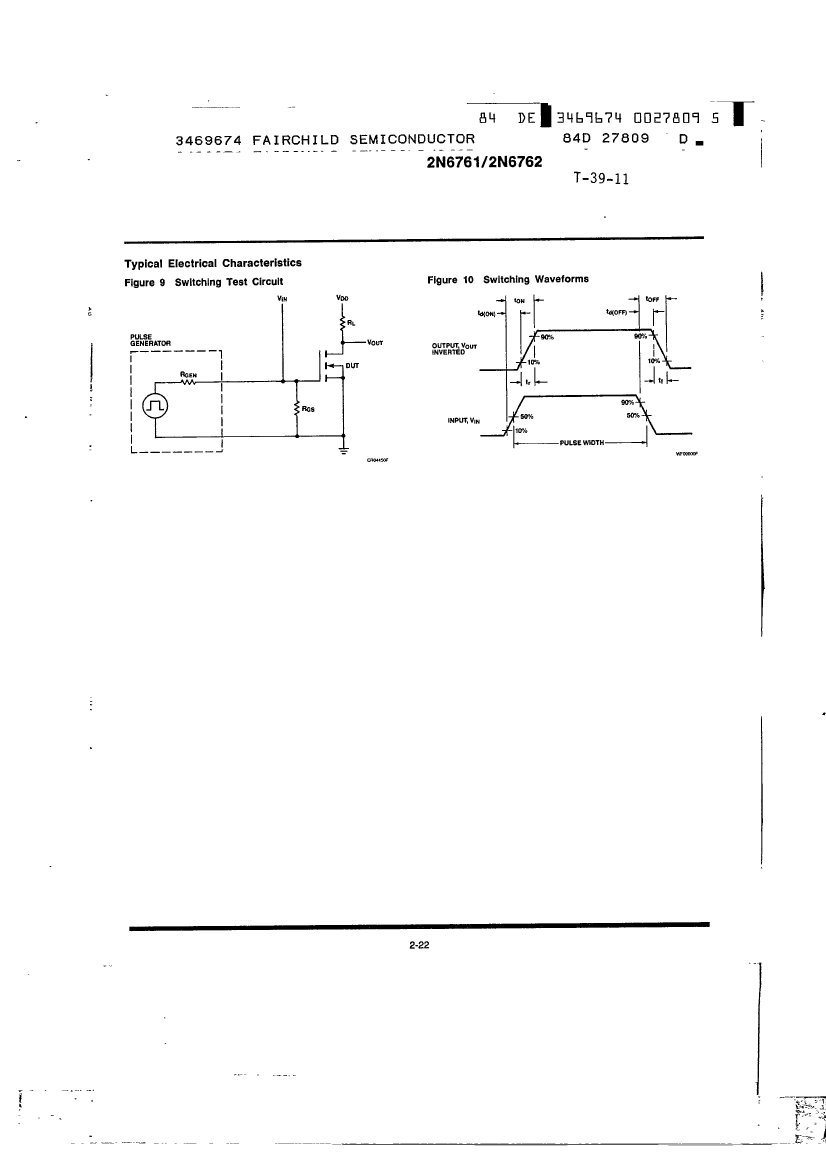

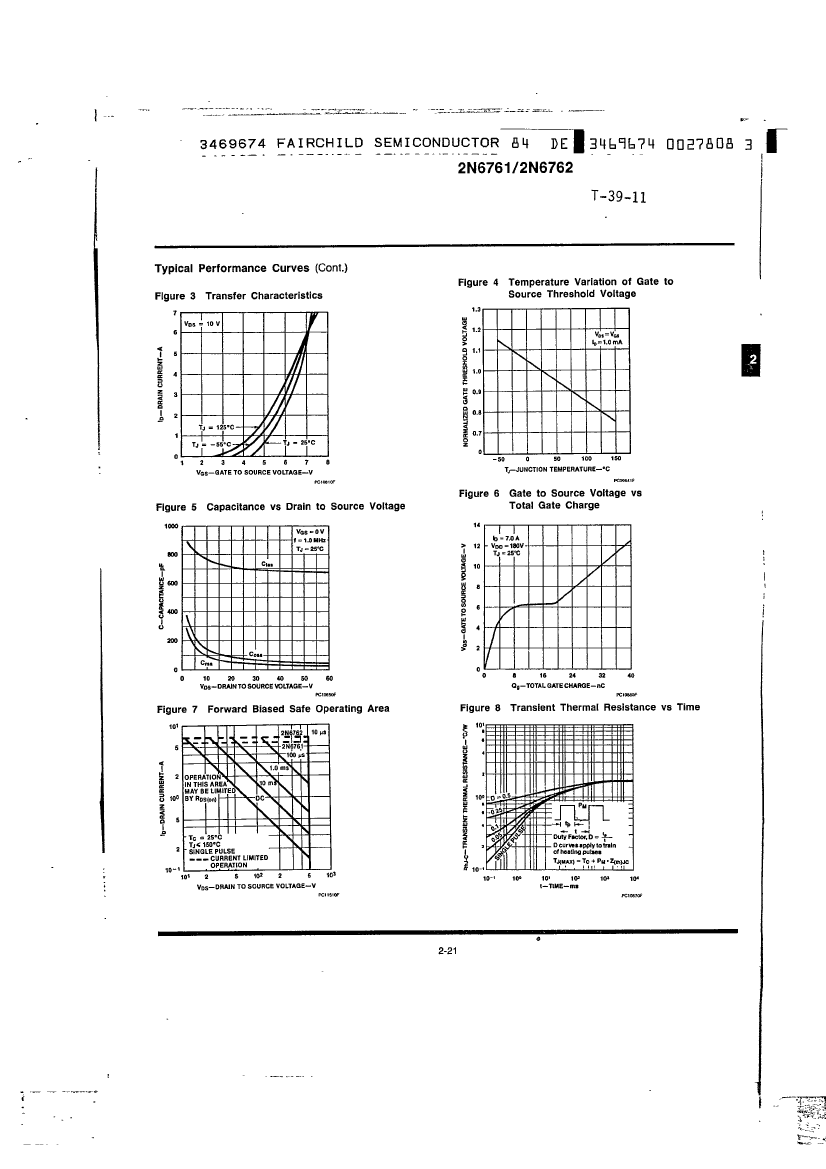

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compli
Configuration	Single
Maximum drain current (Abs) (ID)	4 A
FET technology	METAL-OXIDE SEMICONDUCTOR
JESD-609 code	e0
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Polarity/channel type	N-CHANNEL
Maximum power dissipation(Abs)	75 W
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

	2N6761	2N6762
Description	N-Channel Power MOSFETs, 4.5A, 450V/500V	N-Channel Power MOSFETs, 4.5A, 450V/500V
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	compli	compliant
Configuration	Single	Single
Maximum drain current (Abs) (ID)	4 A	4.5 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JESD-609 code	e0	e0
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Maximum operating temperature	150 °C	150 °C
Polarity/channel type	N-CHANNEL	N-CHANNEL
Maximum power dissipation(Abs)	75 W	75 W
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
