DIC-152C-14P datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> DIC-152C-14P

Preview

DIC-152C-14P: DescriptionBoard Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

DIC-152C-14P Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

DIC-152C-14P Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	BOARD CONNECTOR
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14
Base Number Matches	1

DIC-152C-14P Preview

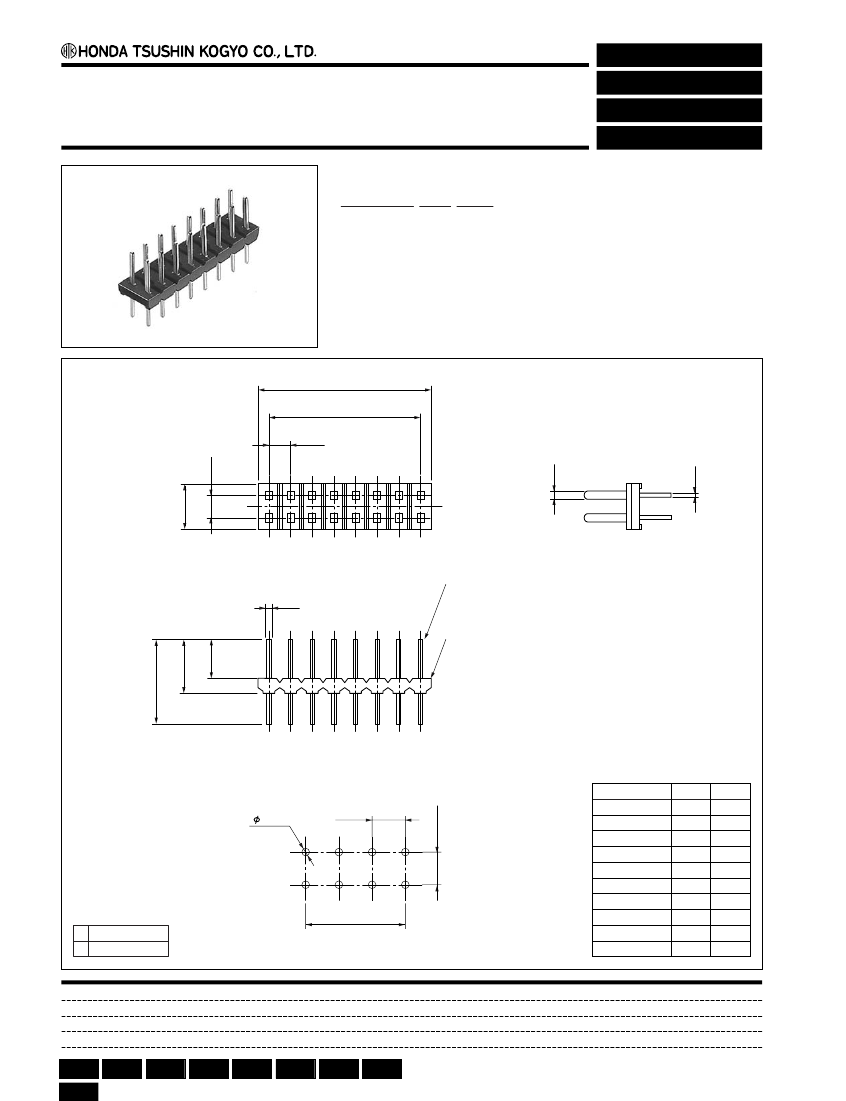

2.54 mm pitch connectors

Straight DIP type male connector for PCBs

DIC-152( )-( )P[Z-152( )-( )P]

●

Configuration of product Part No.

For PCBs

Straight DIP

0.6✕0.4 mm square contacts

DIC-152 ( )- ( )P

➀

➁

➂

➀

Series name

➁

Contact plating

Blank: Min. 0.7

µm

Gold plate

A

: Min. 0.4

µm

Gold plate

B

: Min. 0.2

µm

Gold plate

C

: Min. 0.76

µm

Gold plate

➂

No. of contacts: 2- 20

(A)

B

2.54

0.6

œ0.4

5.08

➁

0.4

➀

10

6.5

4.7

Since these products are supplied to customers by cutting off to

the specified number of contacts, both sides of the insulator

may have cutaway surfaces.

●

Dimensions

Part No.

DIC-152( )-2P

DIC-152( )-4P

DIC-152( )-6P

DIC-152( )-8P

DIC-152( )-10P

DIC-152( )-12P

DIC-152( )-14P

A

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

25.40

B

-

2.54

5.08

7.62

10.16

12.70

15.24

17.78

20.32

22.86

--0

0.8

+0.1

--

2.54

+0.05

●

Components

➀

Insulator

➁

Contacts

B

+0.1

--

2.54

+0.05

DIC-152( )-16P

DIC-152( )-18P

DIC-152( )-20P

PCB layout for reference only

Mating connectors:

DIC series of Shunt plugs for 0.6✕0.4 mm square contacts

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

Others

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
