M5M5V257DP-25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M5M5V257DP-25

M5M5V257DP-25: DescriptionStandard SRAM, 256KX1, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24; Categorystorage storage; File Size151KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

M5M5V257DP-25 Overview

Standard SRAM, 256KX1, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24

M5M5V257DP-25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Mitsubishi
Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum access time	25 ns
I/O type	SEPARATE
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	1
Number of functions	1
Number of ports	1
Number of terminals	24
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX1
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
power supply	3.3 V
Certification status	Not Qualified
Maximum standby current	0.001 A
Minimum standby current	3 V
Maximum slew rate	0.08 mA
Maximum supply voltage (Vsup)	3.63 V
Minimum supply voltage (Vsup)	2.97 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

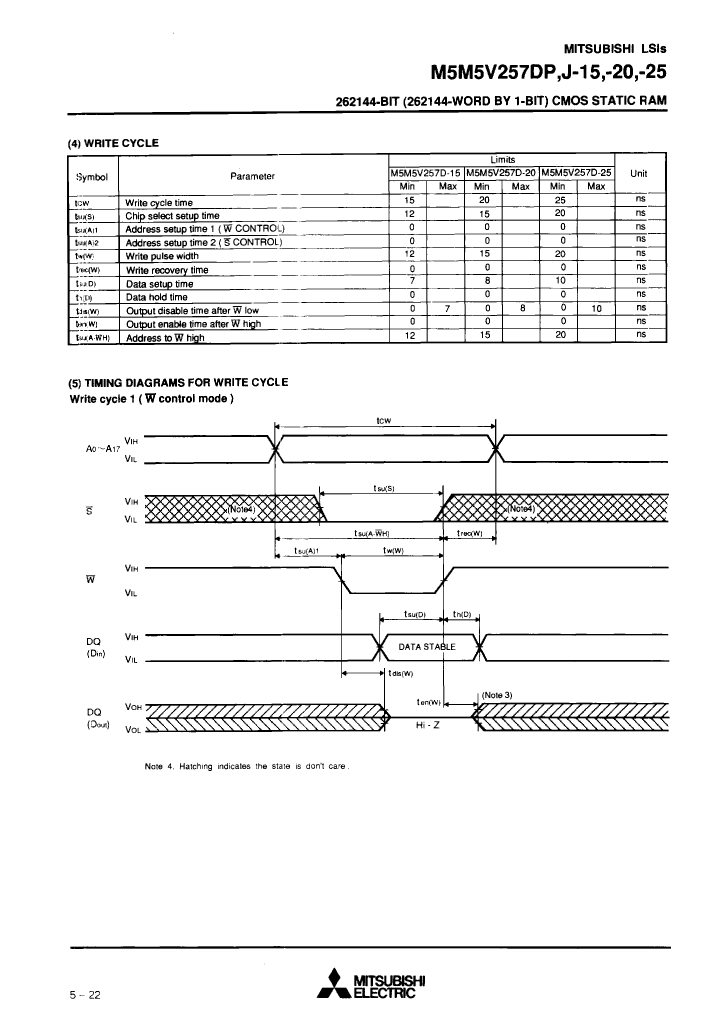

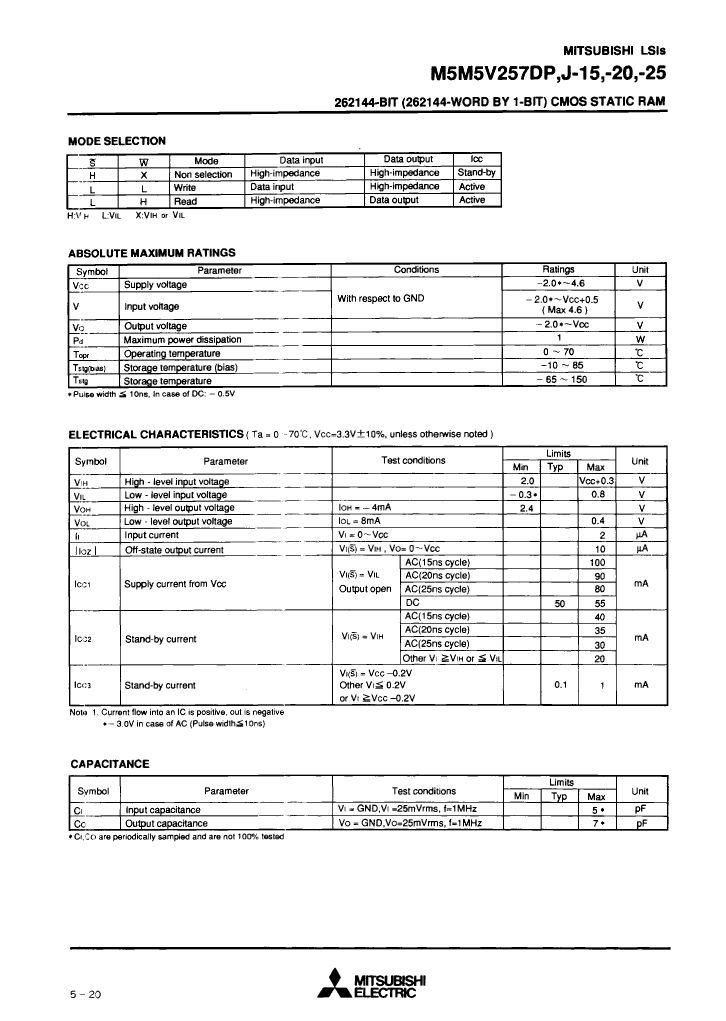

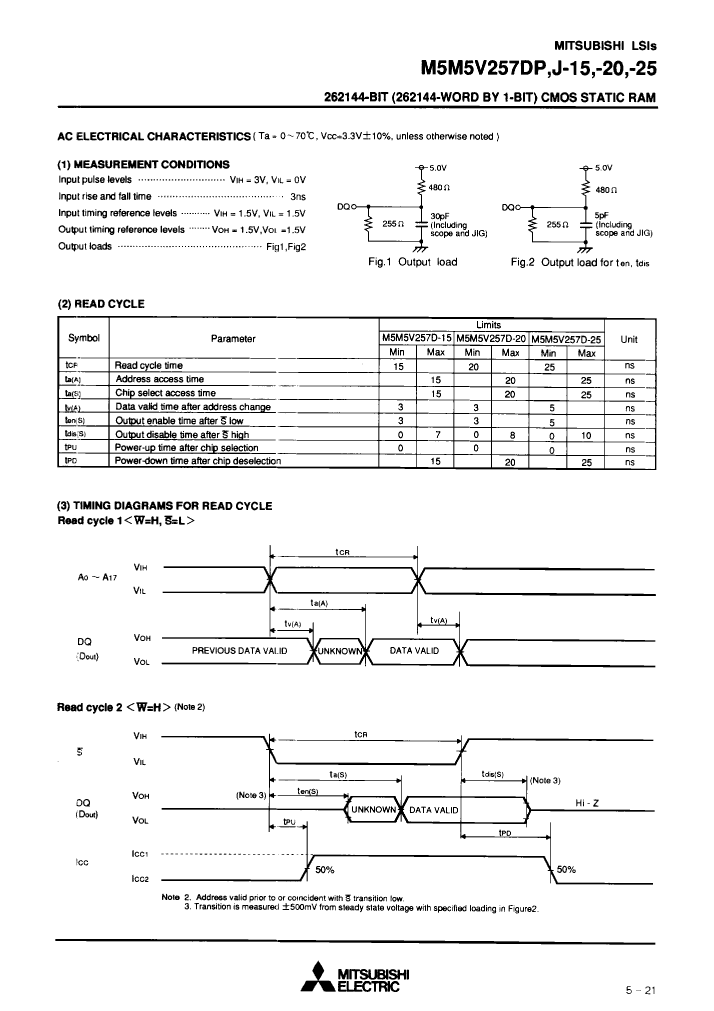

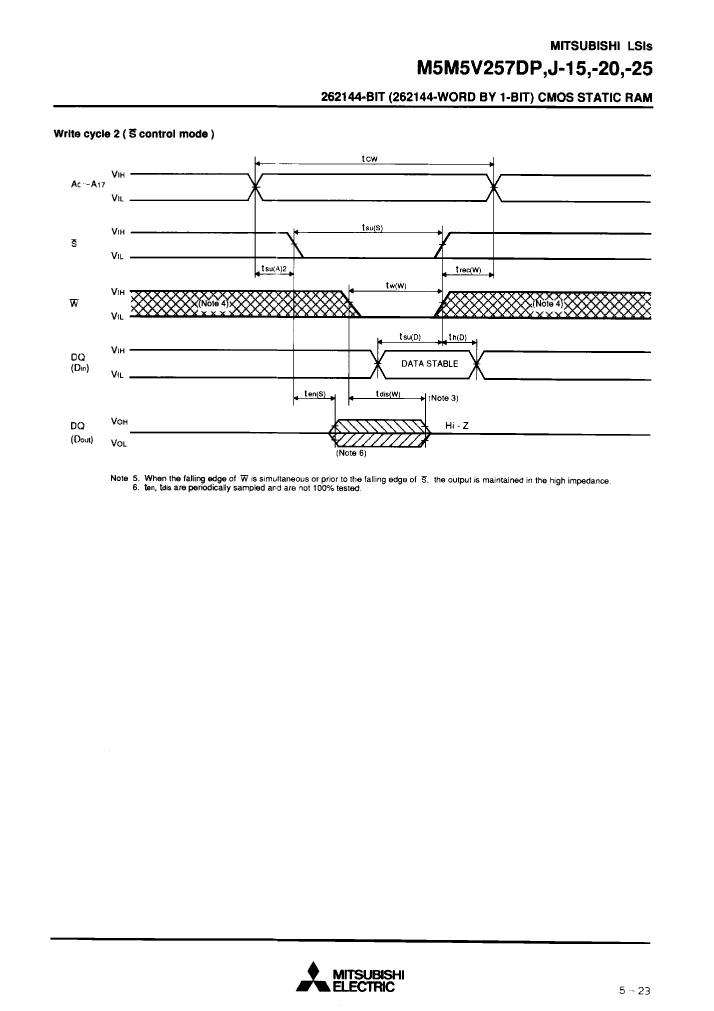

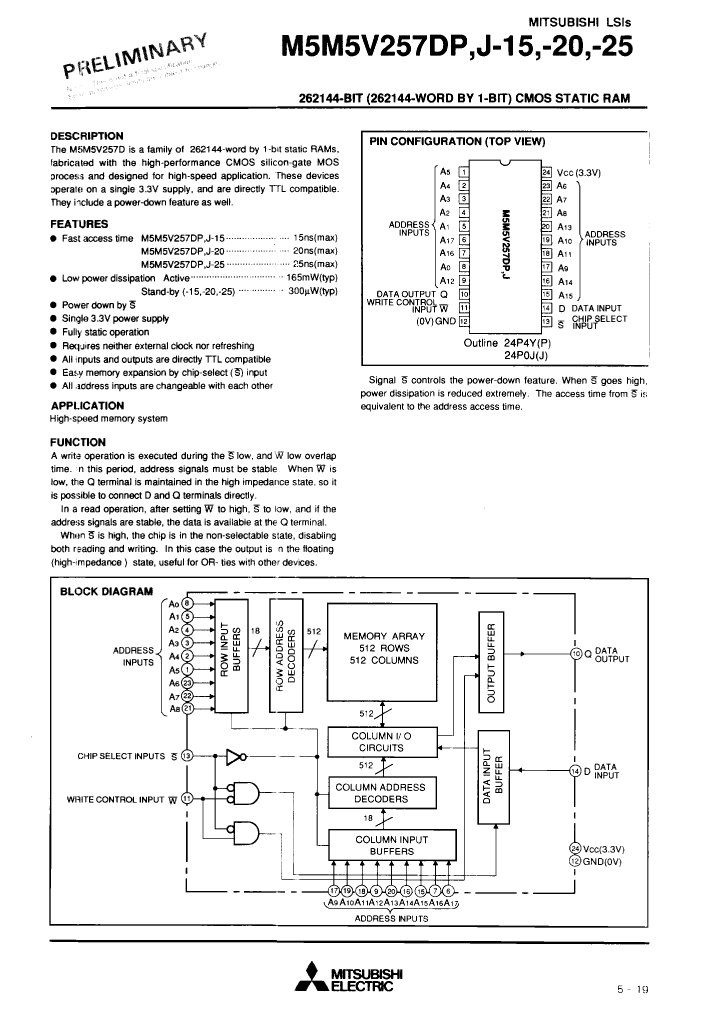

Preview

Download Datasheet

View All

M5M5V257DP-25 Related Products

	M5M5V257DP-25	M5M5V257DJ-25T	M5M5V257DJ-20	M5M5V257DJ-20T	M5M5V257DP-15	M5M5V257DP-20	M5M5V257DJ-15	M5M5V257DJ-15T	M5M5V257DJ-25
Description	Standard SRAM, 256KX1, 25ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 256KX1, 25ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 256KX1, 20ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 256KX1, 20ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 256KX1, 15ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 256KX1, 20ns, CMOS, PDIP24, 0.300 INCH, PLASTIC, DIP-24	Standard SRAM, 256KX1, 15ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 256KX1, 15ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24	Standard SRAM, 256KX1, 25ns, CMOS, PDSO24, 0.300 INCH, PLASTIC, SOJ-24
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Parts packaging code	DIP	SOJ	SOJ	SOJ	DIP	DIP	SOJ	SOJ	SOJ
package instruction	DIP, DIP24,.3	SOJ,	SOJ, SOJ24,.34	SOJ,	DIP, DIP24,.3	DIP, DIP24,.3	SOJ, SOJ24,.34	SOJ,	SOJ, SOJ24,.34
Contacts	24	24	24	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	25 ns	25 ns	20 ns	20 ns	15 ns	20 ns	15 ns	15 ns	25 ns
JESD-30 code	R-PDIP-T24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24	R-PDIP-T24	R-PDIP-T24	R-PDSO-J24	R-PDSO-J24	R-PDSO-J24
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24	24	24	24
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1	256KX1
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOJ	SOJ	SOJ	DIP	DIP	SOJ	SOJ	SOJ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V	3.63 V
Minimum supply voltage (Vsup)	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V	2.97 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	NO	YES	YES	YES	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	-	incompatible	-	incompatible	incompatible	incompatible	-	incompatible
I/O type	SEPARATE	-	SEPARATE	-	SEPARATE	SEPARATE	SEPARATE	-	SEPARATE
JESD-609 code	e0	-	e0	-	e0	e0	e0	-	e0
Encapsulate equivalent code	DIP24,.3	-	SOJ24,.34	-	DIP24,.3	DIP24,.3	SOJ24,.34	-	SOJ24,.34
power supply	3.3 V	-	3.3 V	-	3.3 V	3.3 V	3.3 V	-	3.3 V
Maximum standby current	0.001 A	-	0.001 A	-	0.001 A	0.001 A	0.001 A	-	0.001 A
Minimum standby current	3 V	-	3 V	-	3 V	3 V	3 V	-	3 V
Maximum slew rate	0.08 mA	-	0.09 mA	-	0.1 mA	0.09 mA	0.1 mA	-	0.08 mA
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	-	1.27 mm	-	2.54 mm	2.54 mm	1.27 mm	-	1.27 mm
