DIC-349

Description
Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size51KB,1 Pages
ManufacturerHonda Tsushin Kogyo Co., Ltd.
Download Datasheet Parametric View All

DIC-349 Overview

Board Connector, 12 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,

DIC-349 Parametric

Parameter NameAttribute value
MakerHonda Tsushin Kogyo Co., Ltd.
Reach Compliance Codeunknown
Is SamacsysN
Connector typeBOARD CONNECTOR
Contact completed and terminatedGOLD (12)
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded3
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1

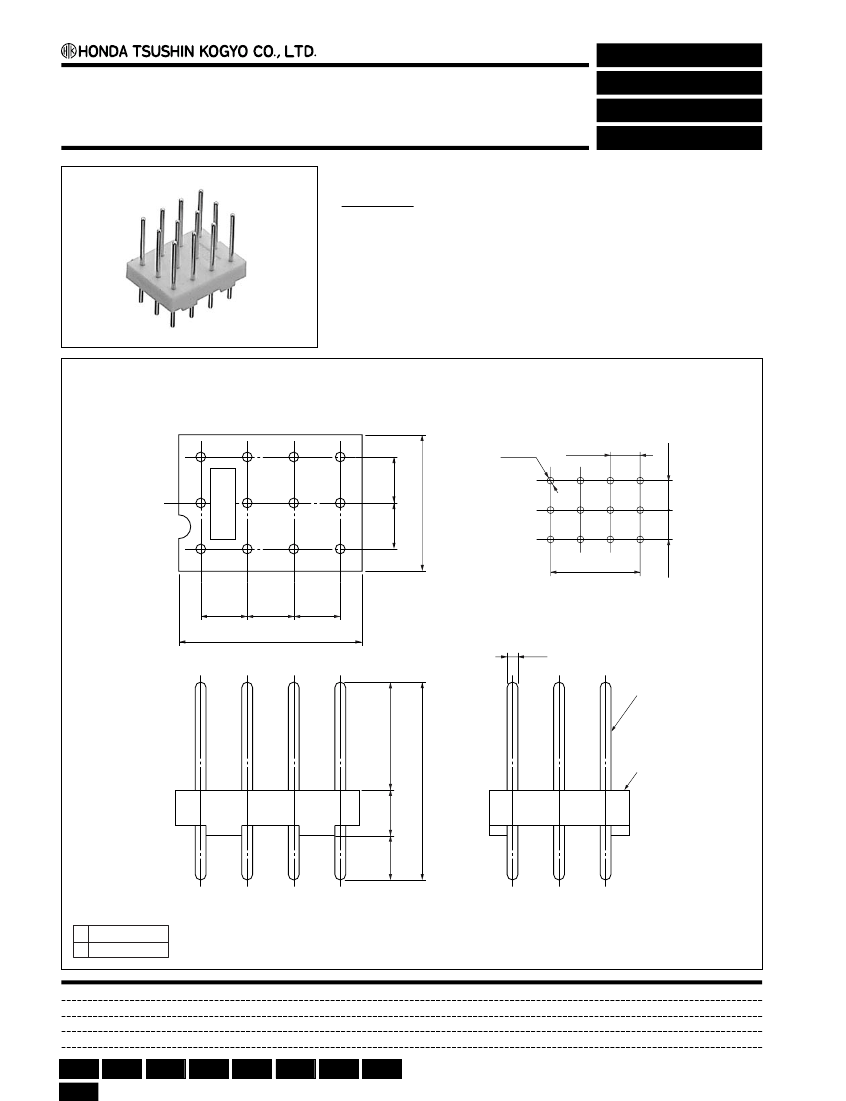

2.54 mm pitch connectors
Straight DIP type male connector for PCBs
DIC-349[Z-349]
Configuration of product Part No.
For PCBs
Straight DIP
DIC-349
Series name
Contact plating: Min. 0.3
µm
Gold plate
No. of contacts: 12
HONDA
2.54
2.54
7.6
7.62
--0.1
+
PCB layout for reference only
2.54
2.54
10
ø0.5
2.54
6
Components
Insulator
Contacts
Mating connectors:
DIC series of Shunt plugs for 0.5 mm diameter round contacts
DIP
SMT
Press-in
IDC
Wire
Soldering Crimping wrapping
Others
2.5 REF.
2.54
11
2.54
--0.05
+
2.54
--0.05
--0
ø0.6
+0.1
2.54
--0.05
+
+
