HA-Series Specifications
11.05L x 4.65W x 13.46H
(mm)
PDI
HA-Series

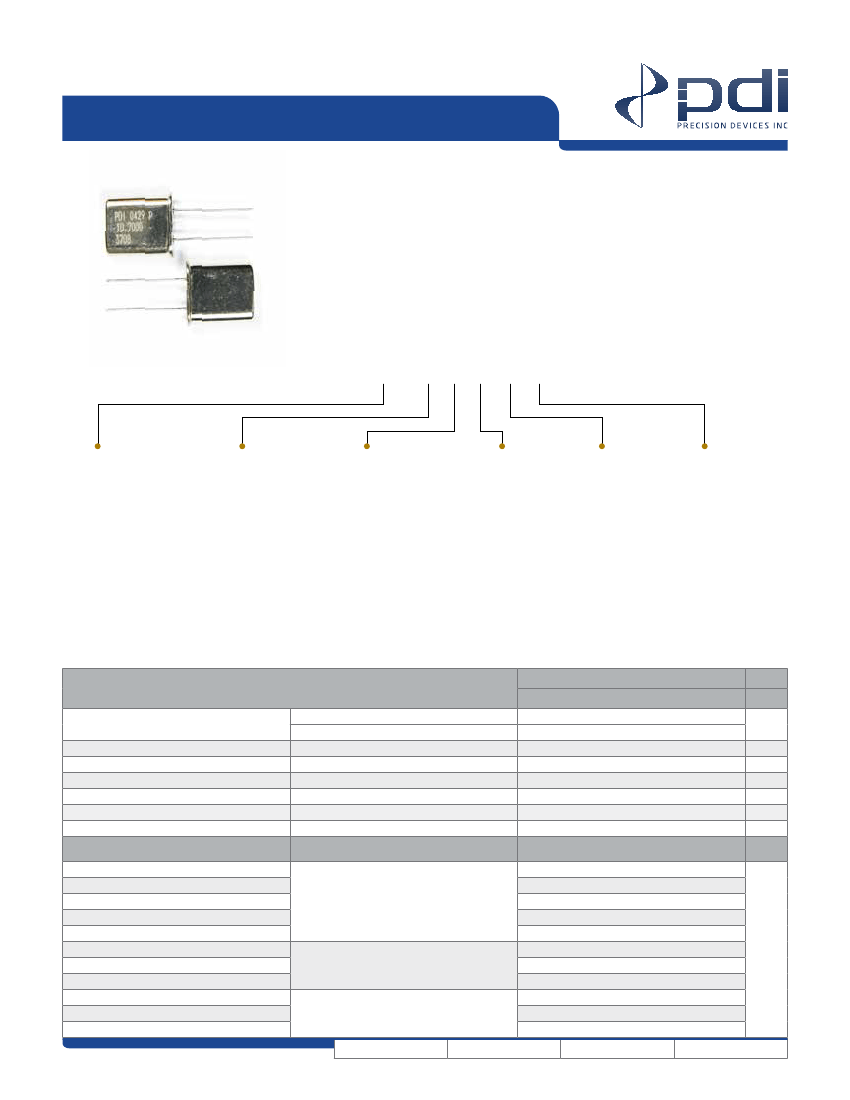

is a hermetically sealed quartz crystal in a HC-49U through-hole
package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized
parameters. PDI provides quick-turn sampling for your proto-typing needs,
mass production capability, and competitive pricing.
ex)
HA—25000X—F—C—D—08—X—X
*
FREQUENCY
03000X – 99999X
=
3.000MHz – 99.000MHz
C10000 – C20000
=
100.000MHz – 200.000MHz
MODE
F
= Fundamental
3
= 3rd Overtone
5
= 5th Overtone
TOTAL
TOLERANCE
B
= +/-25
(Temp A & B)
C
= +/-50
D
= +/-100
S
= Special
OPERATING
TEMPERATURE
A
= 0 to +70°C
B
= -20 to +70°C
D
= -40 to +85°C
E
= -55 to +125°C
S
= Special
LOAD
08-99
= pF
SE =
Series
*(X) for standard or assigned for custimization.
PACKAGE
A
= Third Lead Top
C
= Cut
D
= Insulation Sleeve
E
= Third Lead Side
F
= Top Lead &
Insulation Sleeve
G
= Gull Wing
H
= Insulator
J
= Cut w/Insulator
X
= Through Hole
S
= Special
Units
MHz
°C
MΩ
mW
ppm
pF
Parameter
Temperature Range
Insulation Resistance
Drive Level
Aging
Shunt Capacitance (Co)
Motional Capacitance (C1)
Motional Inductance (L1)
Operating
Storage
@ 100Vcc (Min.)
(Max.)
Per Year
(Max.)
Frequency Range
3.000000 to 200.000000
Per Chart
-55 to +125
500
1
±5.0
7.0
Consult Applications Engineering
Consult Applications Engineering
Frequency Range – MHz
3.000000 – 8.000000
>8.000000 – 13.000000
>13.000000 – 20.000000
>20.000000 – 30.000000
>25.000000 – 40.000000
>40.000000 – 60.000000
>60.000000 – 80.000000
>80.000000 – 125.000000
>75.000000 – 100.000000
>100.000000 – 150.000000
>125.000000 – 200.000000
Oscillation Mode
Series Resistance – Max.
80
60
40
30
60
50
60
70
80
90
100
SIZE:
A
CAGE:
A
Units
Fundamental
Ohms
3rd Overtone
5th Overtone
REV:
NA
1
of
3
H A- S e r i e s
1 1 . 0 5 x 4 . 6 5 x 1 3 . 4 6
( m m )
PDI
HA-Series
is a hermetically sealed quartz crystal in a HC-49U through-hole
package. This crystal, designed to meet your most demanding specification,
is available in standard or custom frequencies and/or with customized
parameters. PDI provides quick-turn sampling for your proto-typing needs,
mass production capability, and competitive pricing.

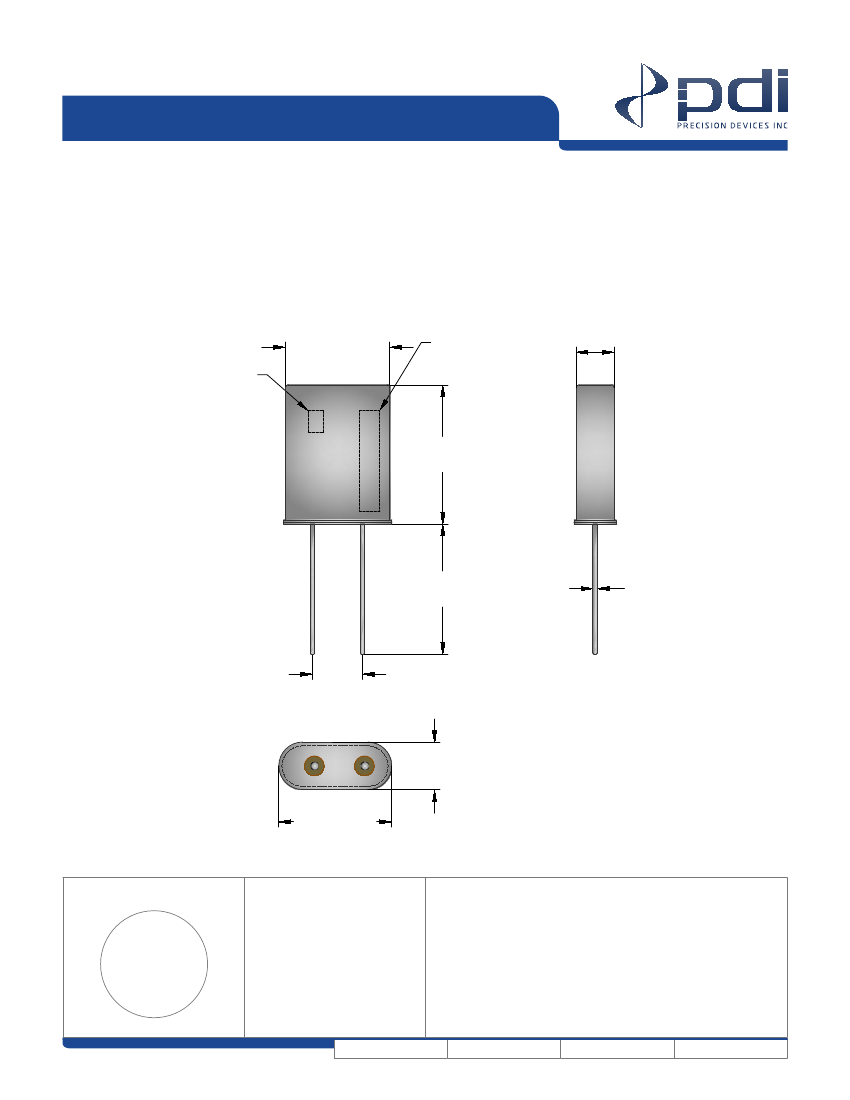

Traceability Code
.402 Max.
[10.20 Max.]
Last 7 digits of
PDI part number
.146
[3.70]
PDI D/C
Frequency
.530 Max.
[13.46 Max.]
.500 Min.
[12.70 Min.]
.017Ø ±.002
[.43Ø ±.05]
.192
[4.88]
.183 Max.
[4.65 Max.]
.435 Max.
[11.05 Max.]
GR
EE
N
P
ROD
U
Mechanical Shock:
MIL-STD-202
Method 213, Condition C
Vibration:
MIL-STD-202,
Method 201, 204, and 214
Hermeticity:
MIL-STD-202,
Method 112
Solderability:
IPC/EIA-STD-002A
REV:
NA
Compliant
EU 2002/95/EC
e
c
,
i
s
i
o
n
D
e
v
i
c
e
s
RoHS
NOTES:
Terminals are Au.
Other options are available, please consult factory.
All product is supplied
RoHS
and
REACH
compliant.
Product can be supplied on Tape and Reel, on reels of 1,000 units.
Not all Frequency/Temperature combinations are available.
Decimal
XXX = ± .008, XX = ± .020
Metric
[XXX = ± .20], [XX = ± .50]
Specifications subject to change without notice, last updated 4/1/13.
