2Mb: 128K x 18, 64K x 32/36
FLOW-THROUGH SYNCBURST SRAM
2Mb SYNCBURST
SRAM
FEATURES
™
MT58L128L18F, MT58L64L32F,
MT58L64L36F; MT58L128V18F,
MT58L64V32F, MT58L64V36F
3.3V V
DD
, 3.3V or 2.5V I/O, Flow-Through
• Fast clock and OE# access times
• Single +3.3V +0.3V/-0.165V power supply (V
DD
)
• Separate +3.3V or +2.5V isolated output buffer supply
(V
DD
Q)
• SNOOZE MODE for reduced-power standby
• Common data inputs and data outputs
• Individual BYTE WRITE control and GLOBAL WRITE
• Three chip enables for simple depth expansion and
address pipelining
• Clock-controlled and registered addresses, data I/Os
and control signals
• Internally self-timed WRITE cycle
• Burst control pin (interleaved or linear burst)
• Automatic power-down for portable applications
• 100-lead TQFP package for high density, high speed
• Low capacitive bus loading
• x18, x32 and x36 versions available
100-Pin TQFP**
(D-1)
OPTIONS
• Timing (Access/Cycle/MHz)
6.8ns/8.0ns/125 MHz
7.5ns/8.8ns/113 MHz
8.5ns/10ns/100 MHz
10ns/15ns/66 MHz
• Configurations
3.3V I/O
128K x 18
64K x 32
64K x 36
2.5V I/O
128K x 18
64K x 32
64K x 36
• Package
100-pin TQFP
• Temperature
Commercial (0°C to +70°C)
Industrial (-40°C to +85°C)
MARKING
-6.8
-7.5
-8.5
-10
**JEDEC-standard MS-026 BHA (LQFP).
GENERAL DESCRIPTION
The Micron
®
SyncBurst
™
SRAM family employs high-
speed, low-power CMOS designs that are fabricated using
an advanced CMOS process.
Micron’s 2Mb SyncBurst SRAMs integrate a 128K x 18,
64K x 32, or 64K x 36 SRAM core with advanced synchronous
peripheral circuitry and a 2-bit burst counter. All
synchronous inputs pass through registers controlled by a
positive-edge-triggered single clock input (CLK). The
synchronous inputs include all addresses, all data inputs,
active LOW chip enable (CE#), two additional chip enables
for easy depth expansion (CE2, CE2#), burst control inputs
(ADSC#, ADSP#, ADV#), byte write enables (BWx#) and
global write (GW#).
Asynchronous inputs include the output enable (OE#),
snooze enable (ZZ) and clock (CLK). There is also a burst
mode pin (MODE) that selects between interleaved and
linear burst modes. The data-out (Q), enabled by OE#, is
also asynchronous. WRITE cycles can be from one to two
bytes wide (x18) or from one to four bytes wide (x32/x36),
as controlled by the write control inputs.
Burst operation can be initiated with either address status
processor (ADSP#) or address status controller (ADSC#)
input pins. Subsequent burst addresses can be internally
generated as controlled by the burst advance pin (ADV#).
MT58L128L18F
MT58L64L32F
MT58L64L36F
MT58L128V18F
MT58L64V32F
MT58L64V36F
T
None
T*
• Part Number Example: MT58L64L36FT-8.5 T
*Under consideration.
2Mb: 128K x 18, 64K x 32/36 Flow-Through SyncBurst SRAM
MT58L128L18F.p65 – Rev. 6/99
1
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
All registered and unregistered trademarks are the sole property of their respective companies.
2Mb: 128K x 18, 64K x 32/36
FLOW-THROUGH SYNCBURST SRAM

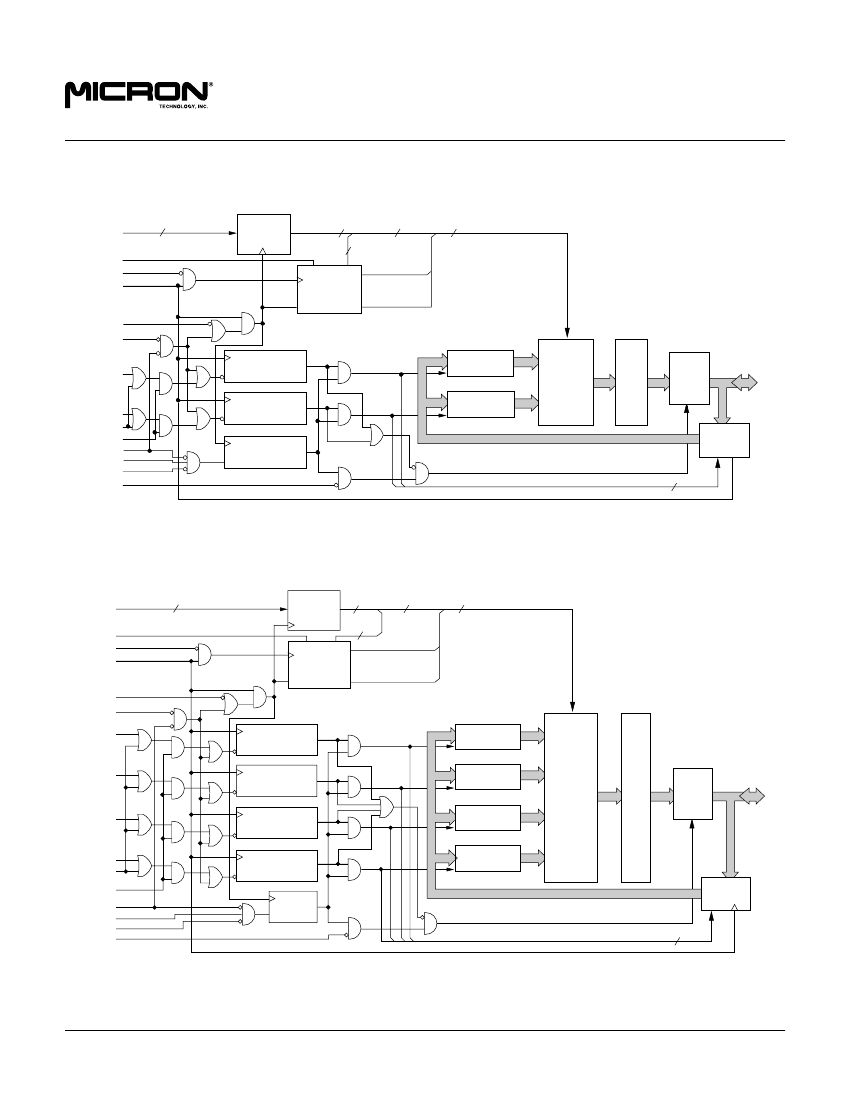

FUNCTIONAL BLOCK DIAGRAM
128K x 18
17
SA0, SA1, SA
MODE
ADV#
CLK
ADDRESS
REGISTER
17
15
17
2
SA0-SA1
SA1'
BINARY Q1
COUNTER AND
LOGIC
CLR
Q0
SA0'
ADSC#
ADSP#
BYTE “b”
WRITE REGISTER
9
BYTE “b”
WRITE DRIVER
9
128K x 9 x 2
MEMORY
ARRAY
9
18
SENSE
18
AMPS
OUTPUT
BUFFERS
18
BWb#
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
9
BYTE “a”
WRITE DRIVER
DQs
DQPa
DQPb
ENABLE
REGISTER
18
INPUT
REGISTERS
2
FUNCTIONAL BLOCK DIAGRAM
64K x 32/36
16
SA0, SA1, SA
MODE
ADV#
CLK
BINARY Q1
SA1'
COUNTER
AND LOGIC
Q0
CLR
SA0'
ADDRESS
REGISTER
16
SA0-SA1
14
16
ADSC#
ADSP#
BWd#
BYTE “d”
WRITE REGISTER
BYTE “d”
WRITE DRIVER
BYTE “c”
WRITE DRIVER
BYTE “b”
WRITE DRIVER
BYTE “a”
WRITE DRIVER
INPUT
REGISTERS
64K x 8 x 4
(x32)
64K x 9 x 4
(x36)
MEMORY
ARRAY
SENSE
AMPS
OUTPUT
BUFFERS
BWc#
BYTE “c”
WRITE REGISTER
DQs
BWb#
BYTE “b”
WRITE REGISTER
BWa#
BWE#
GW#
CE#
CE2
CE2#
OE#
BYTE “a”
WRITE REGISTER
ENABLE
REGISTER
4
NOTE:
Functional Block Diagrams illustrate simplified device operation. See Truth Table, Pin Descriptions and timing
diagrams for detailed information.
2Mb: 128K x 18, 64K x 32/36 Flow-Through SyncBurst SRAM
MT58L128L18F.p65 – Rev. 6/99
2
Micron Technology, Inc., reserves the right to change products or specifications without notice.
©1999,
Micron Technology, Inc.
2Mb: 128K x 18, 64K x 32/36
FLOW-THROUGH SYNCBURST SRAM
GENERAL DESCRIPTION (continued)
Address and write control are registered on-chip to
simplify WRITE cycles. This allows self-timed WRITE cycles.
Individual byte enables allow individual bytes to be written.
During WRITE cycles on the x18 device, BWa# controls
DQa pins and DQPa; BWb# controls DQb pins and DQPb.
During WRITE cycles on the x32 and x36 devices, BWa#
controls DQa pins and DQPa; BWb# controls DQb pins and
DQPb; BWc# controls DQc pins and DQPc; BWd# controls
DQd pins and DQPd. GW# LOW causes all bytes to be
written. Parity bits are only available on the x18 and x36
versions.
Micron’s 2Mb SyncBurst SRAMs operate from a +3.3V
V
DD
power supply, and all inputs and outputs are TTL-
compatible. Users can choose either a 3.3V or 2.5V I/O
version. The device is ideally suited for 486, Pentium
®
,
680X0 and PowerPC™ systems and systems that benefit
from a very wide data bus. The device is also ideal in generic
16-, 18-, 32-, 36-, 64- and 72-bit-wide applications.
Please refer to the Micron Web site (www.micron.com/
mti/msp/html/sramprod.html)
for the latest data sheet.
