MHO+26TFG-R80.0000MHZ: DescriptionTTL Output Clock Oscillator, 80MHz Nom, GULL WING, DIP-14/4; CategoryPassive components oscillator; File Size293KB，1 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com

Download Datasheet Parametric View All

MHO+26TFG-R80.0000MHZ Overview

TTL Output Clock Oscillator, 80MHz Nom, GULL WING, DIP-14/4

MHO+26TFG-R80.0000MHZ Parametric

Parameter Name	Attribute value
Maker	MtronPTI
Reach Compliance Code	unknown
Is Samacsys	N
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	TTL
Output load	10 TTL, 15 pF
longest rise time	10 ns
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	40/60 %
Base Number Matches	1

Preview

Download Datasheet

View All

MHO+ Series

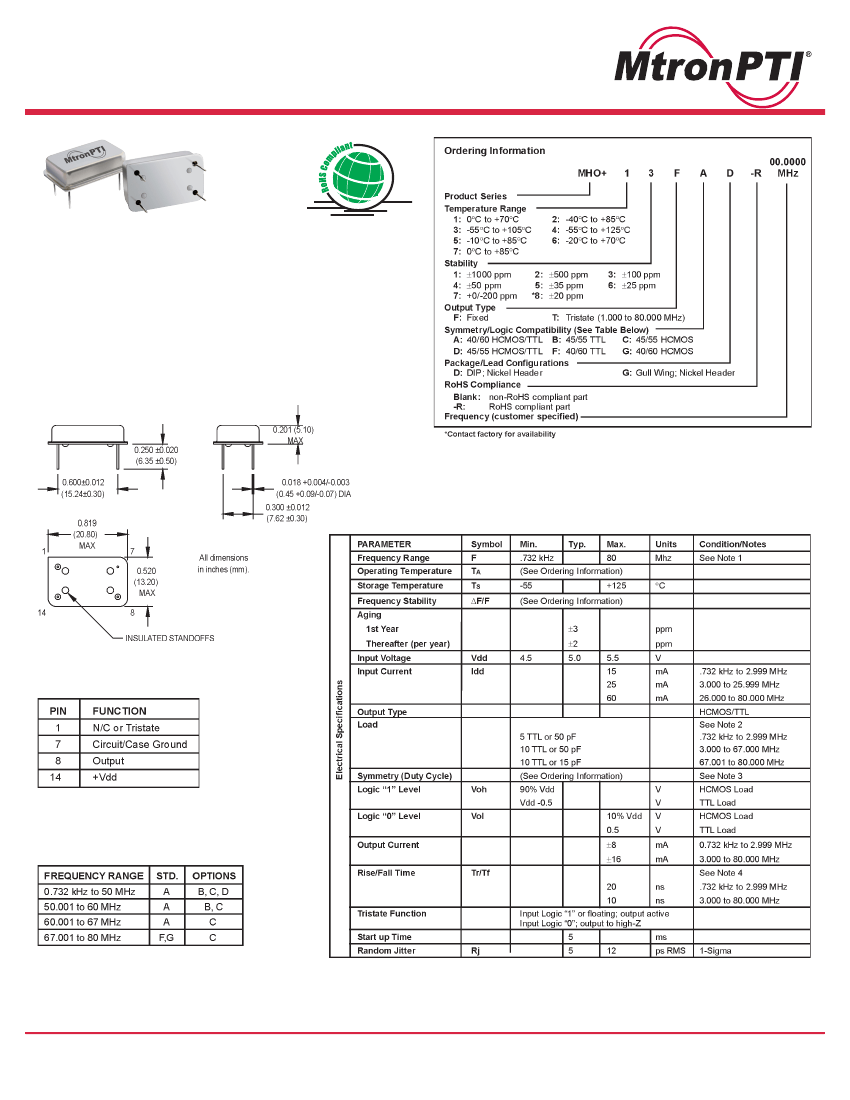

14 pin DIP, 5.0 Volt, HCMOS/TTL, Clock Oscillator

Features:

• Standard 14 DIP Package

• RoHS Compliant Version Available (-R)

• Tristate Option

• Wide Operating Temperature Range

Pin Connections

Available Symmetry

1.

2.

3.

4.

5.

Consult factory for availability of higher frequencies.

TTL load - See load circuit diagram #1. HCMOS load - See load circuit diagram #2.

Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.

Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.

Maximum wave soldering conditions: +260ºC for 10 secs.

MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice. No liability is assumed as a result of their use or application.

Please see

www.mtronpti.com

for our complete offering and detailed datasheets. Contact us for your application specific requirements: MtronPTI

1-800-762-8800.

Revision: 7-27-07
