MHO+26TGD-1.000MHZ

Description
Quartz Crystal
CategoryPassive components    Crystal/resonator
File Size112KB,1 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Download Datasheet Parametric View All

MHO+26TGD-1.000MHZ Overview

Quartz Crystal

MHO+26TGD-1.000MHZ Parametric

Parameter NameAttribute value
MakerMtronPTI
Reach Compliance Codeunknown
Is SamacsysN
Base Number Matches1

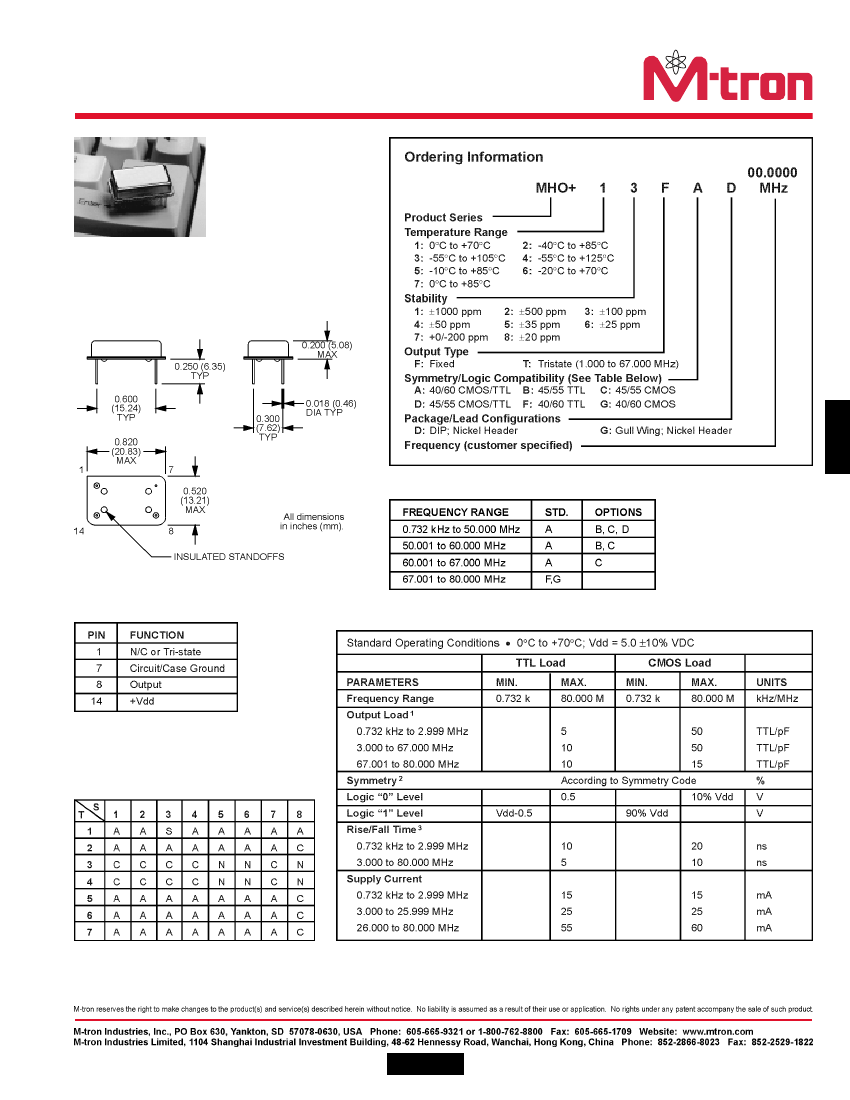

MHO+ Series HCMOS/TTL
Compatible Oscillators
High Performance HCMOS/TTL
Compatible Oscillators
(Supersedes MHO Series)
Available Symmetry
See page 135 for gull wing configuration.
Pin Connections
Electrical Specifications
Tri-state Control Logic
Pin 1 high or floating: clock signal output
Pin 1 low: output disables to high impedance
Available Stabilities vs. Temperature
A = Available
S = Standard
N = Not Available
C = Consult Factory
TTL load - See load circuit diagram #1 on page 137. HCMOS load - See load circuit diagram #2 on page 137.
Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load.
3
Rise/Fall times are measured between 0.5 V and 2.4 V with TTL load, and between 10% Vdd and 90% Vdd with HCMOS load.
See page 136 for suggested soldering conditions.
