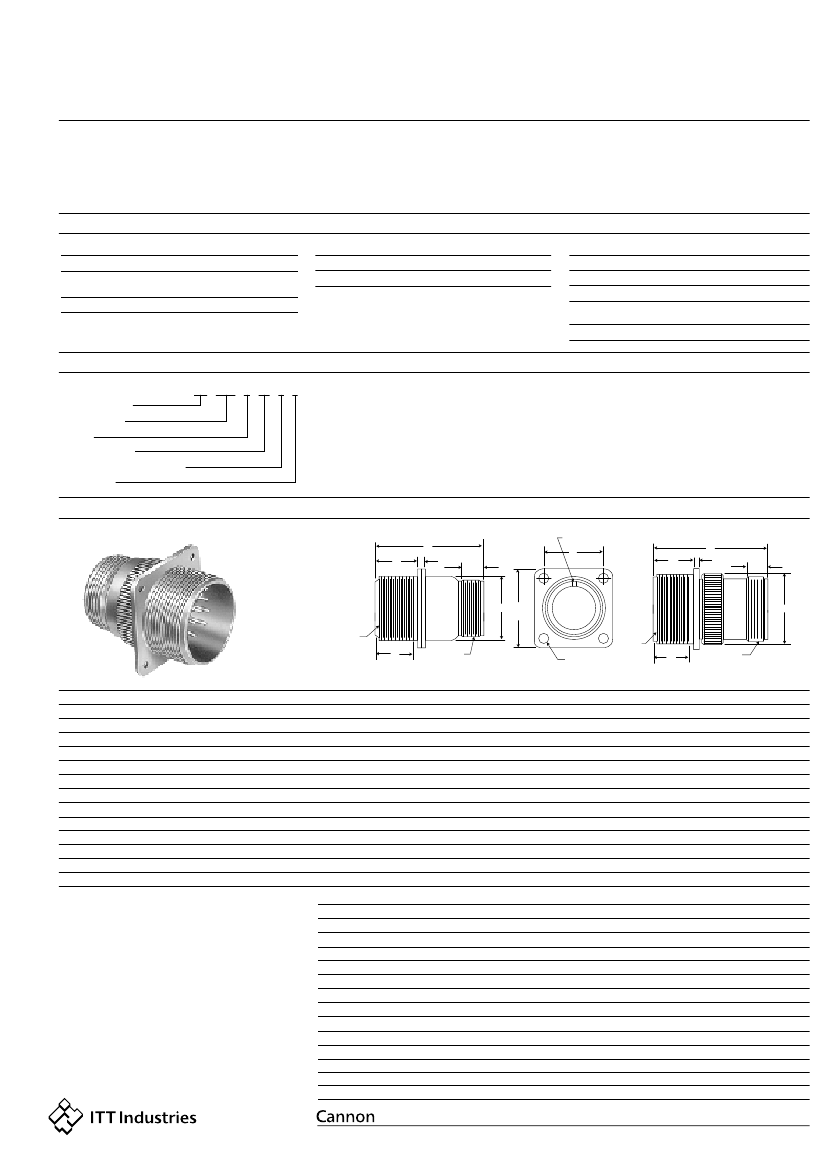

MIL-C-5015 Firewall Connectors
MS-K firewall connectors have met and are qual-
ified to the fireproof test of MIL-C-5015. This test
requires that a connector mounted to a firewall will
continure to operate for 5 minutes in case of fire and
prevent the passage of flame for 20 minutes. These
connectors are not environmentally sealed but oper-
ate continuously at temperature up to +177˚C
(+350˚F). MS-K connectors have crimp type con-
MS-K
tacts; thermocouple contacts must be orderd sep-
arately and are solder type unless otherwise re-
quested on order. Cavities that will contain the
thermocouple contacts and contact material must
be specified when ordering.
Performance and Material Specifications
MATERIALS
Shell - Steel
Insulator - Glass-filled epoxy or glass-filled melamine or
melamine glass cloth laminate
Contacts - Copper alloy
FINISHES
Shell - Olive drab over cadmium plate
Contacts - Silver plate
MECHANICAL FEATURES
Shell Size - In sixteenths of an inch
Coupling - Threaded
Contact Arrangements - See pages 216-217
ELECTRICAL DATA
Number of Contacts - 1 thru 37
How to Order
MS
3106
K
36
8
P
SERIES PREFIX
SHELL STYLE
CLASS
CONTACT TYPE
CONTACT ARRANGEMENT
SHELL SIZE
SERIES PREFIX
MS
SHELL STYLE
See pages 202-204
CLASS
K per MIL-C-5015
SHELL SIZE
8S to 36
CONTACT ARRANGEMENT
See pages 216-217
CONTACT TYPE
P for pin; S for socket
Wall Mounting Receptacle
MS3100K
L
M
K
W
POLARIZING KEY
+
_.005
R
(TYP)
L
M
K
W
O
S
(TYP.)
O
A
THREAD
B
V THREAD
T DIA.
+.010
-.003
A
THREAD
B
V THREAD
Sizes 8S to 18 have junction shell
Part Number
MS3100K8S-*†
•
MS3100K10SL-*†
MS3100K12S-*†
MS3100K14S-*†
MS3100K16S-*†
MS3100K16-*†
MS3100K18-*†
MS3100K20-*†
MS3100K22-*†
MS3100K24-*†
MS3100K28-*†
MS3100K32-*†
MS3100K36-*†
B
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
K
.125 (3.18)
.125 (3.18)
.125 (3.18)
.125 (3.18)
.125 (3.18)
.125 (3.18)
.125 (3.18)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.125 (3.18)
L
1.453 (36.91)
1.109 (28.17)
1.515 (38.48)
1.515 (38.48)
1.703 (43.26)
1.703 (43.26)
1.921 (48.79)
2.109 (53.57)
2.031 (51.59)
2.328 (59.13)
2.025 (51.44)
2.453 (62.31)
2.594 (65.89)
M
.563 (14.30)
.563 (14.30)
.563 (14.30)
.563 (14.30)
.563 (14.30)
.750 (19.05)
.750 (19.05)
.750 (19.05)
.750 (19.05)
.813 (20.65)
.813 (20.65)
.875 (22.22)
.875 (22.22)
O
17/32
25/32
25/32
29/32
1-1/32
1-1/32
1-5/32
1-21/64
1-25/64
1-37/64
1-49/64
2-1/64
2-17/64
R
19/32
23/32
13/16
29/32
31/32
31/32
1-1/16
1-5/32
1-1/4
1-3/8
1-9/16
1-3/4
1-15/16
1
1-3/32
1-3/16
1-9/32
1-9/32
1-3/8
1-1/2
1-5/8
1-3/4
2
2-1/4
2-1/2
S
7/8
Sizes 20 to 36 have endbell
T
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.209 (5.31)
.209 (5.31)
W
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.438 (11.13)
.500 (12.70)
• Receptacles in size 10SL are available with pin inserts only.
Part Number
MS3100K8S-*†
* Add contact arrangment. See pages 216-217.
A Thread
1/2-28UNEF-2A
5/8-24UNEF-2A
3/4-20UNEF-2A
7/8-20UNEF-2A
1-20UNEF-2A
1-20UNEF-2A
1-1/8-18UNEF-2A
1-1/4-18UNEF-2A
1-3/8-18UNEF-2A
1-1/2-18UNEF-2A
1-3/4-18UNS-2A
2-18UNS-2A
2-1/4-16UN-2A
† Add contact type:P - pin; S - socket.
V Thread
1/2-28UNEF-2A
5/8-24UNEF-2A
5/8-24UNEF-2A
3/4-20UNEF-2A
7/8-20UNEF-2A
7/8-20UNEF-2A
1-20UNEF-2A
1-3/16-18UNEF-2A
1-3/16-18UNEF-2A
1-7/16-18UNEF-2A
1-7/16-18UNEF-2A
13/4-18UNS-2A
2-18UNS-2A
Dimensions are shown in inches (millimeters).
Dimensions subject to change.
MS3100K10SL-*†
MS3100K12S-*†
MS3100K14S-*†
MS3100K16S-*†
MS3100K16-*†
MS3100K18-*†
MS3100K20-*†
MS3100K22-*†
MS3100K24-*†
MS3100K28-*†
MS3100K32-*†
MS3100K36-*†
www.ittcannon.com
MIL-C-5015 Firewall Connectors

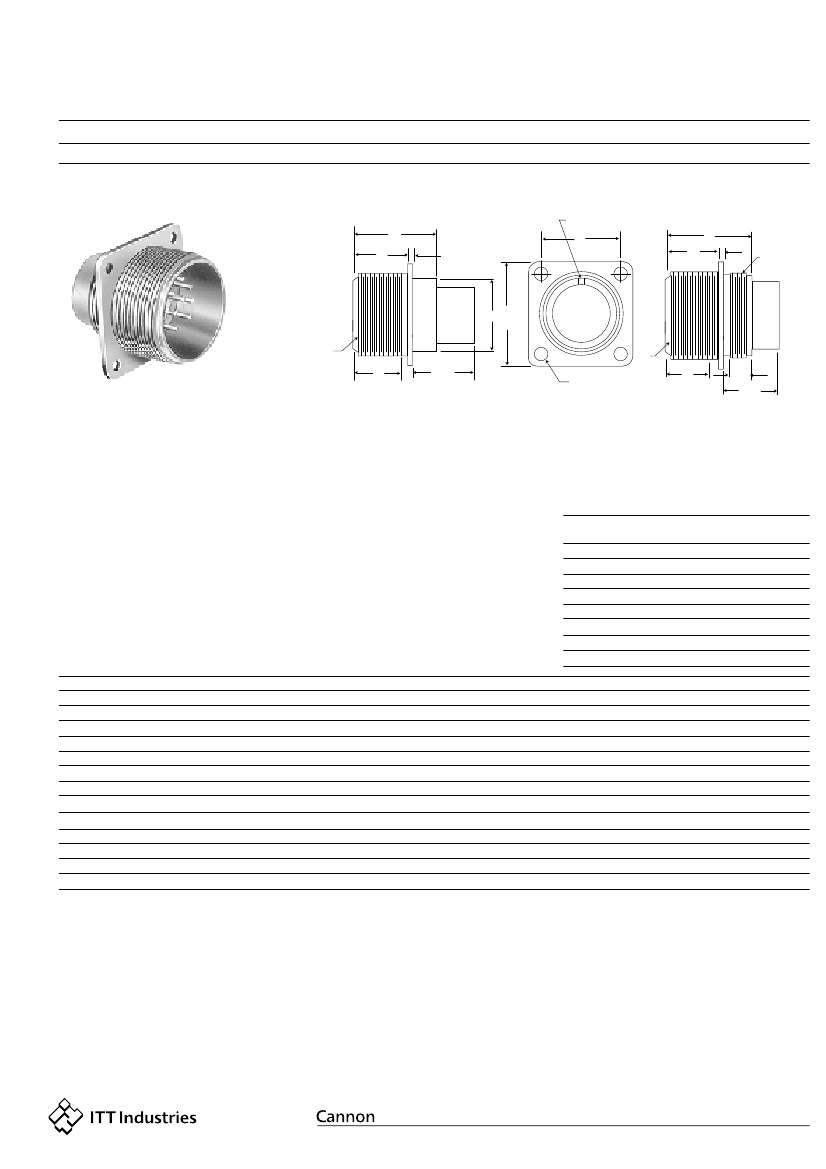

Box Mounting Receptacle
MS3102K
MS-K
POLARIZING KEY
L
M
K
+
_.005
R
(TYP)
L
M
K
O
THREAD
O
A
THREAD
B
MAX
INSULATION
EXTENSION
SEE TAB
S
(TYP.)
A
+.010
-.003
B
W
MAX
INSULATION
EXTENSION
SEE TAB
T DIA.
Sizes 8S to 18 have plain rear skirt
Sizes 20 to 36 have threaded rear skirt
Maximum Insulation Extensions
Shell
Size
8S
10SL-16S
16-18
20-22
24
28
32
36
Part Number
MS3102K8S-*†
•
MS3102K10SL-*†
MS3102K12S-*†
MS3102K14S-*†
MS3102K16S-*†
MS3102K16-*†
MS3102K18-*†
MS3102K20-*†
MS3102K22-*†
MS3102K24-*†
MS3102K28-*†
MS3102K32-*†
MS3102K36-*†
A Thread
1/2-28UNEF-2A
5/8-24UNEF-2A
3/4-20UNEF-2A
7/8-20UNEF-2A
1-20UNEF-2A
1-20UNEF-2A
1-1/8-18UNEF-2A
1-1/4-18UNEF-2A
1-3/8-18UNEF-2A
1-1/2-18UNEF-2A
1-3/4-18UNS-2A
2-18UNS-2A
2-1/4-16UN-2A
B
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.375 (9.52)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
.625 (15.88)
K
.063 (1.90)
.063 (1.90)
.063 (1.90)
.063 (1.90)
.063 (1.90)
.063 (1.90)
.063 (1.90)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.078 (1.98)
.125 (3.18)
L
59/64
61/64
61/64
61/64
61/64
1-9/64
1-9/64
1-15/64
1-18/64
1-18/64
1-18/64
1-3/8
1-29/64
M
.563 (14.30)
.563 (14.30)
.563 (14.30)
.563 (14.30)
.563 (14.30)
.750 (19.05)
.750 (19.05)
.750 (19.05)
.750 (19.05)
.813 (20.65)
.813 (20.65)
.875 (22.22)
.875 (22.22)
O Thread
7/16
39/64
21/32
23/32
27/32
27/32
31/32
1-3/16-18UNEF-2A
1-1/4-18UNEF-2A
1-7/16 18UNEF-2A
1-5/8-18UNEF-2A
1-7/8-16UN-2A
2-1/8-16UN-2A
R
19/32
23/32
13/16
29/32
31/32
31/32
1-1/16
1-5/32
1-1/4
1-3/8
1-9/16
1-3/4
1-15/16
16
11/16
51/64
13/16
13/16
47 /64
47 /64
47 /64
39/64
S
7/8
1
1-3/32
1-3/16
1-9/32
1-9/32
1-3/8
1-1/2
1-5/8
1-3/4
2
2-1/4
2-1/2
12
-
7/8
7/8
7/8
13/16
13/16
47/64
43/64
Contact Size
8
-
-
7/8
7/8
13/16
13/16
47/64
43/64
T
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.150 (3.81)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.177 (4.50)
.209 (5.31)
.209 (5.31)
4
-
-
1-3/32
1-3/32
1-3/32
1-3/32
61/64
57/64
0
-
-
-
1-9/64
1-3/32
1-3/32
1-1/32
61/64
W
-
-
-
-
-
-
-
.141 (3.58)
.141 (3.58)
.141 (3.58)
.141 (3.58)
.313 (7.95)
.344 (8.74)
• Receptacles in size 10SL are available with pin inserts only.
* Add contact arrangements. See pages 216-217.
† Add contact type: P - pin; S - socket.
Dimensions are shown in inches (millimeters).
Dimensions subject to change.
www.ittcannon.com
MIL-C-5015 Firewall Connectors

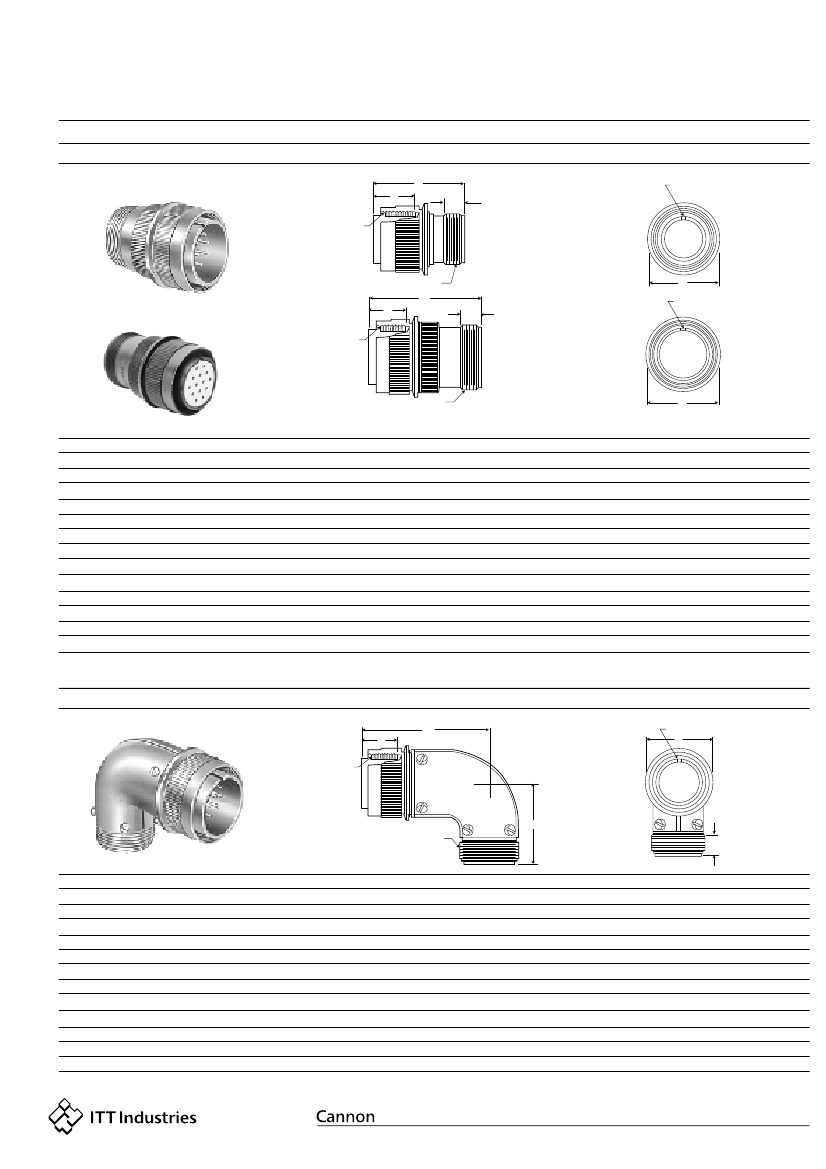

Straight Plug
