HN62428P-20: Description1MX8 MASK PROM, 200ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42; Categorystorage storage; File Size144KB，9 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

HN62428P-20 Overview

1MX8 MASK PROM, 200ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42

HN62428P-20 Parametric

Parameter Name	Attribute value
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	42
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Maximum access time	200 ns
Spare memory width	16
JESD-30 code	R-PDIP-T42
length	52.8 mm
memory density	8388608 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	42
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1

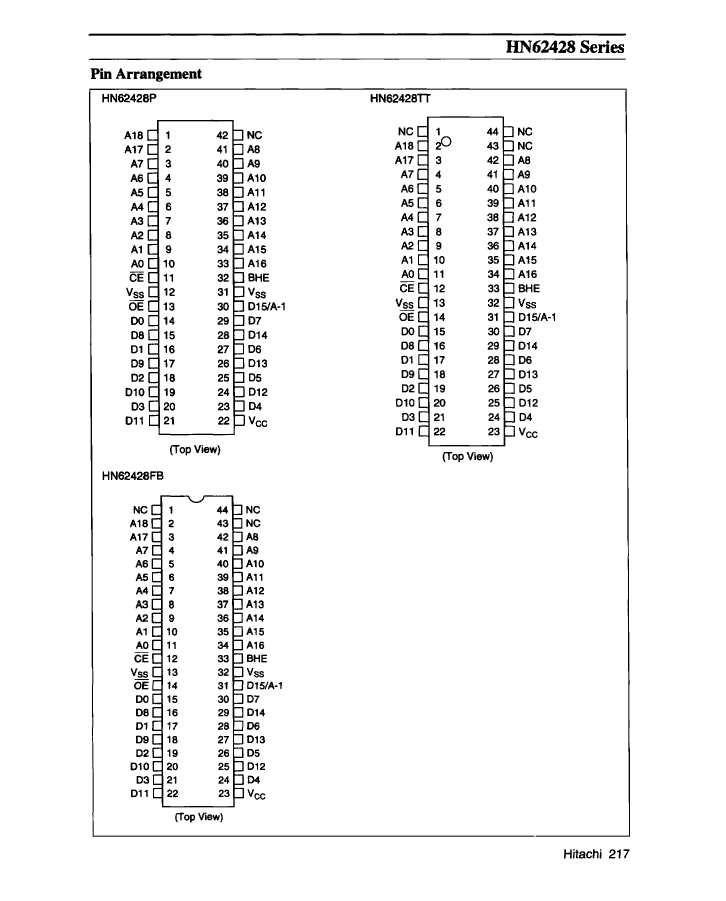

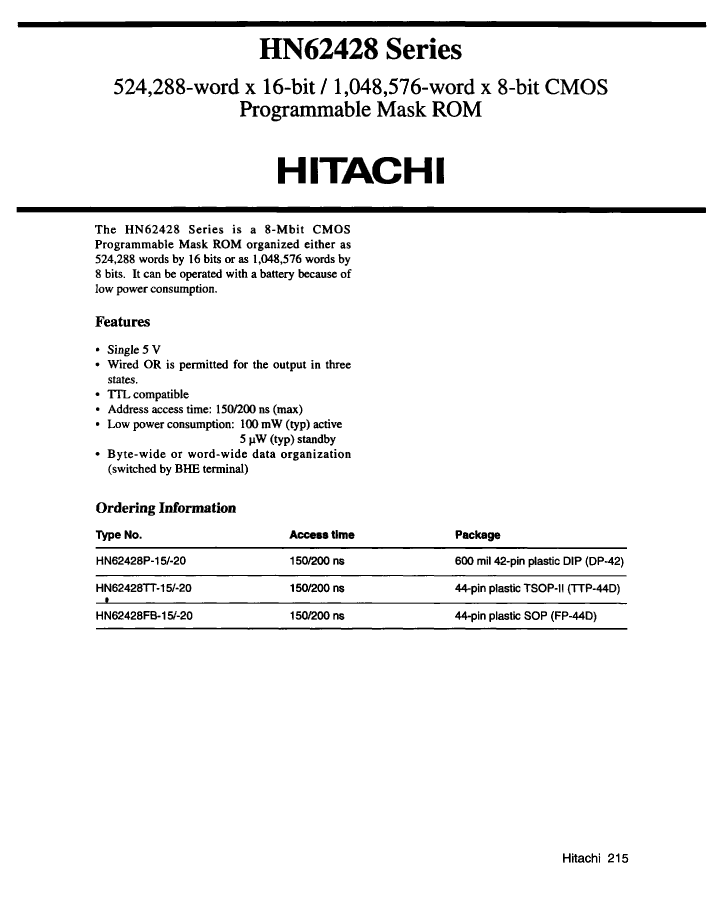

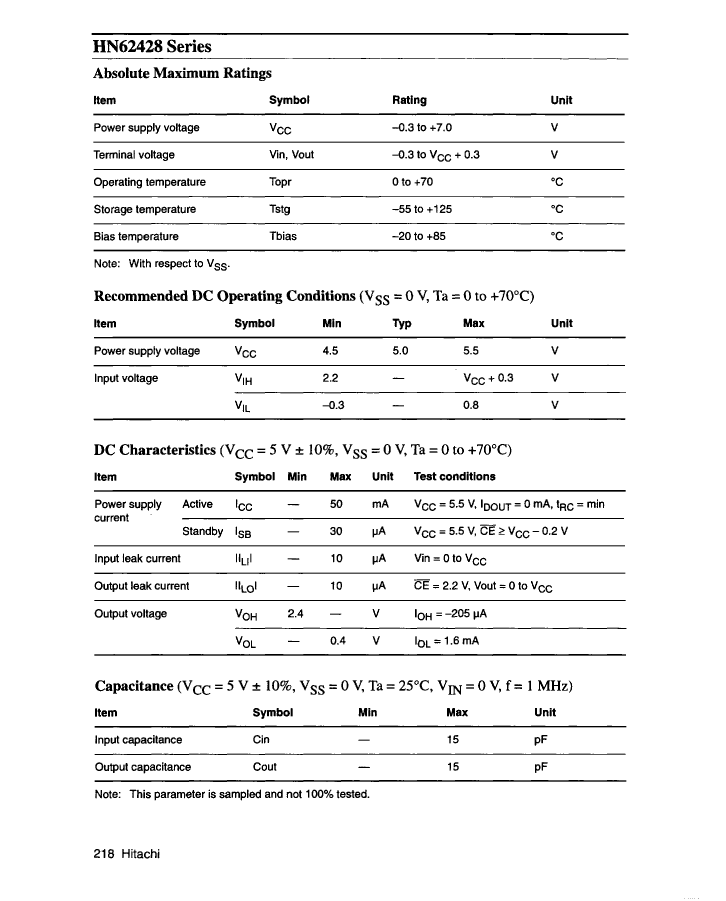

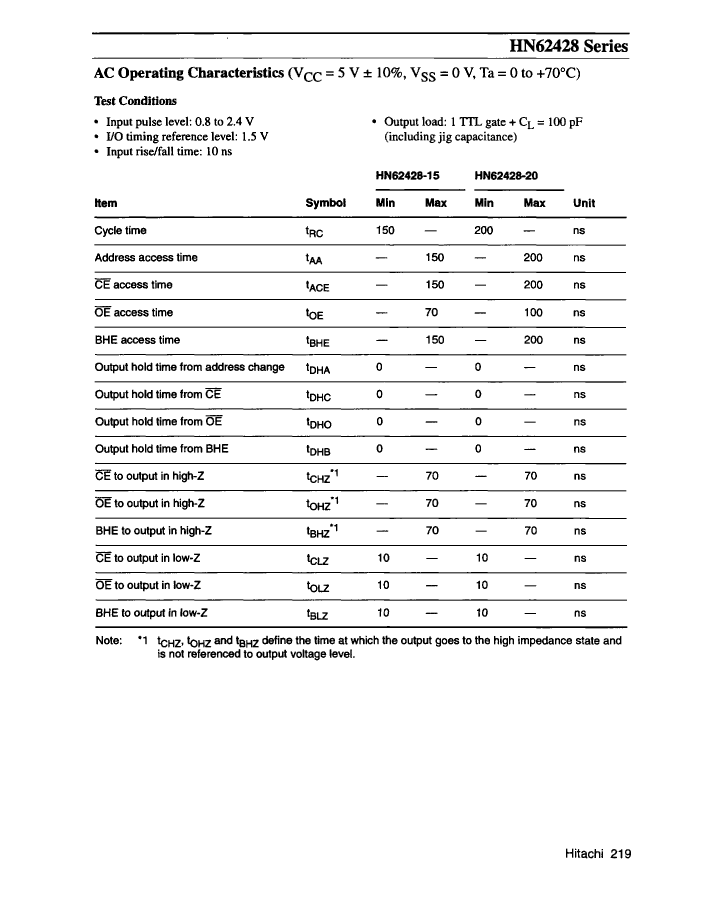

Preview

Download Datasheet

View All

HN62428P-20 Related Products

	HN62428P-20	HN62428FB-15	HN62428FB-20	HN62428P-15	HN62428TT-20	HN62428TT-15
Description	1MX8 MASK PROM, 200ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42	1MX8 MASK PROM, 150ns, PDSO44, PLASTIC, SOP-44	1MX8 MASK PROM, 200ns, PDSO44, PLASTIC, SOP-44	1MX8 MASK PROM, 150ns, PDIP42, 0.600 INCH, PLASTIC, DIP-42	1MX8 MASK PROM, 200ns, PDSO44, PLASTIC, TSOP2-44	1MX8 MASK PROM, 150ns, PDSO44, PLASTIC, TSOP2-44
Parts packaging code	DIP	SOIC	SOIC	DIP	TSOP2	TSOP2
package instruction	DIP,	SOP,	SOP,	DIP,	TSOP2,	TSOP2,
Contacts	42	44	44	42	44	44
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	200 ns	150 ns	200 ns	150 ns	200 ns	150 ns
Spare memory width	16	16	16	16	16	16
JESD-30 code	R-PDIP-T42	R-PDSO-G44	R-PDSO-G44	R-PDIP-T42	R-PDSO-G44	R-PDSO-G44
length	52.8 mm	28.5 mm	28.5 mm	52.8 mm	18.41 mm	18.41 mm
memory density	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit	8388608 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	42	44	44	42	44	44
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX8	1MX8	1MX8	1MX8	1MX8	1MX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	SOP	DIP	TSOP2	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	3 mm	3 mm	5.08 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	15.24 mm	12.6 mm	12.6 mm	15.24 mm	10.16 mm	10.16 mm
Maker	Renesas Electronics Corporation	-	-	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
