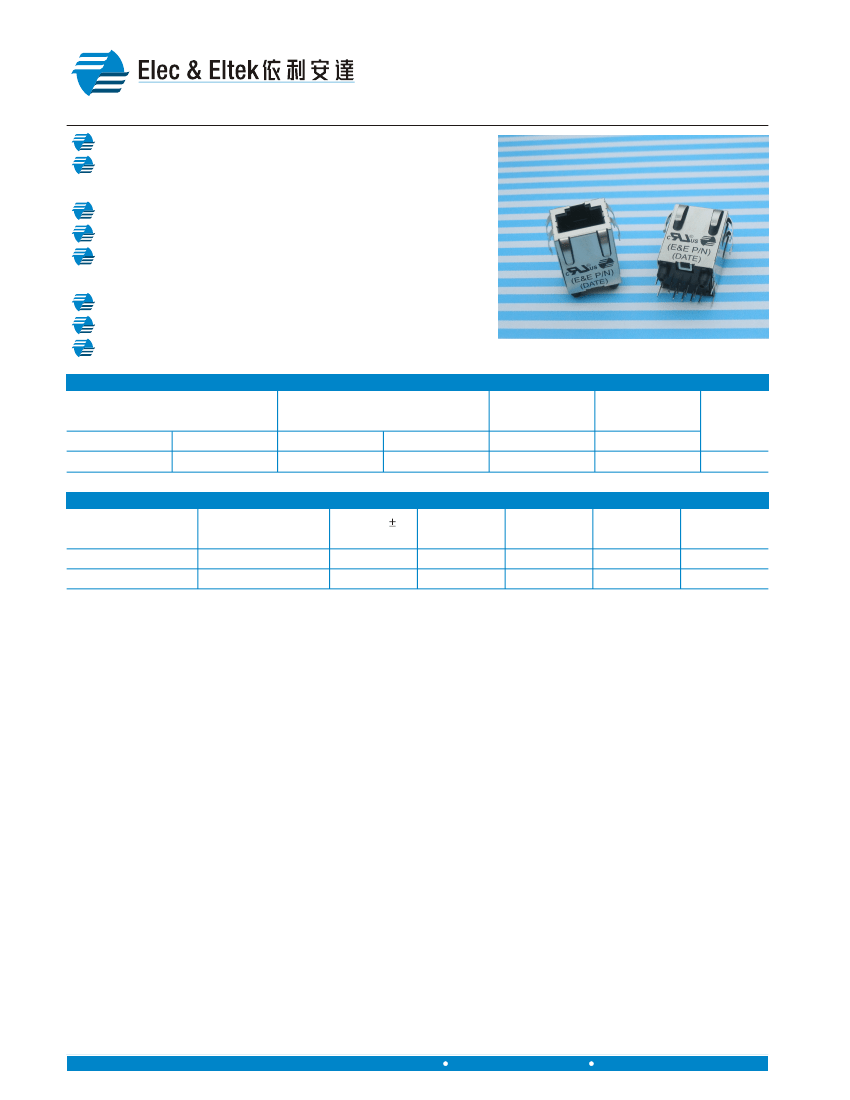

4. LEDs (Left / Right) : “G” = Green ; “Y” = Yellow ; “—” = None. For different LED color requirements, please contact
E&E Magnetic Products Limited.
5. Panel tabs are optional.
6. All parts shown in this datasheet have gold plating thickness of 10 micro-inch (min.) over contact area.
Advance options including 30 micro-inch (min.) and 50 micro-inch (min.) are also available.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ124(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Single Port, Through Hole, Vertical
Zigzag Output Pins Pattern

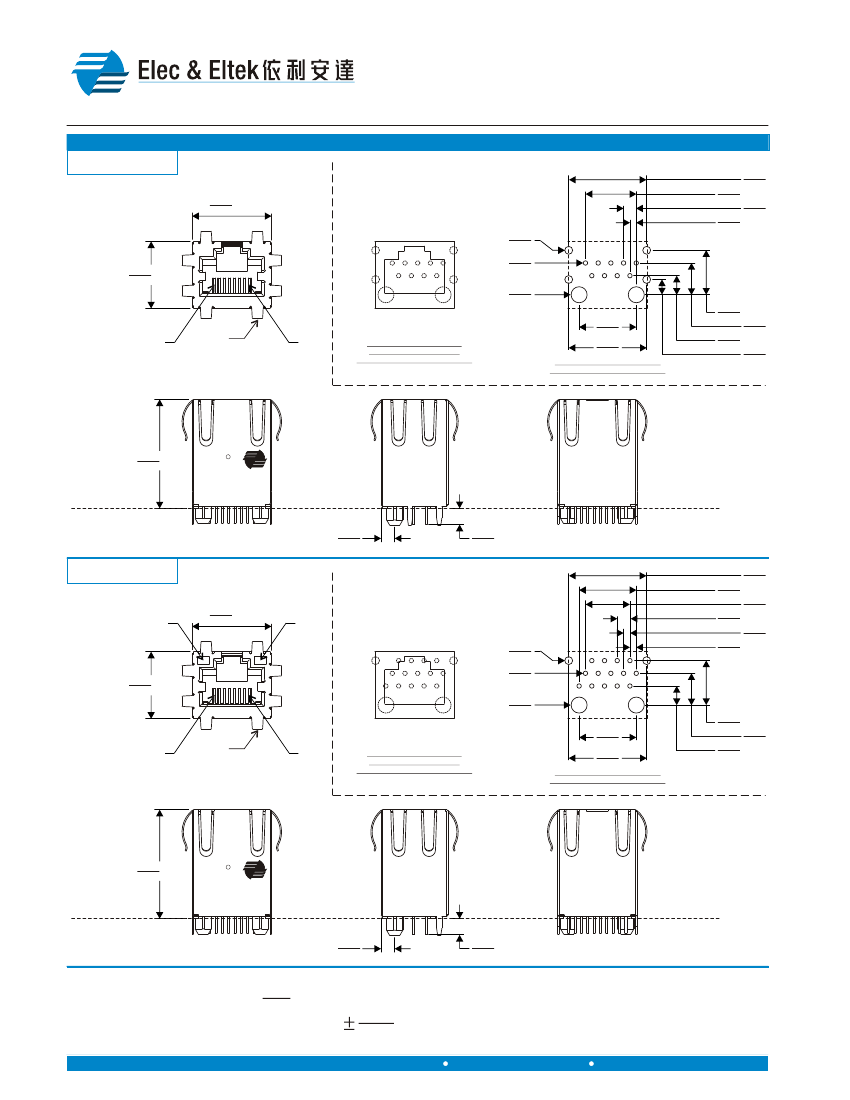

M
ECHANICAL
D
IMENSIONS
MJ11V-02A
0.650
MAX.
16.51
0.062
1.57
0.035
0.89
0.126
3.20
0.450
11.43
0.620
15.75
Recommended hole pattern
(viewed from component side)
0.350
8.89
0.150
3.81
0.250
6.35
0.120
3.05
9 7 5 3 1
8 6 4 2
2X DIA:
0.400
10.16
0.050
1.27
4X DIA:
9X DIA:
0.620
15.75
0.100
2.54
0.555
MAX.
14.10
J8
NOTE 5
J1
Footprint orientation with
respect to RJ-45 cavity
(viewed from component side)
0.865
MAX.
21.97
C
R
U
R
US
(E&E P/N)
(DATE)
REFERENCE OR
GAUGE PLANE
0.125
3.18
0.125
3.18
0.620
15.75
0.350
8.89
0.050
1.27
MJ11V-02B
0.450
11.43
LED
(LEFT)
0.650
MAX.
16.51
LED
(RIGHT)
2X DIA:
14X DIA:
0.062
1.57
0.035
0.89
14 13 12 11
9 7 5 3 1
10 8 6 4 2
0.126
2X DIA:
3.20
0.450
11.43
0.620
15.75
Recommended hole pattern
(viewed from component side)
0.350
8.89
0.150
3.81
0.100
2.54
0.050
1.27
0.555
MAX.
14.10
J8
NOTE 5
0.250
6.35
J1
Footprint orientation with
respect to RJ-45 cavity
(viewed from component side)
0.865
MAX.
21.97
C
R
U
R
US
(E&E P/N)
(DATE)
REFERENCE OR
GAUGE PLANE
0.125
3.18
0.125
3.18
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ124(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Single Port, Through Hole, Vertical
Zigzag Output Pins Pattern
S

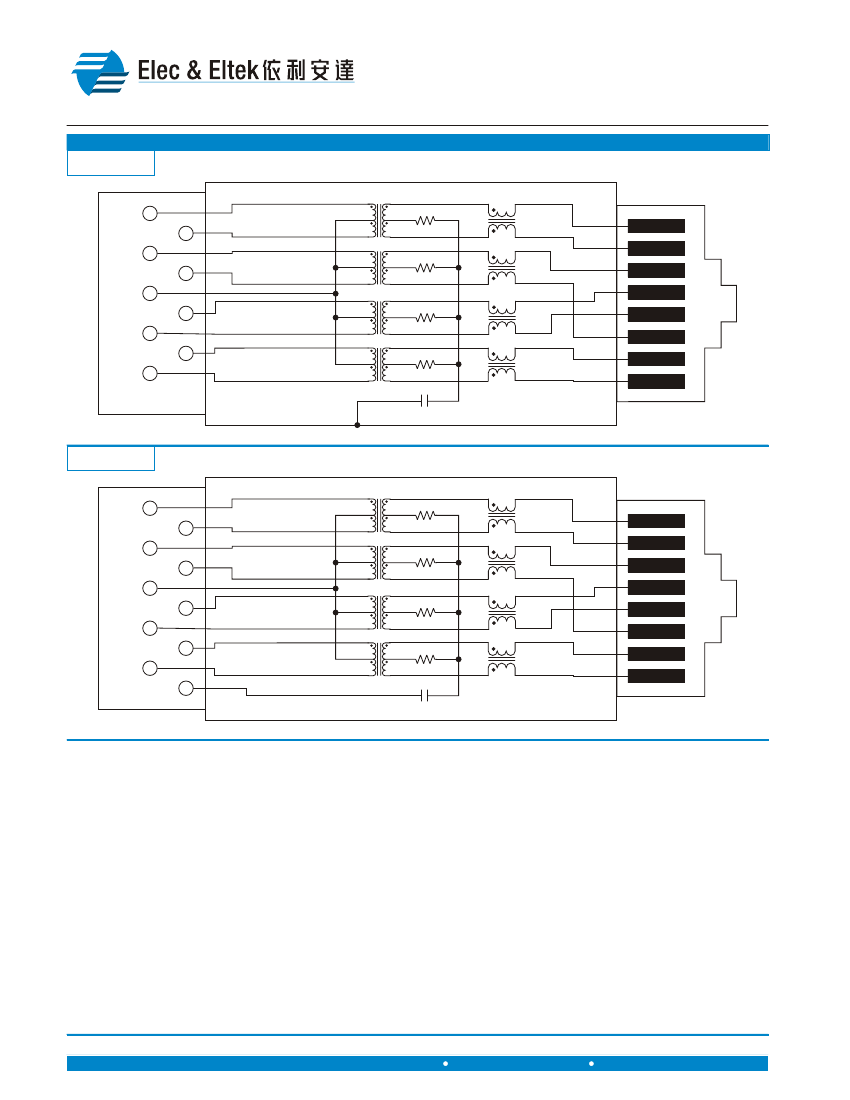

CHEMATICS
G11K
Primary
MDI_0+
1
MDI_0-
2
MDI_1+
3
MDI_1-
4
1CT:1CT
75Ω
Shield
1CT:1CT
75Ω
Secondary
J1
J2
J3
5
MDI_2+
6
MDI_2-
7
1CT:1CT
75Ω
J4
J5
J6
75Ω
1CT:1CT
MDI_3+
8
MDI_3-
9
J7
J8
1000pF/2000V
RJ-45
Chip Side
RJ-45
Cable Side
G11U
Primary
MDI_0+
1
MDI_0-
2
MDI_1+
3
MDI_1-
4
1CT:1CT
75Ω
Shield
1CT:1CT
75Ω
Secondary
J1
J2
J3
5
MDI_2+
6
MDI_2-
7
1CT:1CT
75Ω
J4
J5
J6
75Ω
1CT:1CT
MDI_3+
8
MDI_3-
9
J7
J8
10
1000pF/2000V
RJ-45
Chip Side
RJ-45
Cable Side
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
3
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ124(02)
Revised in 06/07
E & E Magnetic Products Limited
1000 Base-T Applications
Single Port, Through Hole, Vertical
Zigzag Output Pins Pattern
LED (LEFT)
LED (RIGHT)
COLOR
POLARITY
PIN 11
PIN 12
LED
S
C
OLOR
A
ND
P
OLARITY
MJ11V-02B
COLOR
11
POLARITY
PIN 13
PIN 14
LED (RIGHT)
12
13
GREEN
YELLOW
LED (LEFT)
14
LED S
PECIFICATION
@25°C, F
ORWARD
C
URRENT
= 20mA
Standard Color
Green
Yellow
Typical Wavelength (nm)
565
590
Forward Voltage (volt)
Typical
2.2
2.1
Maximum
2.5
2.5
M
ATERIALS
Housing
Contact Pins
PCB Pins
6
Consist of thermoset & thermoplastic materials, all of them are UL 94-V0 rated.
Phosphor bronze, plated with nickel under-plating and hard gold over contact area.
Copper wire which meets solderability requirements per MIL-STD-202, method 208.
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
2/F Block A, Merit Industrial Centre,
94 Tokwawan Road, Kowloon,
Hong Kong
Tel: (852) 2765 3888
Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2006, E & E Magnetic Products Limited.
