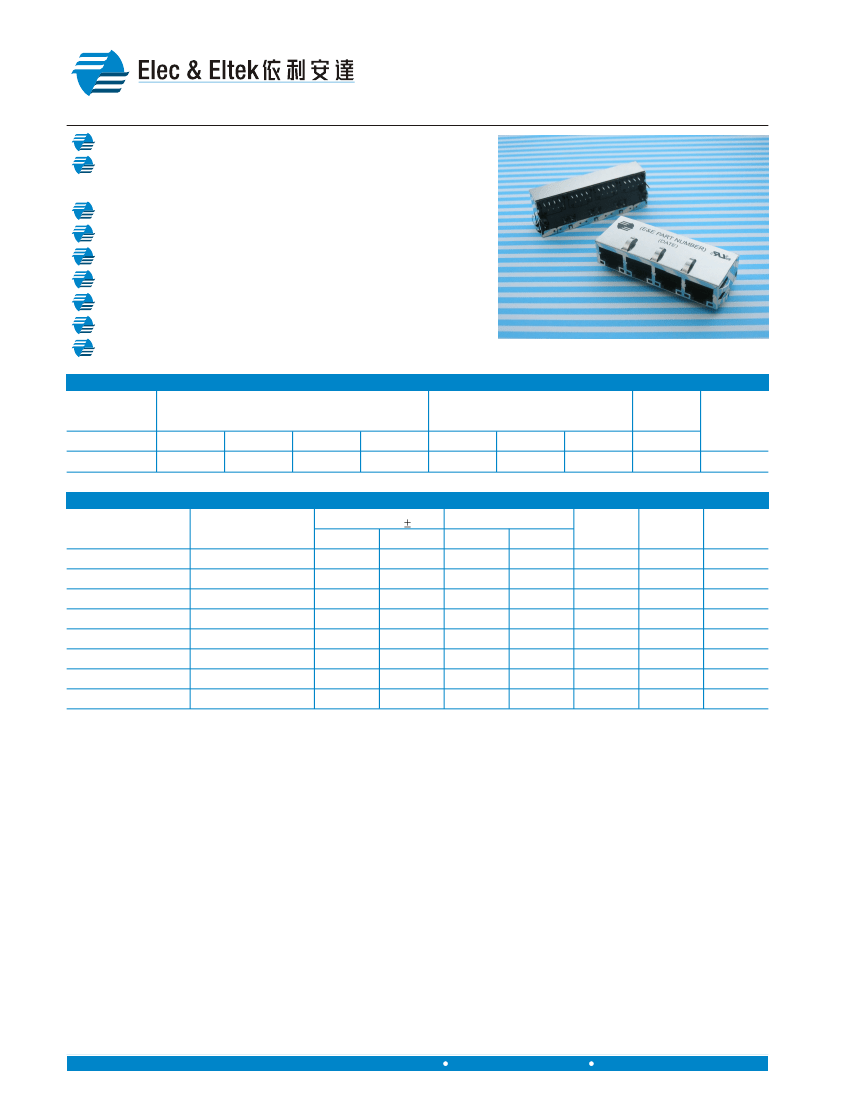

3. LEDs (Left / Right) : "G" = Green ; "Y" = Yellow ; "—" = None. For different LED color requirements, please contact
E&E Magnetic Products Limited.
4. Schematic H33D, K33D are suitable for Auto MDI/MDIX applications.
5. Panel tabs are optional.
6. All parts shown in this datasheet have gold plating thickness of 10 micro-inch (min.) over contact area.
Advance options including 30 micro-inch (min.) and 50 micro-inch (min.) are also available.
7. Operating temperature: -40
°
C to +85
°
C.
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
1
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ009(05)
Revised in 06/07
E & E Magnetic Products Limited

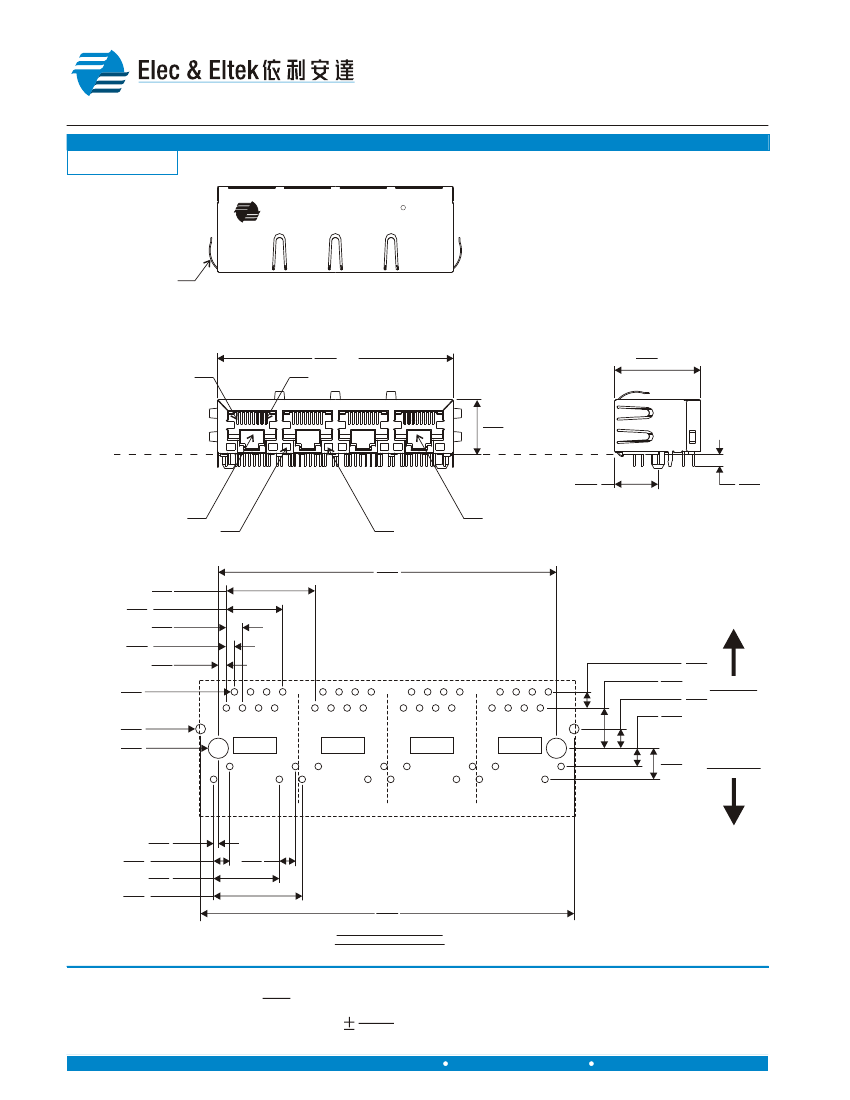

10/100 Base-T Applications

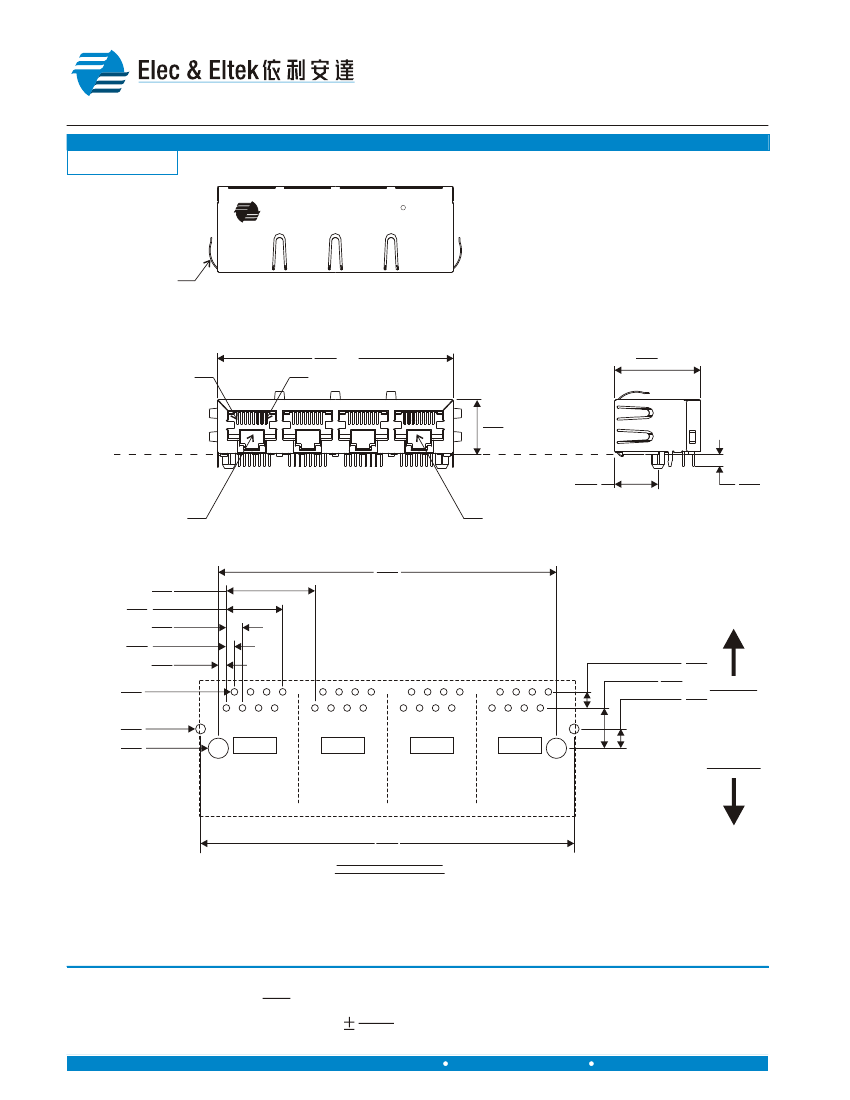

Gang 1X4, Through Hole, Tab Down
Zigzag Output Pins Pattern
M
ECHANICAL
D
IMENSIONS
MJ14D-01A
(E&E PART NUMBER)
C
(DATE)
R
U
R
US
NOTE 5
2.340
59.44 MAX.
J1
J8
0.855
21.72 MAX.
0.555
14.10 MAX.
REFERENCE OR
GAUGE PLANE
0.425
10.80
0.125
3.18
PORT 1
PORT 4
LED (LEFT)
LED (RIGHT)
2.100
53.34
0.550
13.97
0.350
8.89
0.100
2.54
0.050
1.27
0.050
1.27
48X DIA. 0.042
1.07
1
0.062
2X DIA. 1.57
0.126
2X DIA. 3.20
9
0.100
2.54
0.250
6.35
2
3
4
5
6
7
8
0.113
2.87
0.120
3.05
Chip side
PORT 1
10
11
12
PORT 2
PORT 3
PORT 4
0.193
4.90
Cable side
0.029
0.74
0.100
2.54
0.408
10.36
0.550
13.97
2.320
58.93
0.100
2.54
Recommended hole pattern
viewed from component side
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
2
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ009(05)
Revised in 06/07
E & E Magnetic Products Limited
10/100 Base-T Applications
Gang 1X4, Through Hole, Tab Down
Zigzag Output Pins Pattern
M
ECHANICAL
D
IMENSIONS
MJ14D-01C
(E&E PART NUMBER)
C
(DATE)
R
U
R
US
NOTE 5
2.340
59.44 MAX.
J1
J8
0.855
21.72 MAX.
0.555
14.10 MAX.
REFERENCE OR
GAUGE PLANE
0.425
10.80
0.125
3.18
PORT 1
PORT 4
2.100
53.34
0.550
13.97
0.350
8.89
0.100
2.54
0.050
1.27
0.050
1.27
32X DIA. 0.042
1.07
1
0.062
2X DIA. 1.57
0.126
2X DIA. 3.20
0.100
2.54
0.250
6.35
2
3
4
5
6
7
8
0.120
3.05
Chip side
PORT 1
PORT 2
PORT 3
PORT 4
Cable side
2.320
58.93
Recommended hole pattern
viewed from component side
All dimensions are specified in inch with higher precedence in inch.
mm
0.010 .
Unless otherwise specified, all tolerances are
0.25
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
3
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ009(05)
Revised in 06/07
E & E Magnetic Products Limited
10/100 Base-T Applications
Gang 1X4, Through Hole, Tab Down
Zigzag Output Pins Pattern

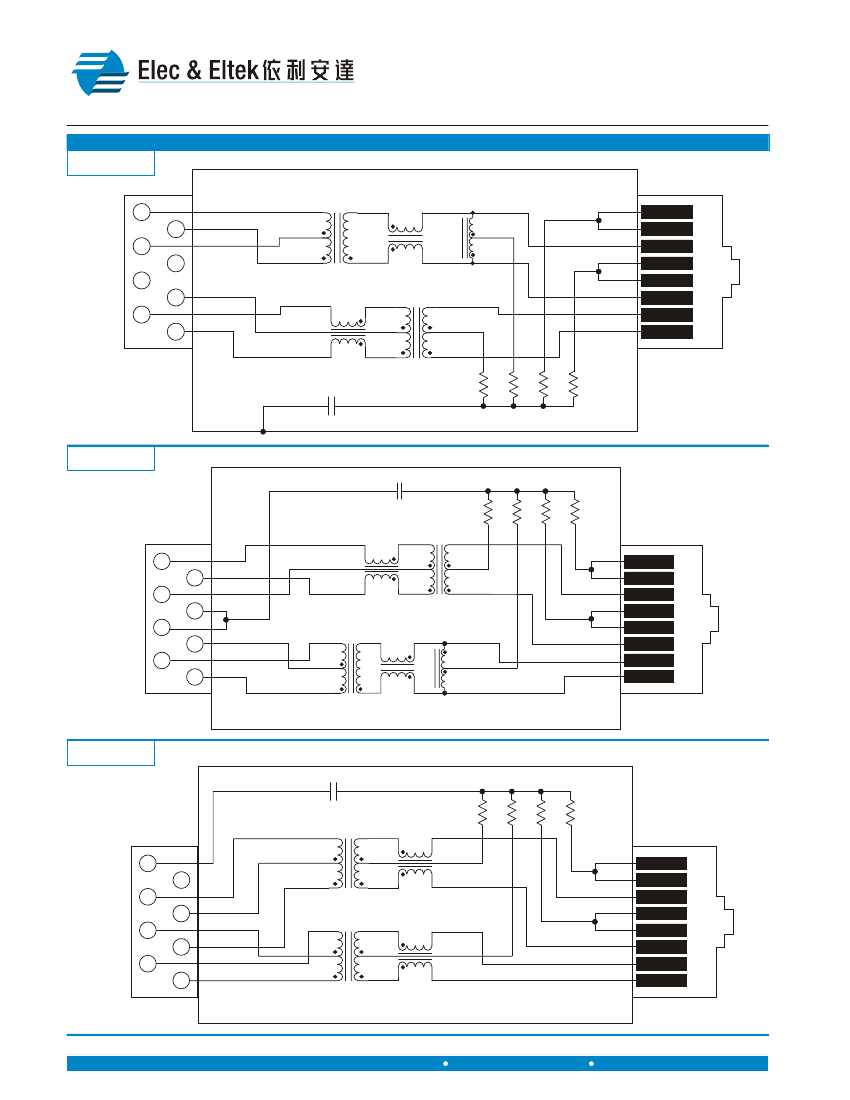

S
CHEMATICS
Shield
H152
Primary
1CT:1
8
7
6
5
4
3
2
1
Secondary
J8
J7
J6
J5
Tx-Side
1CT:1CT
J4
J3
J2
J1
RJ-45
Chip Side
1000pF/2000V
Rx-Side
75Ω
75Ω
75Ω
75Ω
RJ-45
Cable Side
H301
1000pF/2000V
Shield
75Ω
75Ω
75Ω
75Ω
Primary
8
7
6
5
4
3
2
1
1CT:1CT
Secondary
J8
J7
Rx-Side
1CT:1
J6
J5
J4
J3
J2
J1
RJ-45
Chip Side
Tx-Side
RJ-45
Cable Side
H33D / K33D
1000pF/2000V
Shield
75Ω
75Ω
75Ω
75Ω
Primary
8
7
6
5
4
3
2
1
1CT:1CT
Secondary
J8
J7
Rx-Side
1CT:1CT
J6
J5
J4
J3
J2
J1
Tx-Side
RJ-45
Chip Side
RJ-45
Cable Side
2/F Block A, 94 Tokwawan Road, Kowloon, Hong Kong
4
Tel: (852) 2765 3888
Fax: (852) 2954 3304
MJ009(05)
Revised in 06/07
E & E Magnetic Products Limited
10/100 Base-T Applications
Gang 1X4, Through Hole, Tab Down
Zigzag Output Pins Pattern
LED (LEFT)
LED (RIGHT)
COLOR
POLARITY
PIN 12
PIN 11
LED
S
C
OLOR
A
ND
P
OLARITY
MJ14D-01A
12
COLOR
11
POLARITY
PIN 9
PIN 10
LED (RIGHT)
10
GREEN
9
YELLOW
LED (LEFT)
LED S
PECIFICATION
@25°C, F
ORWARD
C
URRENT
= 20mA
Standard Color
Green
Yellow
Typical Wavelength (nm)
565
590
Forward Voltage (volt)
Typical
2.2
2.1
Maximum
2.5
2.5
M
ATERIALS
Housing
Contact Pins
PCB Pins
6
Consist of thermoset & thermoplastic materials, all of them are UL 94-V0 rated.
Phosphor bronze, plated with nickel under-plating and hard gold over contact area.
Copper wire which meets solderability requirements per MIL-STD-202, method 208.
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
2/F Block A, Merit Industrial Centre,
94 Tokwawan Road, Kowloon,
Hong Kong
Tel: (852) 2765 3888
Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com
Information herein is for reference only and subject to change without notice. It does not constitute any representation, warranty or commitment of the company in respect
of the products in any aspect. All logos, brands and product names mentioned herein are trademarks or registered trademarks of their respective owners. The company
does not assume any liability arising out of the application or use of any product or circuit described herein. Copyrights 2006, E & E Magnetic Products Limited.
