C222J11S105PQF Overview

ROCKER SWITCH

C222J11S105PQF Parametric

Parameter Name	Attribute value
Maker	C&K
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	C
Switch type	ROCKER SWITCH
Base Number Matches	1

Preview

Download Datasheet

View All

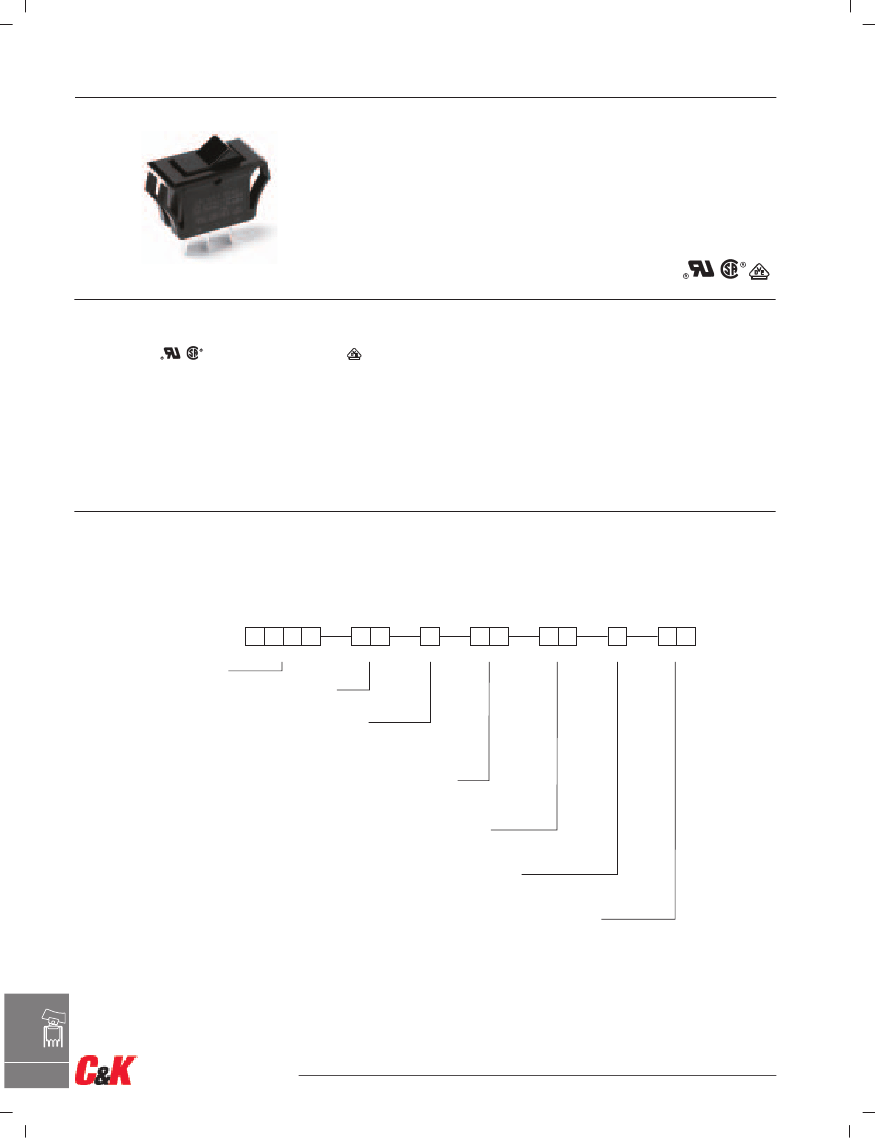

C Series

Power Rocker Switches

Features/Benefits

•

Positive detent

•

Attractive design

•

Snap-in mounting

Typical Applications

•

Floor care products

•

Power outlet strips

•

Small appliances

•

RoHS compliant

Models Available

Specifications

CONTACT RATING: All Models: 15 AMPS @ 125 V AC; 10 AMPS

@ 250 V AC

see rating section.

. Models also available with

Materials

HOUSING & ACTUATOR: 6/6 nylon (UL 94V-2), black (standard).

MOVABLE CONTACTS: Copper, silver plated.

STATIONARY CONTACT & TERMINALS:

C121, C122 models with ‘QA’ rating: Copper, silver plated.

C221, C222 models with ‘QA’ rating: Copper.

All models with ‘QF’ rating: Copper, silver plated.

CONTACT SPRING: Music wire or stainless steel.

OPERATING TEMPERATURE: -30ºC to +65ºC

ELECTRICAL LIFE: 10,000 make-and-break cycles at full load.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 2,500 Vrms min. @ sea level.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service center.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages G-103 and G-104. For additional options not shown in catalog, consult Customer Service Center.

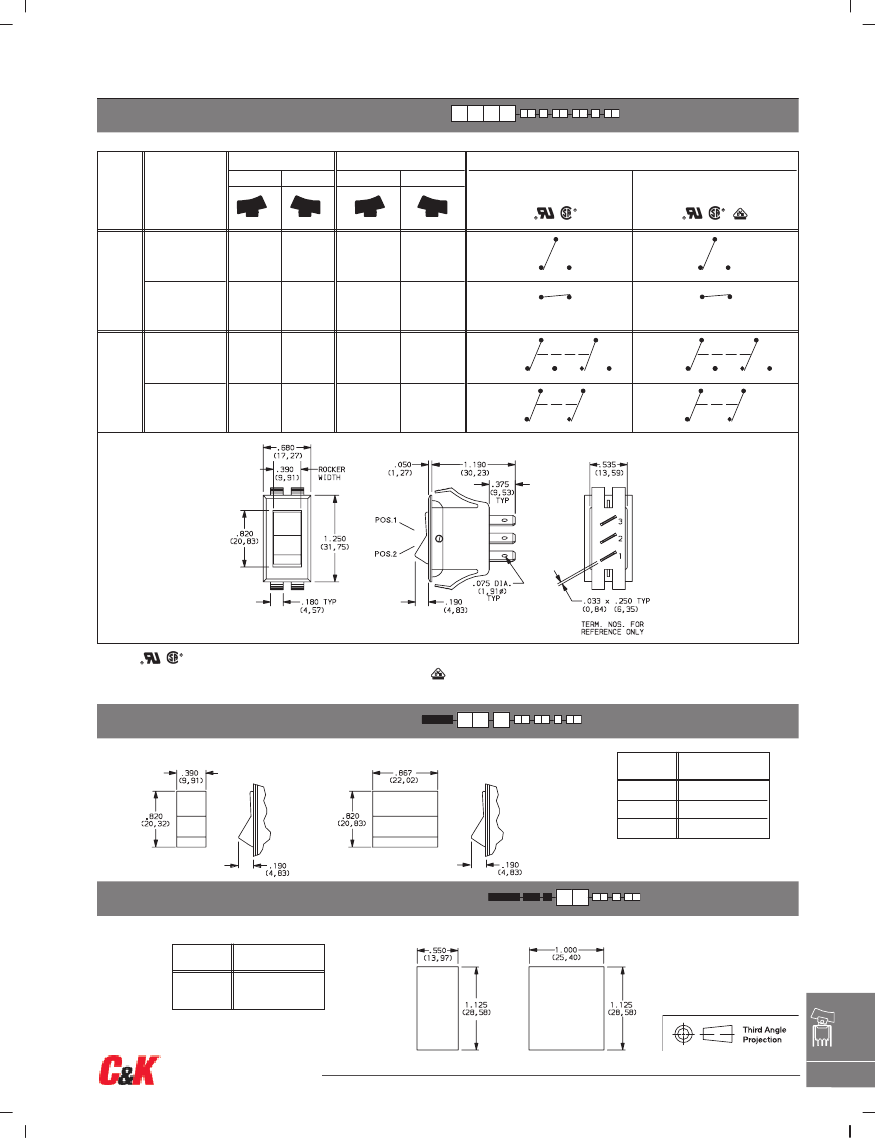

Switch Function

C121

SPDT, On-On

C122

SPST, On-Off

C221

DPDT, On-On

C222

DPST, On-Off

Actuator

Rocker

Actuator Color

Black

White

Red

Mounting Style/Color

Snap-in, black

Snap-in, white

Terminations

Quick connect

Wire Wrap

Actuator Markings

NONE

No markings

ON-OFF

O–

Contact Material

Silver (UL/CSA)

Silver (UL/CSA/VDE)

Rocker

G–102

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com
