CD10RM0SKR: DescriptionROTARY CODED SWITCH-10POSITIONS, BINARY CODED DECIMAL, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-STRAIGHT; CategoryMechanical and electronic products switch; File Size290KB，4 Pages; ManufacturerC&K

Download Datasheet Parametric Compare View All

CD10RM0SKR Overview

ROTARY CODED SWITCH-10POSITIONS, BINARY CODED DECIMAL, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-STRAIGHT

CD10RM0SKR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	C&K
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Actuator type	FLUSH, SCREWDRIVER SLOT
body width	8 mm
body height	4.41 mm
Body length or diameter	8 mm
Contact (AC) maximum rated R load	.02A@20VAC
Maximum contact current (AC)	0.02 A
Maximum contact current (DC)	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC
Maximum contact voltage (AC)	20 V
Maximum contact voltage (DC)	20 V
Electrical life	20000 Cycle(s)
JESD-609 code	e0
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	10
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	LATCHED
switch function	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

C&K CD Series

8mm DIP Coded Rotary Switches

Features/Benefits

•

Process sealed – withstands

Typical Applications

•

Address switching applications

•

Data storage devices

•

Computer and peripherals

•

Instrumentation

DIP

•

soldering and cleaning

Thru-hole and surface mount models

Compact size saves space – 36%

smaller than traditional 10mm DIP

Crisp, positive detent ensures actua-

tion

RoHS compliant - option available

Specifications

CONTACT RATING: 0.4 VA max. @ 20 V AC or V DC max.

MECHANICAL AND ELECTRICAL LIFE:

CD10 & CD16: 20,000 actuations.

CD08: 12,000 actuations.

CONTACT RESISTANCE: 50 milliohms max. initial.

INSULATION RESISTANCE: 100 megohms min.

@ 250 V AC min.

DIELECTRIC STRENGTH: 250 V RMS min. @ sea level.

OPERATING TEMPERATURE: -25°C to 85°C.

STORAGE TEMPERATURE: -40°C to 85°C.

SOLDERABILITY: Per MIL-STD-202F method 208D or EIA RS-

186E, method 9 (1 hour steam aging).

PACKAGING: Switches supplied in rigid tubes in full-tube quan-

tities only: this may affect order quantity. Surface mount

switches available in tape & reel packaging per EIA 481A,

800 per reel, “M0” actuator only.

Materials

COVER: Non-RoHS version (K) Glass filled nylon, flame retardant

(UL 94V-0),Color; Red.

RoHS version, PPS (UL94V-0), Color; Black.

BASE: PPS (UL94V-0), Color; Black (both RoHS and non-RoHS)

ACTUATOR: LCP (UL 94V-0), Color White (CDXXR)

Color Black (CDXXC)

Note: internal o-ring seal standard with all actuators.

KNOB: Glass filled nylon, flame retardant (UL 94V-0).

MOVABLE CONTACTS: Copper alloy with gold plate over

nickel plate.

STATIONARY CONTACTS: Copper alloy with gold plate over

nickel plate.

TERMINALS: Copper alloy with tin-lead alloy over nickel plate.

RoHS, Version copper alloy with gold plate over nickel plate.

NOTE:

For the latest information regarding RoHS compliance, please go to:

www.ittcannon.com/rohs.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

How To Order

Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.

C D

Switch Function

CD08R

8 position, BCD

Actuator

CD08C

8 position, BCD complement

Flush, screwdriver slot

CD10R

10 position, BCD

Extended, screwdriver slot

CD10C

10 position, BCD complement

Knob

CD16R

16 position, Hexadecimal

Terminations

CD16C

16 position, Hexadecimal complement

Right Angle, PC Thru-hole

PC Thru-hole

Surface Mount

Contact/Terminal Material

Gold/Tin-Lead

Gold/Gold

Packaging

NONE

Tube

Tape & Reel (MO actuator only)

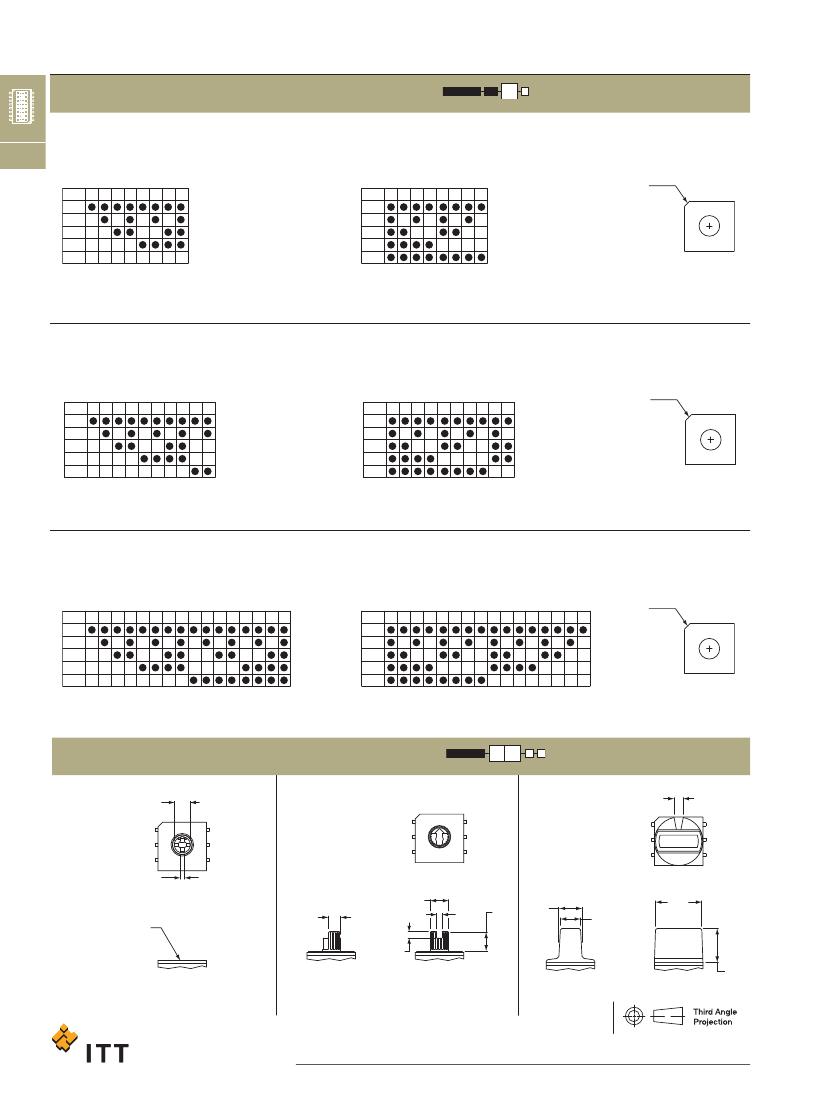

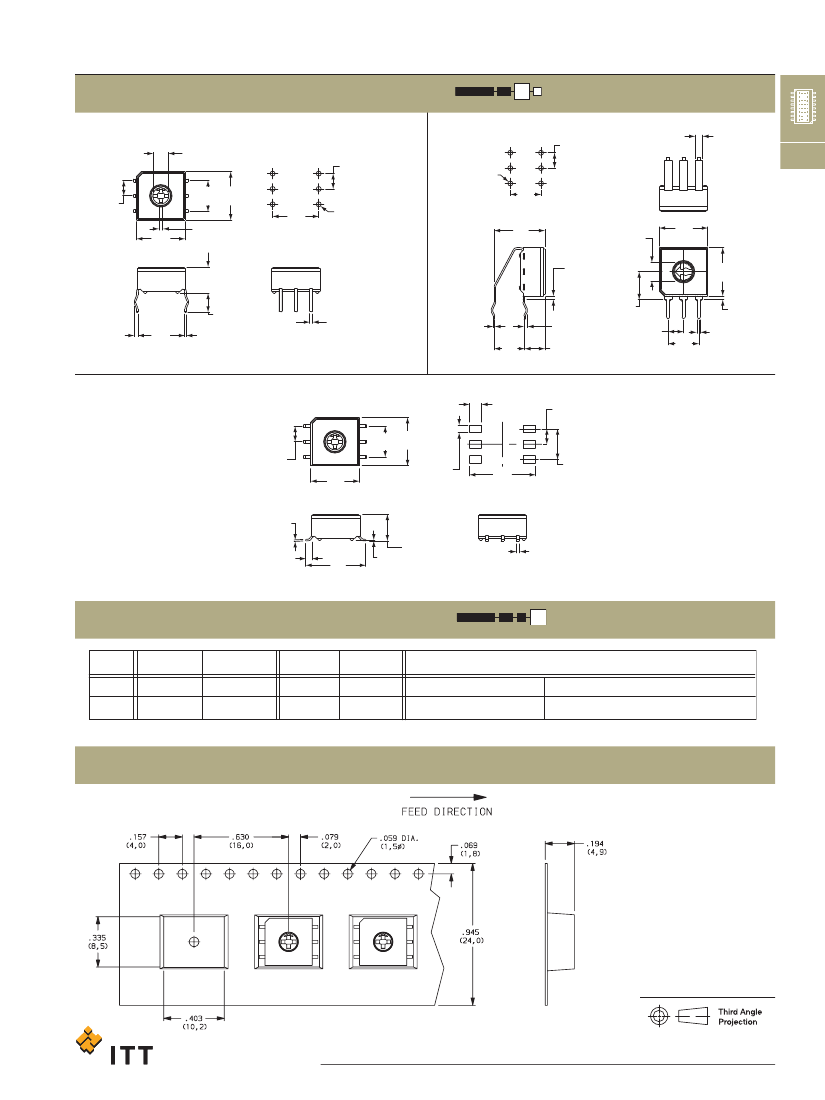

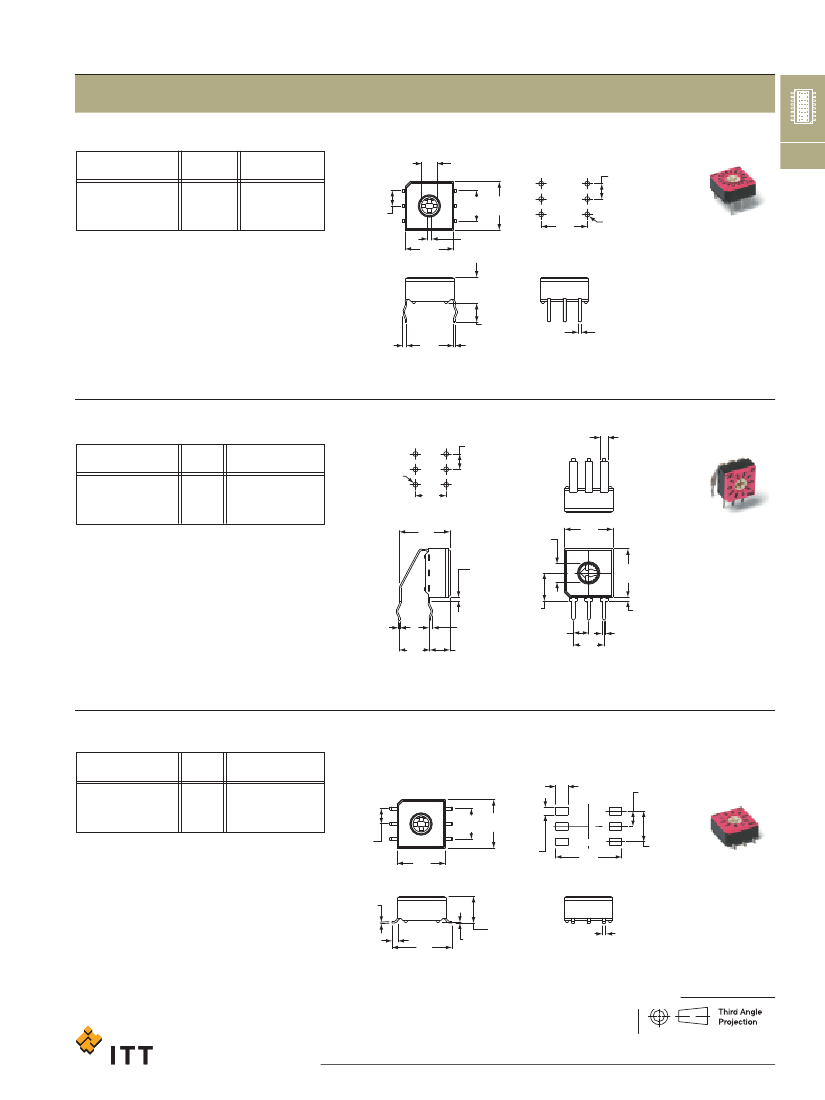

Dimensions are shown: Inch (mm )

Specifications and dimensions subject to change

I-28

www.ittcannon.com

CD10RM0SKR Related Products

	CD10RM0SKR	CD08RM0SKR	CD16RM0SKR	CD08RM0AK
Description	ROTARY CODED SWITCH-10POSITIONS, BINARY CODED DECIMAL, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-STRAIGHT	ROTARY CODED SWITCH-8POSITIONS, BINARY CODED DECIMAL, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-STRAIGHT	ROTARY CODED SWITCH-16POSITIONS, HEXADECIMAL, LATCHED, 0.02A, 20VDC, SURFACE MOUNT-STRAIGHT	ROTARY CODED SWITCH-8POSITIONS, BINARY CODED DECIMAL, LATCHED, 0.02A, 20VDC, THROUGH HOLE-RIGHT ANGLE
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	C&K	C&K	C&K	C&K
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator type	FLUSH, SCREWDRIVER SLOT	FLUSH, SCREWDRIVER SLOT	FLUSH, SCREWDRIVER SLOT	FLUSH, SCREWDRIVER SLOT
body width	8 mm	8 mm	8 mm	3.34 mm
body height	4.41 mm	4.41 mm	4.41 mm	8 mm
Body length or diameter	8 mm	8 mm	8 mm	8 mm
Contact (AC) maximum rated R load	.02A@20VAC	.02A@20VAC	.02A@20VAC	.02A@20VAC
Maximum contact current (AC)	0.02 A	0.02 A	0.02 A	0.02 A
Maximum contact current (DC)	0.02 A	0.02 A	0.02 A	0.02 A
Contact (DC) maximum rated R load	.02A@20VDC	.02A@20VDC	.02A@20VDC	.02A@20VDC
Maximum contact voltage (AC)	20 V	20 V	20 V	20 V
Maximum contact voltage (DC)	20 V	20 V	20 V	20 V
Electrical life	20000 Cycle(s)	12000 Cycle(s)	20000 Cycle(s)	12000 Cycle(s)
JESD-609 code	e0	e0	e0	e0
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	THROUGH HOLE-RIGHT ANGLE
Number of positions	10	8	16	8
Number of switching segments	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TUBE
surface mount	NO	NO	NO	NO
Switch action	LATCHED	LATCHED	LATCHED	LATCHED
switch function	BINARY CODED DECIMAL	BINARY CODED DECIMAL	HEXADECIMAL	BINARY CODED DECIMAL
Switch type	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH	ROTARY CODED SWITCH
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1	-
