RD402E-10 datasheet, PDF - EEWORLD Datasheet

RD402E-10: DescriptionSynchro or Resolver to Digital Converter, Hybrid, 2.625 X 2.625 INCH, 0.420 INCH HEIGHT, MINIATURE, MODULE-24/22; CategoryAnalog mixed-signal IC converter; File Size71KB，2 Pages; ManufacturerNatel Engineering Company

Download Datasheet Parametric View All

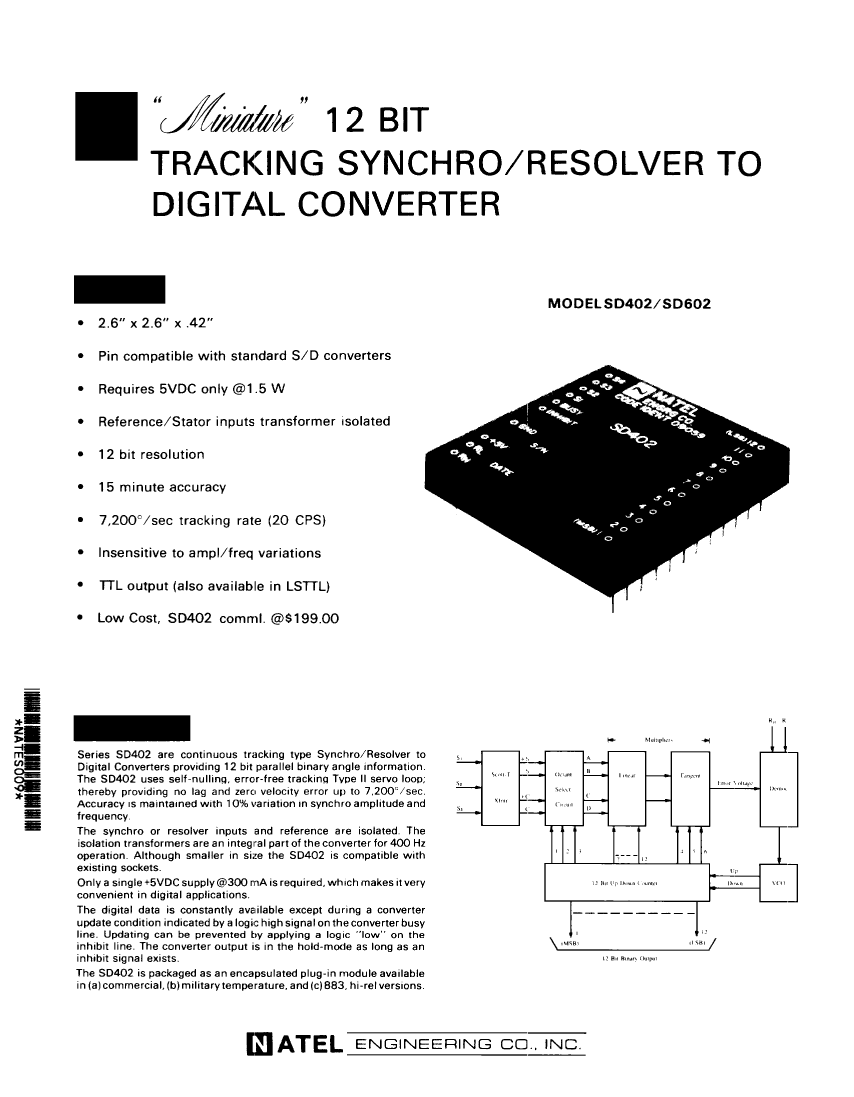

RD402E-10 Overview

Synchro or Resolver to Digital Converter, Hybrid, 2.625 X 2.625 INCH, 0.420 INCH HEIGHT, MINIATURE, MODULE-24/22

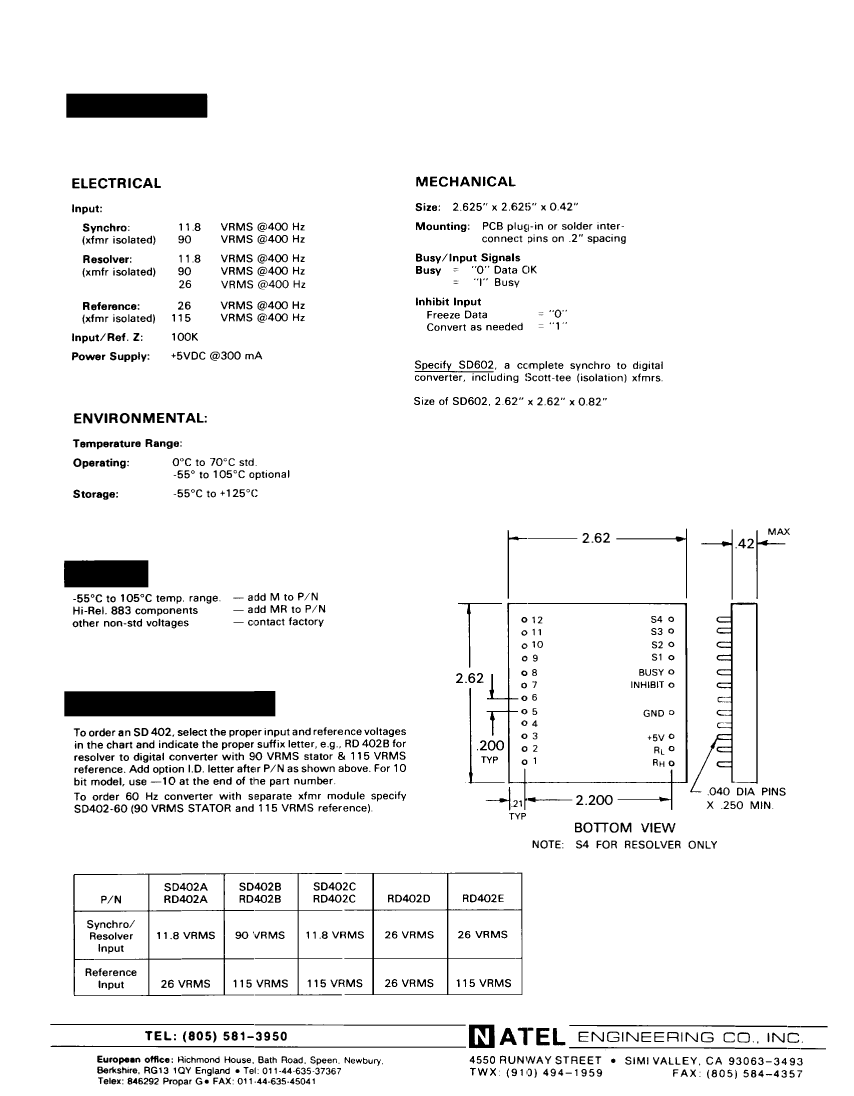

Parameter Name	Attribute value
Maker	Natel Engineering Company
Parts packaging code	DIP
package instruction	DIP,
Contacts	22
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	115V REFERENCE INPUT
Maximum analog input voltage	26 V
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	S-XDIP-P22
length	66.548 mm
Number of digits	10
Number of functions	1
Number of terminals	22
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	SQUARE
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	10.7 mm
Signal/output frequency	400 Hz
Maximum slew rate	300 mA
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
width	55.88 mm
Base Number Matches	1
