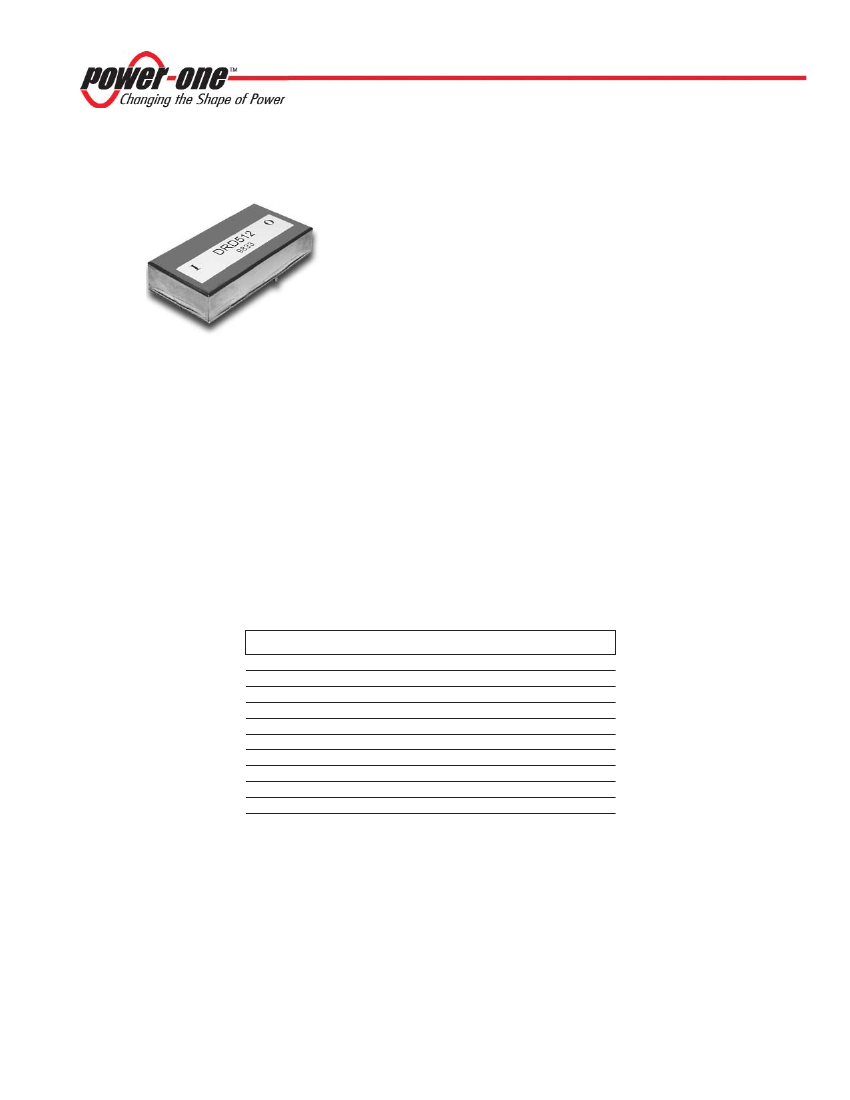

DRD Dual-Output DC/DC Series Data Sheet
2 Watts
Features
•
•
•
•
•
•
•
•
•
Industry-standard DIP Package
Industry-standard pinout
85°C case operation
Short-circuit protection
5V, 12V, 24V, 28V, and 48V inputs
Input Pi filter
6-Sided shielding
Regulated outputs
500V isolation
Dimensions: 2.00” (50.8mm) x 1.00” (25.4mm) x 0.40” (10.2mm)
Description
DRD dual-output DC/DC converters offer excellent
regulation and isolation in an industry-standard
package. Available in several input versions, the DRD
is well-suited for industrial, telecom, or datacom
applications. The DRD features short-circuit protection
and 500 VDC isolation. Please see the DRS Series for
single-output applications.
Model Selection
MODEL
INPUT VOLTAGE
RANGE (VDC)
OUTPUT
VOLTAGE (VDC)
OUTPUT
CURRENT (AMPS)
DRD512
DRD515
DRD1212
DRD1215
DRD2412
DRD2415
DRD2812
DRD2815
DRD4812
DRD4815
4.65 - 5.50
4.65 - 5.50
10.90 - 13.20
10.90 - 13.20
21.60 - 26.40
21.60 - 26.40
25.20 - 30.80
25.20 - 30.80
43.20 - 52.80
43.20 - 52.80
± 12
± 15
± 12
± 15
± 12
± 15
± 12
± 15
± 12
± 15
± 0.080
± 0.065
± 0.080
± 0.065
± 0.080
± 0.065
± 0.080
± 0.065
± 0.080
± 0.065
REV. OCT 27, 2003
Page 1 of 2
OPTIONS
This page is offered as a reference. Consult factory for actual availability of options. When ordering
equipment options, use the following suffix information. Select preferred option(s) and add the suffix to the
model number. Ordering option examples are located below the options table.
OPTION
Negative Logic
Lucent-Compatible Trim
Trim
Enable
Trim and Enable
SUFFIX
N
T
1
2
3
APPLICABLE SERIES
HAS, HBD, HBS, HES, HLS, HLD, LES,
QBS, QES, QLS, TES, TQD
HAS, HBD, HBS, HES, HLS, QBS, QES,
QLS
IAS, LES
IAD, IAS, LES, SMS
IAS, LES
REMARKS
TTL "Low" Turns Module ON
TTL "High" Turns Module OFF
Pin Length and Heatsink Options
0.110" (2.8mm) Pin Length
0.150" (3.8mm) Pin Length
0.24" (6.1mm) Horizontal Heatsink
0.24" (6.1mm) Vertical Heatsink
0.45" (11.4mm) Horizontal Heatsink
0.45" (11.4mm) Vertical Heatsink
0.95" (24.1mm) Horizontal Heatsink
0.95" (24.1mm) Vertical Heatsink
8
9
1H
1V
2H
2V
3H
3V
All Leaded Models
All Leaded Models
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
All 1/4-Bricks, 1/2-Bricks, 3/4-Bricks, Full-Bricks
(Except HLS, HLD, QLS, TLD, and TKD Packages)
Standard Pin Length is 0.180" (4.6mm)
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Includes Thermal Pad
Example Options:
HBS050ZG-ANT3V = HBS050ZG-A with negative logic, Lucent-compatible trim, and 0.95” vertical heatsink.
LES015YJ-3N = LES015YJ with optional trim and enable, negative logic.
QBS066ZG-AT8 = QBS066ZG-A with Lucent-compatible trim and 0.110” pin length.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective divisional president
of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
REV. OCT 27, 2003
Page 2 of 2
