Datasheet> All Categories > logic> logic> HCTS245DMSH

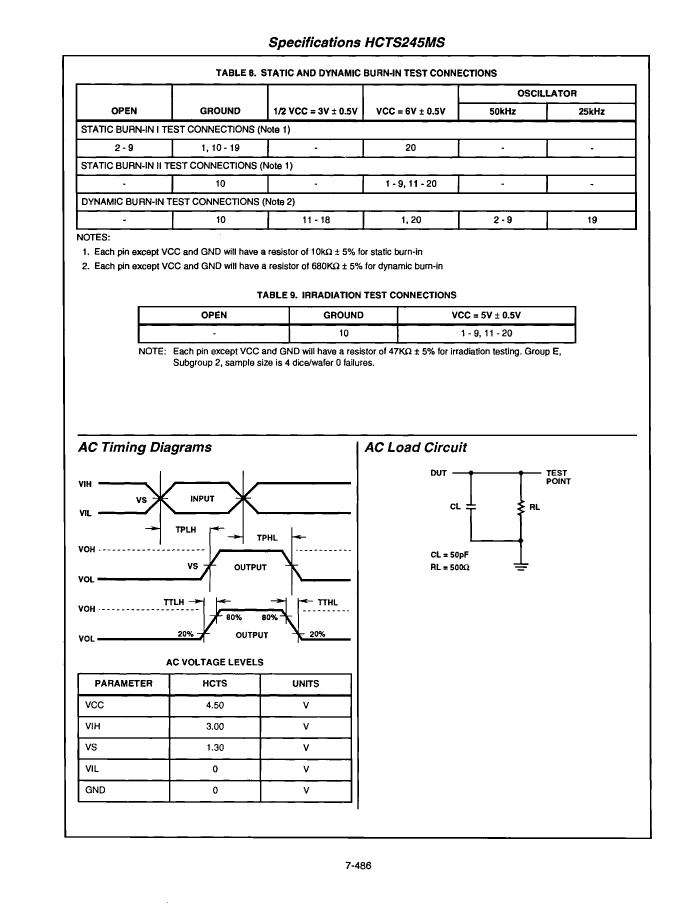

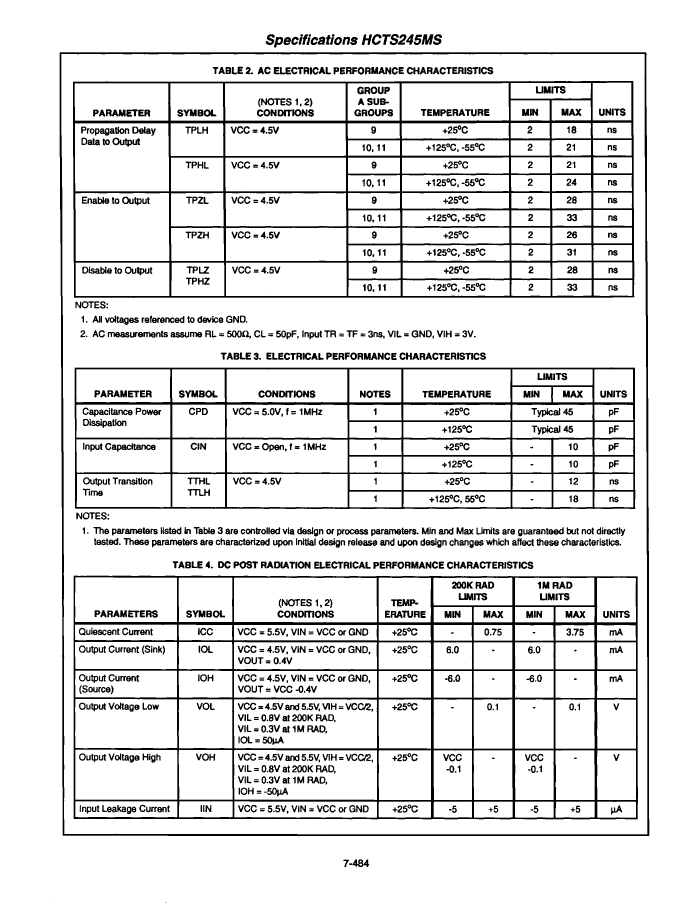

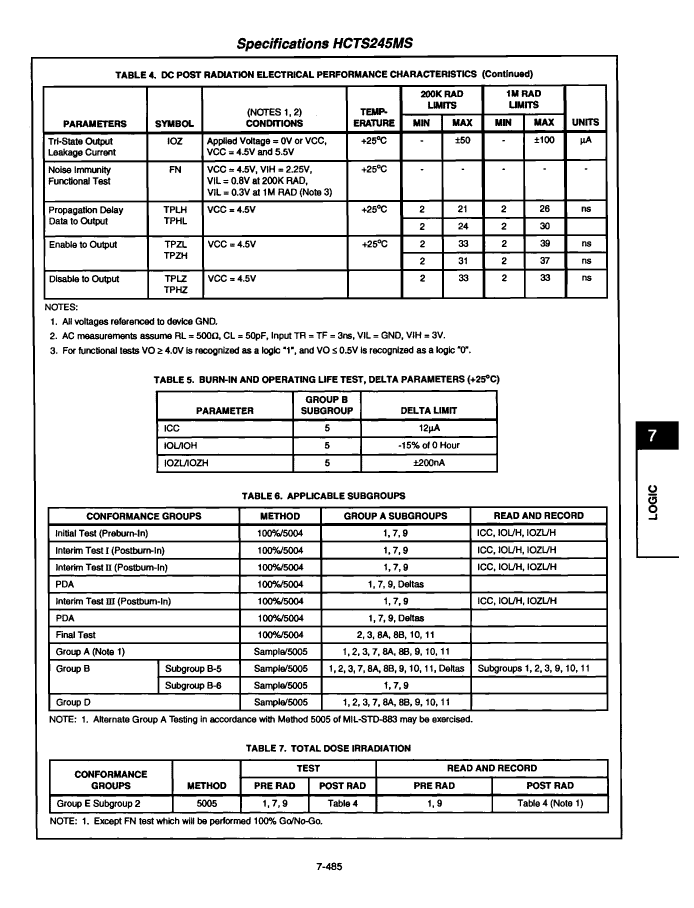

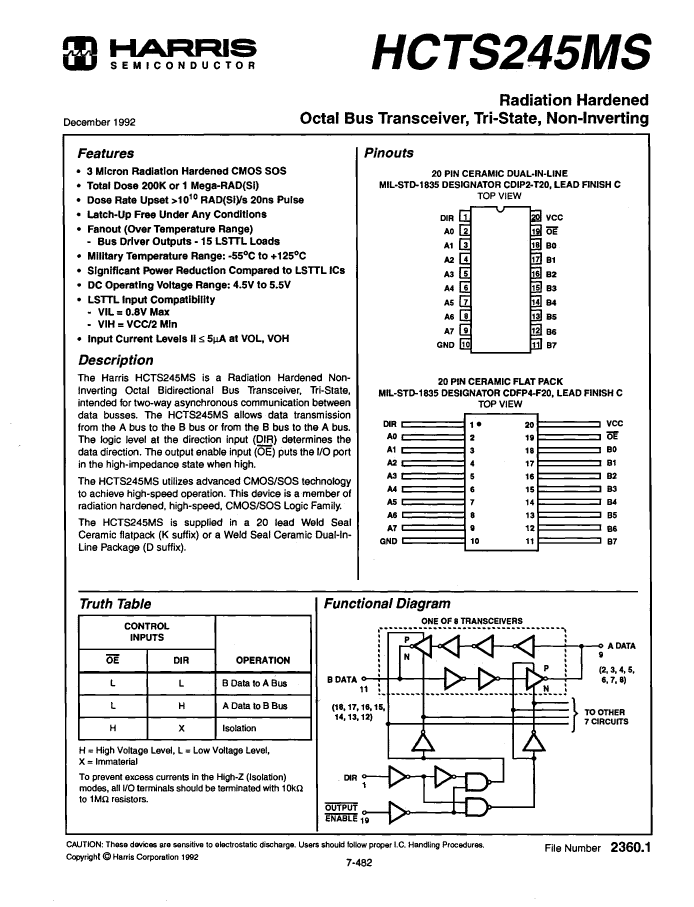

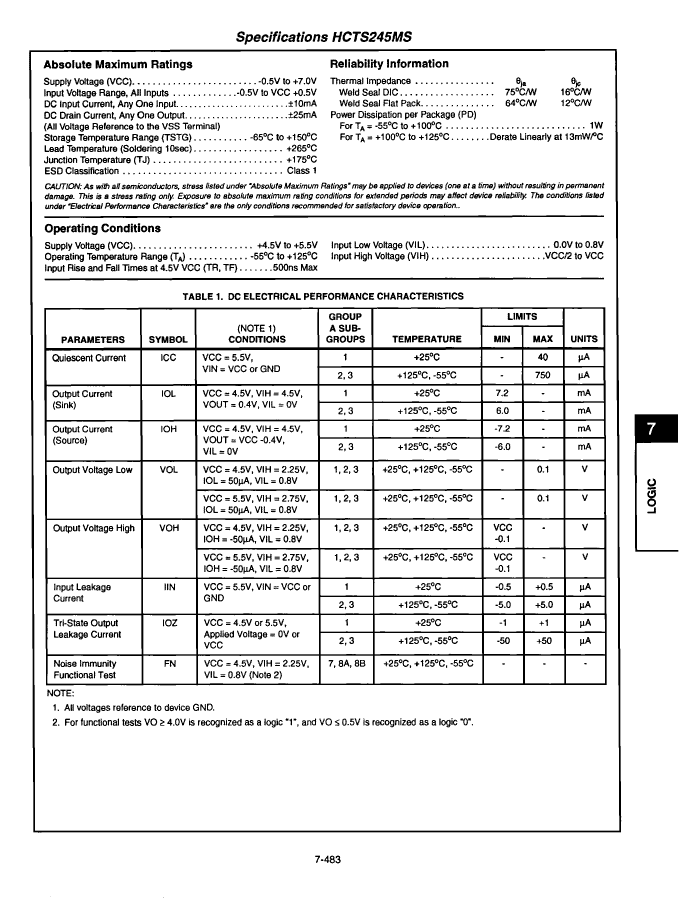

Preview

HCTS245DMSH: DescriptionBus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20; Categorylogic logic; File Size261KB，7 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HCTS245DMSH Overview

Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20

HCTS245DMSH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Is Samacsys	N
Other features	COMMON OUTPUT ENABLE AND DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	HCT
JESD-30 code	R-CDIP-T20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.006 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	30 ns
Certification status	Not Qualified
Filter level	38535V;38534K;883S
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
total dose	1M Rad(Si) V
translate	N/A
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

HCTS245DMSH Related Products

	HCTS245DMSH	HCTS245KMSH
Description	Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, METAL SEALED, CERAMIC, DIP-20	Bus Transceiver, HCT Series, 1-Func, 8-Bit, True Output, CMOS, CDFP20, METAL SEALED, CERAMIC, DFP-20
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DIP, DIP20,.3	DFP, FL20,.3
Reach Compliance Code	unknown	unknown
Other features	COMMON OUTPUT ENABLE AND DIRECTION CONTROL	COMMON OUTPUT ENABLE AND DIRECTION CONTROL
Control type	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	HCT	HCT
JESD-30 code	R-CDIP-T20	R-CDFP-F20
JESD-609 code	e0	e0
Load capacitance (CL)	50 pF	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER
MaximumI(ol)	0.006 A	0.006 A
Number of digits	8	8
Number of functions	1	1
Number of ports	2	2
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Encapsulate equivalent code	DIP20,.3	FL20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Prop。Delay @ Nom-Sup	30 ns	30 ns
propagation delay (tpd)	30 ns	30 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535V;38534K;883S	38535V;38534K;883S
Maximum seat height	5.08 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
total dose	1M Rad(Si) V	1M Rad(Si) V
translate	N/A	N/A
width	7.62 mm	6.92 mm
