HCPL-9000-500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> HCPL-9000-500

HCPL-9000-500: DescriptionAnalog Circuit, 1 Func, CMOS, PDSO8, SO-8; CategoryAnalog mixed-signal IC The signal circuit; File Size442KB，12 Pages; ManufacturerHP（Keysight）; Websitehttp://www.semiconductor.agilent.com/

Download Datasheet Parametric View All

HCPL-9000-500 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HCPL-9000-500	-	-	View	Buy Now

HCPL-9000-500 Overview

Analog Circuit, 1 Func, CMOS, PDSO8, SO-8

HCPL-9000-500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	HP（Keysight）
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	ANALOG CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	9.65 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	3.81 mm
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.35 mm
Base Number Matches	1

Preview

Download Datasheet

View All

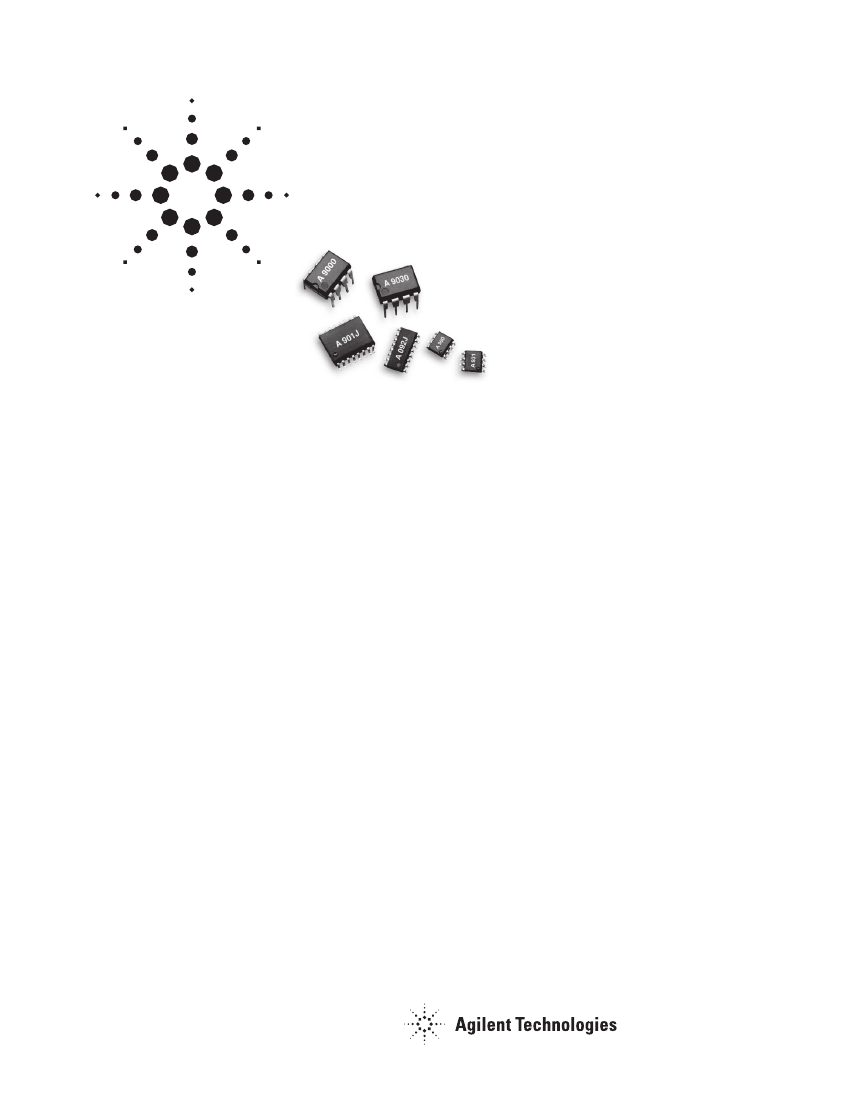

Agilent HCPL-9000/-0900, -9030/-0930,

HCPL-9031/-0931, -900J/-090J,

HCPL-901J/-091J, -902J/-092J

High Speed Digital Isolators

Data Sheet

Features

• +3.3V and +5V TTL/CMOS

compatible

• 3 ns max. pulse width distortion

• 6 ns max. propagation delay skew

• 15 ns max. propagation delay

Description

The HCPL-90xx and HCPL-09xx

CMOS digital isolators feature

high speed performance and

excellent transient immunity

specifications. The symmetric

magnetic coupling barrier gives

these devices a typical pulse

width distortion of 2 ns, a typical

propagation delay skew of 4 ns

and 100 Mbaud data rate, making

them the industry’s fastest

digital isolators.

The single channel digital isola-

tors (HCPL-9000/-0900) features

an active-low logic output enable.

The dual channel digital isolators

are configured as unidirectional

(HCPL-9030/-0930) and bi-

directional (HCPL-9031/-0931),

operating in full duplex mode

making it ideal for digital

fieldbus applications.

The quad channel digital isola-

tors are configured as unidirec-

tional (HCPL-900J/-090J), two

channels in one direction and

two channels in opposite direc-

tion (HCPL-901J/-091J), and one

channel in one direction and

three channels in opposite

direction (HCPL-902J/-092J).

These high channel density make

them ideally suited to isolating

data conversion devices, parallel

buses and peripheral interfaces.

They are available in 8-pin PDIP,

8-pin Gull Wing, 8-pin SOIC

packages, and 16–pin SOIC

narrow-body and wide-body

packages. They are specified over

the temperature range of -40° C

to +100° C.

CAUTION: It is advised that

normal static precautions be

taken in handling and assembly

of this component to prevent

damage and/or degradation,

which may be induced by ESD.

• High speed: 100 MBd

• 15 kV/µs min. common mode

rejection

• Tri-state output

(HCPL-9000/-0900)

• 2500 V RMS isolation

• UL1577 and IEC 61010-1 approved

Applications

• Digital fieldbus isolation

• Multiplexed data transmission

• Computer peripheral interface

• High speed digital systems

• Isolated data interfaces

• Logic level shifting
