LH532000BTR120 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> LH532000BTR120

LH532000BTR120: DescriptionMASK ROM, 256KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48; Categorystorage storage; File Size113KB，7 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

LH532000BTR120 Overview

MASK ROM, 256KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48

LH532000BTR120 Parametric

Parameter Name	Attribute value
Maker	SHARP
package instruction	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	120 ns
JESD-30 code	R-PDSO-G48
memory density	2097152 bit
Memory IC Type	MASK ROM
memory width	8
Number of functions	1
Number of terminals	48
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

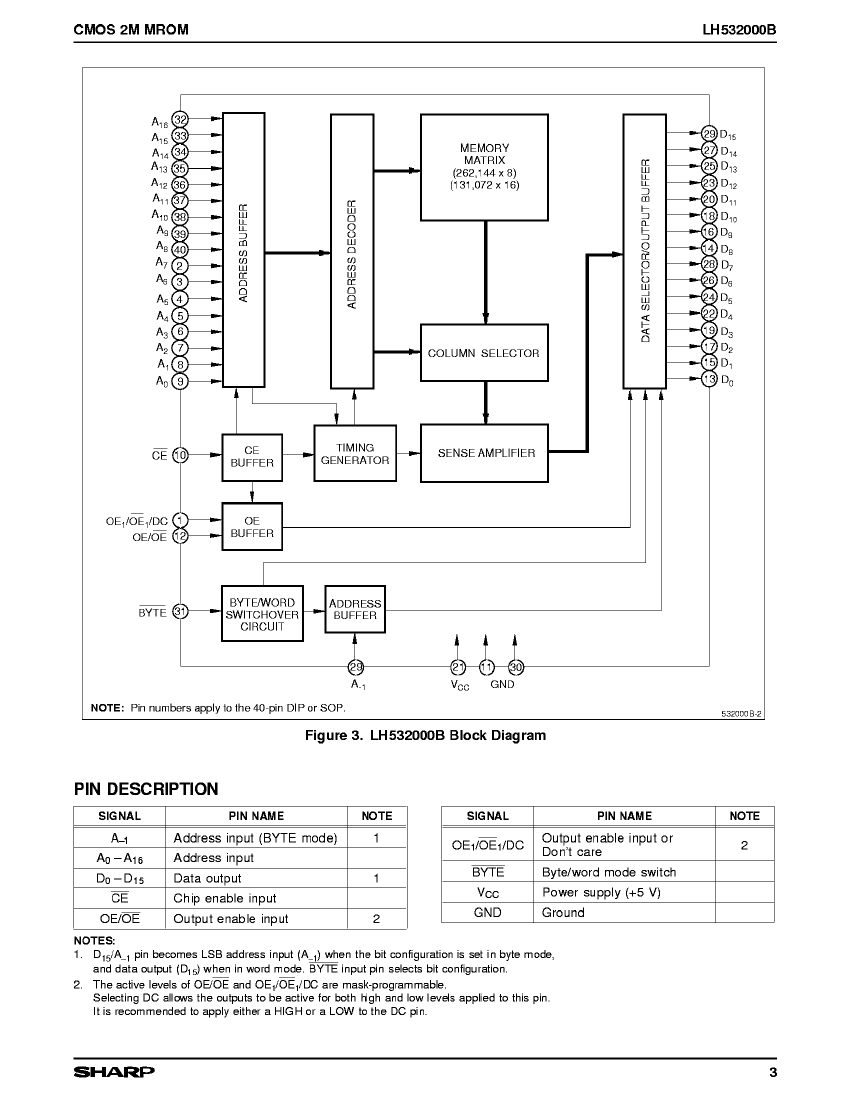

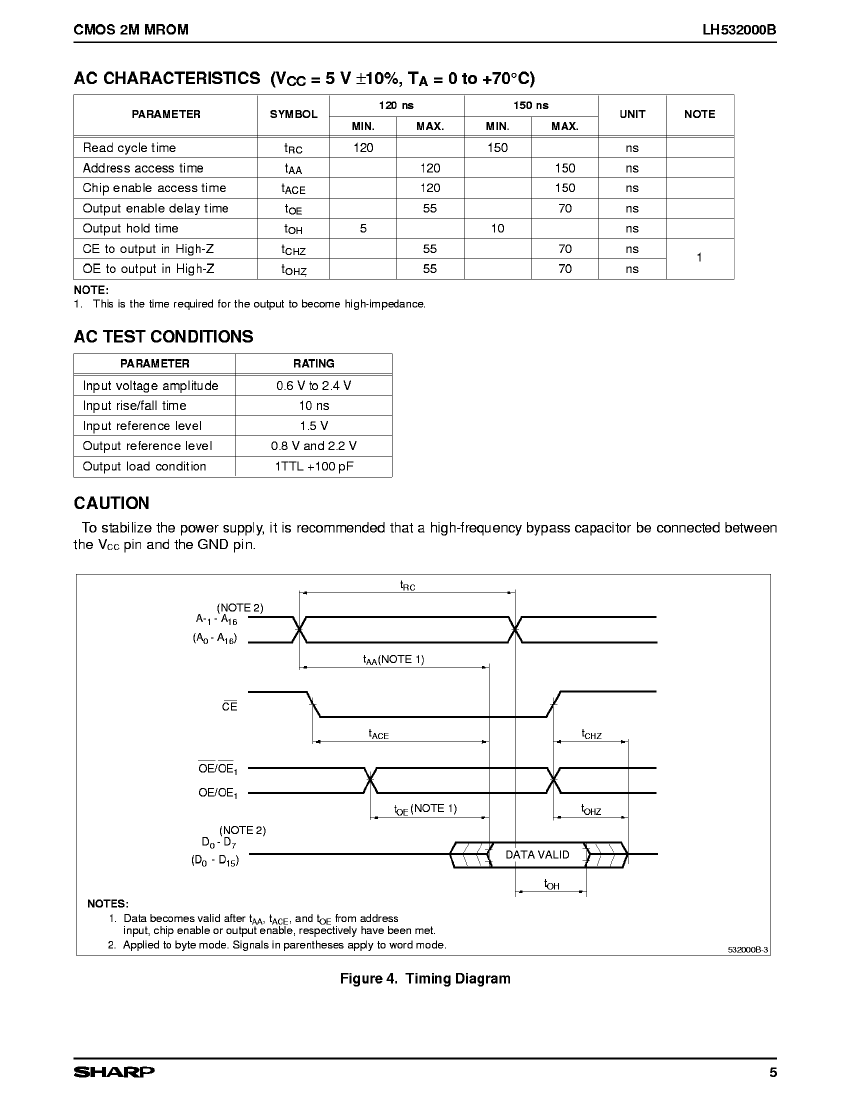

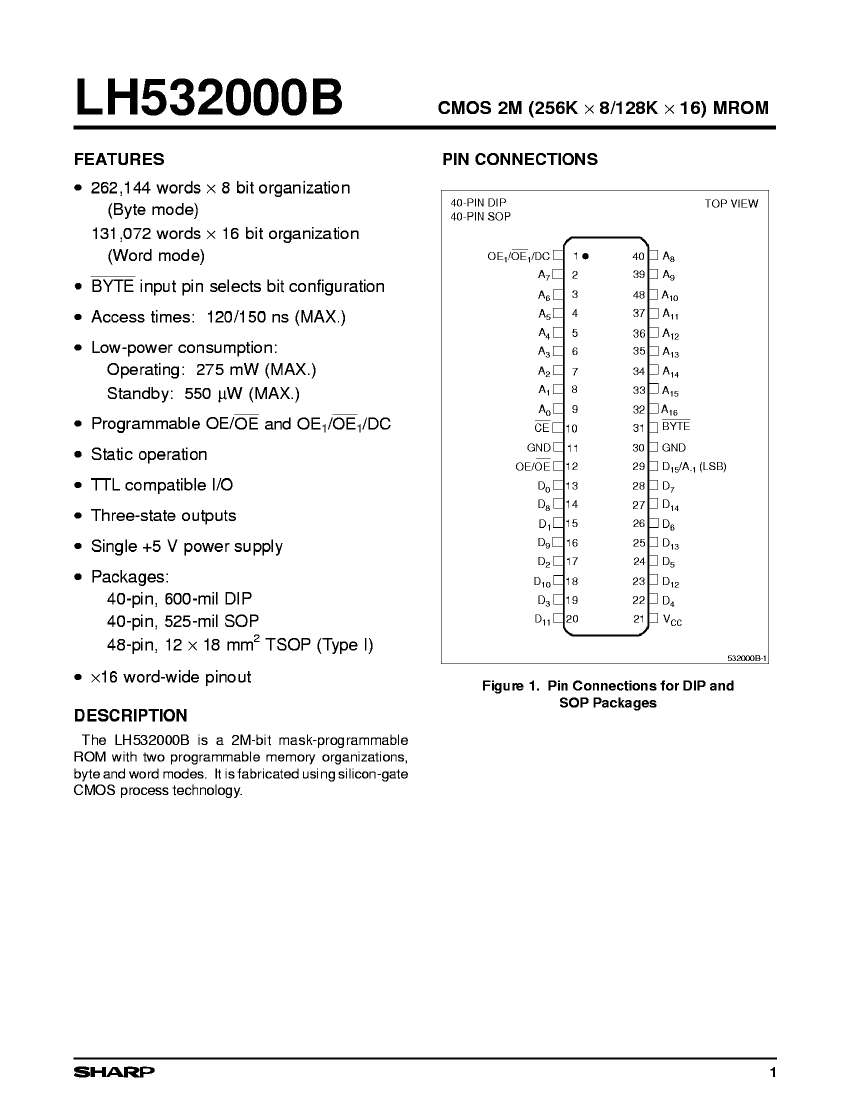

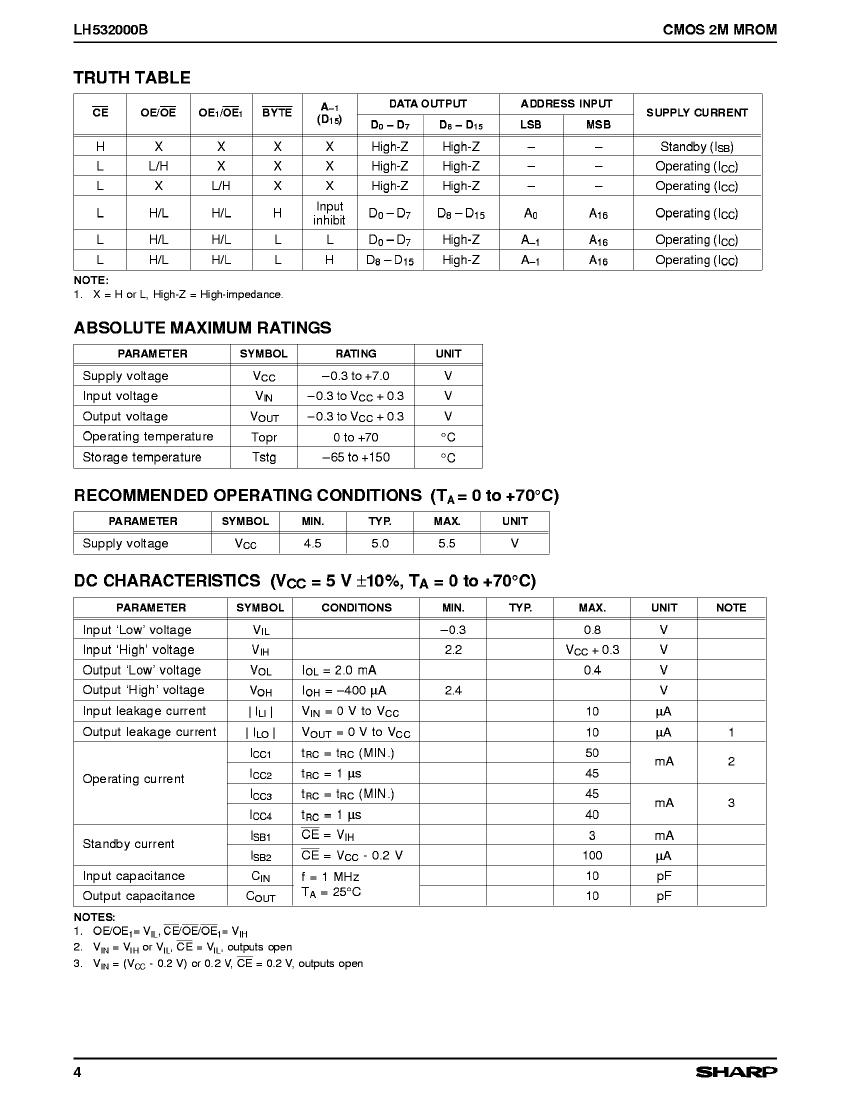

Preview

Download Datasheet

View All

LH532000BTR120 Related Products

	LH532000BTR120	LH532000BTR150	LH532000BT120	LH532000BT150	LH532000BD120	LH532000BD150	LH532000BN120	LH532000BN150
Description	MASK ROM, 256KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	MASK ROM, 256KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	MASK ROM, 256KX8, 120ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 256KX8, 150ns, CMOS, PDSO48, 12 X 18 MM, PLASTIC, TSOP1-48	MASK ROM, 256KX8, 120ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 256KX8, 150ns, CMOS, PDIP40, 0.600 INCH, PLASTIC, DIP-40	MASK ROM, 256KX8, 120ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40	MASK ROM, 256KX8, 150ns, CMOS, PDSO40, 0.525 INCH, PLASTIC, SOP-40
package instruction	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	12 X 18 MM, PLASTIC, REVERSE, TSOP1-48	12 X 18 MM, PLASTIC, TSOP1-48	12 X 18 MM, PLASTIC, TSOP1-48	0.600 INCH, PLASTIC, DIP-40	0.600 INCH, PLASTIC, DIP-40	0.525 INCH, PLASTIC, SOP-40	0.525 INCH, PLASTIC, SOP-40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	150 ns	120 ns	150 ns	120 ns	150 ns	120 ns	150 ns
JESD-30 code	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDSO-G48	R-PDIP-T40	R-PDIP-T40	R-PDSO-G40	R-PDSO-G40
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM	MASK ROM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	48	48	48	48	40	40	40	40
word count	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words	262144 words
character code	256000	256000	256000	256000	256000	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8	256KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	DIP	DIP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SHARP	SHARP	-	-	SHARP	SHARP	SHARP	SHARP
