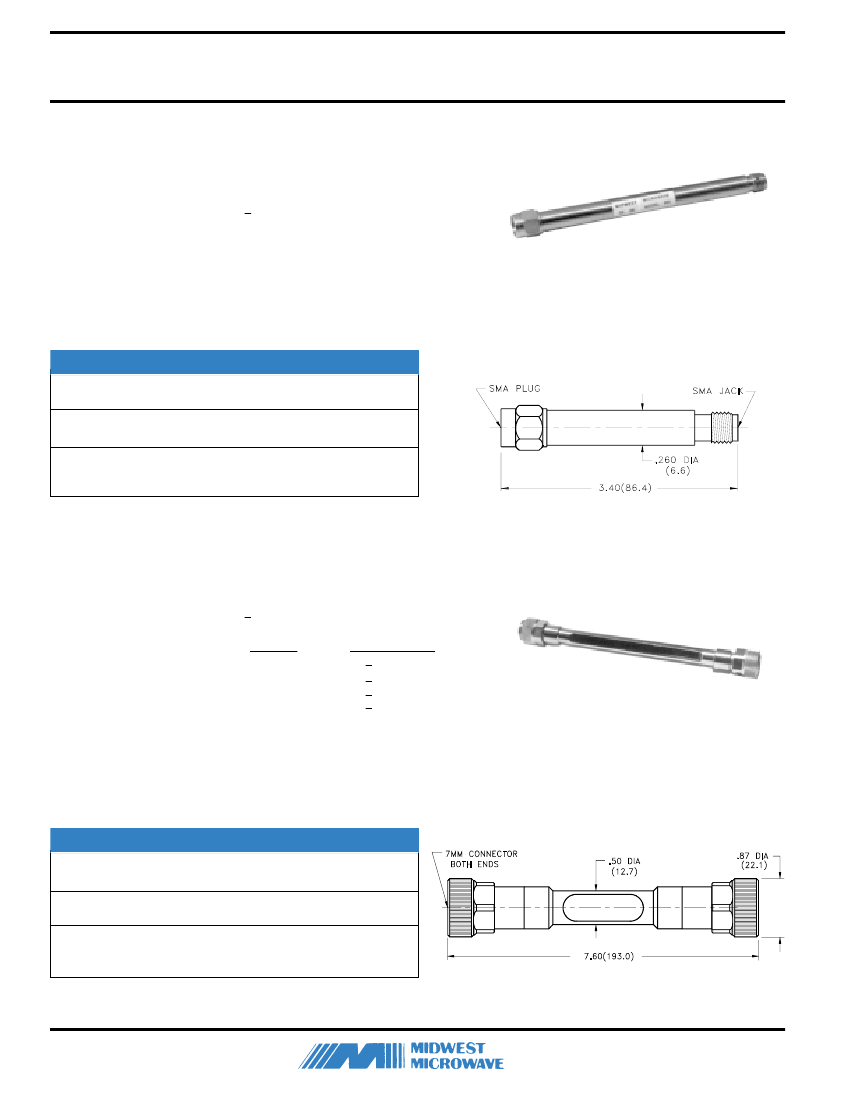

Attenuators
SMA - 18GHz Performance
Specifications
Frequency Range:
1-18GHz
3-18 GHz
5-18 GHz
6-18 GHz
Attenuation Values:
1-4 dB
5-9dB
10-15dB
16-20 dB
Max Deviation from Nominal:
+ 0.5 dB or 5% whichever is greater
Impedance:
50 Ohms
VSWR:
1.25 max
Power:
2 Watts average @ +25
o
C derated linearly to 0.5 Watts @ +125
o
C
Peak Power:
5 Kilowatts
Operating Temperature Range:
-54C to +125C
Finish:
Passivated Stainless Steel
Calibration:
Supplied at 4, 8, 12, and 18 GHz
DC - 18.0 GHz
204 Series
Male / Female
ATT-0204-XX-SMA-02
Attenuation Value = XX, Select 1 - 20 dB in 1 dB increments
Lossy Line Type
Model Number
SMA
7mm Precision - 1 - 18GHz Performance
Frequency Range:
1-18GHz
3-18 GHz
5-18 GHz
Attenuation Values:
3 & 6 dB
10 dB
20 dB
Max Deviation from Nominal:
+ 0.3 dB @ 8 GHz
Frequency Sensitivity (from value @ 8 GHz):
dB Value
3 dB
6 dB
10 dB
20 dB
f req Sensitivity
+ 0.5 dB
+ 0.6 dB
+ 1.0 dB
+ 1.2 dB
VSWR:
1.08 + 0.03 / f (GHz)
Power:
2 Watts average @ +40
o
C derated linearly to 0.5 Watts average @ +125
o
C
Peak Power:
5 Kilowatts
Operating Temperature Range:
-54C to +125C
Finish:
Passivated Stainless Steel
Calibration:
Supplied at 4, 8, 12, and 18 GHz
DC - 18.0 GHz
340A Series
7mm Precision
ATT-340A-XX-7MM-02
Attenuation Value = XX, Select 3, 6, 10, and 20 dB
Model Number
7mm Precision
36
