BAS19E6327 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS19E6327

BAS19E6327: DescriptionRectifier Diode, 1 Element, 0.25A, 100V V(RRM), Silicon, SOT-23, 3 PIN; CategoryDiscrete semiconductor diode; File Size86KB，4 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

BAS19E6327 Overview

Rectifier Diode, 1 Element, 0.25A, 100V V(RRM), Silicon, SOT-23, 3 PIN

BAS19E6327 Parametric

Parameter Name	Attribute value
Maker	SIEMENS
Parts packaging code	SOT-23
package instruction	R-PDSO-G3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum output current	0.25 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	LONG FORM
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	END
Base Number Matches	1

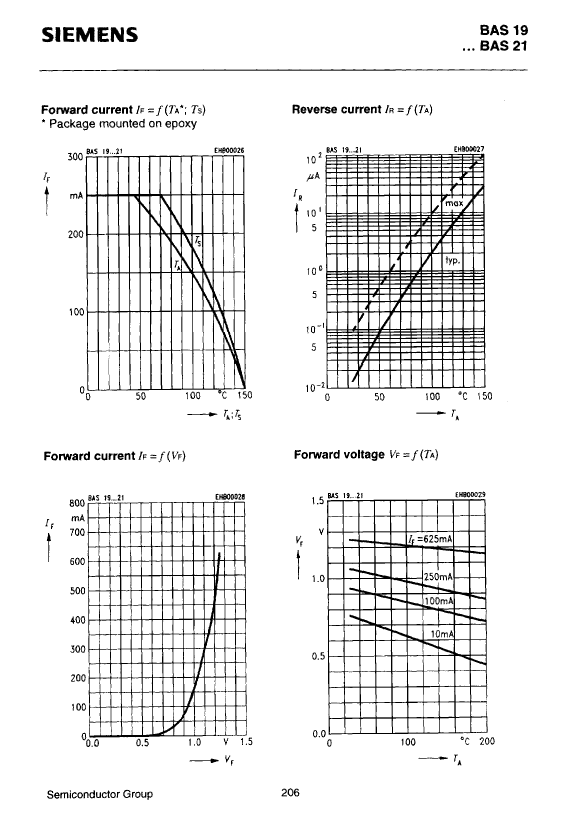

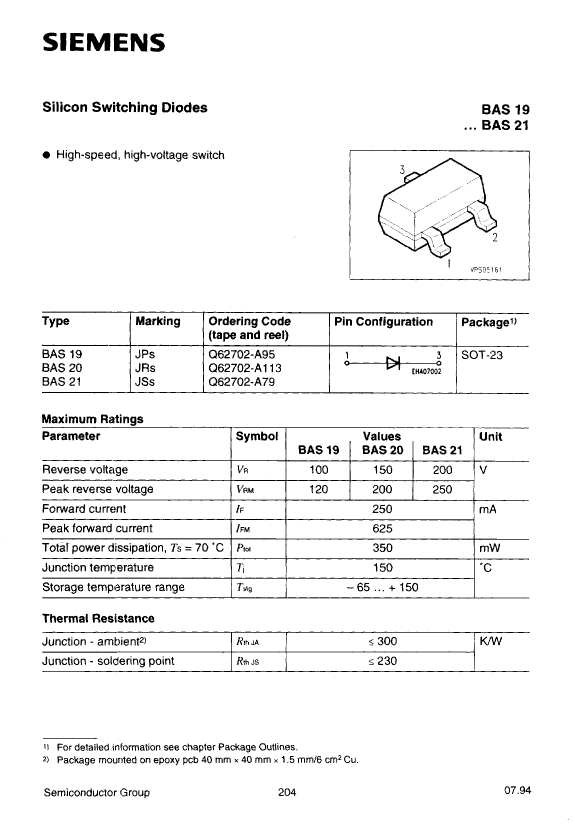

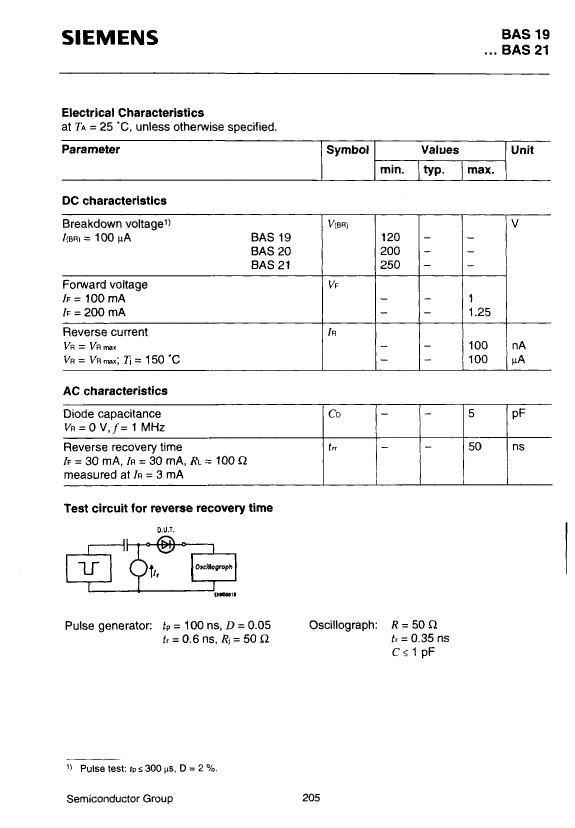

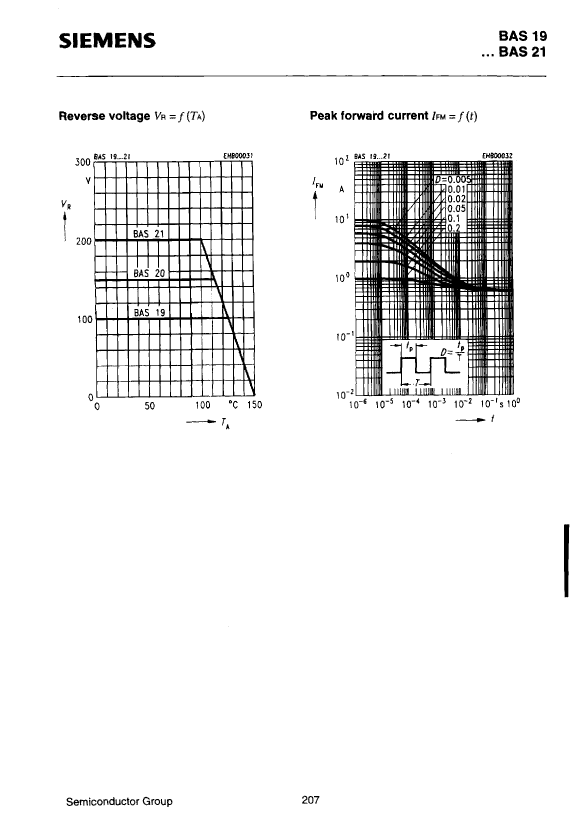

Preview

Download Datasheet

View All

BAS19E6327 Related Products

	BAS19E6327	BAS19E6433	BAS20E6433	BAS21E6433	BAS21E6327	BAS20E6327
Description	Rectifier Diode, 1 Element, 0.25A, 100V V(RRM), Silicon, SOT-23, 3 PIN	Rectifier Diode, 1 Element, Silicon	Rectifier Diode, 1 Element, Silicon	Rectifier Diode, 1 Element, 0.25A, 200V V(RRM), Silicon, SOT-23, 3 PIN	Rectifier Diode, 1 Element, Silicon	Rectifier Diode, 1 Element, Silicon
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	LONG FORM	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum power dissipation	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	END	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SIEMENS	-	-	SIEMENS	SIEMENS	SIEMENS
