DM1M40SJ-15 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DM1M40SJ-15

DM1M40SJ-15: DescriptionCache DRAM Module, 1MX40, 15ns, CMOS, SIMM-72; Categorystorage storage; File Size1MB，20 Pages; ManufacturerRamtron International Corporation (Cypress Semiconductor Corporation); Websitehttp://www.cypress.com/

Download Datasheet Parametric Compare View All

DM1M40SJ-15 Overview

Cache DRAM Module, 1MX40, 15ns, CMOS, SIMM-72

DM1M40SJ-15 Parametric

Parameter Name	Attribute value
Maker	Ramtron International Corporation (Cypress Semiconductor Corporation)
Parts packaging code	SIMM
package instruction	,
Contacts	72
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Maximum access time	15 ns
JESD-30 code	R-XSMA-N72
memory density	41943040 bit
Memory IC Type	CACHE DRAM MODULE
memory width	40
Number of functions	1
Number of ports	1
Number of terminals	72
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
organize	1MX40
Output characteristics	3-STATE
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Terminal form	NO LEAD
Terminal location	SINGLE
Base Number Matches	1

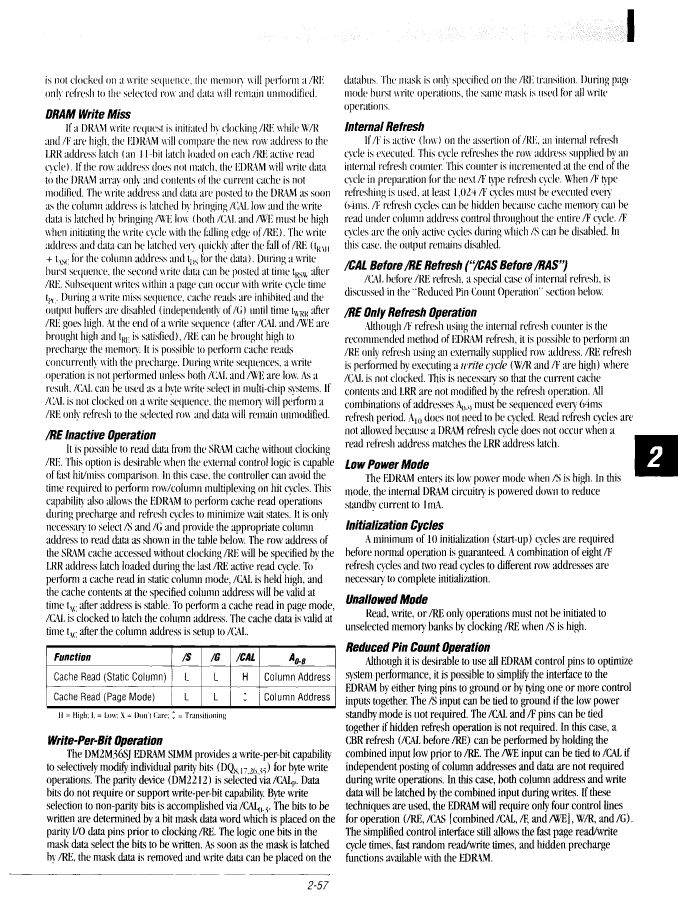

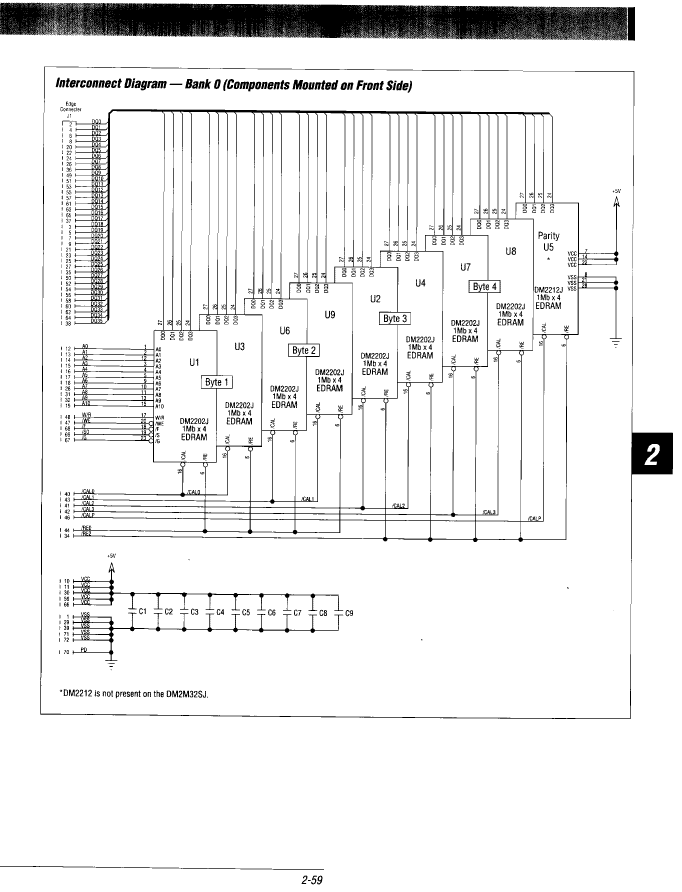

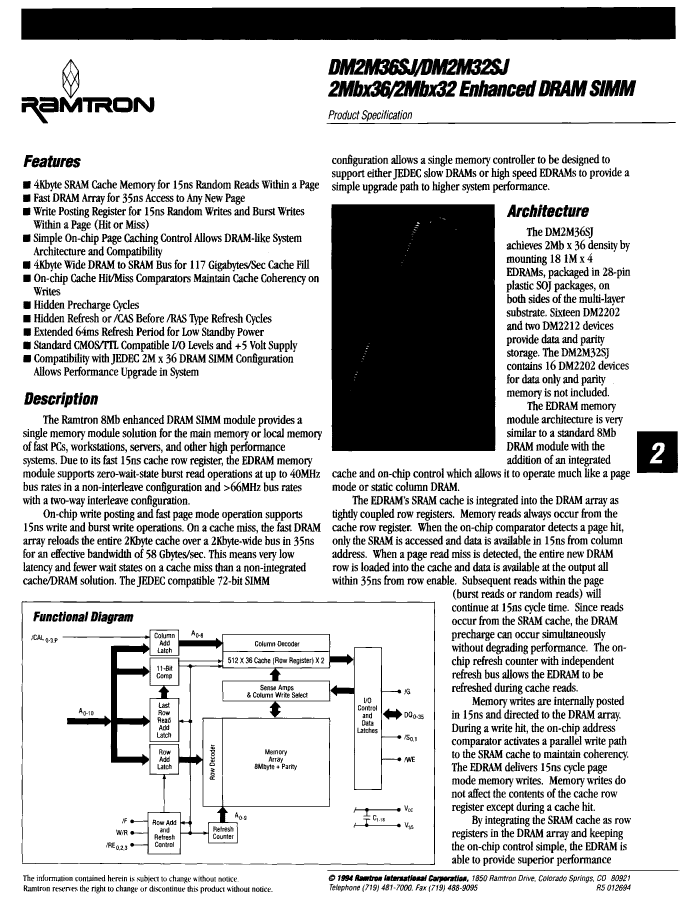

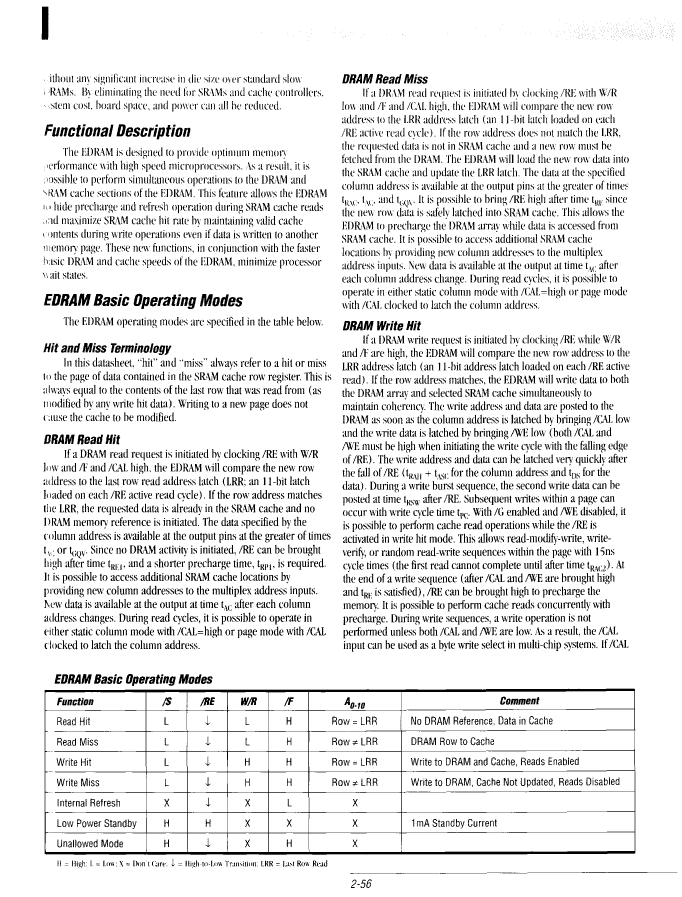

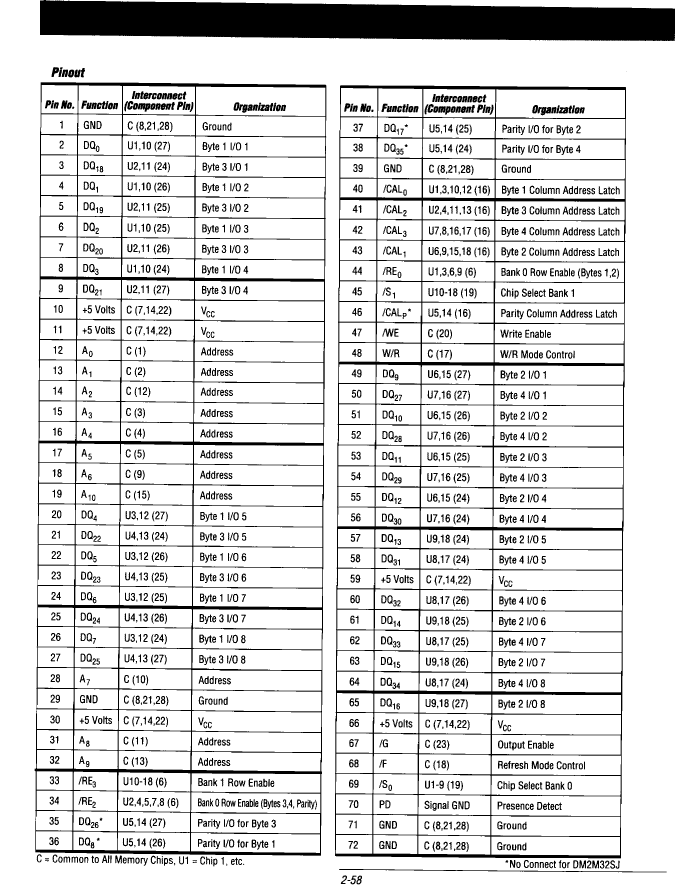

Preview

Download Datasheet

View All

DM1M40SJ-15 Related Products

	DM1M40SJ-15	DM2M40SJ-20	DM4M36SJ-20	DM1M40SJ-20	DM2M40SJ-15	DM4M40SJ-15	DM4M36SJ-15
Description	Cache DRAM Module, 1MX40, 15ns, CMOS, SIMM-72	Cache DRAM Module, 2MX40, 20ns, CMOS, SIMM-72	Cache DRAM Module, 4MX36, 20ns, CMOS, SIMM-72	Cache DRAM Module, 1MX40, 20ns, CMOS, SIMM-72	Cache DRAM Module, 2MX40, 15ns, CMOS, SIMM-72	Cache DRAM Module, 4MX40, 15ns, CMOS, SIMM-72	Cache DRAM Module, 4MX36, 15ns, CMOS, SIMM-72
Maker	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)
Parts packaging code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Contacts	72	72	72	72	72	72	72
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum access time	15 ns	20 ns	20 ns	20 ns	15 ns	15 ns	15 ns
JESD-30 code	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72	R-XSMA-N72
memory density	41943040 bit	83886080 bit	150994944 bit	41943040 bit	83886080 bit	167772160 bit	150994944 bit
Memory IC Type	CACHE DRAM MODULE	CACHE DRAM MODULE	CACHE DRAM MODULE	CACHE DRAM MODULE	CACHE DRAM MODULE	CACHE DRAM MODULE	CACHE DRAM MODULE
memory width	40	40	36	40	40	40	36
Number of functions	1	1	1	1	1	1	1
Number of ports	1	1	1	1	1	1	1
Number of terminals	72	72	72	72	72	72	72
word count	1048576 words	2097152 words	4194304 words	1048576 words	2097152 words	4194304 words	4194304 words
character code	1000000	2000000	4000000	1000000	2000000	4000000	4000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
organize	1MX40	2MX40	4MX36	1MX40	2MX40	4MX40	4MX36
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
