DS1200SN datasheet, PDF - EEWORLD Datasheet

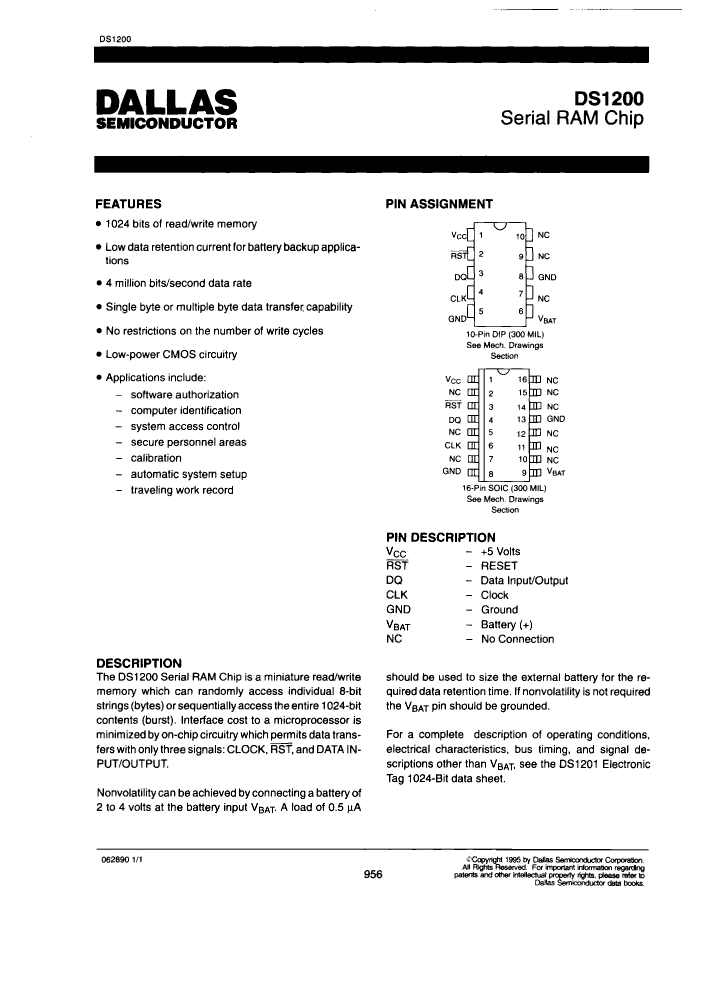

DS1200SN: DescriptionNon-Volatile SRAM, 128X8, 125ns, CMOS, PDSO16,; Categorystorage storage; File Size32KB，1 Pages; ManufacturerDALLAS; Websitehttp://www.dalsemi.com

Download Datasheet Parametric Compare View All

DS1200SN Overview

Non-Volatile SRAM, 128X8, 125ns, CMOS, PDSO16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DALLAS
Reach Compliance Code	unknown
Is Samacsys	N
Maximum access time	125 ns
Other features	DATA RETENTION > 10 YEARS
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
memory density	1024 bit
Memory IC Type	NON-VOLATILE SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	16
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Output characteristics	3-STATE
Exportable	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum standby current	0.0025 A
Maximum slew rate	0.006 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Base Number Matches	1

	DS1200SN	DS1200N
Description	Non-Volatile SRAM, 128X8, 125ns, CMOS, PDSO16,	Non-Volatile SRAM, 128X8, 125ns, CMOS, PDIP10,
Is it Rohs certified?	incompatible	incompatible
Maker	DALLAS	DALLAS
Reach Compliance Code	unknown	unknown
Is Samacsys	N	N
Maximum access time	125 ns	125 ns
Other features	DATA RETENTION > 10 YEARS	DATA RETENTION > 10 YEARS
JESD-30 code	R-PDSO-G16	R-PDIP-T10
JESD-609 code	e0	e0
memory density	1024 bit	1024 bit
Memory IC Type	NON-VOLATILE SRAM	NON-VOLATILE SRAM
memory width	8	8
Number of functions	1	1
Number of ports	1	1
Number of terminals	16	10
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
organize	128X8	128X8
Output characteristics	3-STATE	3-STATE
Exportable	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP
Encapsulate equivalent code	SOP16,.4	DIP10,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Parallel/Serial	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified
Maximum standby current	0.0025 A	0.0025 A
Maximum slew rate	0.006 mA	0.006 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
