64 Meg Based, 50 - 70ns, M-Densus
30A179-00
C
High Density Memory Device
DESCRIPTION:
The
M-Densus
series is a family of interchangeable memory
modules. The 64 Megabit DRAM is a member of this family
which utilizes the new and innovative space saving TSOP
technology. The modules are constructed with 8 Meg x 8
DRAM’s available in 512, 256 and 128 Megabits.
The 64 Megabit based
M-Densus
modules have been designed
to fit in the same footprint as the 8 Meg x 8 DRAM TSOP
monolithic and are backward compatible with the 16 Megabit
based family of
M-Densus
modules. This allows the memory
board designer to upgrade the memory in their products
without redesigning the memory board, thus saving time and
money.
FEATURES:
•
Configurations Available:
512 Megabit: 64 Meg x 8
256 Megabit: 32 Meg x 8
128 Megabit: 16 Meg x 8
•
Access Times: 50, 60, 70ns (max.)
•
5.0V or 3.3V Supply
•
Common Data Inputs and Outputs
•
EDO or Fast Page Mode Capability
•
4096 Cycles / 64 ms
•
3 Variations of Refresh:
- RAS only Refresh
- CAS before RAS Refresh
- Hidden Refresh
•
Package: Leadless TSOP Module
M-Densus
512 Megabit CMOS DRAM
256 Megabit CMOS DRAM
128 Megabit CMOS DRAM

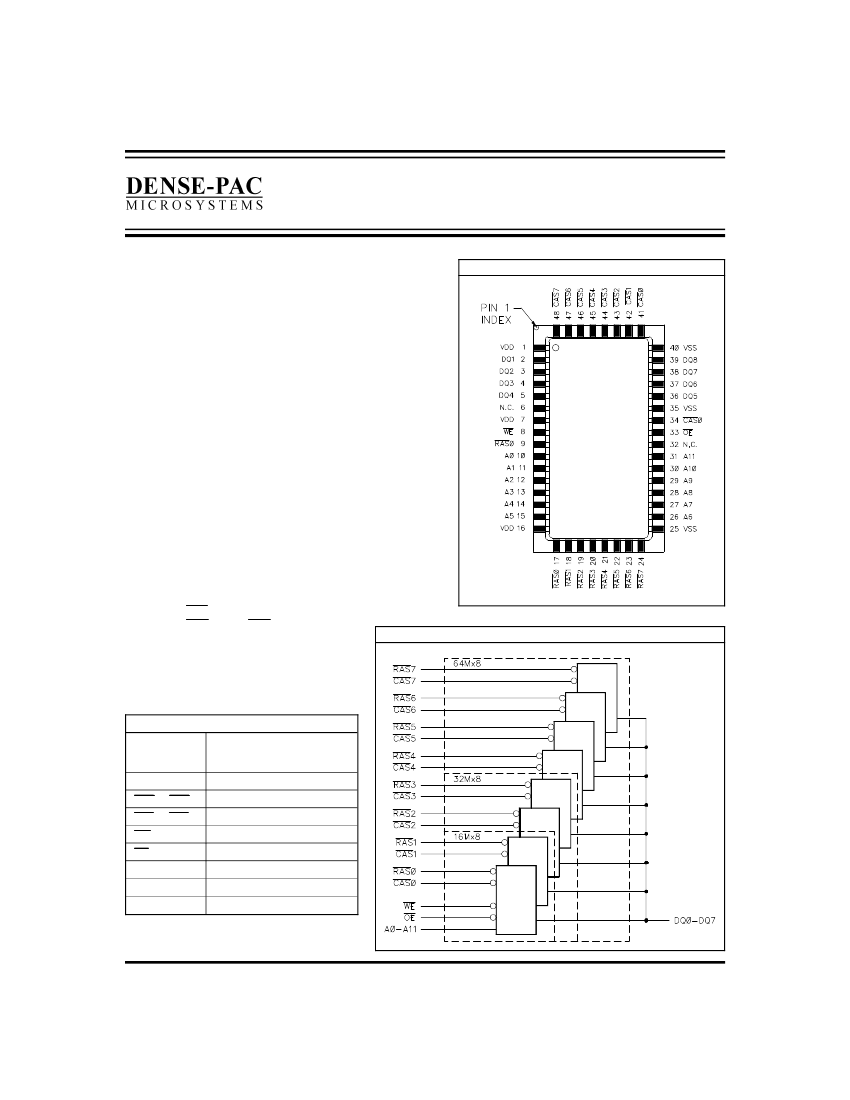

PIN-OUT DIAGRAM
* NOTE:
A12 on 8K refresh version, N.C. on 4K version.
FUNCTIONAL BLOCK DIAGRAM
PIN NAMES
A0 - A11
DQ0 - DQ7
CAS0 - CAS7
RAS0 - RAS7
WE
OE
V
DD
V
SS
N.C.
Row Address:
A0 - A11
Column Address: A0 - A11
Refresh Address: A0 - A11
Data In / Data Out
Column Address Strobes
Row Address Enables
Data Write Enable
Data Output Enable
Power Supply (+5V/3.3V)
Ground
No Connect
30A179-00
REV. C
This document contains information on a product that is currently released
to production at Dense-Pac Microsystems, Inc. Dense-Pac reserves the right
to change products or specifications herein without prior notice.
1
64 Megabit DRAM Based
M-Densus
ORDERING INFORMATION
Dense-Pac Microsystems, Inc.

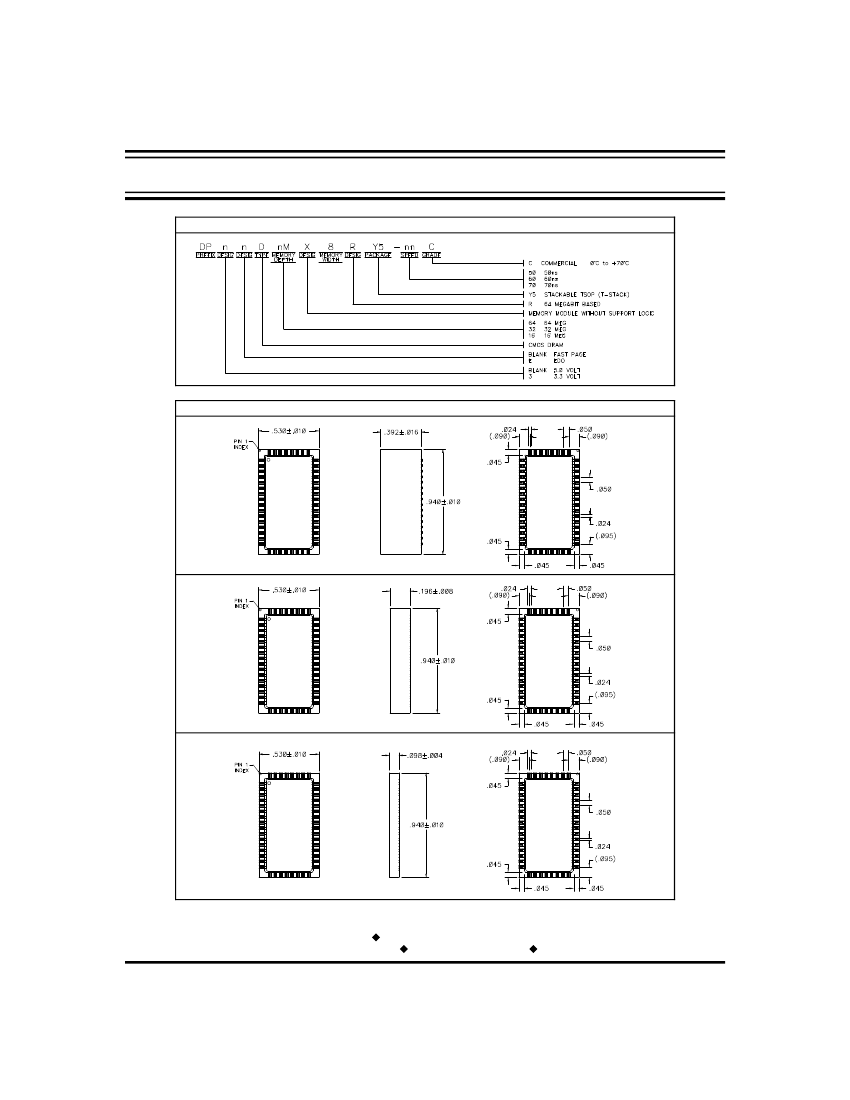

MECHANICAL DRAWING
512 Megabit
(64 Meg x 8)
256 Megabit
(32 Meg x 8)
128 Megabit
(16 Meg x 8)
(714) 898-0007
7321 Lincoln Way
Garden Grove , California 92841-1431
(800) 642-4477
(Outside CA)
FAX: (714) 897-1772
http://www.dense-pac.com
30A179-00
REV. C
Dense-Pac Microsystems, Inc.
2
