DS1345BL-70-IND datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> DS1345BL-70-IND

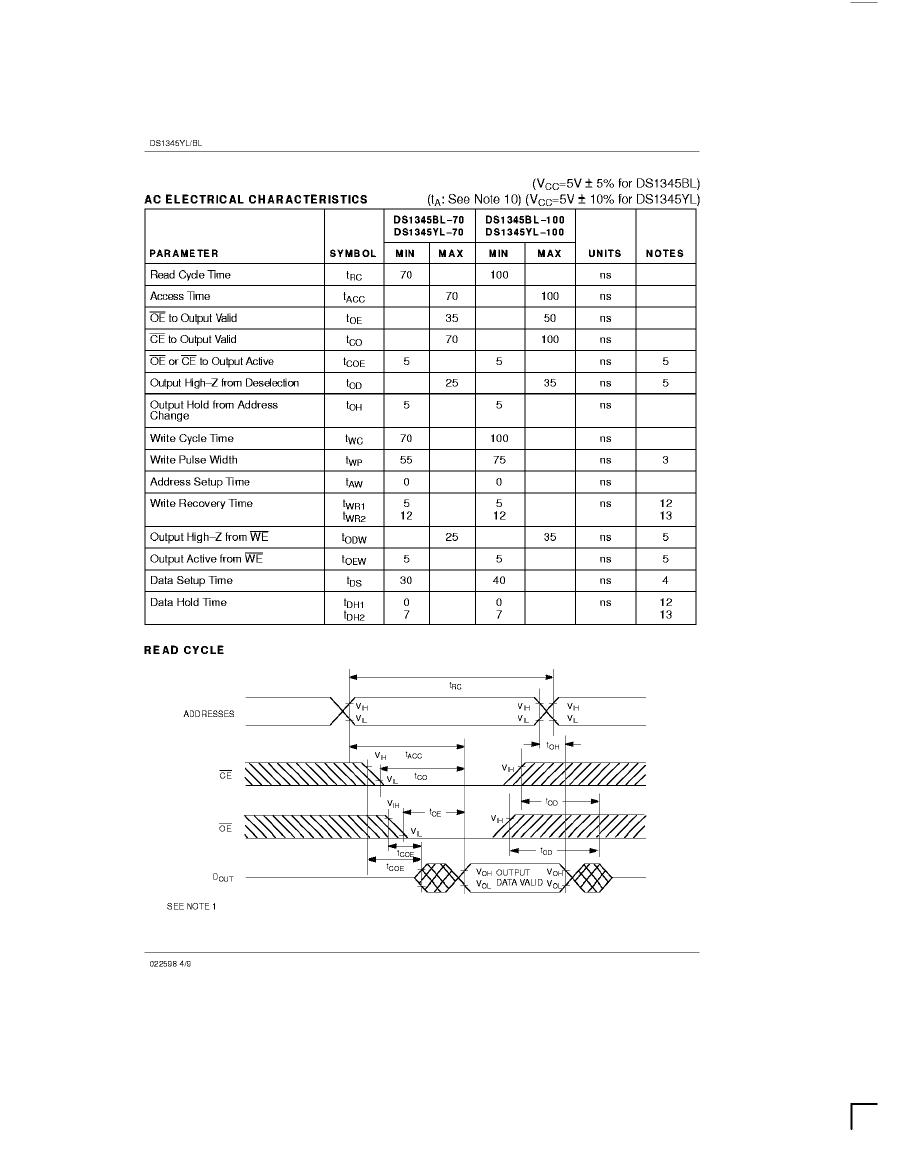

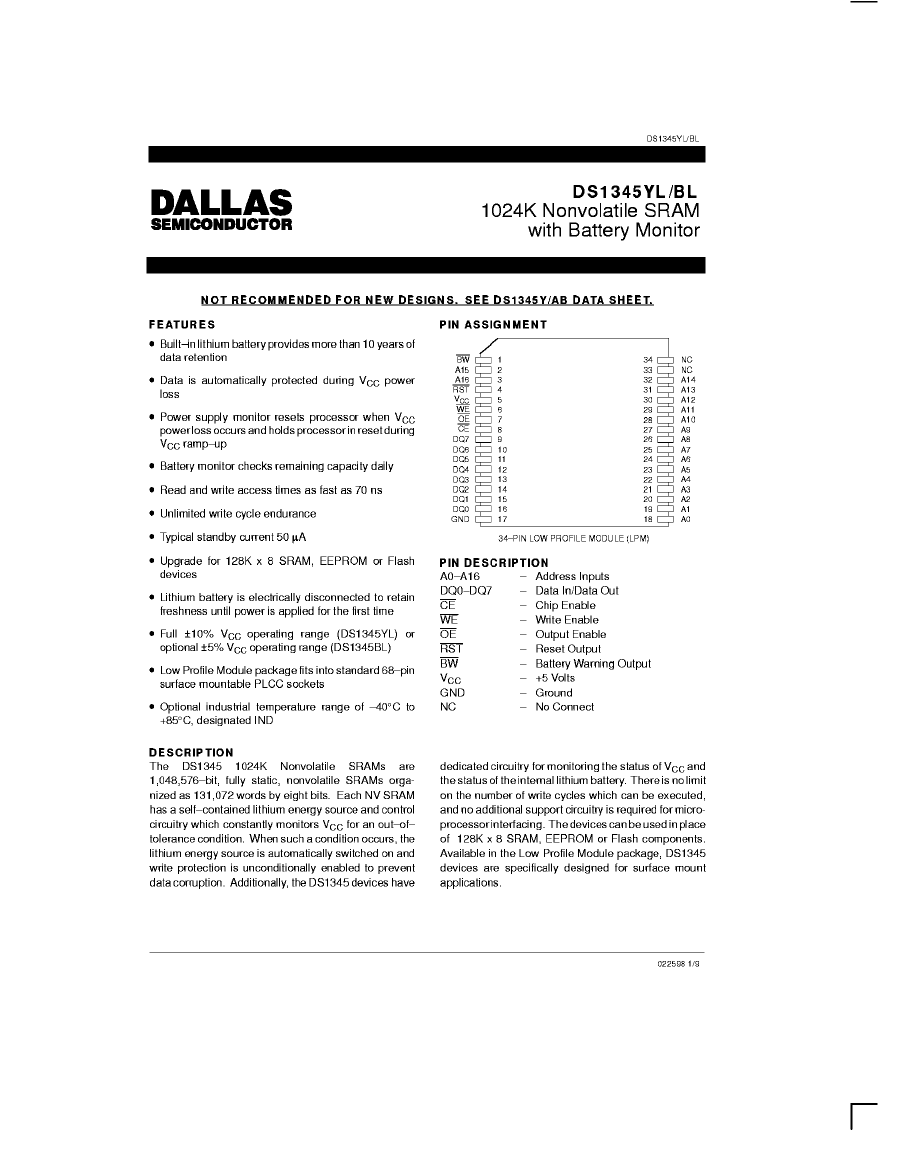

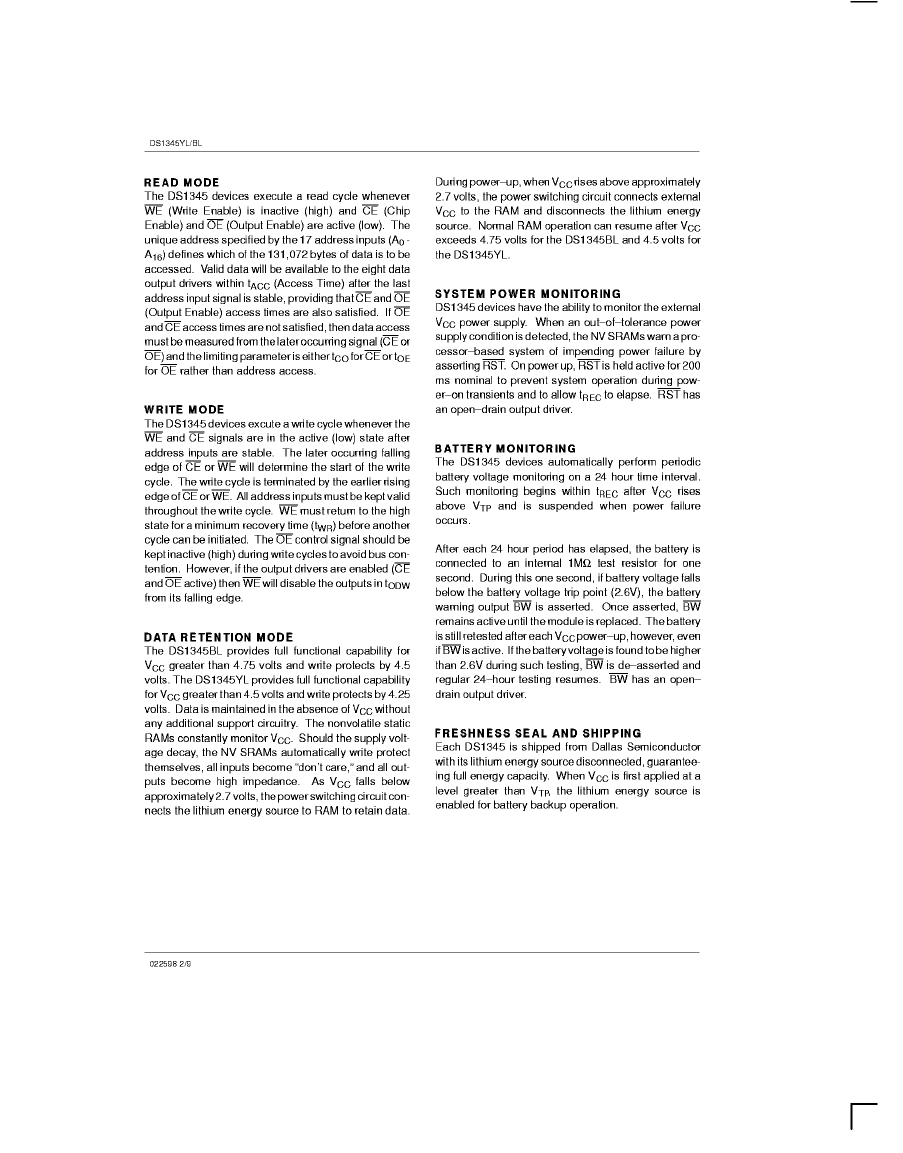

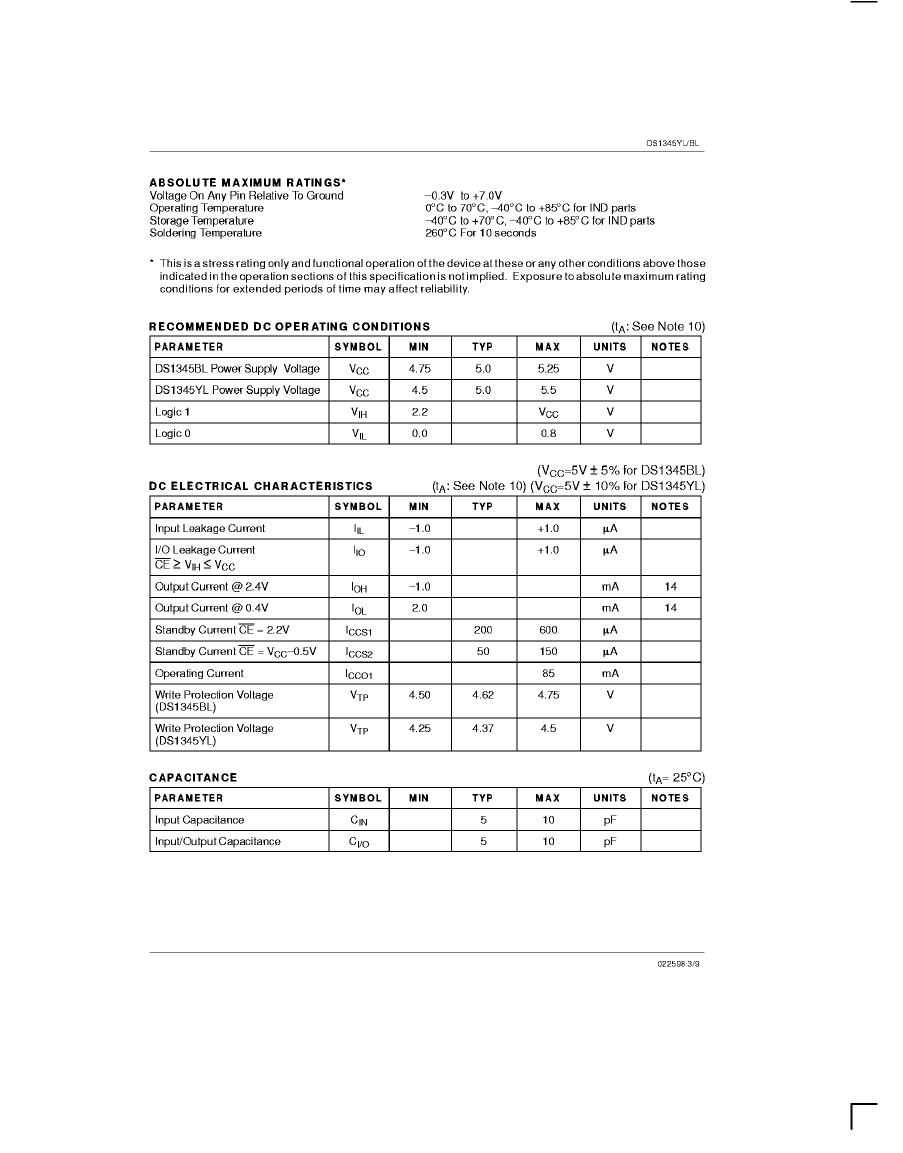

Preview

DS1345BL-70-IND: DescriptionNon-Volatile SRAM Module, 128KX8, 70ns, MOS, PDSO34, LOW PROFILE, SMT-34; Categorystorage storage; File Size160KB，9 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1345BL-70-IND Overview

Non-Volatile SRAM Module, 128KX8, 70ns, MOS, PDSO34, LOW PROFILE, SMT-34

DS1345BL-70-IND Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	SOIC
package instruction	LOW PROFILE, SMT-34
Contacts	34
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Maximum access time	70 ns
Other features	10 YEAR DATA RETENTION PERIOD
JESD-30 code	R-PDSO-U34
JESD-609 code	e0
length	24.5745 mm
memory density	1048576 bit
Memory IC Type	NON-VOLATILE SRAM MODULE
memory width	8
Number of functions	1
Number of terminals	34
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ-I
Encapsulate equivalent code	MODULE,34LEAD,1.0
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum standby current	0.00015 A
Maximum slew rate	0.085 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	MOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	J INVERTED
Terminal pitch	1.27 mm
Terminal location	DUAL
width	21.5265 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DS1345BL-70-IND Related Products

	DS1345BL-70-IND	DS1345BL-100-IND	DS1345YL-100-IND
Description	Non-Volatile SRAM Module, 128KX8, 70ns, MOS, PDSO34, LOW PROFILE, SMT-34	Non-Volatile SRAM Module, 128KX8, 100ns, MOS, PDSO34, LOW PROFILE, SMT-34	Non-Volatile SRAM Module, 128KX8, 100ns, CMOS, PDSO34, LOW PROFILE, SMT-34
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim
Parts packaging code	SOIC	SOIC	SOIC
package instruction	LOW PROFILE, SMT-34	LOW PROFILE, SMT-34	LOW PROFILE, SMT-34
Contacts	34	34	34
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Maximum access time	70 ns	100 ns	100 ns
Other features	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION PERIOD	10 YEAR DATA RETENTION PERIOD
JESD-30 code	R-PDSO-U34	R-PDSO-U34	R-PDSO-U34
JESD-609 code	e0	e0	e0
length	24.5745 mm	24.5745 mm	24.5745 mm
memory density	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE	NON-VOLATILE SRAM MODULE
memory width	8	8	8
Number of functions	1	1	1
Number of terminals	34	34	34
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
organize	128KX8	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ-I	SOJ-I	SOJ-I
Encapsulate equivalent code	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0	MODULE,34LEAD,1.0
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	6.35 mm	6.35 mm	6.35 mm
Maximum standby current	0.00015 A	0.00015 A	0.00015 A
Maximum slew rate	0.085 mA	0.085 mA	0.085 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	MOS	MOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	J INVERTED	J INVERTED	J INVERTED
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	21.5265 mm	21.5265 mm	21.5265 mm
Base Number Matches	1	1	-
